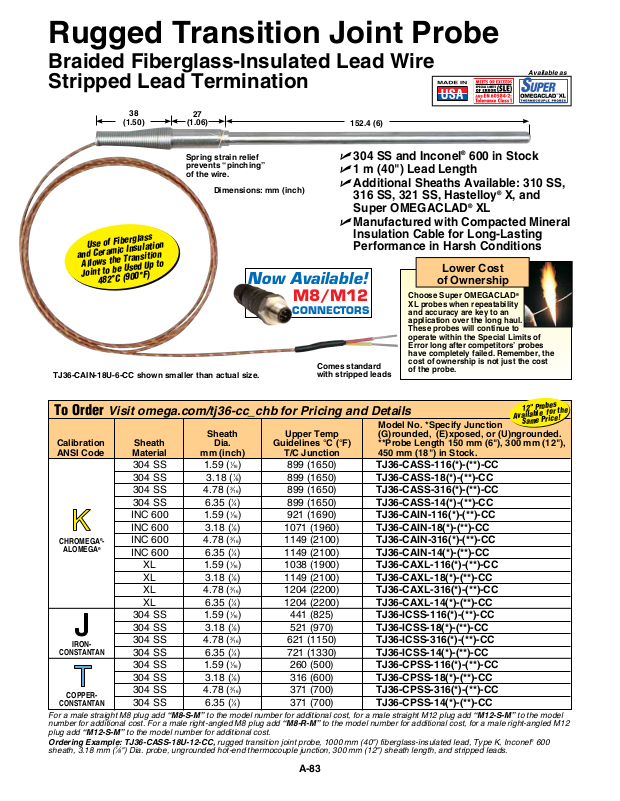

Rugged Transition Joint Probe
Braided Fiberglass-Insulated Lead Wire
Stripped Lead Termination
38
(1.50)
Use of Fiberglass
and Ceramic Insulation
Allows the Transition
Joint to be Used Up to
482°C (900°F)
TJ36-CAIN-18U-6-CC shown smaller than actual size.
27
(1.06)
Spring strain relief
prevents “pinching”
of the wire.
Dimensions: mm (inch)
Now Available!
152.4 (6)
U 304 SS and Inconel® 600 in Stock
U 1 m (40") Lead Length
U Additional Sheaths Available: 310 SS,
316 SS, 321 SS, Hastelloy® X, and
Super OMEGACLAD® XL
U Manufactured with Compacted Mineral
Insulation Cable for Long-Lasting
Performance in Harsh Conditions
M8/M12
CONNECTORS
Comes standard
with stripped leads
Choose Super OMEGACLAD®
XL probes when repeatability
and accuracy are key to an
application over the long haul.
These probes will continue to
operate within the Special Limits of
Error long after competitors’ probes
have completely failed. Remember, the
cost of ownership is not just the cost
of the probe.
Available as
Lower Cost
of Ownership
To Order Visit omega.com/tj36-cc_chb for Pricing and Details
Model No. *Specify Junction
12" Probes
Available for the
Same Price!
Sheath Upper Temp (G)rounded, (E)xposed, or (U)ngrounded.
Calibration Sheath Dia. Guidelines °C (°F) **Probe Length 150 mm (6"), 300 mm (12"),
ANSI Code Material mm (inch) T/C Junction 450 mm (18") in Stock.
304 SS 1.59 (
304 SS 3.18 (
304 SS 4.78 (
304 SS 6.35 (
INC 600 1.59 (
INC 600 3.18 (
INC 600 4.78 (
CHROMEGA®-
ALOMEGA
INC 600 6.35 (
®
XL 1.59 (
XL 3.18 (
XL 4.78 (
XL 6.35 (
304 SS 1.59 (
304 SS 3.18 (
304 SS 4.78 (
IRON-
CONSTANTAN
304 SS 6.35 (
304 SS 1.59 (
304 SS 3.18 (
304 SS 4.78 (
COPPER-
304 SS 6.35 (
CONSTANTAN
For a male straight M8 plug add “M8-S-M” to the model number for additional cost, for a male straight M12 plug add “M12-S-M” to the model
number for additional cost. For a male right-angled M8 plug add “M8-R-M” to the model number for additional cost, for a male right-angled M12
plug add “M12-S-M” to the model number for additional cost.
Ordering Example: TJ36-CASS-18U-12-CC, rugged transition joint probe, 1000 mm (40") fiberglass-insulated lead, Type K, Inconel® 600
sheath, 3.18 mm (
1
⁄8") Dia. probe, ungrounded hot-end thermocouple junction, 300 mm (12") sheath length, and stripped leads.
1
⁄16) 899 (1650) TJ36-CASS-116(*)-(**)-CC
1
⁄8) 899 (1650) TJ36-CASS-18(*)-(**)-CC
3
⁄16) 899 (1650) TJ36-CASS-316(*)-(**)-CC
1
⁄4) 899 (1650) TJ36-CASS-14(*)-(**)-CC
1
⁄16) 921 (1690) TJ36-CAIN-116(*)-(**)-CC
1
⁄8) 1071 (1960) TJ36-CAIN-18(*)-(**)-CC
3
⁄16) 1149 (2100) TJ36-CAIN-316(*)-(**)-CC
1
⁄4) 1149 (2100) TJ36-CAIN-14(*)-(**)-CC
1
⁄16) 1038 (1900) TJ36-CAXL-116(*)-(**)-CC
1
⁄8) 1149 (2100) TJ36-CAXL-18(*)-(**)-CC
3
⁄16) 1204 (2200) TJ36-CAXL-316(*)-(**)-CC
1
⁄4) 1204 (2200) TJ36-CAXL-14(*)-(**)-CC
1
⁄16) 441 (825) TJ36-ICSS-116(*)-(**)-CC
1
⁄8) 521 (970) TJ36-ICSS-18(*)-(**)-CC
3
⁄16) 621 (1150) TJ36-ICSS-316(*)-(**)-CC
1
⁄4) 721 (1330) TJ36-ICSS-14(*)-(**)-CC
1
⁄16) 260 (500) TJ36-CPSS-116(*)-(**)-CC
1
⁄8) 316 (600) TJ36-CPSS-18(*)-(**)-CC
3
⁄16) 371 (700) TJ36-CPSS-316(*)-(**)-CC
1
⁄4) 371 (700) TJ36-CPSS-14(*)-(**)-CC
