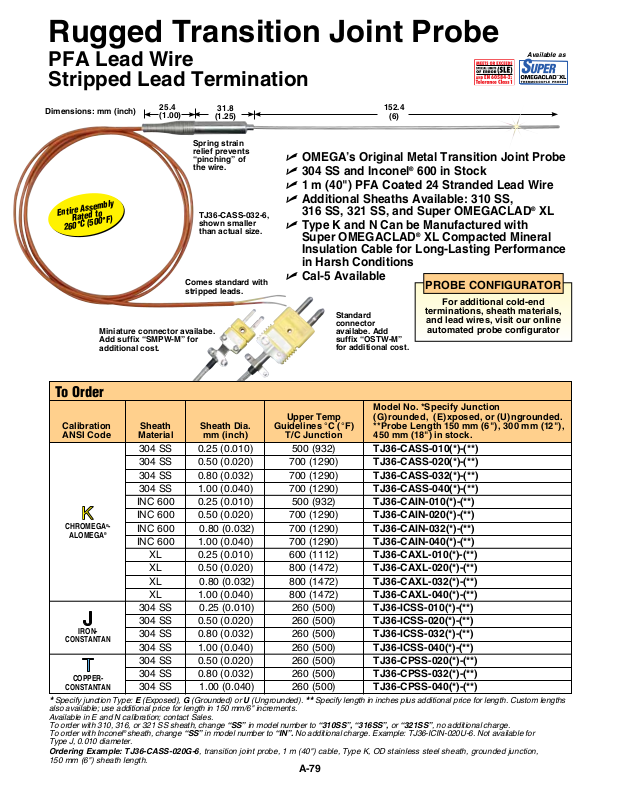

Rugged Transition Joint Probe
PFA Lead Wire
Stripped Lead Termination
Available as
Dimensions: mm (inch)
25.4
(1.00)
31.8
(1.25)
Spring strain
relief prevents
“pinching” of
the wire.
U OMEGA’s Original Metal Transition Joint Probe
U 304 SS and Inconel® 600 in Stock
152.4
(6)
U 1 m (40") PFA Coated 24 Stranded Lead Wire
U Additional Sheaths Available: 310 SS,
Entire Assembly
Rated to
260°C (500°F)
TJ36-CASS-032-6,
shown smaller
than actual size.
316 SS, 321 SS, and Super OMEGACLAD® XL
U Type K and N Can be Manufactured with
Super OMEGACLAD® XL Compacted Mineral
Insulation Cable for Long-Lasting Performance
in Harsh Conditions
Comes standard with
stripped leads.
Miniature connector availabe.
Add suffix “SMPW-M” for
additional cost.
U Cal-5 Available
Standard
connector
availabe. Add
suffix “OSTW-M”
for additional cost.
PROBE CONFIGURATOR
For additional cold-end
terminations, sheath materials,
and lead wires, visit our online
automated probe configurator
To Order
Model No. *Specify Junction
Upper Temp (G) rounded, (E)xposed, or (U)ngrounded.
Calibration Sheath Sheath Dia. Guidelines °C (°F) **Probe Length 150 mm (6"), 300 mm (12"),
ANSI Code Material mm (inch) T/C Junction 450 mm (18") in stock.
304 SS 0.25 (0.010) 500 (932) TJ36-CASS-010(*)-(**)
304 SS 0.50 (0.020) 700 (1290) TJ36-CASS-020(*)-(**)
304 SS 0.80 (0.032) 700 (1290) TJ36-CASS-032(*)-(**)
304 SS 1.00 (0.040) 700 (1290) TJ36-CASS-040(*)-(**)
INC 600 0.25 (0.010) 500 (932) TJ36-CAIN-010(*)-(**)
INC 600 0.50 (0.020) 700 (1290) TJ36-CAIN-020(*)-(**)
CHROMEGA®-
INC 600 0.80 (0.032) 700 (1290) TJ36-CAIN-032(*)-(**)
ALOMEGA
INC 600 1.00 (0.040) 700 (1290) TJ36-CAIN-040(*)-(**)
XL 0.25 (0.010) 600 (1112) TJ36-CAXL-010(*)-(**)
XL 0.50 (0.020) 800 (1472) TJ36-CAXL-020(*)-(**)
XL 0.80 (0.032) 800 (1472) TJ36-CAXL-032(*)-(**)
XL 1.00 (0.040) 800 (1472) TJ36-CAXL-040(*)-(**)
304 SS 0.25 (0.010) 260 (500) TJ36-ICSS-010(*)-(**)
304 SS 0.50 (0.020) 260 (500) TJ36-ICSS-020(*)-(**)
304 SS 0.80 (0.032) 260 (500) TJ36-ICSS-032(*)-(**)
CONSTANTAN
304 SS 1.00 (0.040) 260 (500) TJ36-ICSS-040(*)-(**)
304 SS 0.50 (0.020) 260 (500) TJ36-CPSS-020(*)-(**)
304 SS 0.80 (0.032) 260 (500) TJ36-CPSS-032(*)-(**)
COPPER-
CONSTANTAN
304 SS 1.00 (0.040) 260 (500) TJ36-CPSS-040(*)-(**)
Specify junction Type: E (Exposed), G (Grounded) or U (Ungrounded). ** Specify length in inches plus additional price for length. Custom lengths
*
also available; use additional price for length in 150 mm/6" increments.
Available in E and N calibration; contact Sales.
To order with 310, 316, or 321 SS sheath, change “SS” in model number to “310SS”, “316SS”, or “321SS”, no additional charge.
To order with Inconel® sheath, change “SS” in model number to “IN”. No additional charge. Example: TJ36-ICIN-020U-6. Not available for
Type J, 0.010 diameter.
Ordering Example: TJ36-CASS-020G-6, transition joint probe, 1 m (40") cable, Type K, OD stainless steel sheath, grounded junction,
150 mm (6") sheath length.
®
IRON-
