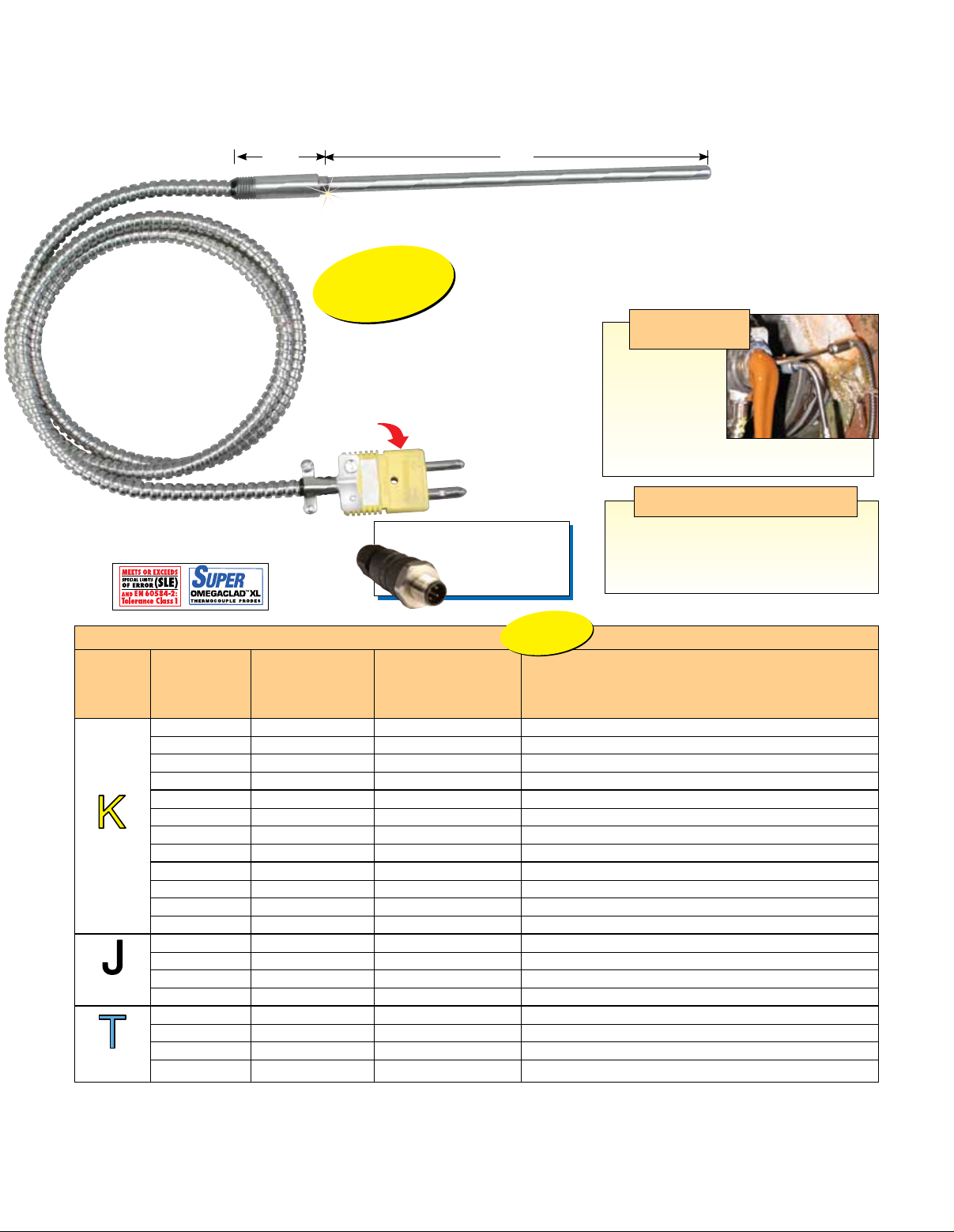

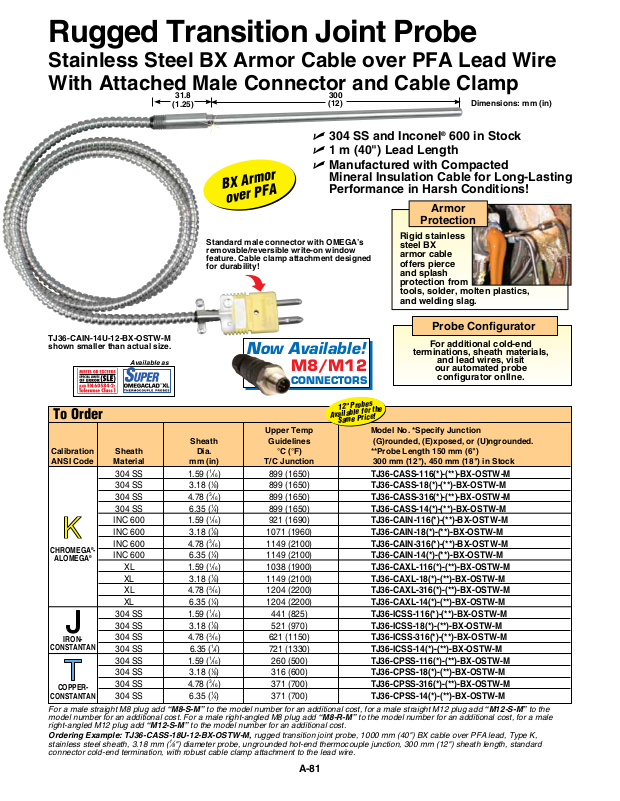

Rugged Transition Joint Probe
Stainless Steel BX Armor Cable over PFA Lead Wire
With Attached Male Connector and Cable Clamp
300
(12)
Dimensions: mm (in)
U 304 SS and Inconel® 600 in Stock
U 1 m (40") Lead Length
U Manufactured with Compacted
Mineral Insulation Cable for Long-Lasting
Performance in Harsh Conditions!
Armor
Protection
Rigid stainless
steel BX
armor cable
offers pierce
and splash
protection from
tools, solder, molten plastics,
and welding slag.
Probe Configurator
For additional cold-end
terminations, sheath materials,
and lead wires, visit
our automated probe
configurator onllne.
TJ36-CAIN-14U-12-BX-OSTW-M
shown smaller than actual size.
Available as
31.8
(1.25)
BX Armor
over PFA
Standard male connector with OMEGA’s
removable/reversible write-on window
feature. Cable clamp attachment designed
for durability!
Now Available!
M8/M12
CONNECTORS
12" Probes
To Order
Sheath Guidelines (G)rounded, (E)xposed, or (U)ngrounded.
Calibration Sheath Dia. °C (°F) **Probe Length 150 mm (6")
ANSI Code Material mm (in) T/C Junction 300 mm (12"), 450 mm (18") in Stock
304 SS 1.59 (
304 SS 3.18 (
304 SS 4.78 (
304 SS 6.35 (
INC 600 1.59 (
INC 600 3.18 (
INC 600 4.78 (
CHROMEGA®-
INC 600 6.35 (
ALOMEGA
®
XL 1.59 (
XL 3.18 (
XL 4.78 (
XL 6.35 (
304 SS 1.59 (
304 SS 3.18 (
304 SS 4.78 (
IRON-
CONSTANTAN
304 SS
304 SS 1.59 (
304 SS 3.18 (
304 SS 4.78 (
COPPER-
CONSTANTAN
304 SS 6.35 (
For a male straight M8 plug add “M8-S-M” to the model number for an additional cost, for a male straight M12 plug add “M12-S-M” to the
model number for an additional cost. For a male right-angled M8 plug add “M8-R-M” to the model number for an additional cost, for a male
right-angled M12 plug add “M12-S-M” to the model number for an additional cost.
Ordering Example: TJ36-CASS-18U-12-BX-OSTW-M, rugged transition joint probe, 1000 mm (40") BX cable over PFA lead, Type K,
stainless steel sheath, 3.18 mm (
connector cold-end termination, with robust cable clamp attachment to the lead wire.
1
⁄8") diameter probe, ungrounded hot-end thermocouple junction, 300 mm (12") sheath length, standard
1
⁄16) 899 (1650) TJ36-CASS-116(*)-(**)-BX-OSTW-M
1
⁄8) 899 (1650) TJ36-CASS-18(*)-(**)-BX-OSTW-M
3
⁄16) 899 (1650) TJ36-CASS-316(*)-(**)-BX-OSTW-M
1
⁄4) 899 (1650) TJ36-CASS-14(*)-(**)-BX-OSTW-M
1
⁄16) 921 (1690) TJ36-CAIN-116(*)-(**)-BX-OSTW-M
1
⁄8) 1071 (1960) TJ36-CAIN-18(*)-(**)-BX-OSTW-M
3
⁄16) 1149 (2100) TJ36-CAIN-316(*)-(**)-BX-OSTW-M
1
⁄4) 1149 (2100) TJ36-CAIN-14(*)-(**)-BX-OSTW-M
1
⁄16) 1038 (1900) TJ36-CAXL-116(*)-(**)-BX-OSTW-M
1
⁄8) 1149 (2100) TJ36-CAXL-18(*)-(**)-BX-OSTW-M
3
⁄16) 1204 (2200) TJ36-CAXL-316(*)-(**)-BX-OSTW-M
1
⁄4) 1204 (2200) TJ36-CAXL-14(*)-(**)-BX-OSTW-M
1
⁄16) 441 (825) TJ36-ICSS-116(*)-(**)-BX-OSTW-M
1
⁄8) 521 (970) TJ36-ICSS-18(*)-(**)-BX-OSTW-M
3
⁄16) 621 (1150) TJ36-ICSS-316(*)-(**)-BX-OSTW-M
1
6.35 (
⁄4) 721 (1330) TJ36-ICSS-14(*)-(**)-BX-OSTW-M
1
⁄16) 260 (500) TJ36-CPSS-116(*)-(**)-BX-OSTW-M
1
⁄8) 316 (600) TJ36-CPSS-18(*)-(**)-BX-OSTW-M
3
⁄16) 371 (700) TJ36-CPSS-316(*)-(**)-BX-OSTW-M
1
⁄4) 371 (700) TJ36-CPSS-14(*)-(**)-BX-OSTW-M
Upper Temp
Available for the
Same Price!
Model No. *Specify Junction
