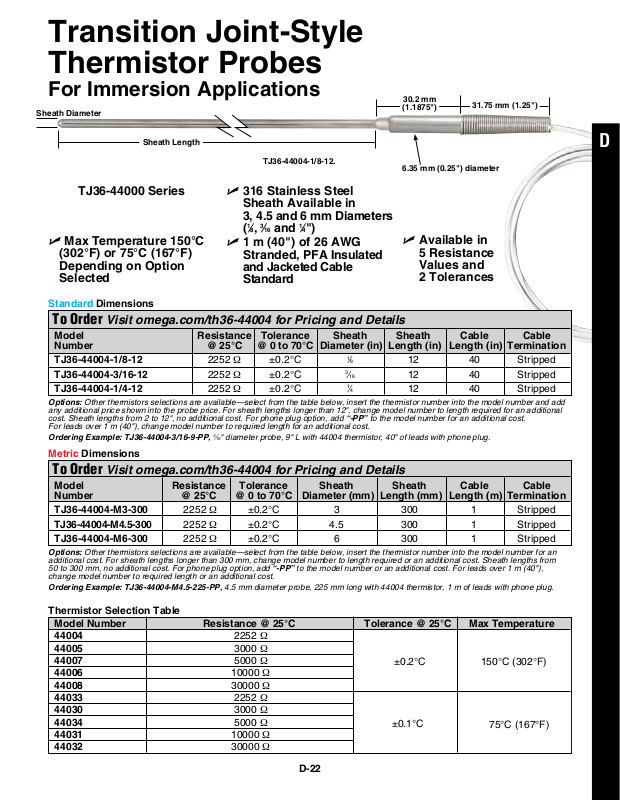

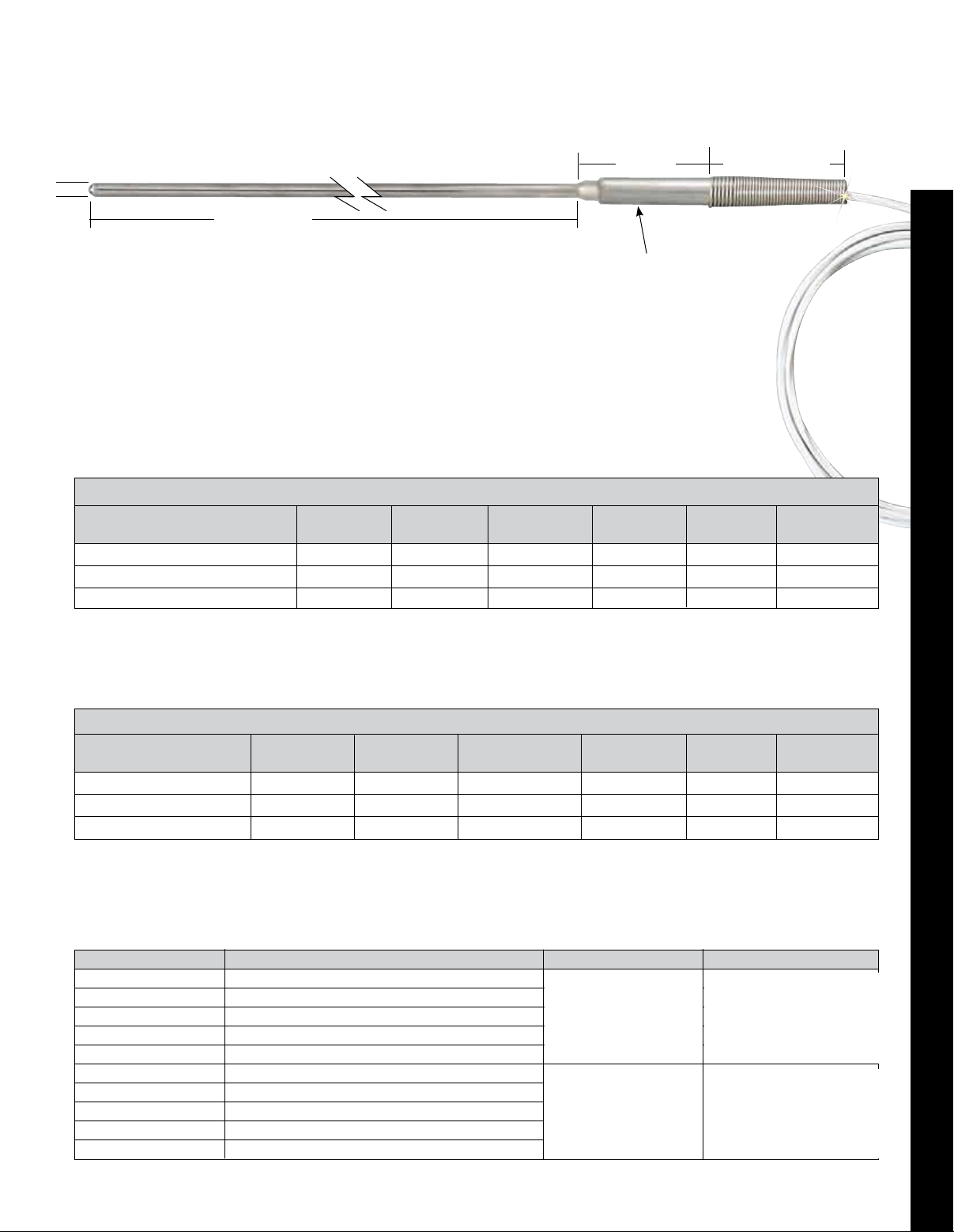

Transition Joint-Style
Thermistor Probes
For Immersion Applications
Sheath Diameter
Sheath Length
TJ36-44004-1/8-12.
TJ36-44000 Series
U 316 Stainless Steel
30.2 mm
(1.1875")
6.35 mm (0.25") diameter
31.75 mm (1.25")
Sheath Available in
3, 4.5 and 6 mm Diameters
(1⁄8, 3⁄16 and 1⁄4")
U Max Temperature 150°C
(302°F) or 75°C (167°F)
Depending on Option
Selected
Standard Dimensions
U 1 m (40") of 26 AWG
Stranded, PFA Insulated
and Jacketed Cable
Standard
U Available in
5 Resistance
Values and
2 Tolerances
To Order Visit omega.com/th36-44004 for Pricing and Details
Model Resistance Tolerance Sheath Sheath Cable Cable
Number @ 25°C @ 0 to 70°C Diameter (in) Length (in) Length (in) Termination
TJ36-44004-1/8-12 2252 Ω ±0.2°C
TJ36-44004-3/16-12 2252 Ω ±0.2°C 3⁄16 12 40 Stripped
TJ36-44004-1/4-12 2252 Ω ±0.2°C
Options: Other thermistors selections are available—select from the table below, insert the thermistor number into the model number and add
any additional price shown into the probe price. For sheath lengths longer than 12", change model number to length required for an additional
cost. Sheath lengths from 2 to 12", no additional cost. For phone plug option, add “-PP” to the model number for an additional cost.
For leads over 1 m (40"), change model number to required length for an additional cost.
Ordering Example: TJ36-44004-3/16-9-PP,
Metric Dimensions
3
⁄16" diameter probe, 9" L with 44004 thermistor, 40" of leads with phone plug.
1
⁄8 12 40 Stripped
1
⁄4 12 40 Stripped
D
To Order Visit omega.com/th36-44004 for Pricing and Details
Model Resistance Tolerance Sheath Sheath Cable Cable
Number @ 25°C @ 0 to 70°C Diameter (mm) Length (mm) Length (m) Termination
TJ36-44004-M3-300 2252 Ω ±0.2°C 3 300 1 Stripped
TJ36-44004-M4.5-300 2252 Ω ±0.2°C 4.5 300 1 Stripped
TJ36-44004-M6-300 2252 Ω ±0.2°C 6 300 1 Stripped
Options: Other thermistors selections are available—select from the table below, insert the thermistor number into the model number for an
additional cost. For sheath lengths longer than 300 mm, change model number to length required or an additional cost. Sheath lengths from
50 to 300 mm, no additional cost. For phone plug option, add “-PP” to the model number or an additional cost. For leads over 1 m (40"),
change model number to required length or an additional cost.
Ordering Example: TJ36-44004-M4.5-225-PP, 4.5 mm diameter probe, 225 mm long with 44004 thermistor, 1 m of leads with phone plug.
Thermistor Selection Table
Model Number Resistance @ 25°C Tolerance @ 25°C Max Temperature
44004 2252 Ω
44005 3000 Ω
44007 5000 Ω
44006 10000 Ω
44008 30000 Ω
44033 2252 Ω
44030 3000 Ω
44034 5000 Ω 0.01°C
44031 10000 Ω
44032 30000 Ω
D-22
±0.2°C
±0.1°C
150°C (302°F)
75°C (167°F)
