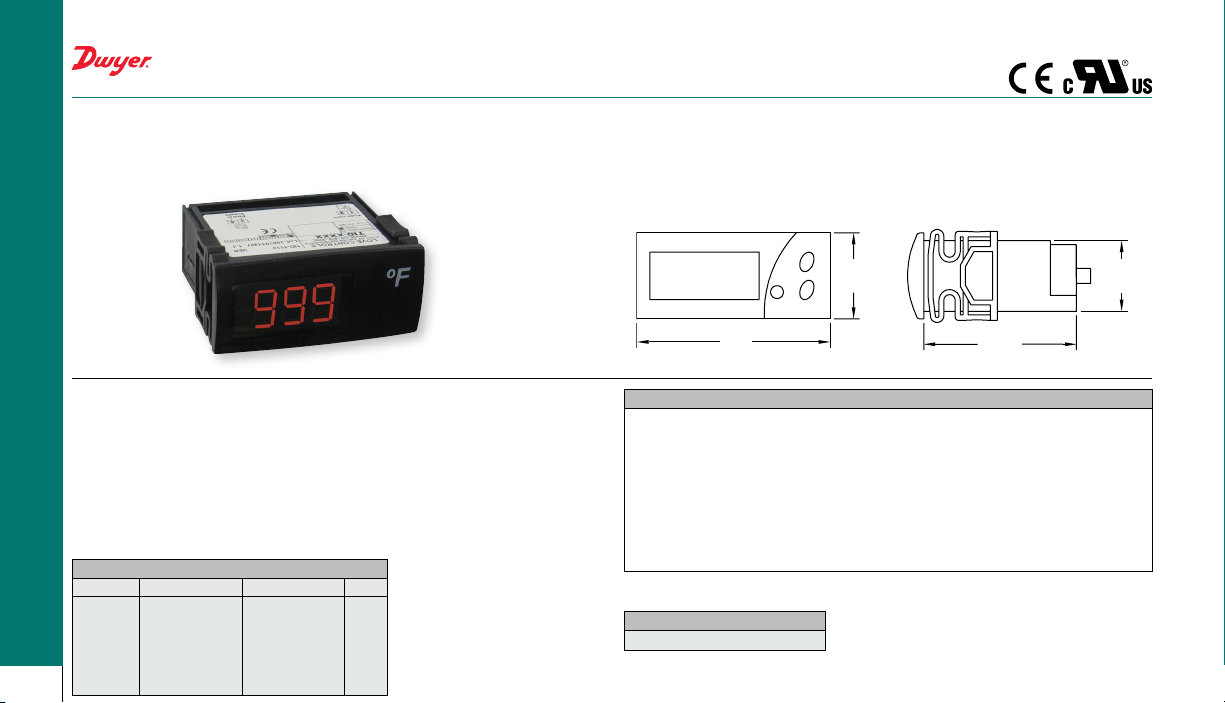

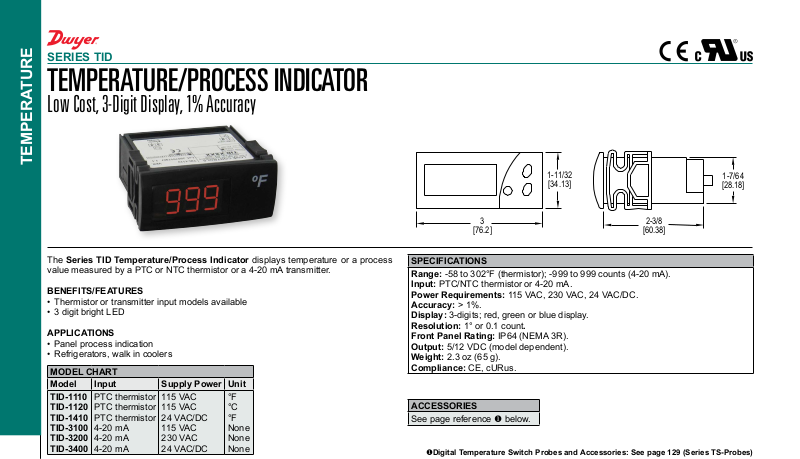

SERIES TID
TEMPERATURE/PROCESS INDICATOR
Low Cost, 3-Digit Display, 1% Accuracy
TEMPERATURE
The Series TID Temperature/Process Indicator displays temperature or a process
value measured by a PTC or NTC thermistor or a 4-20 mA transmitter.
BENEFITS/FEATURES
• Thermistor or transmitter input models available
• 3 digit bright LED
APPLICATIONS
• Panel process indication
• Refrigerators, walk in coolers
MODEL CHART
Model Input Supply Power Unit
TID-1110
TID-1120
TID-1410
TID-3100
TID-3200
TID-3400
PTC thermistor
PTC thermistor
PTC thermistor
4-20 mA
4-20 mA
4-20 mA
115 VAC
115 VAC
24 VAC/DC
115 VAC
230 VAC
24 VAC/DC
°F
°C
°F
None
None
None
1-11/32
[34.13]
3
SPECIFICATIONS
Range: -58 to 302°F (thermistor); -999 to 999 counts (4-20 mA).
Input: PTC/NTC thermistor or 4-20 mA.
Power Requirements: 115 VAC, 230 VAC, 24 VAC/DC.
Accuracy: > 1%.
Display: 3-digits; red, green or blue display.
Resolution: 1° or 0.1 count.
Front Panel Rating: IP64 (NEMA 3R).
Output: 5/12 VDC (model dependent).
Weight: 2.3 oz (65 g).
Compliance: CE, cURus.
ACCESSORIES
See page reference u below.
uDigital Temperature Switch Probes and Accessories: See page 129 (Series TS-Probes)
2-3/8
1-7/64
[28.18]
