Born for
R&D and PROFESSIONALS
OMEGA TI-120 Series Thermal Camera
Page 3
R&D user's measurement scene is complex and varied, including not only temporary detecon tasks,
but also lots of connuous sampling tests (such as trend analysis, reliability test, destrucve tesng,
etc.), and connuous sampling tests may reveal more valuable data.
R&D users oen face a dilemma when choosing a thermal camera: They may select a handheld
thermal camera but cannot perform connuous sampling tests or they may select an online thermal
camera, but lack flexibility.
The OMEGA TI-120 Series thermal camera makes the selecon no longer difficult. It's not just a
handheld thermal camera, but also an online thermal camera. It is more competent in long-term
data sampling tests.
OMEGA TI-125
Resoluon: 320×240
OMEGA TI-128
Resoluon: 640×480
OMEGA TI-126
Resoluon: 384×288
Page 4
Hand-Held Is More Convenient
Smartphone Full Touchscreen Operaon
Easy-to-learn smartphone touchscreen APP user interface, ultra-simple operaon,
and ready to use.
Fully-Radiometric Short Thermal VideoStream To
Capture More Details
A smartphone connected with a OMEGA thermal camera can record directly up to
1,000 frames of fully radiometric video and capture temperature change
processes in real-me with a user-defined sampling rate (up to 5 frames per
second). It can automacally collect data without a PC.
Analyze The Thermal Image And Video Conveniently
Full Touchscreen APP User Interface
Customize Sampling Rate
On The Smartphone
The OMEGA TI-120 series supports the instant analysis of the thermal image and
thermal video on the smartphone, which is convenient aer the thermal image or
thermal video is recorded.
Flexible Sub-regional Emissivity Seng And Professional
Temperature Measurement Parameter Correcon
The different emissivity of each sub-region can be set to achieve an accurate
temperature measurement of different material. At the same me, transmissivity,
test distance, etc. can be set to ensure the accuracy of the temperature.
Long Baery Life And No Worry Of Frequent Charging
The low-power design gives OMEGA thermal camera more than 10 hours of
baery life, to ensure a full day without interrupon, allowing users to focus on
work.
Instant Analysis Of Thermal Image On The Smartphone
ROI Emissivity And Parameter Seng On The Smartphone
10 Hours Baery Life Of The Thermal Camera
www.omega.com
Page 5
Associate Thermal Image With Detected
Object Automacally For Easy And Efficient
Data Management
OMEGA thermal camera can scan the equipment QR code and
automacally tag thermal images, thus avoiding cumbersome,
inefficient and erroneous manual entry.
Instantly Share Thermal Images/Videos
Through Favorite Channels
Rapidly share field data with colleagues and solve field problems
with remote diagnosis through your favorite channels such as
Message, Facebook, LinkedIn, Twier, etc.
Longer-Time Online
High-Quality Product With Longer
Time Online
OMEGA TI-120 Series thermal cameras use expensive, high-end,
and long-term work electronic components to ensure long-me
normal operaon and maintain long service life. With the bypass
power supply design, OMEGA thermal camera can work long-term
without interrupon under the external power mode.
Fully Radiometric Thermal Video Stream
OMEGA TI-120 Series thermal camera works with professional PC
soware, TI Analyzer, to record fully radiometric thermal video.
Each frame of the video stream preserves the original temperature
of each pixel.
High-end Electronic Component + Professional R&d Test Plaorm
For Longer-me Online
Any Temperature Spot Or Region Can Be Added And A Temperature Vs.
Time Curve Can Be Ploed
www.omega.com
Page 6
TI Analyzer – Professional Analyses Soware
OMEGA TI Analyzer soware is developed to meet the needs of R&D users, from the image, temperature and me of the threedimensional perspecve to analyze the test data. One thermal picture will have more details and process of changes than the
convenonal equipment maintenance class thermal imager to obtain more in-depth research, more reliable data, and more valuable
paper.
Note:
1. Original / temperature difference mode
2. Spot, line, box, palee, isotherm and other tools
3. Pre- and post- sampling temperature correcon; support sub-regional emissivity seng
4. ROI temperature vs. me curve; ROI+ROI temperature vs. me curve; Overlay comparison of different thermal video curve
5. Plot of temperature along the line
6. Histogram
7. 3-D thermal image
www.omega.com
Page 7
1TB Oversized File, Recording Thermal Data Without Interrupon
Thermal data collected under the long-term online mode is very large. OMEGA TI-120 Series companion soware, TI Analyzer, supports
up to 1TB single fully radiometric thermal video recording, which helps R&D users to record the complete data for the enre
experimental process.
OMEGA Model OMEGA TI-125 OMEGA TI-126 OMEGA TI-128
1TB single file recording me
(Calculate at 1HZ frame rate)
~84 days ~57 days ~20 days
Automacally Collect Data And Free Up Human Resources
Three kinds of automac data acquision modes:
① Time trigger ② Temperature trigger ③ External I/O trigger
www.omega.com
Page 8
Raw Temperature Data Matrix
Users can pick up any frame of thermal image, save as a fully
radiometric thermal image, and export to the .CSV file containing the
original temperature of all pixels. These raw temperature data will
help you opmize the algorithm, or use other soware to generate a
simulaon contour map.
Thermal Image
Simulaon Cloud
Original Temperature Matrix
Raw Temperature Data Matrix
Analysis To Reveal Tiny Differences Clearly
Obtain the temperature difference of any two thermal pictures
intuively for faster and more accurate analysis, and generate a
more understandable report.
Picture-In-Picture
And Picture Fusion Funcon
Support picture-in-picture (PIP) and picture fusion funcon; inspect
the temperature of a specific area.
Image 1
-
Image 2
=
FRTD Temperture
Difference Diagram
3D Graph
Support Picture-In-Picture And Picture Fusion Funcon
www.omega.com
Page 9
R&D Macro Lens = Independent Lens + Independent
Calibraon
OMEGA TI-120 Series Thermal Camera Is Capable of 50µm Micro Temperature
Distribuon Measurement.
Independent Macro Lens: No energy aenuaon to ensure thermal image quality; while standard lens plus magnificaon lens
increase opcal aenuaon, reducing the image quality.
Independent Lens Calibraon: OMEGA's original macro lens is temperature-calibrated in a one-on-one manner with the host thermal
camera; temperature accuracy is guaranteed. The size of the chip in the white box is about 3mmx1.5mm.
Independent Macro Lens, No Light Aenuaon Standard Lens+Double Lens=Energy Aenuaon
Infrared EnergyInfrared Energy
Macro Lens Illustraon
50μm Macro Lens Test Distance 43-55mm
Standard Lens 15cm Test Distance
(in White Area, The Chip Size 3mmx1.5mm)
50μm Macro Lens
www.omega.com
Page 10
Typical Applicaons
Electronics Industry
Unpacked Chip Internal Temperature Distribuon Inspecon
Test Difficulty: Single thermal image is not enough for most electronic thermal
distribuon analysis. It needs to capture the temperature change process and the
enre experiment temperature changes, especially for devices as small as a chip.
Soluon: For the test of small targets OMEGA TI-128 thermal camera with 50μm
macro lens can be used. Through the OMEGA TI-120 Series soware online model
and TI Analyzer online analysis funcon, user can connuously detect the
temperature changes and the recordings can also be analyzed later.
Biomedicine
Targeng Nanomaterials
Test Difficulty: Record the enre experimental process and compare the temperature
changes of different test samples.
Soluon: OMEGA TI-126 thermal camera with B3s universal test bench can be used
to observe the temperature changes horizontally in material tesng and laterally in
vivo experiment. Online analysis funcon can record the enre experimental process
in real-me, and use the superposion of the me-temperature curves for direct
comparison of temperature changes between different test samples.
Automobile industry
Fague Life Test Of Tire
Test Difficulty: Tire durability test requires a long me monitoring, generally up to 7-
10 days, and needs to record the enre process. Impact test requires a higher
sampling frame rate.
Soluon: OMEGA TI-120 Series thermal camera has bypass power supply design. It
can use external power supply and won't lead to baery heang. The online analysis
feature can be connected to PC soware to record and analyze the data. User can
customize the frame rate for impact test such as 30Hz high frame rate recording, and
lower the frame rate in the durability test to reduce the amount of data. OMEGA TI120 Series thermal imager supports 1TB single thermal video stream recording,
suitable for the recording of long-term online test.
Test Of Material Characterisc
Carbon Fiber Fague Test
Test Difficulty: Capture the moment of fracture and record the temperature changes
for post-test analysis.
Soluon: Rupture moment is a sudden occurrence behavior which can be captured
through the long-term online detecon. OMEGA TI-128 thermal imager with B3s
universal test bench can free up the labor and achieve the online monitoring. Through
the on-line analysis feature and recording funcon of TI Analyzer to record the enre
temperature process, the trend analysis of temperature vs. me can intuively show
the temperature changes. And the temperature difference model is easy to analyze
the temperature rise.
www.omega.com
Page 11
Other Applicaons
www.omega.com
Page 12

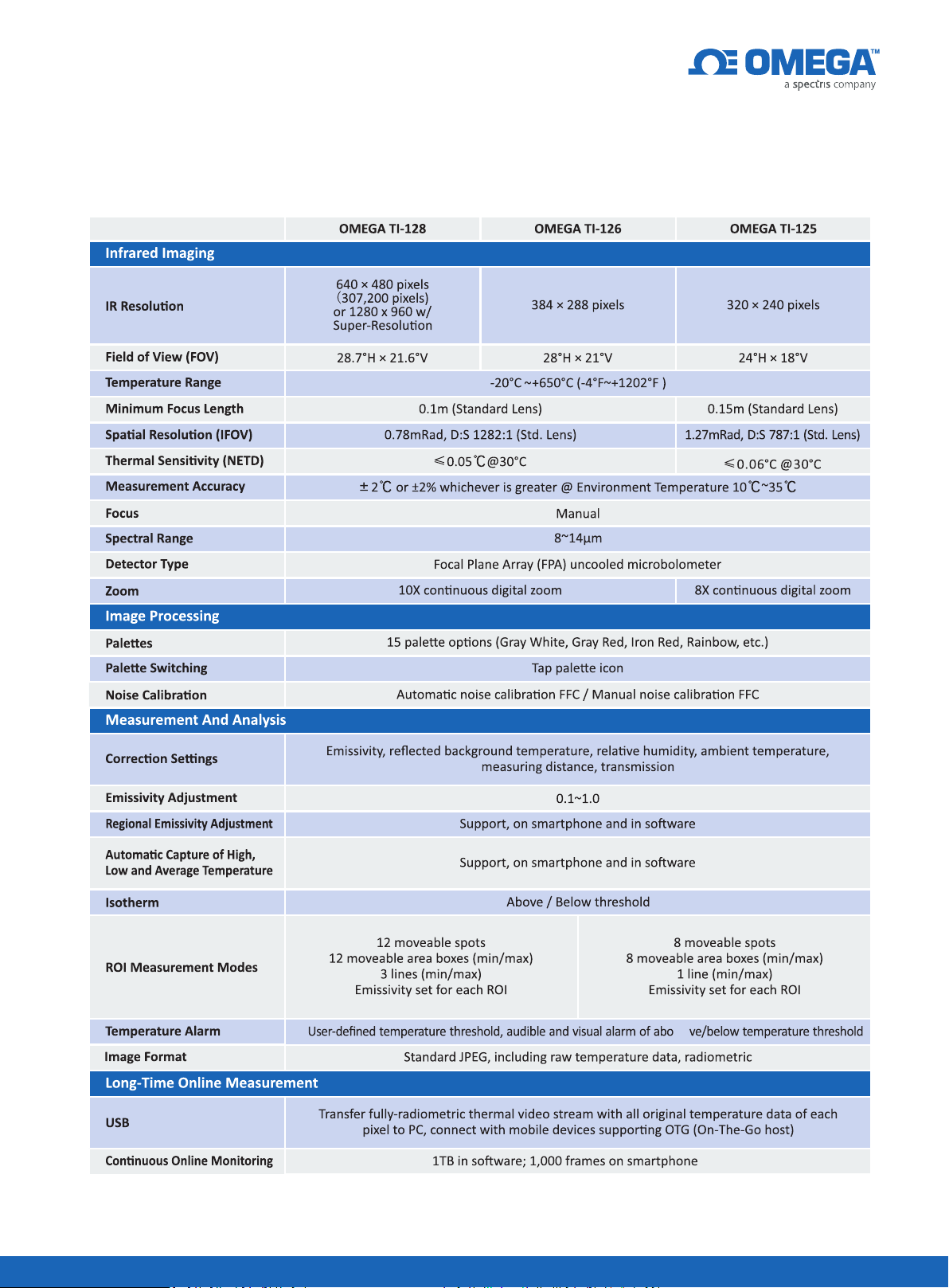

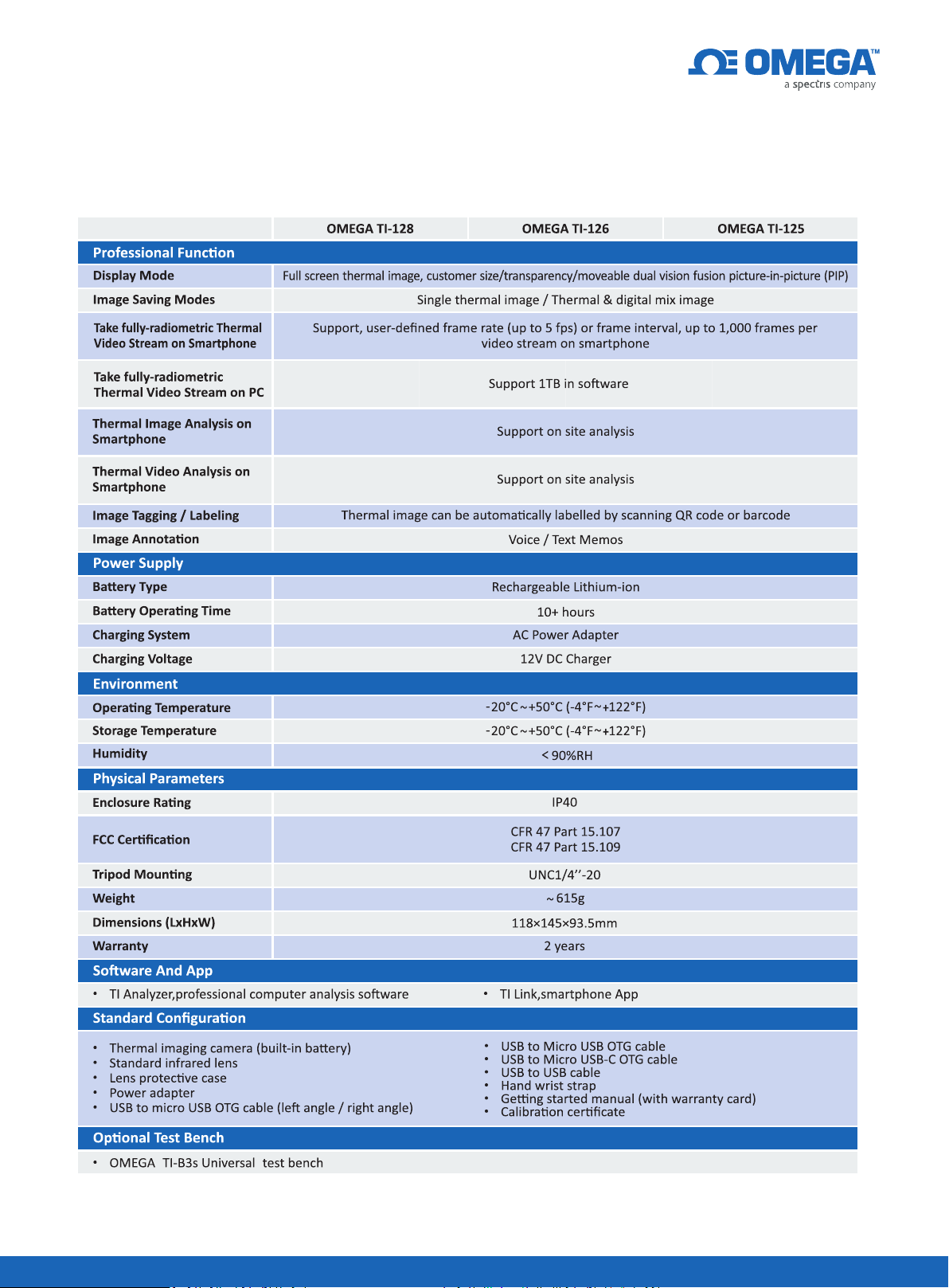

Specificaons
www.omega.com
Page 13
www.omega.com
Page 14
OMEGA TI-B3s Universal R&D Test Bench
www.omega.com
Page 15
About
Since its incepon in 1962, OMEGA has grown from manufacturing a single product line of thermocouples to an established global leader in the
technical marketplace, offering more than 100,000 state-of-the-art products for measurement and control of temperature, humidity, pressure,
strain, force, flow, level, pH and conducvity. OMEGA also provides customers with a complete line of data acquision, electric heang and
custom engineered products.
For over four decades our handbooks and e-commerce site have served as valuable reference tools for engineers around the world. And though
we are an established direct-markeng pioneer, our people, facilies and superior client services go well beyond the handbooks and high-value
arcles.
It is our commitment to quality instrumentaon and exceponal customer service that has remained the cornerstone of our success. OMEGA´s
priority is clear. Our facilies exist to "facilitate" soluons to your needs.
Omega Engineering is part of Spectris plc, a leading supplier of producvity-enhancing instrumentaon and controls. Headquartered in Egham,
Surrey, United Kingdom, Spectris is listed on the London Stock Exchange (LSE: SXS) and had sales of £1,526 million in 2017. The company
employs around 10,000 people located in more than 30 countries.
The Company’s products, technologies and services help customers to improve product quality and performance, improve core manufacturing
processes, reduce downme and wastage and reduce me to market. Its global customer base spans a diverse range of end-user markets.
Spectris operates across four business segments which reflect the applicaons and industries it serves: Materials Analysis, Test and
Measurement, In-line Instrumentaon and Industrial Controls.
