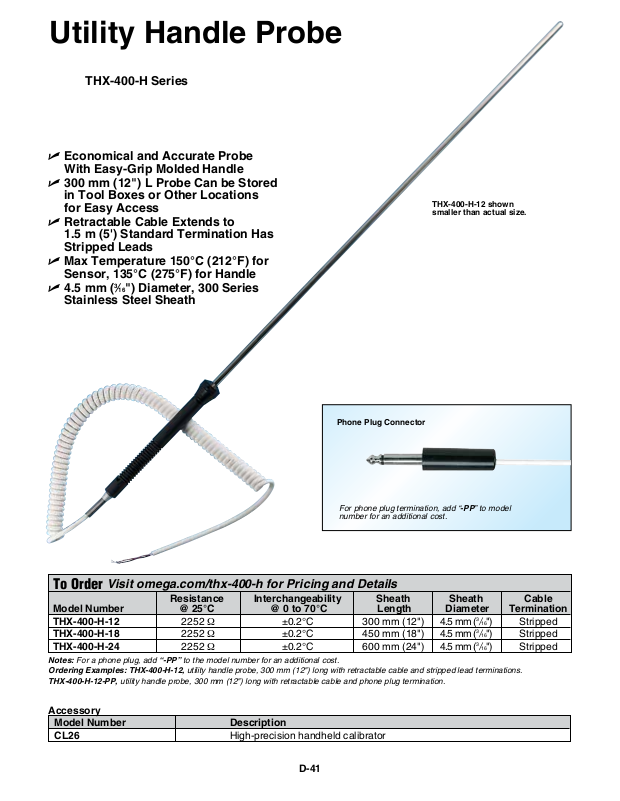

Utility Handle Probe
THX-400-H Series
U Economical and Accurate Probe
With Easy-Grip Molded Handle
U 300 mm (12") L Probe Can be Stored
in Tool Boxes or Other Locations
for Easy Access
U Retractable Cable Extends to
1.5 m (5') Standard Termination Has
Stripped Leads
U Max Temperature 150°C (212°F) for
Sensor, 135°C (275°F) for Handle
U 4.5 mm (3⁄16") Diameter, 300 Series
Stainless Steel Sheath
THX-400-H-12 shown
smaller than actual size.
Phone Plug Connector
For phone plug termination, add “-PP” to model
number for an additional cost.
To Order
Resistance Interchangeability Sheath Sheath Cable
Model Number @ 25°C @ 0 to 70°C Length Diameter Termination
THX-400-H-12 2252 Ω ±0.2°C 300 mm (12") 4.5 mm (3/
THX-400-H-18 2252 Ω ±0.2°C 450 mm (18") 4.5 mm (3/
THX-400-H-24 2252 Ω ±0.2°C 600 mm (24") 4.5 mm (3/
Notes: For a phone plug, add “-PP” to the model number for an additional cost.
Ordering Examples: THX-400-H-12, utility handle probe, 300 mm (12") long with retractable cable and stripped lead terminations.
THX-400-H-12-PP, utility handle probe, 300 mm (12") long with retractable cable and phone plug termination.
Accessory
Model Number Description
CL26 High-precision handheld calibrator
Visit omega.com/thx-400-h for Pricing and Details
16") Stripped
16") Stripped
16") Stripped
D-41
