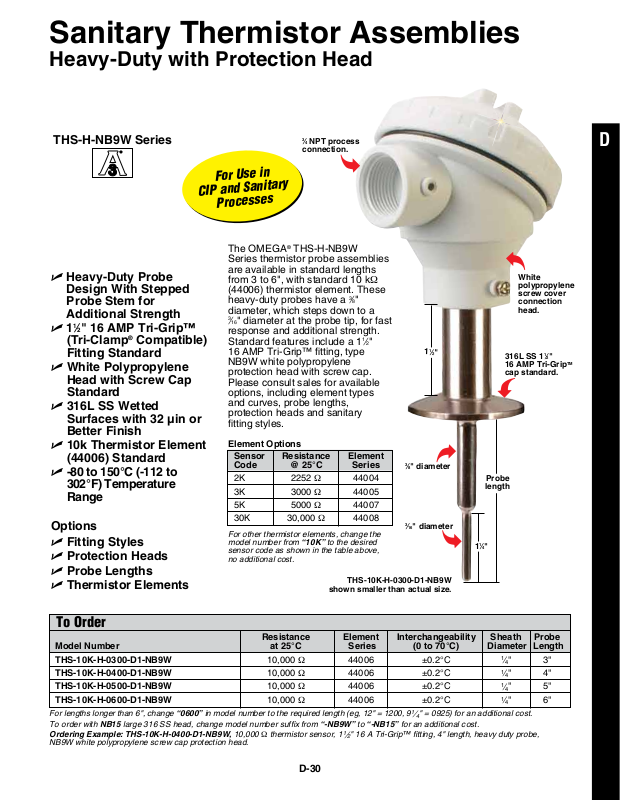

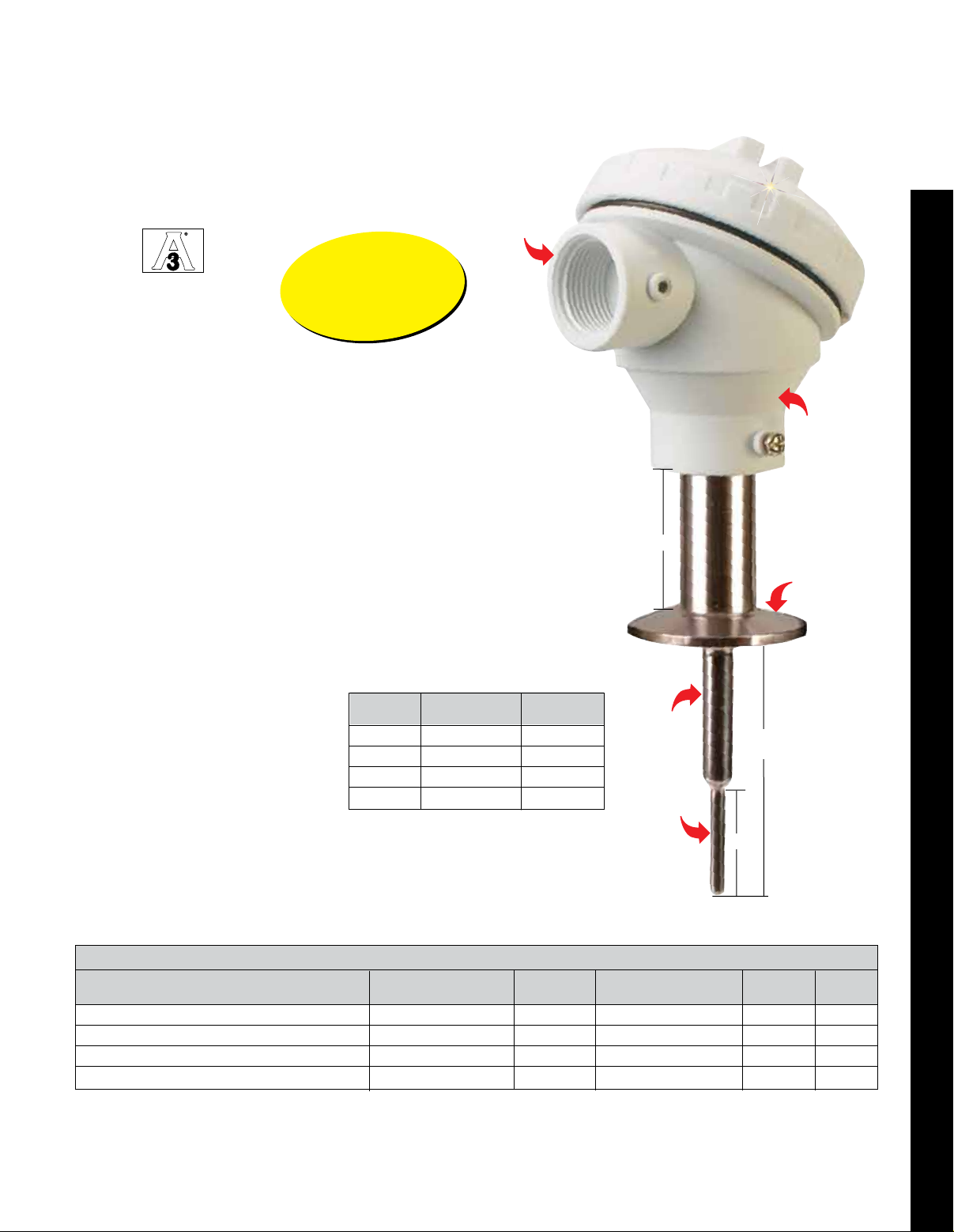

Page 1
Sanitary Thermistor Assemblies
Heavy-Duty with Protection Head
3
THS-H-NB9W Series
®
CIP and Sanitary
U Heavy-Duty Probe
Design With Stepped
Probe Stem for
Additional Strength
1
U 1
⁄2" 16 AMP Tri-Grip™
(Tri-Clamp® Compatible)
Fitting Standard
U White Polypropylene
Head with Screw Cap
Standard
U 316L SS Wetted
Surfaces with 32 µin or
Better Finish
U 10k Thermistor Element
(44006) Standard
U -80 to 150°C (-112 to
302°F) Temperature
Range
Options
U Fitting Styles
U Protection Heads
U Probe Lengths
U Thermistor Elements
For Use in
Processes
The OMEGA® THS-H-NB9W
Series thermistor probe assemblies
are available in standard lengths
from 3 to 6", with standard 10 kΩ
(44006) thermistor element. These
heavy-duty probes have a 3⁄8"
diameter, which steps down to a
3
⁄16" diameter at the probe tip, for fast
response and additional strength.
Standard features include a 11⁄2"
16 AMP Tri-Grip™ fitting, type
NB9W white polypropylene
protection head with screw cap.
Please consult sales for available
options, including element types
and curves, probe lengths,
protection heads and sanitary
fitting styles.
Element Options
Sensor Resistance Element
Code @ 25°C Series
2K 2252 Ω 44004
3K 3000 Ω 44005
5K 5000 Ω 44007
30K 30,000 Ω 44008
For other thermistor elements, change the
model number from “10K” to the desired
sensor code as shown in the table above,
no additional cost.
⁄4 NPT process
connection.
THS-10K-H-0300-D1-NB9W
shown smaller than actual size.
1
1
⁄
2
"
3
⁄8" diameter
3
⁄16" diameter
White
polypropylene
screw cover
connection
head.
316L SS 11⁄2"
16 AMP Tri-GripTM
cap standard.
Probe
length
11⁄4"
D
To Order
Model Number at 25°C Series (0 to 70°C) Diameter Length
THS-10K-H-0300-D1-NB9W 10,000 Ω 44006 ±0.2°C
THS-10K-H-0400-D1-NB9W 10,000 Ω 44006 ±0.2°C
THS-10K-H-0500-D1-NB9W 10,000 Ω 44006 ±0.2°C
THS-10K-H-0600-D1-NB9W 10,000 Ω 44006 ±0.2°C
For lengths longer than 6", change “0600” in model number to the required length (eg, 12" = 1200, 9
To order with NB15 large 316 SS head, change model number suffix from “-NB9W” to “-NB15” for an additional cost.
Ordering Example: THS-10K-H-0400-D1-NB9W, 10,000 Ω thermistor sensor, 1
NB9W white polypropylene screw cap protection head.
Resistance Element Interchangeability Sheath Probe
1
" 3"
⁄
4
1
" 4"
⁄
4
1
" 5"
⁄
4
1
" 6"
⁄
4
1
" = 0925) for an additional cost.
⁄
4
1
" 16 A Tri-Grip™ fitting, 4" length, heavy duty probe,
⁄
2
D-30

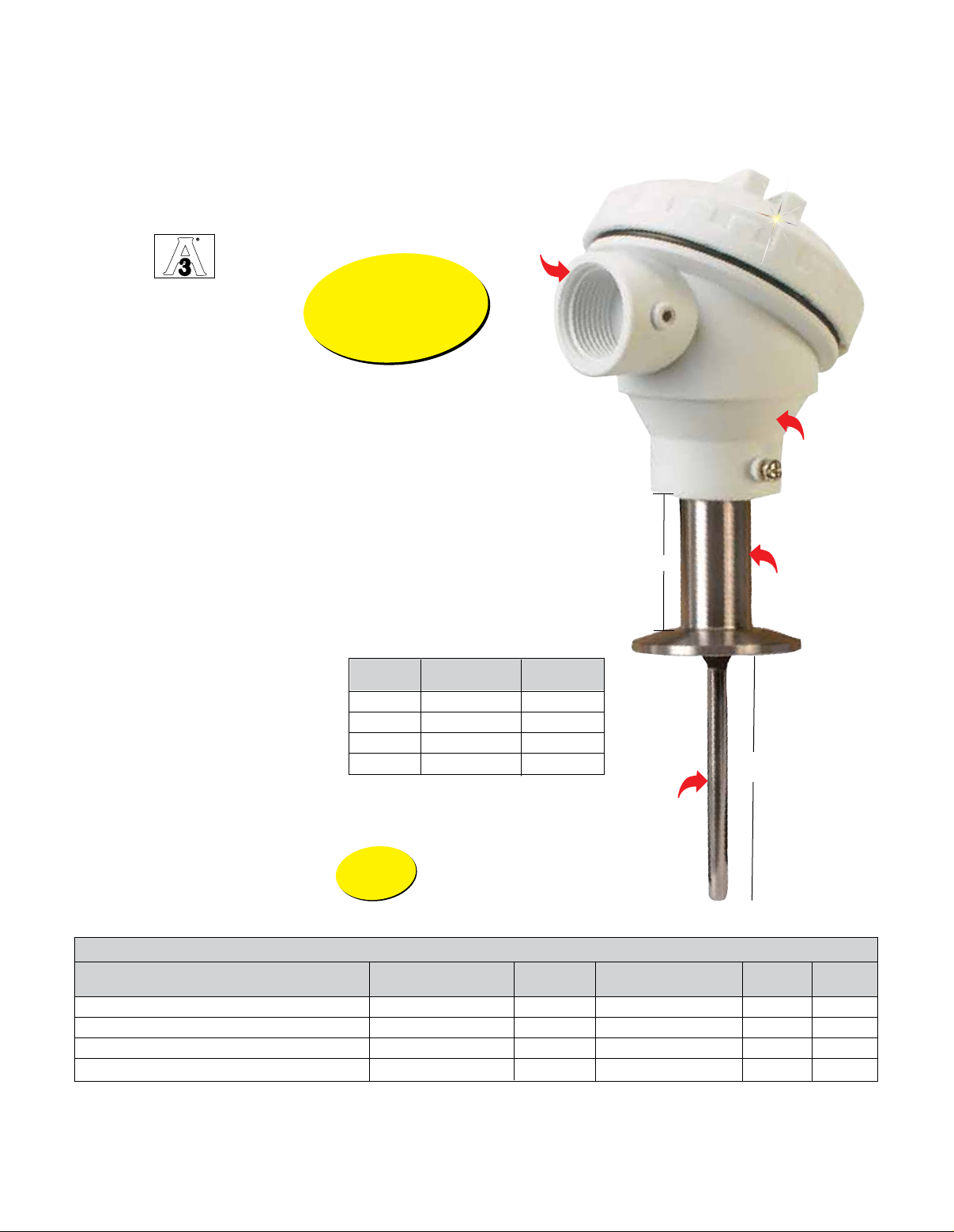

Page 2
Sanitary Thermistor Assemblies
Standard Duty with Protection Head
THS-S-NB9W Series
®
U Standard Duty
1
⁄4" Probe
Diameter
U 11⁄2" 16 AMP Tri-Grip™
(Tri-Clamp® Compatible)
Fitting Standard
U White Polypropylene
Head with Screw Cap
Standard
U 316L SS Wetted
Surfaces with 32 µin
or Better Finish
U 10k Thermistor Element
(44006) Standard
U -80 to 150°C (-112 to
302°F) Temperature
Range
Options
U Fitting Styles
U Protection Heads
U Probe Lengths
U Thermistor Elements
3
⁄4 NPT process
connection.
For Use in
CIP and Sanitary
Processes
The OMEGA® THS-S-NB9W Series
thermistor probe assemblies are
available in standard lengths from
3 to 6", with standard 10 kΩ
(44006) thermistor element.
Standard features include a 1
16 AMP Tri-Grip™ fitting, type
NB9W white polypropylene
protection head with screw cap.
Please consult sales for available
options, including element types and
curves, probe lengths, protection
heads and sanitary fitting styles.
Element Options
Sensor Resistance Element
Code @ 25°C Series
2K 2252 Ω 44004
3K 3000 Ω 44005
5K 5000 Ω 44007
30K 30,000 Ω 44008
For other thermistor elements, change the
model number from “10K” to the desired
sensor code as shown in the table above,
no additional cost.
32 µin
Finish
THS-10K-S-0300-D1-NB9W
shown smaller than actual size.
White
polypropylene
screw cover
1
"
⁄
2
11⁄2"
Probe
length
1
⁄4" diameter.
connection
head.
316L SS 11⁄2"
16 AMP Tri-GripTM
cap standard.
To Order
Model Number at 25°C Series (0 to 70°C) Diameter Length
THS-10K-S-0300-D1-NB9W 10,000 Ω 44006 ±0.2°C
THS-10K-S-0400-D1-NB9W 10,000 Ω 44006 ±0.2°C
THS-10K-S-0500-D1-NB9W 10,000 Ω 44006 ±0.2°C
THS-10K-S-0600-D1-NB9W 10,000 Ω 44006 ±0.2°C
For lengths longer than 6", change “0600” in model number to the required length (eg, 12" = 1200, 9
To order with NB15 large 316 SS protection head, change model number suffix from “-NB9W” to “-NB15” for an additional cost.
Ordering Example: THS-10K-S-0400-D1-NB9W, 10,000 Ω thermistor sensor, 1
NB9W white polypropylene screw cap protection head.
Resistance Element Interchangeability Sheath Probe
1
" 3"
⁄
4
1
" 4"
⁄
4
1
" 5"
⁄
4
1
" 6"
⁄
4
1
" = 0925) for an additional cost.
⁄
4
1
" 16 A Tri-Grip™ fitting, 4" length, standard duty probe,
⁄
2
D-31D-31
