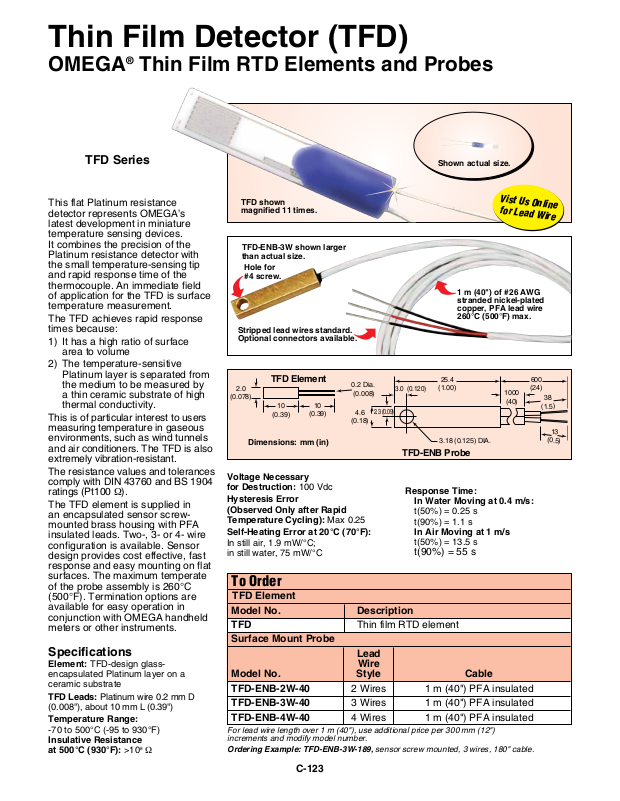

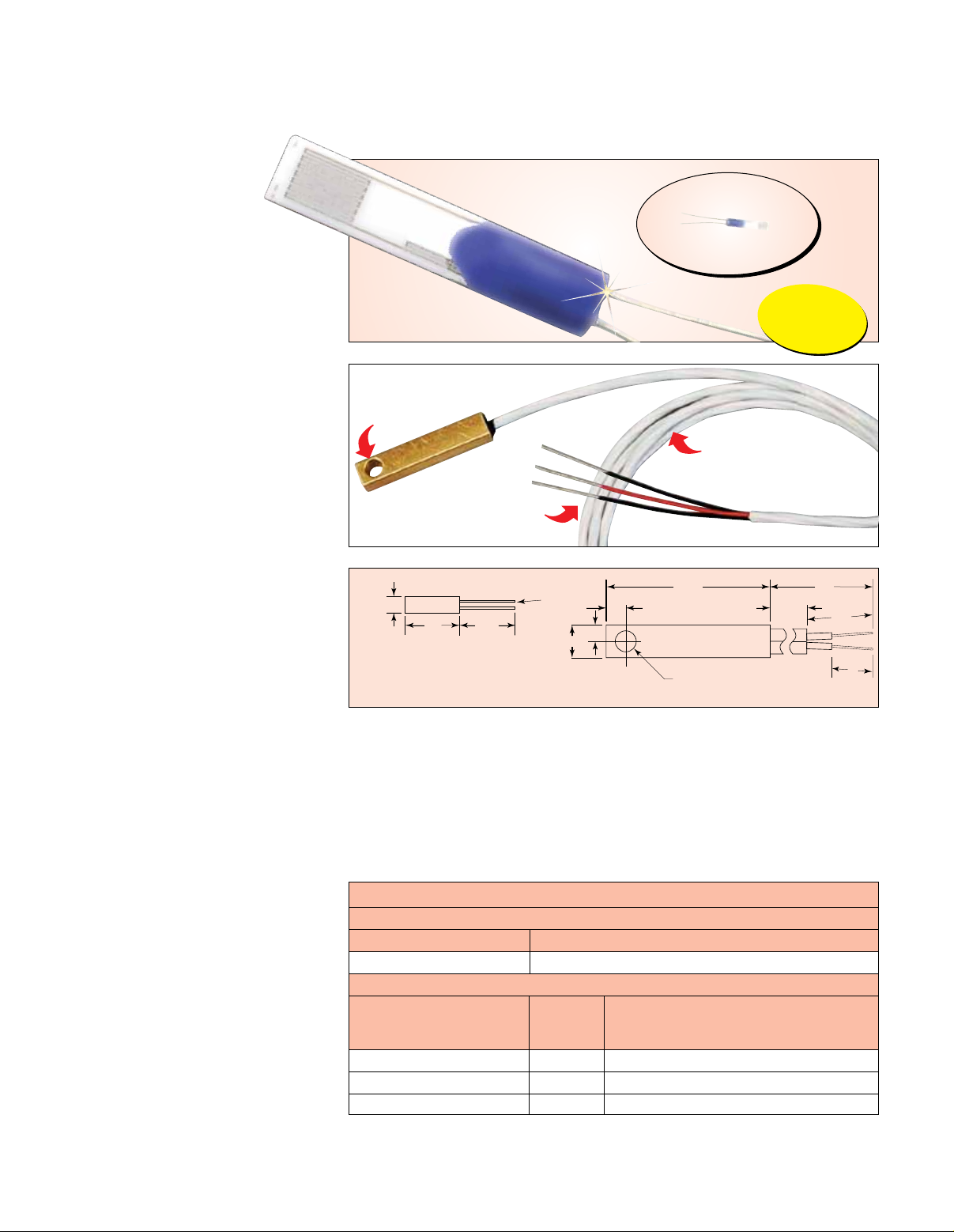

Thin Film Detector (TFD)
2.0
(0.078)
10
(0.39)
10
(0.39)
0.2 Dia.
(0.008)
TFD Element
2.0
(0.078)
10
(0.39)
10
(0.39)
0.2 Dia.
(0.008)
TFD Element
OMEGA® Thin Film RTD Elements and Probes
TFD Series
This flat Platinum resistance
detector represents OMEGA’s
latest development in miniature
temperature sensing devices.
It combines the precision of the
Platinum resistance detector with
the small temperature-sensing tip
and rapid response time of the
thermocouple. An immediate field
of application for the TFD is surface
temperature measurement.
The TFD achieves rapid response
times because:
1) It has a high ratio of surface
area to volume
2) The temperature-sensitive
Platinum layer is separated from
the medium to be measured by
a thin ceramic substrate of high
thermal conductivity.
This is of particular interest to users
measuring temperature in gaseous
environments, such as wind tunnels
and air conditioners. The TFD is also
extremely vibration-resistant.
The resistance values and tolerances
comply with DIN 43760 and BS 1904
ratings (Pt100 Ω).
The TFD element is supplied in
an encapsulated sensor screwmounted brass housing with PFA
insulated leads. Two-, 3- or 4- wire
configuration is available. Sensor
design provides cost effective, fast
response and easy mounting on flat
surfaces. The maximum temperate
of the probe assembly is 260°C
(500°F). Termination options are
available for easy operation in
conjunction with OMEGA handheld
meters or other instruments.
Specifications
Element: TFD-design glass-
encapsulated Platinum layer on a
ceramic substrate
TFD Leads: Platinum wire 0.2 mm D
(0.008"), about 10 mm L (0.39")
Temperature Range:
-70 to 500°C (-95 to 930°F)
Insulative Resistance
at 500°C (930°F): >10
8
Ω
Shown actual size.
TFD shown
magnified 11 times.
TFD-ENB-3W shown larger
than actual size.
Hole for
#4 screw.
Stripped lead wires standard.
Optional connectors available.
Dimensions: mm (in)
4.6
(0.18)
2.3 (0.09)
3.0 (0.120)
1 m (40") of #26 AWG
stranded nickel-plated
copper, PFA lead wire
260°C (500°F) max.
25.4
(1.00)
3.18 (0.125) DIA.
Vist Us Online
for Lead Wire
1000
(40)
TFD-ENB Probe
Voltage Necessary
for Destruction: 100 Vdc
Hysteresis Error
(Observed Only after Rapid
Temperature Cycling): Max 0.25
Self-Heating Error at 20°C (70°F):
In still air, 1.9 mW/°C;
in still water, 75 mW/°C
Response Time:
In Water Moving at 0.4 m/s:
t(50%) = 0.25 s
t(90%) = 1.1 s
In Air Moving at 1 m/s
t(50%) = 13.5 s
t(90%) = 55 s
To Order
TFD Element
Model No. Description
TFD Thin film RTD element
Surface Mount Probe
Lead
Wire
Model No. Style Cable
TFD-ENB-2W-40 2 Wires 1 m (40") PFA insulated
TFD-ENB-3W-40 3 Wires 1 m (40") PFA insulated
TFD-ENB-4W-40 4 Wires 1 m (40") PFA insulated
For lead wire length over 1 m (40"), use additional price per 300 mm (12")
increments and modify model number.
Ordering Example: TFD-ENB-3W-189, sensor screw mounted, 3 wires, 180" cable.
C-123
600
(24)
38
(1.5)
13
(0.5)
