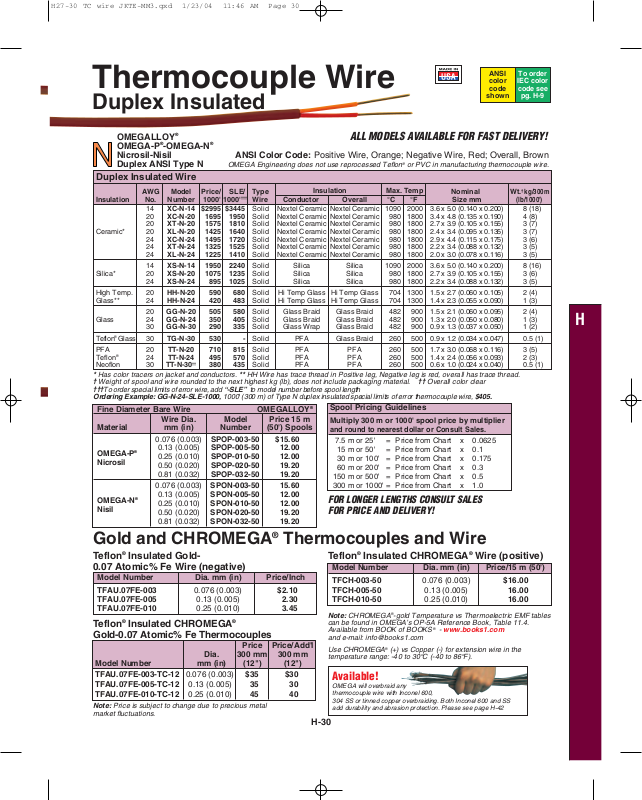

Page 1
H-30
H
* Has color tracers on jacket and conductors. ** HH Wire has trace thread in Positive leg, Negative leg is red, overall has trace thread.
†
Weight of spool and wire rounded to the next highest kg (lb), does not include packaging material.
††
Overall color clear
†††
To order special limits of error wire, add “-SLE” to model number before spool length
Ordering Example: GG-N-24-SLE-1000, 1000' (300 m) of Type N duplex insulated special limits of error thermocouple wire, $405.

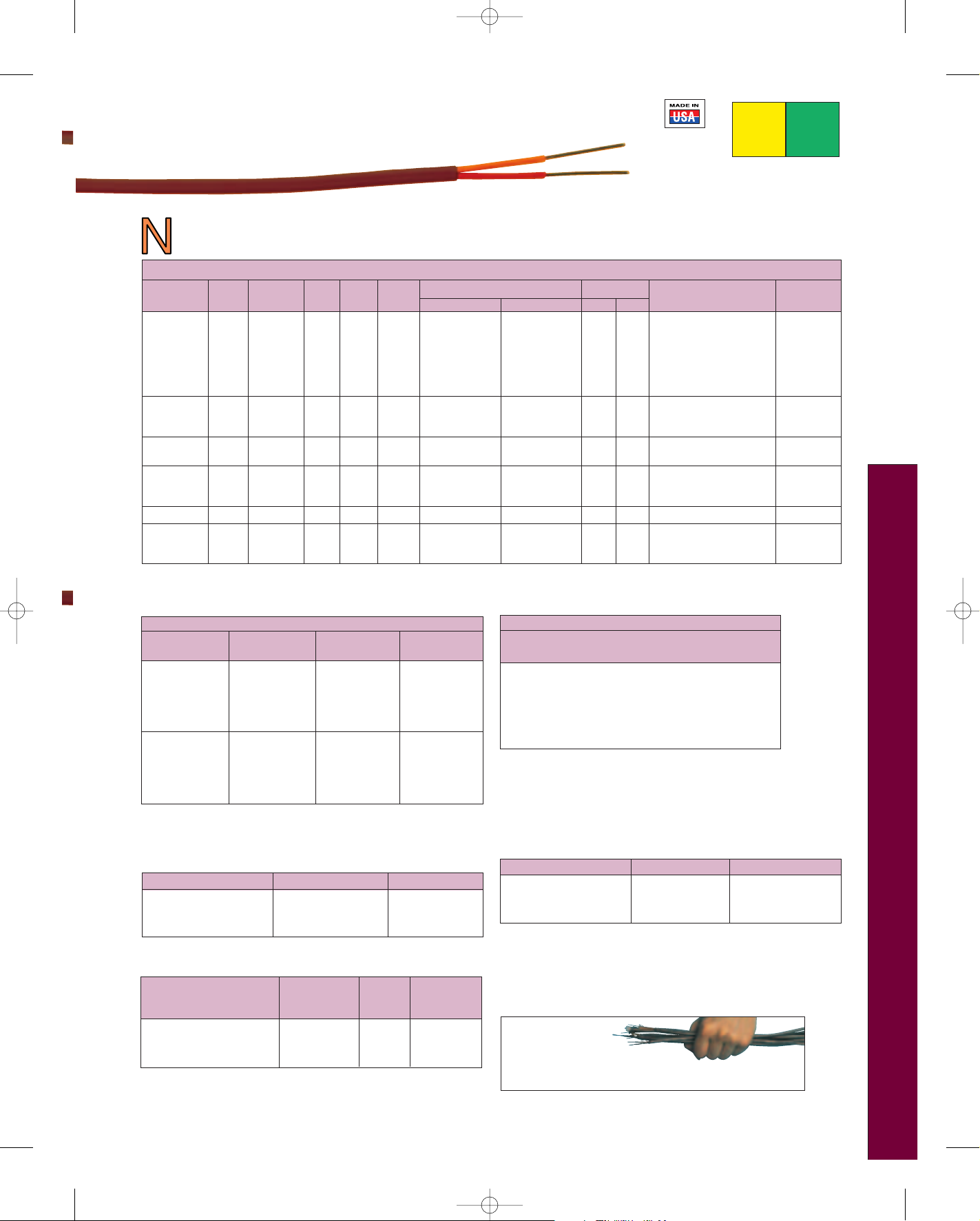

Thermocouple Wire
Duplex Insulated
OMEGALLOY
®
OMEGA-P®-OMEGA-N
®
Nicrosil-Nisil
Duplex ANSI Type N
Fine Diameter Bare Wire OMEGALLOY
®
Wire Dia. Model Price 15 m
Material mm (in) Number (50') Spools
0.076 (0.003) SPOP-003-50 $15.60
0.13 (0.005) SPOP-005-50 12.00
OMEGA-P
®
0.25 (0.010) SPOP-010-50 12.00
Nicrosil
0.50 (0.020) SPOP-020-50 19.20
0.81 (0.032) SPOP-032-50 19.20
0.076 (0.003) SPON-003-50 15.60
0.13 (0.005) SPON-005-50 12.00
OMEGA-N
®
0.25 (0.010) SPON-010-50 12.00
Nisil
0.50 (0.020) SPON-020-50 19.20
0.81 (0.032) SPON-032-50 19.20
Model Number Dia. mm (in) Price/Inch
TFAU.07FE-003 0.076 (0.003) $2.10
TFAU.07FE-005 0.13 (0.005) 2.30
TFAU.07FE-010 0.25 (0.010) 3.45
Teflon®Insulated Gold-
0.07 Atomic% Fe Wire (negative)
Price Price/Add'l
Dia. 300 mm 300 mm
Model Number mm (in) (12") (12")
TFAU.07FE-003-TC-12 0.076 (0.003) $35 $30
TFAU.07FE-005-TC-12 0.13 (0.005) 35 30
TFAU.07FE-010-TC-12 0.25 (0.010) 45 40
Teflon®Insulated CHROMEGA
®
Gold-0.07 Atomic% Fe Thermocouples
Model Number Dia. mm (in) Price/15 m (50')
TFCH-003-50 0.076 (0.003) $16.00
TFCH-005-50 0.13 (0.005) 16.00
TFCH-010-50 0.25 (0.010) 16.00
Teflon®Insulated CHROMEGA®Wire (positive)
Spool Pricing Guidelines
Multiply 300 m or 1000' spool price by multiplier
and round to nearest dollar or Consult Sales.
7.5 m or 25' = Price from Chart x 0.0625
15 m or 50' = Price from Chart x 0.1
30 m or 100' = Price from Chart x 0.175
60 m or 200' = Price from Chart x 0.3
150 m or 500' = Price from Chart x 0.5
300 m or 1000' = Price from Chart x 1.0
Gold and CHROMEGA®Thermocouples and Wire
Note: CHROMEGA®-gold Temperature vs Thermoelectric EMF tables
can be found in OMEGA’s OP-5A Reference Book, Table 11.4.
Available from BOOK of BOOKS
®
- www.books1.com
and e-mail: [email protected]
Use CHROMEGA®(+) vs Copper (-) for extension wire in the
temperature range: -40 to 30°C (-40 to 86°F).
Note: Price is subject to change due to precious metal
market fluctuations.
OMEGA will overbraid any
thermocouple wire with Inconel 600,
304 SS or tinned copper overbraiding. Both Inconel 600 and SS
add durability and abrasion protection. Please see page H-42
Available!
FOR LONGER LENGTHS CONSULT SALES
FOR PRICE AND DELIVERY!
ANSI Color Code: Positive Wire, Orange; Negative Wire, Red; Overall, Brown
OMEGA Engineering does not use reprocessed Teflon®or PVC in manufacturing thermocouple wire.
ALL MODELS AVAILABLE FOR FAST DELIVERY!
Duplex Insulated Wire
AWG Model Price/ SLE/ Type
Insulation Max. Temp
Nominal Wt.† kg/300m
Insulation No. Number 1000' 1000'
†††
Wire Conductor Overall °C °F Size mm
(lb/1000')
14 XC-N-14 $2995 $3445 Solid Nextel Ceramic Nextel Ceramic 1090 2000 3.6 x 5.0 (0.140 x 0.200) 8 (18)
20 XC-N-20 1695 1950 Solid Nextel Ceramic Nextel Ceramic 980 1800 3.4 x 4.8 (0.135 x 0.190) 4 (8)
20 XT-N-20 1575 1810 Solid Nextel Ceramic Nextel Ceramic 980 1800 2.7 x 3.9 (0.105 x 0.155) 3 (7)
Ceramic* 20 XL-N-20 1425 1640 Solid Nextel Ceramic Nextel Ceramic 980 1800 2.4 x 3.4 (0.095 x 0.135) 3 (7)
24 XC-N-24 1495 1720 Solid Nextel Ceramic Nextel Ceramic 980 1800 2.9 x 4.4 (0.115 x 0.175) 3 (6)
24 XT-N-24 1325 1525 Solid Nextel Ceramic Nextel Ceramic 980 1800 2.2 x 3.4 (0.088 x 0.132) 3 (5)
24 XL-N-24 1225 1410 Solid Nextel Ceramic Nextel Ceramic 980 1800 2.0 x 3.0 (0.078 x 0.116) 3 (5)
14 XS-N-14 1950 2240 Solid Silica Silica 1090 2000 3.6 x 5.0 (0.140 x 0.200) 8 (16)
Silica* 20 XS-N-20 1075 1235 Solid Silica Silica 980 1800 2.7 x 3.9 (0.105 x 0.155) 3 (6)
24 XS-N-24 895 1025 Solid Silica Silica 980 1800 2.2 x 3.4 (0.088 x 0.132) 3 (5)
High Temp. 20 HH-N-20 590 680 Solid Hi Temp Glass Hi Temp Glass 704 1300 1.5 x 2.7 (0.060 x 0.105) 2 (4)
Glass** 24 HH-N-24 420 483 Solid Hi Temp Glass Hi Temp Glass 704 1300 1.4 x 2.3 (0.055 x 0.090) 1 (3)
20 GG-N-20 505 580 Solid Glass Braid Glass Braid 482 900 1.5 x 2.1 (0.060 x 0.095) 2 (4)
Glass 24 GG-N-24 350 405 Solid Glass Braid Glass Braid 482 900 1.3 x 2.0 (0.050 x 0.080) 1 (3)
30 GG-N-30 290 335 Solid Glass Wrap Glass Braid 482 900 0.9 x 1.3 (0.037 x 0.050) 1 (2)
Teflon®Glass 30 TG-N-30 530 - Solid PFA Glass Braid 260 500 0.9 x 1.2 (0.034 x 0.047) 0.5 (1)
PFA 20 TT-N-20 710 815 Solid PFA PFA 260 500 1.7 x 3.0 (0.068 x 0.116) 3 (5)
Teflon
®
24 TT-N-24 495 570 Solid PFA PFA 260 500 1.4 x 2.4 (0.056 x 0.093) 2 (3)
Neoflon 30 TT-N-30††380 435 Solid PFA PFA 260 500 0.6 x 1.0 (0.024 x 0.040) 0.5 (1)
ANSI
color
code
shown
To order
IEC color
code see
pg. H-9
H27-30 TC wire JKTE-MM3.qxd 1/23/04 11:46 AM Page 30
