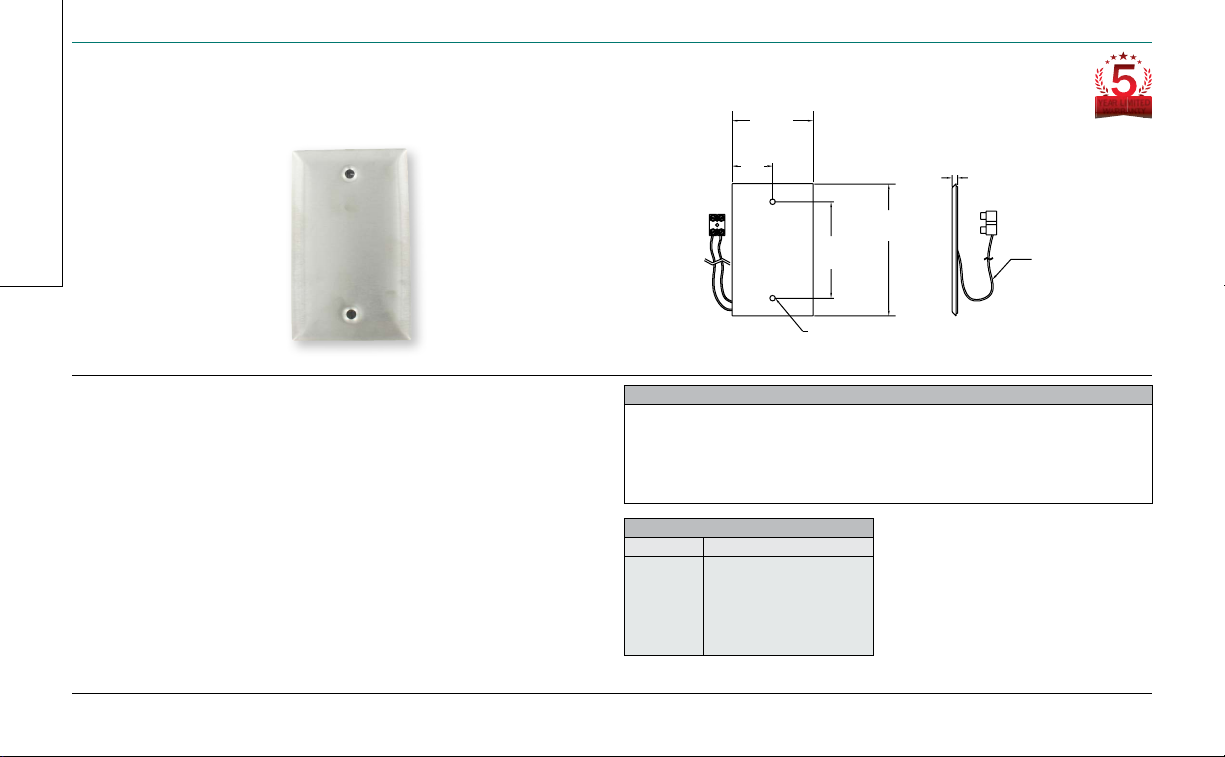

Omega TE-WSS User guide

3-21/32

1-1/16

2-3/4

COUNTERSUNK SCREW

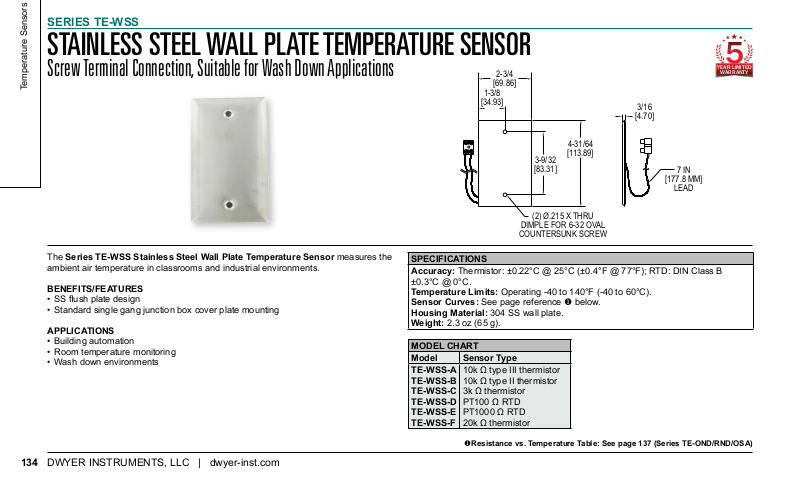

SERIES TE-WSS

E

STAINLESS STEEL WALL PLATE TEMPERATURE SENSOR

Screw Terminal Connection, Suitable for Wash Down Applications

Temperature Sensors

[69.86]

1-3/8

[34.93]

4-31/64
[113.89]

3-9/32
[83.31]

(2) Ø.215 X THRU

DIMPLE FOR 6-32 OVAL

3/16

[4.70]

7 IN

[177.8 MM]

LEAD

YEAR LIMITED

WARRANTY

The Series TE-WSS Stainless Steel Wall Plate Temperature Sensor measures the
ambient air temperature in classrooms and industrial environments.

BENEFITS/FEATURES

• SSushplatedesign

• Standard single gang junction box cover plate mounting

APPLICATIONS

• Building automation

• Room temperature monitoring

• Wash down environments

DWYER INSTRUMENTS, LLC | dwyer-inst.com134

SPECIFICATIONS
Accuracy: Thermistor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD: DIN Class B

±0.3°C @ 0°C.

Temperature Limits: Operating -40 to 140°F (-40 to 60°C).
Sensor Curves: See page reference u below.
Housing Material: 304 SS wall plate.
Weight: 2.3 oz (65 g).

MODEL CHART

MODEL CHART
Model Sensor Type

Model Sensor Type
TE-WSS-A

TE-WSS-A
TE-WSS-B

TE-WSS-B
TE-WSS-C

TE-WSS-C
TE-WSS-D

TE-WSS-D
TE-WSS-E

TE-WSS-E
TE-WSS-F

TE-WSS-F

10kΩtypeIIIthermistor

10kΩtypeIIIthermistor
10kΩtypeIIthermistor

10kΩtypeIIthermistor
3kΩthermistor

3kΩthermistor
PT100ΩRTD

PT100ΩRTD
PT1000ΩRTD

PT1000ΩRTD
20kΩthermistor

20kΩthermistor

uResistance vs. Temperature Table: See page 137 (Series TE-OND/RND/OSA)
