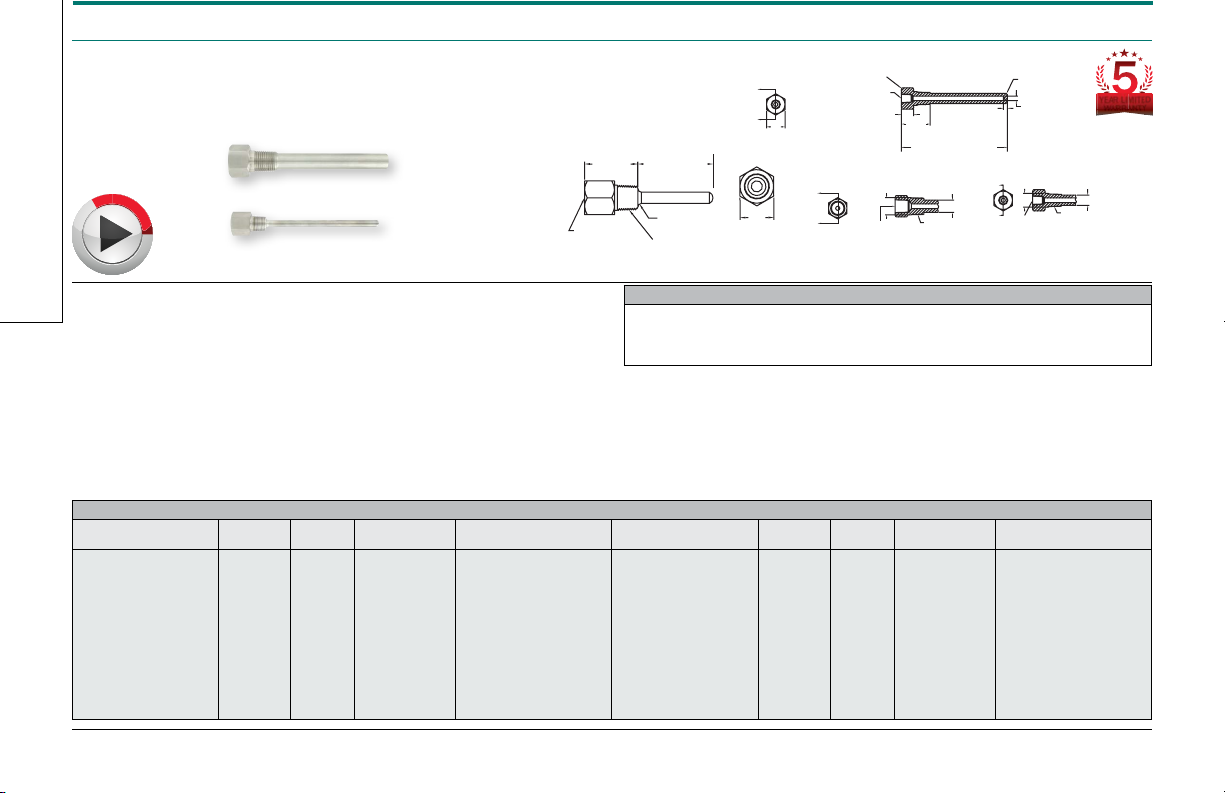

TE-TNS

BSPT THREAD

THREAD

R 1/8

SERIES THERMOWELL

THERMOWELLS

Thermowells for Building Automation Temperature Sensors

TemperatureSensors

The Series TE-TNS Stainless Steel Thermowells are used to separate the instrument

from the surrounding media. When used with the Series TE and TE-I Immersion Temperature Sensors, further protection is offered from aggressive media, high pressures,andowrateswhileallowingforquickandeasyinstallationoftemperature

sensors without having to drain process media.

Thermowells are offered in both 304 and 316 stainless steel allowing for superior corrosion resistance. Fabricated, or welded, thermowells are constructed from a tubethatis closed at the tipbya welded solid tip. Solid-machinedthermowellsare manufacturedfrombarstock.

BENEFITS/FEATURES

• Congurablematerialsandsizes

• Fabricated (welded) or machined construction

• 1/2˝or3/4˝NPTprocessconnections

MODEL CHART

Model Material Length Construction TE-TNS-N254N-12 TE-TNS-N254N-14 TE-TNS-N044N-14 TE-TNS-N044N-12 TE-TNS-N064N-14 TE-TNS-N064N-12 TE-TNS-N094N-14 TE-TNS-N094N-12 TE-TNS-N124N-14 TE-TNS-N124N-12 TE-TNS-N045N-14 TE-TNS-N045N-12

DWYERINSTRUMENTS,LLC|dwyer-inst.com136

Machined thermowell

Fabricated (welded) thermowell

APPLICATIONS

• Building automation

• Chiller or boiler loops

• Chemical industry or process technology

304SS 304SS 304SS 304SS 304SS 304SS 304SS 304SS 304SS 304SS 316SS 316SS

2.5˝

2.5˝ 4˝ 4˝ 6˝ 6˝ 9˝ 9˝ 12˝ 12˝ 4˝ 4˝

Machined Machined Machined Machined Machined Machined Machined Machined Machined Machined Machined Machined

Connection (Internal/External) Model Material Length Construction

1/2˝NPT/3/4˝NPT 1/4˝NPT/1/2˝NPT 1/4˝NPT/1/2˝NPT 1/2˝NPT/3/4˝NPT 1/4˝NPT/1/2˝NPT 1/2˝NPT/3/4˝NPT 1/4˝NPT/1/2˝NPT 1/2˝NPT/3/4˝NPT 1/4˝NPT/1/2˝NPT 1/2˝NPT/3/4˝NPT 1/4˝NPT/1/2˝NPT 1/2˝NPT/3/4˝NPT

2X BREAK Ø1-1/8 [28.55] X 30°

SEE BELOW FOR

1-3/4

[45.21]

1/2˝ NPSM INTERNAL

INSERTION

LENGTH

WELDED [SEALED]

1/2˝ NPT OR

THREAD DETAIL

1-1/8 HEX [28.55]

1-1/8

[28.58]

3/4 [19.05]

Ø1-1/16

[26.68]

[1/2 NPT]

1/2 X 3/4 NPT

1-3/4

[44.45]

INSERTION

LENGTH

Ø3/4 [19.05]

[3/4 NPT]

1/4

[6.35]

Ø7/8

[21.34]

[1/4 NPT]

SPECIFICATIONS Maximum Pressure: Fabricated:140psi;Machined:304SS:3700psi;316SS:

5500 psi.

Maximum Temperature: Fabricated:1000°F(538°C);Machined:1200°F(648°C). Construction: Fabricated(welded)ormachinedmodelspecic.

Connection

TE-TNS-N065N-14 TE-TNS-N065N-12 TE-TNS-N095N-14 TE-TNS-N095N-12 TE-TNS-N125N-14 TE-TNS-N125N-12 TE-TNS-N253N-00 TE-TNS-N043N-00 TE-TNS-N063N-00 TE-TNS-N083N-00 TE-TNS-N123N-00 TE-TNS-N183N-00

316SS 316SS 316SS 316SS 316SS 316SS 304SS 304SS 304SS 304SS 304SS 304SS

6˝ 6˝ 9˝ 9˝ 12˝ 12˝

2.5˝ 4˝ 6˝ 8˝ 12˝ 18˝

Machined Machined Machined Machined Machined Machined

Fabricated Fabricated Fabricated Fabricated Fabricated Fabricated

(Internal/External)

1/4˝NPT/1/2˝NPT 1/2˝NPT/3/4˝NPT 1/4˝NPT/1/2˝NPT 1/2˝NPT/3/4˝NPT 1/4˝NPT/1/2˝NPT 1/2˝NPT/3/4˝NPT 1/2˝NPSM/1/2˝NPT 1/2˝NPSM/1/2˝NPT 1/2˝NPSM/1/2˝NPT 1/2˝NPSM/1/2˝NPT 1/2˝NPSM/1/2˝NPT 1/2˝NPSM/1/2˝NPT

[R2.29]

Ø1/4 [7.11]

Ø5/8

[15.88]

[1/2 NPT]

1/4 X 1/2 NPT

YEAR LIMITED

WARRANTY
