SERIES TE-SNW
3-1/4
KNOCKOUTS
KNOCKOUTS
3-3/8
E

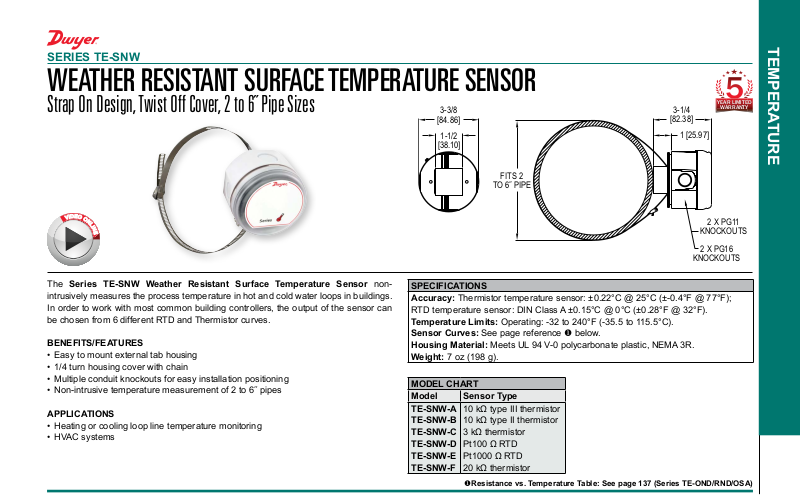

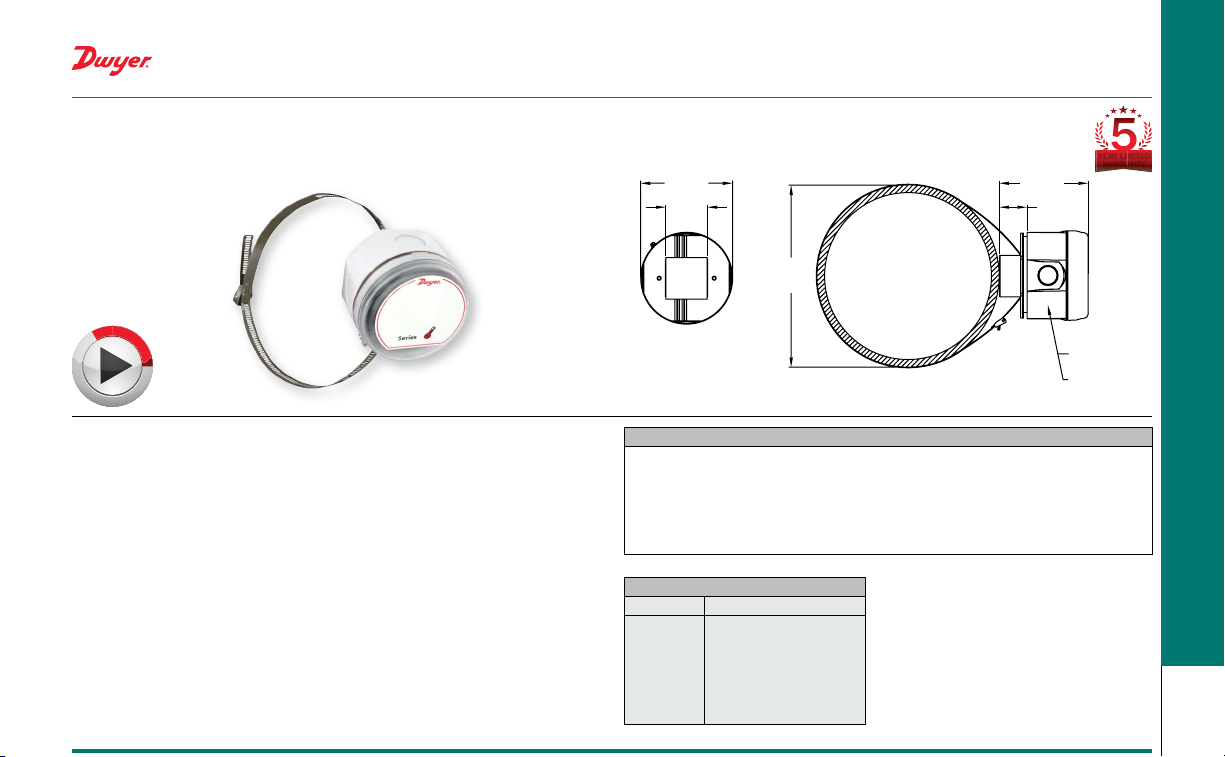

WEATHER RESISTANT SURFACE TEMPERATURE SENSOR
Strap On Design, Twist Off Cover, 2 to 6˝ Pipe Sizes
E
O
D
I
V
O
N
L
I
N
[84.86]
1-1/2
[38.10]
FITS 2
TO 6˝ PIPE
[82.38]
1 [25.97]
YEAR LIMITED
WARRANTY
2 X PG11
2 X PG16
TEMPERATURE
The Series TE-SNW Weather Resistant Surface Temperature Sensor non-
intrusively measures the process temperature in hot and cold water loops in buildings.
In order to work with most common building controllers, the output of the sensor can
be chosen from 6 different RTD and Thermistor curves.
BENEFITS/FEATURES
• Easy to mount external tab housing
• 1/4 turn housing cover with chain
• Multiple conduit knockouts for easy installation positioning
• Non-intrusivetemperaturemeasurementof2to6˝pipes
APPLICATIONS
• Heating or cooling loop line temperature monitoring
• HVAC systems
SPECIFICATIONS
Accuracy: Thermistor temperature sensor: ±0.22°C @ 25°C (±-0.4°F @ 77°F);
RTD temperature sensor: DIN Class A ±0.15°C @ 0°C (±0.28°F @ 32°F).
Temperature Limits: Operating: -32 to 240°F (-35.5 to 115.5°C).
Sensor Curves: See page reference u below.
Housing Material: Meets UL 94 V-0 polycarbonate plastic, NEMA 3R.
Weight: 7 oz (198 g).
MODEL CHART
Model Sensor Type
TE-SNW-A
TE-SNW-B
TE-SNW-C
TE-SNW-D
TE-SNW-E
TE-SNW-F
10kΩtypeIIIthermistor
10kΩtypeIIthermistor
3kΩthermistor
Pt100ΩRTD
Pt1000ΩRTD
20kΩthermistor
uResistance vs. Temperature Table: See page 137 (Series TE-OND/RND/OSA)
