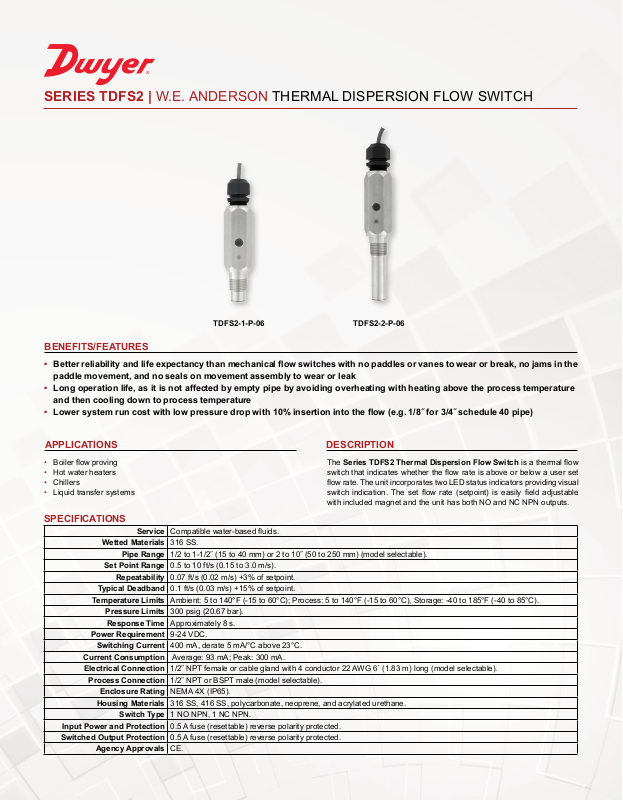

SERIESTDFS2|W.E. ANDERSON THERMAL DISPERSION FLOW SWITCH

TDFS2-1-P-06

TDFS2-2-P-06

BENEFITS/FEATURES

• Betterreliabilityandlifeexpectancythanmechanicalowswitcheswithnopaddlesorvanestowearorbreak,nojamsinthe

 paddlemovement,andnosealsonmovementassemblytowearorleak

• Longoperationlife,asitisnotaffectedbyemptypipebyavoidingoverheatingwithheatingabovetheprocesstemperature

 andthencoolingdowntoprocesstemperature

• Lowersystemruncostwithlowpressuredropwith10%insertionintotheow(e.g.1/8˝for3/4˝schedule40pipe)

DESCRIPTIONAPPLICATIONS

• Boiler ow proving

• Hot water heaters

• Chillers

• Liquid transfer systems

The Series TDFS2 Thermal Dispersion Flow Switch is a thermal ow

switch that indicates whether the ow rate is above or below a user set ow rate. The unit incorporates two LED status indicators providing visual switch indication. The set ow rate (setpoint) is easily eld adjustable with included magnet and the unit has both NO and NC NPN outputs.

SPECIFICATIONS

Service Compatible water-based uids.

Wetted Materials 316 SS.

PipeRange 1/2 to 1-1/2˝ (15 to 40 mm) or 2 to 10˝ (50 to 250 mm) (model selectable).

SetPointRange 0.5 to 10 ft/s (0.15 to 3.0 m/s).

Repeatability 0.07 ft/s (0.02 m/s) +3% of setpoint.

Typical Deadband 0.1 ft/s (0.03 m/s) +15% of setpoint.

TemperatureLimits Ambient: 5 to 140°F (-15 to 60°C); Process: 5 to 140°F (-15 to 60°C), Storage: -40 to 185°F (-40 to 85°C).

PressureLimits 300 psig (20.67 bar).

ResponseTime Approximately 8 s.

PowerRequirement 9-24 VDC.

SwitchingCurrent 400 mA, derate 5 mA/°C above 23°C.

CurrentConsumption Average: 93 mA; Peak: 300 mA.

Electrical Connection 1/2˝ NPT female or cable gland with 4 conductor 22 AWG 6´ (1.83 m) long (model selectable).

ProcessConnection 1/2˝ NPT or BSPT male (model selectable).

EnclosureRating NEMA 4X (IP65).

HousingMaterials 316 SS, 416 SS, polycarbonate, neoprene, and acrylated urethane.

Switch Type 1 NO NPN, 1 NC NPN.

InputPowerandProtection 0.5 A fuse (resettable) reverse polarity protected.

SwitchedOutputProtection 0.5 A fuse (resettable) reverse polarity protected.

AgencyApprovals CE.

Page 2

DIMENSIONS WIRINGDIAGRAM

TDFS

[48.26]

CABLE

CABLE GLAND

1-1/8 HEX

4-3/16

[106.17]

1-21/64

[33.78]

29/64 [11.68]

TDFS2-1-P-06

STATUS INDICATOR

SETPOINT TARGET

PROCESS CONNECTION 1/2˝ NP

SENSOR

POWER (RED)

NC (GREEN)

NO (WHITE)

LOAD(S)

–

DC SUPPLY 9-24 VDC

CABLE

CABLE GLAND

5-5/8

1-1/8

HEX

[142.88]

2-25/32

[70.49]

1-29/32

TDFS2-2-P-06

STATUS INDICATOR

SETPOINT TARGET PROCESS

CONNECTION 1/2˝ NPT OR BSPT

SENSOR

HOWTOORDER

Use the bold characters from the chart below to construct a product code.

TDFS2 -1 -P -06 BSPT

SERIES

TDFS2: Thermal dispersion ow switch

PIPESIZE

-1:1/2 to 1-1/2˝ (15 to 40 mm)

-2: 2 to 10˝ (50 to 250 mm)

ELECTRICALCONNECTION

-C: 1/2˝ female NPT with PVC cable for conduit connection

-B: Cable gland with burial rated cable

-P:Cable gland with PVC jacketed cable

ACCESSORIES

GROUND (BLACK)

HOUSING (DRAIN WIRE)

EARTH GROUND

OPTIONS

-BSPT:1/2˝ BSPT process connection

CABLELENGTH

-03:3 ft cable (0.91 m)

-06:6 ft cable (1.83 m)

-10:10 ft cable (3.05 m)

-15:15 ft cable (4.57 m)

-20:20 ft cable (6.07 m)

-25:25 ft cable (7.62 m)

-30:30 ft cable (9.14 m)

-35:35 ft cable (10.67 m)

-40:40 ft cable (12.19 m)

-45:45 ft cable (13.72 m)

-50:50 ft cable (15.24 m)

Model Description

100571-00 Replacement set point magnet
