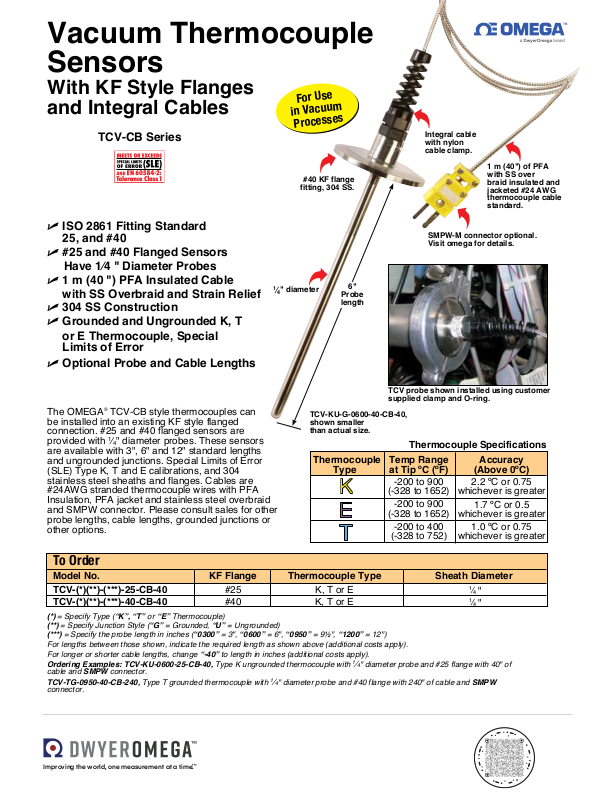

Vacuum Thermocouple
Sensors
With KF Style Flanges
and Integral Cables
TCV-CB Series
dradnatS gnittiF 1682 OSI
25, and #40
#25 and #40 Flanged Sensors
Have 1⁄4 " Diameter Probes
04( m 1 ") PFA Insulated Cable
with SS Overbraid and Strain Relief
noitcurtsnoC SS 403
T ,K dednuorgnU dna dednuorG
or E Thermocouple, Special
Limits of Error
shtgneL elbaC dna eborP lanoitpO
For Use
in Vacuum
Processes
1
" diameter
⁄
4
fitting, 304 SS.
Probe
length
6"
Integral cable
with nylon
cable clamp.
1 m (40") of PFA
egnalf FK 04#
SMPW-M connector optional.
Visit omega for details.
with SS over
braid insulated and
jacketed #24 AWG
thermocouple cable
standard.
TCV probe shown installed using customer
supplied clamp and O-ring.
The OMEGA® TCV-CB style thermocouples can
be installed into an existing KF style flanged
connection. #25 and #40 flanged sensors are
provided with 1⁄4" diameter probes. These sensors
are available with 3", 6" and 12" standard lengths
and ungrounded junctions. Special Limits of Error
(SLE) Type K, T and E calibrations, and 304
stainless steel sheaths and flanges. Cables are
#24AWG stranded thermocouple wires with PFA
Insulation, PFA jacket and stainless steel overbraid
and SMPW connector. Please consult sales for other
probe lengths, cable lengths, grounded junctions or
other options.
TCV-KU-G-0600-40-CB-40,
shown smaller
than actual size.
Thermocouple Specifications
Thermocouple Temp Range Accuracy
Type at Tip ºC (ºF) (Above 0ºC)
-200 to 900
K
(-328 to 1652)
-200 to 900
E
(-328 to 1652)
-200 to 400
T
(-328 to 752)
2.2 ºC or 0.75
whichever is greater
1.7 ºC or 0.5
whichever is greater
1.0 ºC or 0.75
whichever is greater
To Order
Model No. KF Flange Thermocouple Type Sheath Diameter
1
⁄
TCV-(*)(**)-(***)-25-CB-40 #25 K, T or E
TCV-(*)(**)-(***)-40-CB-40 #40 K, T or E
(*) = Specify Type (“K”, “T” or “E” Thermocouple)
(**) = Specify Junction Style (“G” = Grounded, “U” = Ungrounded)
(***) = Specify the probe length in inches (“0300” = 3", “0600” = 6", “0950” = 9½", “1200” = 12")
For lengths between those shown, indicate the required length as shown above (additional costs apply).
For longer or shorter cable lengths, change “-40” to length in inches (additional costs apply).
Ordering Examples: TCV-KU-0600-25-CB-40, Type K ungrounded thermocouple with
cable and SMPW connector.
TCV-TG-0950-40-CB-240, Type T grounded thermocouple with
connector.
1
⁄
" diameter probe and #40 flange with 240" of cable and SMPW
4
1
⁄
" diameter probe and #25 flange with 40" of
4
4 "
1
⁄
4 "
Improving the world, one measurement at a time.
