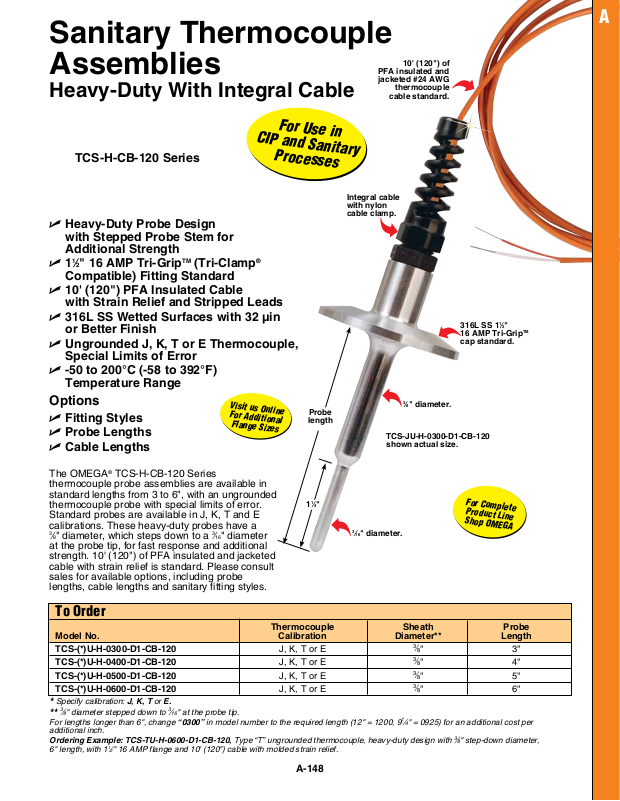

Sanitary Thermocouple
Assemblies
Heavy-Duty With Integral Cable
For Use in
CIP and Sanitary
PFA insulated and
jacketed #24 AWG
cable standard.
A
10' (120") of
thermocouple
TCS-H-CB-120 Series
Processes
U Heavy-Duty Probe Design
with Stepped Probe Stem for
Additional Strength
1
⁄2" 16 AMP Tri-GripTM (Tri-Clamp®
U 1
Compatible) Fitting Standard
U 10' (120") PFA Insulated Cable
with Strain Relief and Stripped Leads
U 316L SS Wetted Surfaces with 32 µin
or Better Finish
U Ungrounded J, K, T or E Thermocouple,
Special Limits of Error
U -50 to 200°C (-58 to 392°F)
Temperature Range
Options
U Fitting Styles
Visit us Online
For Additional
Flange Sizes
U Probe Lengths
U Cable Lengths
Probe
length
Integral cable
with nylon
cable clamp.
TCS-JU-H-0300-D1-CB-120
shown actual size.
3
⁄8" diameter.
316L SS 11⁄2"
16 AMP Tri-GripTM
cap standard.
The OMEGA® TCS-H-CB-120 Series
thermocouple probe assemblies are available in
standard lengths from 3 to 6", with an ungrounded
thermocouple probe with special limits of error.
Standard probes are available in J, K, T and E
calibrations. These heavy-duty probes have a
3
⁄8" diameter, which steps down to a 3⁄16" diameter
11⁄4"
3
⁄16" diameter.
For Complete
Product Line
Shop OMEGA
at the probe tip, for fast response and additional
strength. 10' (120") of PFA insulated and jacketed
cable with strain relief is standard. Please consult
sales for available options, including probe
lengths, cable lengths and sanitary fitting styles.
To Order
Thermocouple Sheath Probe
Model No. Calibration Diameter** Length
TCS-(*)U-H-0300-D1-CB-120 J, K, T or E
TCS-(*)U-H-0400-D1-CB-120 J, K, T or E
TCS-(*)U-H-0500-D1-CB-120 J, K, T or E
TCS-(*)U-H-0600-D1-CB-120 J, K, T or E
Specify calibration: J, K, T or E.
*
3
⁄8" diameter stepped down to 3⁄16" at the probe tip.
**
For lengths longer than 6", change “0300” in model number to the required length (12" = 1200, 9
additional inch.
Ordering Example: TCS-TU-H-0600-D1-CB-120, Type “T” ungrounded thermocouple, heavy-duty design with
6" length, with 11⁄2" 16 AMP flange and 10' (120") cable with molded strain relief.
A-148
3
⁄
8" 3"
3
⁄
8" 4"
3
⁄
8" 5"
3
⁄
8" 6"
1
⁄4" = 0925) for an additional cost per
3
⁄8" step-down diameter,
