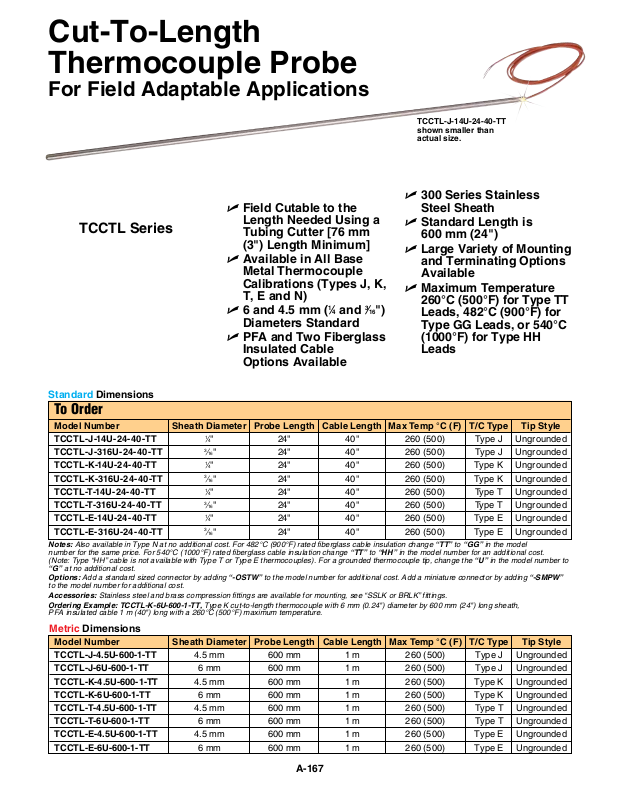

Cut-To-Length
Thermocouple Probe
For Field Adaptable Applications
U Field Cutable to the
TCCTL Series
Length Needed Using a
Tubing Cutter [76 mm
(3") Length Minimum]
U Available in All Base
Metal Thermocouple
Calibrations (Types J, K,
T, E and N)
U 6 and 4.5 mm (1⁄4 and 3⁄16")
Diameters Standard
U PFA and Two Fiberglass
Insulated Cable
Options Available

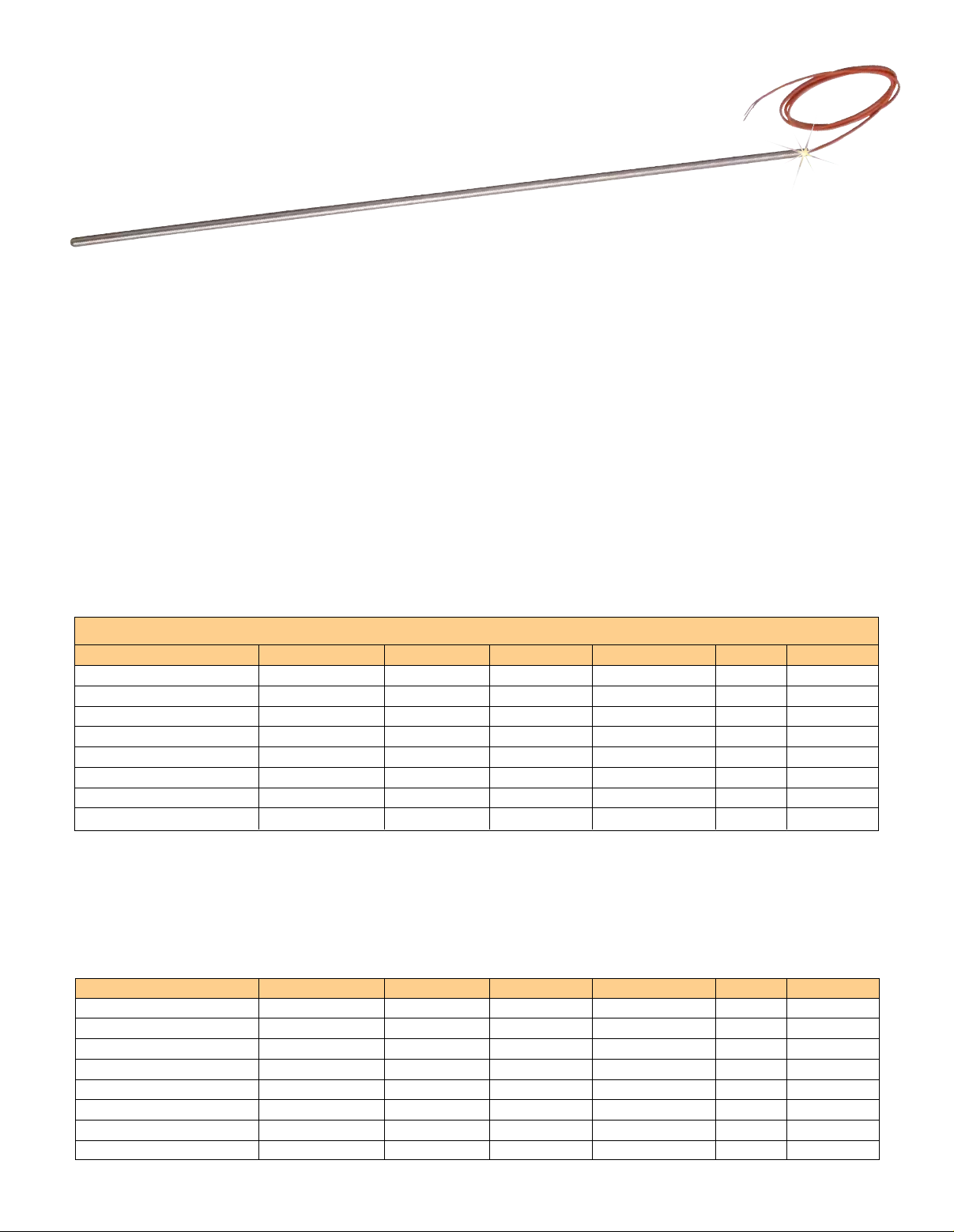

TCCTL-J-14U-24-40-TT
shown smaller than
actual size.
U 300 Series Stainless
Steel Sheath
U Standard Length is
600 mm (24")
U Large Variety of Mounting
and Terminating Options
Available
U Maximum Temperature
260°C (500°F) for Type TT
Leads, 482°C (900°F) for
Type GG Leads, or 540°C
(1000°F) for Type HH
Leads
Standard Dimensions
To Order
Model Number Sheath Diameter Probe Length Cable Length Max Temp °C (F) T/C Type Tip Style
TCCTL-J-14U-24-40-TT
TCCTL-J-316U-24-40-TT
TCCTL-K-14U-24-40-TT
TCCTL-K-316U-24-40-TT
TCCTL-T-14U -24-40 -T T
TCCTL-T-316 U -24-40-TT
TCCTL-E-14U-24-40-TT
TCCTL-E-316U-24-40-TT
Notes: Also available in Type N at no additional cost. For 482°C (900°F) rated fiberglass cable insulation change “TT” to “GG” in the model
number for the same price. For 540°C (1000°F) rated fiberglass cable insulation change “TT” to
(Note: Type “HH” cable is not available with Type T or Type E thermocouples). For a grounded thermocouple tip, change the “U” in the model number to
“G” at no additional cost.
Options: Add a standard sized connector by adding “-OSTW” to the model number for additional cost. Add a miniature connector by adding “-SMPW”
to the model number for additional cost.
Accessories: Stainless steel and brass compression fittings are available for mounting, see “SSLK or BRLK” fittings.
Ordering Example: TCCTL-K-6U-600-1-TT, Type K cut-to-length thermocouple with 6 mm (0.24") diameter by 600 mm (24") long sheath,
PFA insulated cable 1 m (40") long with a 260°C (500°F) maximum temperature.
Metric Dimensions
Model Number Sheath Diameter Probe Length Cable Length Max Temp °C (F) T/C Type Tip Style
TCCTL-J-4.5U-600-1-TT 4.5 mm 600 mm 1 m 260 (500) Type J Ungrounded
TCCTL-J-6U-600-1-TT 6 mm 600 mm 1 m 260 (500) Type J Ungrounded
TCCTL-K-4.5U-600-1-TT 4.5 mm 600 mm 1 m 260 (500) Type K Ungrounded
TCCTL-K-6U-600-1-TT 6 mm 600 mm 1 m 260 (500) Type K Ungrounded
TCCTL-T-4.5U-600-1-TT 4.5 mm 600 mm 1 m 260 (500) Type T Ungrounded
TCCTL-T-6U-600-1-TT 6 mm 600 mm 1 m 260 (500) Type T Ungrounded
TCCTL-E-4.5U-600-1-TT 4.5 mm 600 mm 1 m 260 (500) Type E Ungrounded
TCCTL-E-6U-600-1-TT 6 mm 600 mm 1 m 260 (500) Type E Ungrounded
1
⁄4" 24" 40" 260 (500) Type J Ungrounded
3
⁄16" 24" 40" 260 (500) Type J Ungrounded
1
⁄4" 24" 40" 260 (500) Type K Ungrounded
3
⁄16" 24" 40" 260 (500) Type K Ungrounded
1
⁄4" 24" 40" 260 (500) Type T Ungrounded
3
⁄16" 24" 40" 260 (500) Type T Ungrounded
1
⁄4" 24" 40" 260 (500) Type E Ungrounded
3
⁄16" 24" 40" 260 (500) Type E Ungrounded
“HH” in the model number for an additional cost.
