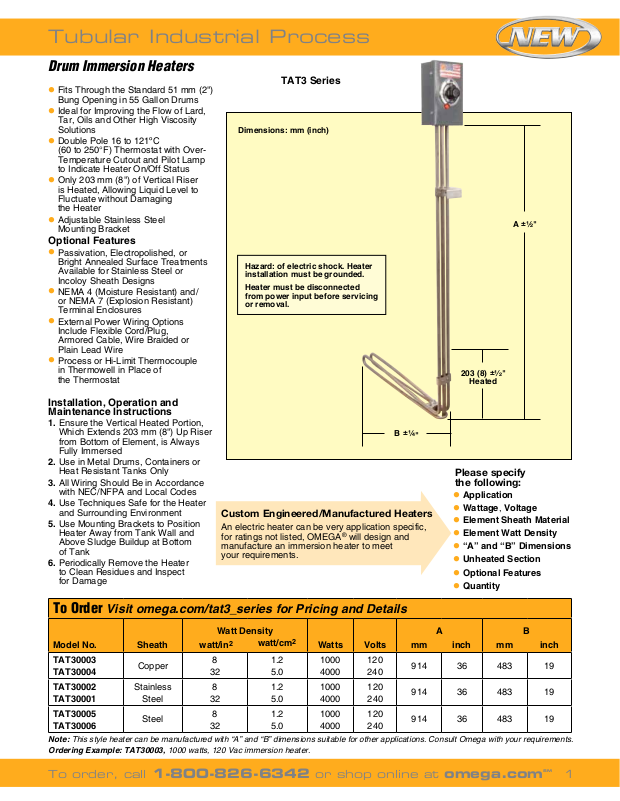

Tubular Industrial Process
Drum Immersion Heaters
l Fits Through the Standard 51 mm (2")
Bung Opening in 55 Gallon Drums
l Ideal for Improving the Flow of Lard,
Tar, Oils and Other High Viscosity
Solutions
l Double Pole 16 to 121ºC
(60 to 250°F) Thermostat with OverTemperature Cutout and Pilot Lamp
to Indicate Heater On/Off Status
l Only 203 mm (8") of Vertical Riser
is Heated, Allowing Liquid Level to
Fluctuate without Damaging
the Heater
l Adjustable Stainless Steel
Mounting Bracket
Optional Features
l
Passivation, Electropolished, or
Bright Annealed Surface Treatments
Available for Stainless Steel or
Incoloy Sheath Designs
l
NEMA 4 (Moisture Resistant) and/
or NEMA 7 (Explosion Resistant)
Terminal Enclosures
l
External Power Wiring Options
Include Flexible Cord/Plug,
Armored Cable, Wire Braided or
Plain Lead Wire
l
Process or Hi-Limit Thermocouple
in Thermowell in Place of
the Thermostat
Dimensions: mm (inch)
Hazard: of electric shock. Heater
installation must be grounded.
Heater must be disconnected
from power input before servicing
or removal.

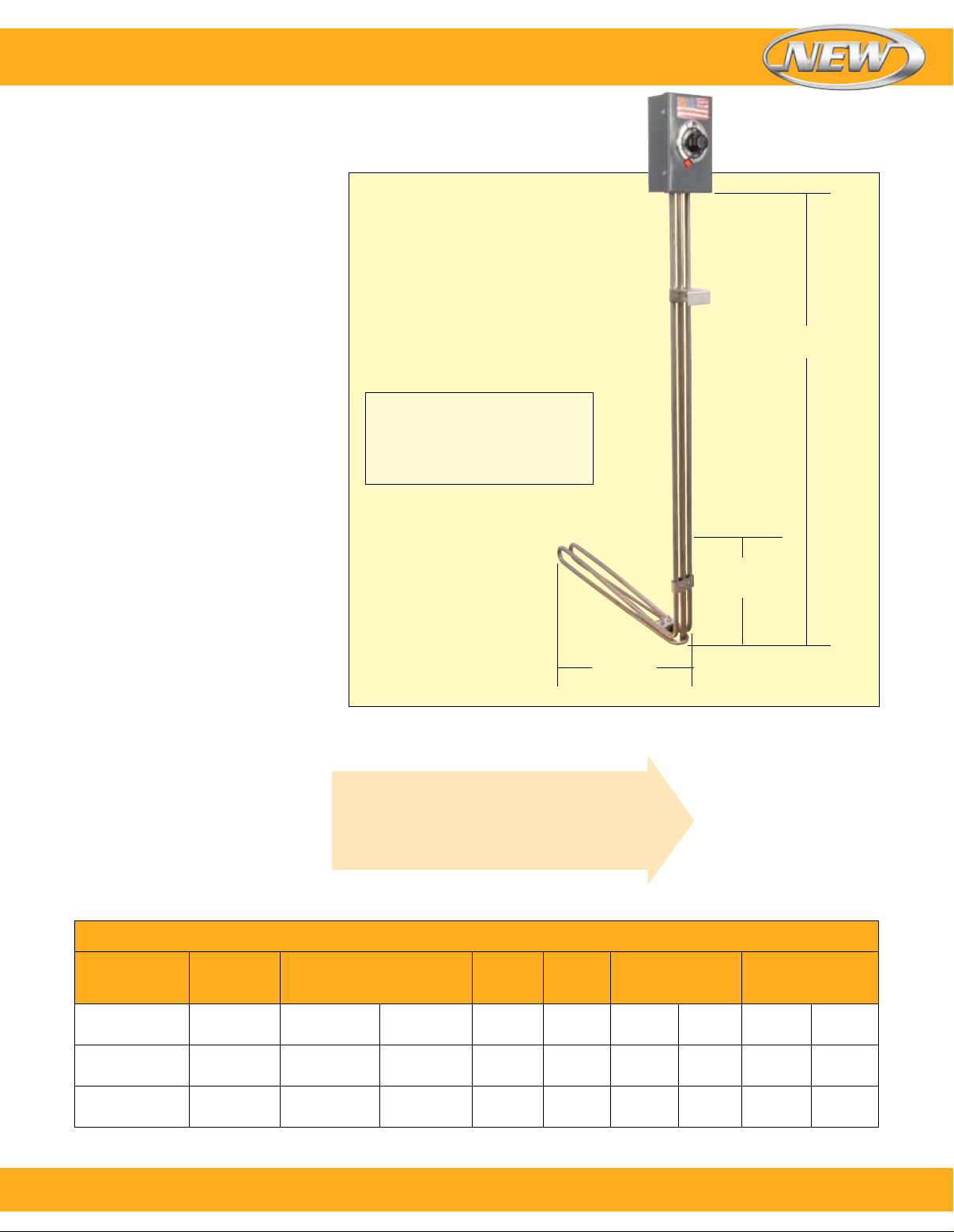

TAT3 Series
A ±¹⁄₂"
203 (8) ±¹⁄₂"
Heated
Installation, Operation and
Maintenance Instructions
1. Ensure the Vertical Heated Portion,
Which Extends 203 mm (8") Up Riser
from Bottom of Element, is Always
Fully Immersed
2. Use in Metal Drums, Containers or
Heat Resistant Tanks Only
3. All Wiring Should Be in Accordance
with NEC/NFPA and Local Codes
4. Use Techniques Safe for the Heater
and Surrounding Environment
5. Use Mounting Brackets to Position
Heater Away from Tank Wall and
Above Sludge Buildup at Bottom
of Tank
6. Periodically Remove the Heater
to Clean Residues and Inspect
for Damage
Custom Engineered/Manufactured Heaters
An electric heater can be very application specific,
for ratings not listed, OMEGA® will design and
manufacture an immersion heater to meet
your requirements.
B ±¹⁄₄
"
Please specify
the following:
l Application
l Wattage, Voltage
l Element Sheath Material
l Element Watt Density
l “A” and “B” Dimensions
l Unheated Section
l Optional Features
l Quantity
To Order Visit omega.com/tat3_series for Pricing and Details
Model No.
TAT30003
TAT30004
TAT30002
TAT30001
TAT30005
TAT30006
Note: This style heater can be manufactured with “A” and “B” dimensions suitable for other applications. Consult Omega with your requirements.
Ordering Example: TAT30003, 1000 watts, 120 Vac immersion heater.
Sheath
Copper
Stainless
Steel
Steel
Watt Density A B
watt/in
2
8
32
8
32
8
32
watt/cm
1.2
5.0
1.2
5.0
1.2
5.0
2
Watts
1000
4000
1000
4000
1000
4000
Volts
120
240
120
240
120
240
mm
914 36 483 19
914 36 483 19
914 36 483 19
inch
mm
inch
To order, call 1-800-826-6342 or shop online at omega.com
