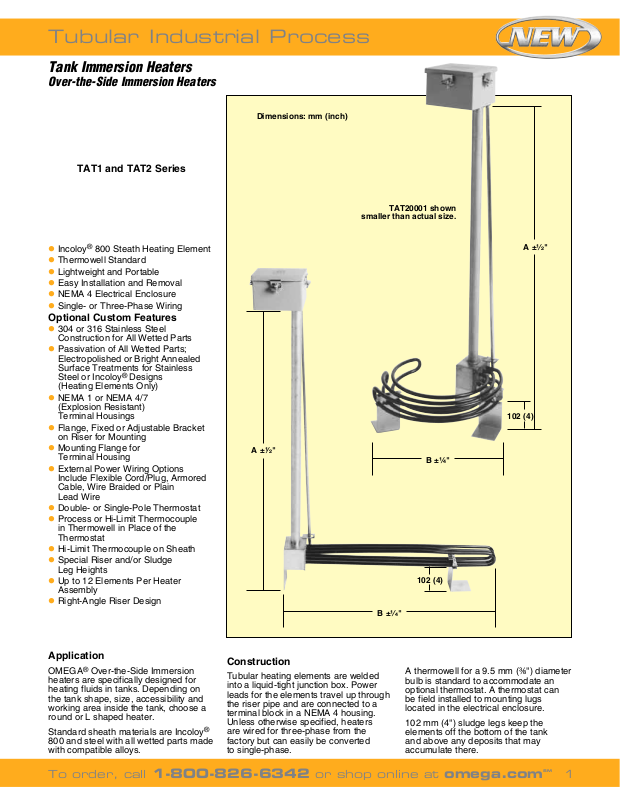

Page 1
Tubular Industrial Process
Tank Immersion Heaters
Over-the-Side Immersion Heaters

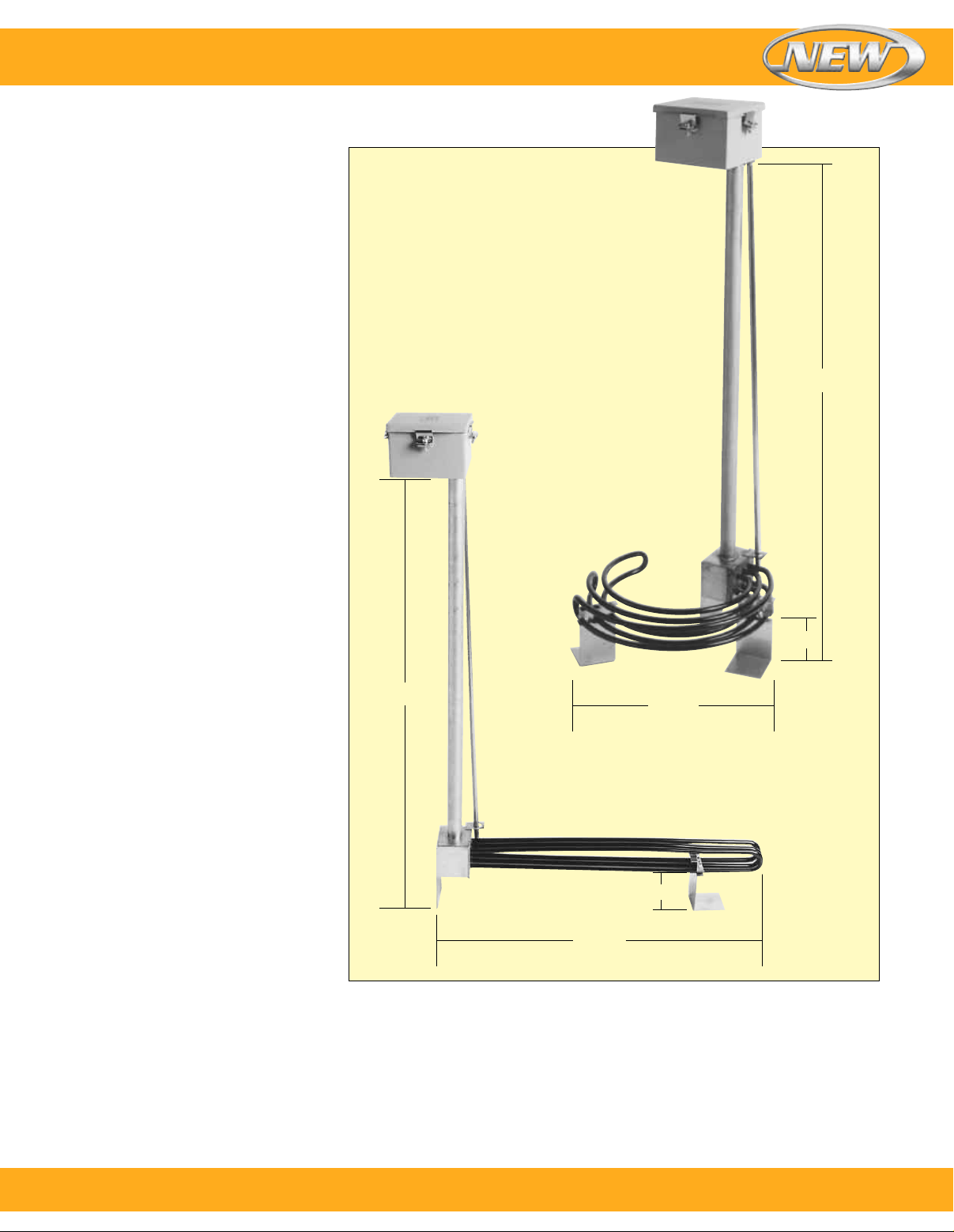

Dimensions: mm (inch)
TAT1 and TAT2 Series
smaller than actual size.
TAT20001 shown
l Incoloy® 800 Steath Heating Element
l Thermowell Standard
l Lightweight and Portable
l Easy Installation and Removal
l NEMA 4 Electrical Enclosure
l Single- or Three-Phase Wiring
Optional Custom Features
l 304 or 316 Stainless Steel
Construction for All Wetted Parts
l Passivation of All Wetted Parts;
Electropolished or Bright Annealed
Surface Treatments for Stainless
Steel or Incoloy® Designs
(Heating Elements Only)
l NEMA 1 or NEMA 4/7
(Explosion Resistant)
Terminal Housings
l Flange, Fixed or Adjustable Bracket
on Riser for Mounting
l Mounting Flange for
Terminal Housing
l External Power Wiring Options
Include Flexible Cord/Plug, Armored
Cable, Wire Braided or Plain
Lead Wire
l Double- or Single-Pole Thermostat
l Process or Hi-Limit Thermocouple
in Thermowell in Place of the
Thermostat
l Hi-Limit Thermocouple on Sheath
l Special Riser and/or Sludge
Leg Heights
l Up to 12 Elements Per Heater
Assembly
l Right-Angle Riser Design
A ±¹⁄₂"
102 (4)
A ±¹⁄₂"
B ±¹⁄₄"
102 (4)
B ±¹⁄₄"
Application
OMEGA® Over-the-Side Immersion
heaters are specifically designed for
heating fluids in tanks. Depending on
the tank shape, size, accessibility and
working area inside the tank, choose a
round or L shaped heater.
Standard sheath materials are Incoloy®
800 and steel with all wetted parts made
with compatible alloys.
Construction
Tubular heating elements are welded
into a liquid-tight junction box. Power
leads for the elements travel up through
the riser pipe and are connected to a
terminal block in a NEMA 4 housing.
Unless otherwise specified, heaters
are wired for three-phase from the
factory but can easily be converted
to single-phase.
A thermowell for a 9.5 mm (³⁄₈") diameter
bulb is standard to accommodate an
optional thermostat. A thermostat can
be field installed to mounting lugs
located in the electrical enclosure.
102 mm (4") sludge legs keep the
elements off the bottom of the tank
and above any deposits that may
accumulate there.
To order, call 1-800-826-6342 or shop online at omega.com
SM
1
Page 2
Tubular Industrial Process
Typical Heating Applications: Lightweight Oils, Degreasing Solutions, Mineral Oil,
Watt Density 3.6 watt/cm2 (23 watt/in2)
To Order Visit omega.com/tat1_tat2_series for Pricing and Details
3
6
9
3
6
9
Approximate
Net Weight
kg
8
9
10
7
8
9
Approximate
Net Weight
kg
8
9
10
7
8
9
Model No.
240V-3Ph
TAT20001
TAT20003
TAT20005
TAT10001
TAT10003
TAT10005
Ordering Example: TAT20001, 3 KW immersion heater, 240V-3 phase.
480V-3Ph
TAT20002
TAT20004
TAT20006
TAT10002
TAT10004
TAT10006
Element
Shape
Round
Straight
mm
999
1303
1303
999
1303
1303
A B
inch
39⁵⁄₁₆
51⁵⁄₁₆
51⁵⁄₁₆
39⁵⁄₁₆
51⁵⁄₁₆
51⁵⁄₁₆
mm
343
470
597
575
956
1337
inch
13¹⁄₂
18¹⁄₂
23¹⁄₂
22⁵⁄₈
37⁵⁄₈
52⁵⁄₈
KW
3
6
9
3
6
9
Typical Heating Applications: Citric and Phosphoric Acid Solutions, Water Based Chemical Solutions,
Watt Density 3.6 watt/cm2 (23 watt/in2)
Model No.
240V-3Ph
TAT20007
TAT20009
TAT20011
TAT10007
TAT10009
TAT10011
Ordering Example: TAT20007, 3 KW immersion heater, 240V-3 phase.
480V-3Ph
TAT20008
TAT20010
TAT20012
TAT10008
TAT10010
TAT10012
Element
Shape
Round
Straight
mm
999
1303
1303
999
1303
1303
A B
inch
39⁵⁄₁₆
51⁵⁄₁₆
51⁵⁄₁₆
39⁵⁄₁₆
51⁵⁄₁₆
51⁵⁄₁₆
mm
343
470
597
575
956
1337
inch
13¹⁄₂
18¹⁄₂
23¹⁄₂
22⁵⁄₈
37⁵⁄₈
52⁵⁄₈
KW
lb
17
20
22
15
18
20
lb
17
20
22
15
18
20
Typical Heating Applications: Process Water, Mild Caustic Solutions (2% maximum), Clean Water,
Watt Density 7.4 watt/cm2 (42 watt/in2)
Model No. A B
240V-3Ph
TAT20013
TAT20015
TAT20017
TAT20019
TAT20021
TAT20023
TAT10013
TAT10015
TAT10017
TAT10019
TAT10021
TAT10023
Ordering Example: TAT20014, 3 KW immersion heater, 480V-3 phase.
480V-3Ph
TAT20014
TAT20016
TAT20018
TAT20020
TAT20022
TAT20024
TAT10014
TAT10016
TAT10018
TAT10020
TAT10022
TAT10024
Element
Shape
Round
Straight
mm
999
999
999
1303
1303
1303
999
999
999
1303
1303
1303
inch
39⁵⁄₁₆
39⁵⁄₁₆
39⁵⁄₁₆
51⁵⁄₁₆
51⁵⁄₁₆
51⁵⁄₁₆
39⁵⁄₁₆
39⁵⁄₁₆
39⁵⁄₁₆
51⁵⁄₁₆
51⁵⁄₁₆
51⁵⁄₁₆
mm
273
343
406
470
540
597
371
575
765
956
1146
1337
inch
10³⁄₄
13¹⁄₂
16
18¹⁄₂
21¹⁄₂
23¹⁄₂
14⁵⁄₈
22⁵⁄₈
30¹⁄₈
37⁵⁄₈
45¹⁄₈
52⁵⁄₈
KW
3
6
9
12
15
18
3
6
9
12
15
18
Approximate
Net Weight
kg
7
8
8
9
10
10
6
7
7
8
9
9
Please Specify the Following:
Custom Engineered/Manufactured Heaters
An electric heater can be very application specific,
for sizes and ratings not listed, OMEGA® will design
and manufacture an over-the-side immersion heater
to meet your requirements.
l Application
l Wattage, Voltage
and Phase
l Element Sheath Material
l Number of Elements
l Element Watt Density
l “A” and “B” Dimensions
l Optional Features
l Quantity
lb
16
17
18
20
21
22
14
15
16
18
19
20
2
To order, call 1-800-826-6342 or shop online at omega.com
