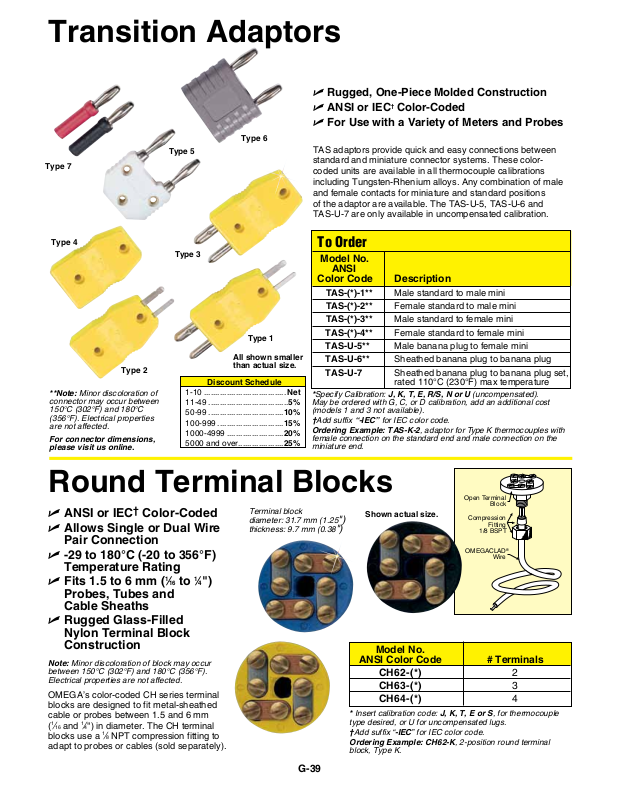

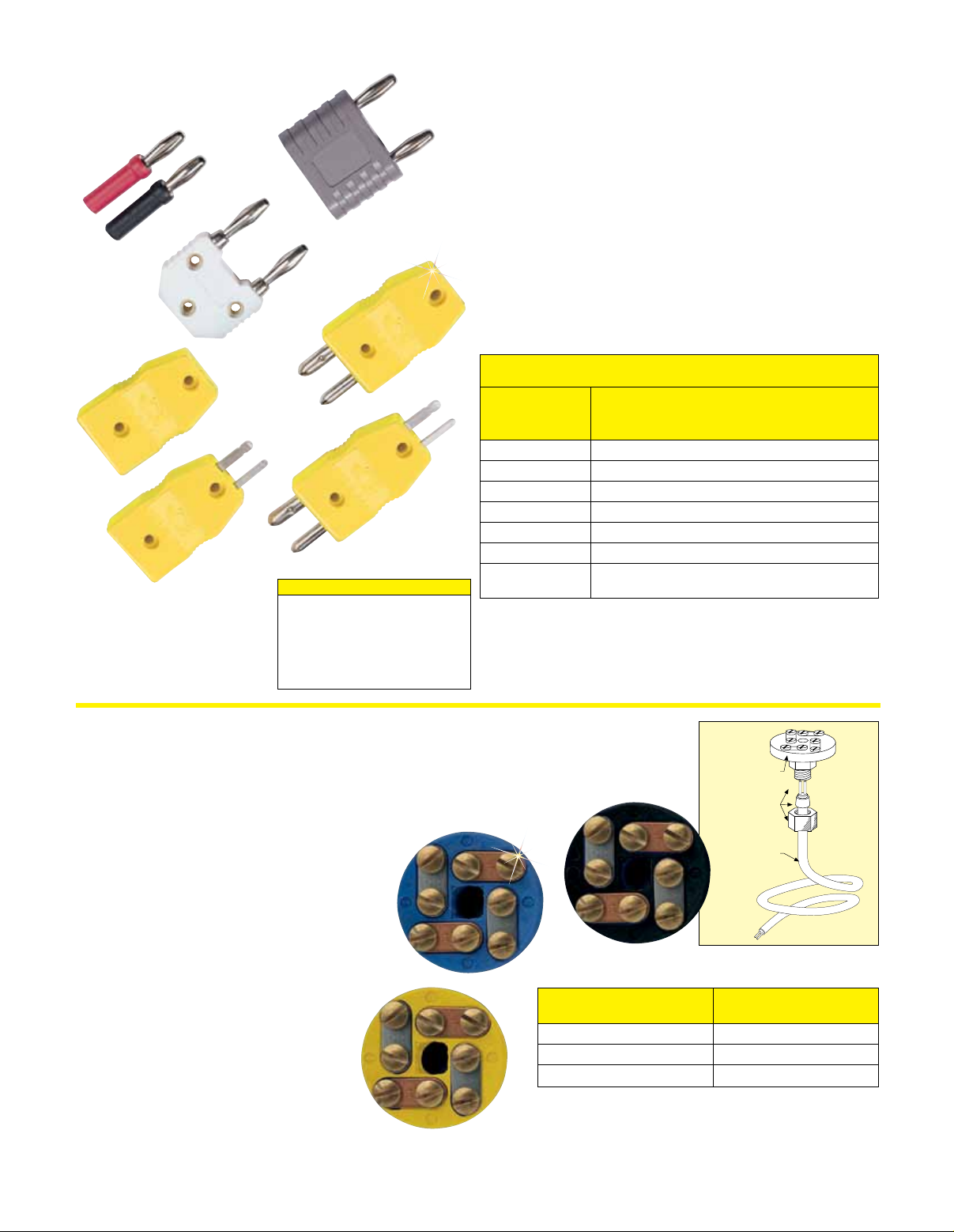

Transition Adaptors
/T-terminal block dwg
U Rugged, One-Piece Molded Construction
U ANSI or IEC
U For Use with a Variety of Meters and Probes
Type 6
Type 5
Type 7
TAS adaptors provide quick and easy connections between
standard and miniature connector systems. These colorcoded units are available in all thermocouple calibrations
including Tungsten-Rhenium alloys. Any combination of male
and female contacts for miniature and standard positions
of the adaptor are available. The TAS-U-5, TAS-U-6 and
TAS-U-7 are only available in uncompensated calibration.
†
Color-Coded
Type 4
Type 3
To Order
Model No.
ANSI
Color Code Description
TAS-(*)-1** Male standard to male mini
TAS-(*)-2** Female standard to male mini
TAS-(*)-3** Male standard to female mini
TAS-(*)-4** Female standard to female mini
TAS-U-5** Male banana plug to female mini
TAS-U-6** Sheathed banana plug to banana plug
TAS-U-7 Sheathed banana plug to banana plug set,
rated 110°C (230°F) max temperature
*Specify Calibration: J, K, T, E, R/S, N or U (uncompensated).
May be ordered with G, C, or D calibration, add an additional cost
(models 1 and 3 not available).
†Add suffix “-IEC” for IEC color code.
Ordering Example: TAS-K-2, adaptor for Type K thermocouples with
female connection on the standard end and male connection on the
miniature end.
Type 2
**Note: Minor discoloration of
connector may occur between
150°C (302°F) and 180°C
(356°F). Electrical properties
are not affected.
For connector dimensions,
please visit us online.
Type 1
All shown smaller
than actual size.
Discount Schedule
1-10 .................................... Net
11-49 ...................................5%
50-99 .................................10%
100-999 .............................15%
1000-4999 .........................20%
5000 and over....................25%
Round Terminal Blocks
U ANSI or IEC† Color-Coded
U Allows Single or Dual Wire
Pair Connection
U -29 to 180°C (-20 to 356°F)
Temperature Rating
1
U Fits 1.5 to 6 mm (
⁄16 to 1⁄4")
Probes, Tubes and
Cable Sheaths
U Rugged Glass-Filled
Nylon Terminal Block
Construction
Note: Minor discoloration of block may occur
between 150°C (302°F) and 180°C (356°F).
Electrical properties are not affected.
OMEGA’s color-coded CH series terminal
blocks are designed to fit metal-sheathed
cable or probes between 1.5 and 6 mm
1
(
⁄16 and 1⁄4") in diameter. The CH terminal
blocks use a
adapt to probes or cables (sold separately).
1
⁄8 NPT compression fitting to
Terminal block
diameter: 31.7 mm (1.25
thickness: 9.7 mm (0.38")
Shown actual size.
")
Model No.
ANSI Color Code # Terminals
CH62- (*) 2
CH63-(*) 3
CH64-(*) 4
* Insert calibration code: J, K, T, E or S, for thermocouple
type desired, or U for uncompensated lugs.
†Add suffix “-IEC” for IEC color code.
Ordering Example: CH62-K, 2-position round terminal
block, Type K.
Open Terminal
Block
Compression
Fitting
1/8 BSPT
OMEGACLAD
Wire
®
G-39
