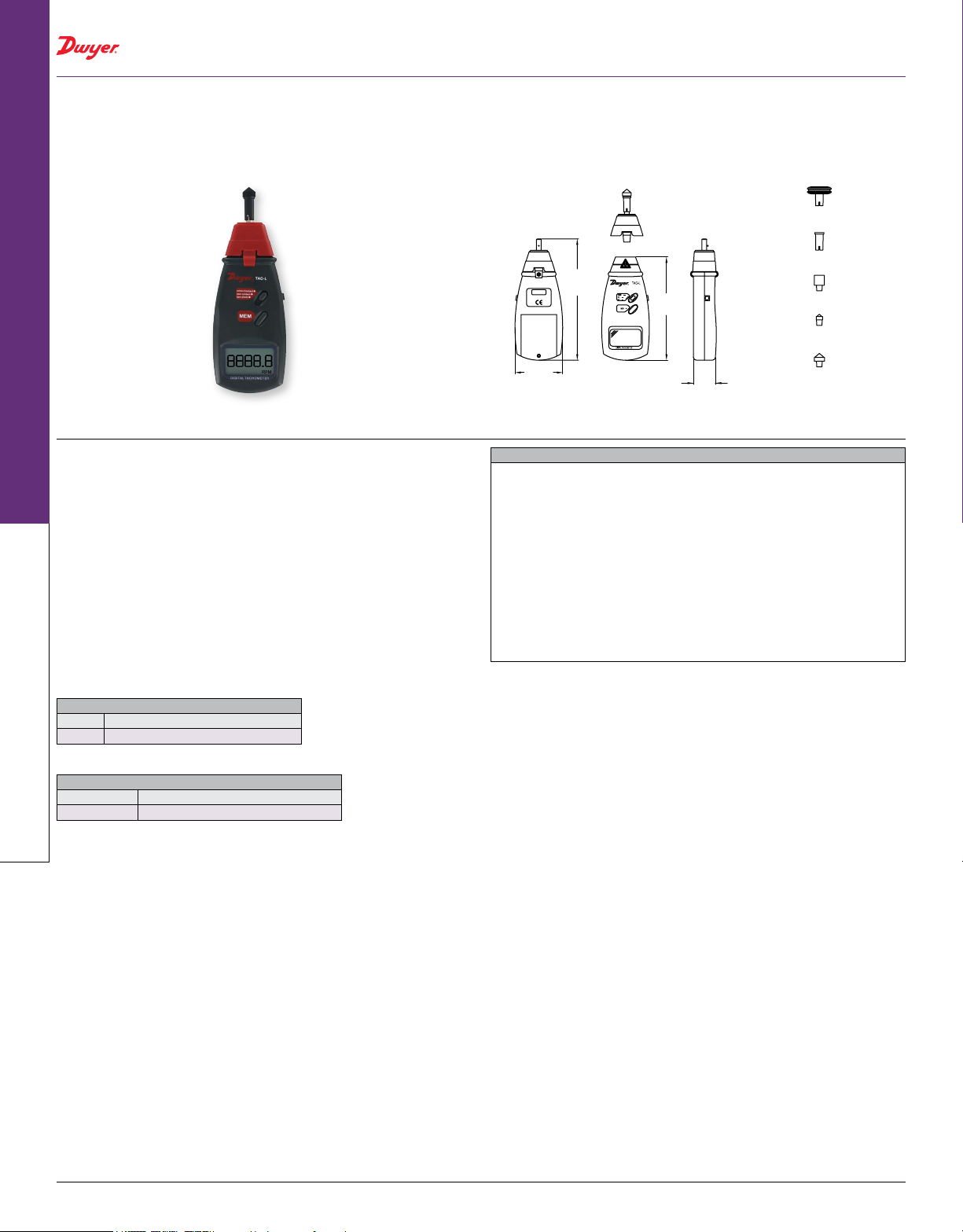

MODEL TAC-L
PORTABLE DIGITAL TACHOMETER
Contact or Photo Non-Contact Operation, Backlit LCD
TEST, ADJUST, & BALANCE
2-7/8
[73.89]
7-3/8
[187.91]
6-1/4
[159.96]
1-3/8
[34.05]
SURFACE SPEED
RING ATTACHMENT
RPM ADAPTOR FITTING
[ATTACHED TO UNIT]
CYLINDRICAL CONTACT
ROTATIONAL FITTING
SMALL POINTED CONTACT
ROTATIONAL FITTING
LARGE POINTED CONTACT
ROTATIONAL FITTINGS

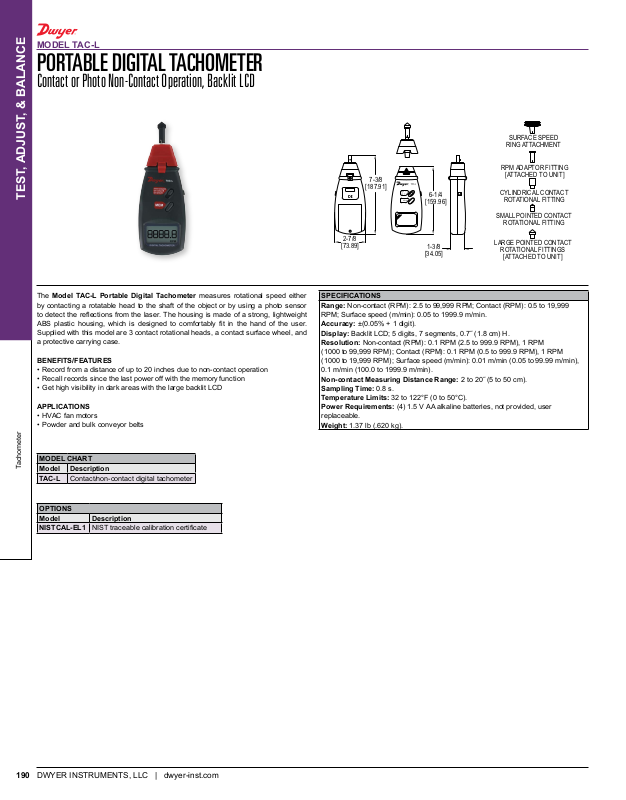

The Model TAC-L Portable Digital Tachometer measures rotational speed either
by contacting a rotatable head to the shaft of the object or by using a photo sensor
to detect the reections from the laser. The housing is made of a strong, lightweight
ABS plastic housing, which is designed to comfortably t in the hand of the user.
Supplied with this model are 3 contact rotational heads, a contact surface wheel, and
a protective carrying case.
BENEFITS/FEATURES
• Record from a distance of up to 20 inches due to non-contact operation
• Recall records since the last power off with the memory function
• Get high visibility in dark areas with the large backlit LCD
APPLICATIONS
• HVAC fan motors
• Powder and bulk conveyor belts
MODEL CHART
Tachometer
Model Description
TAC-L Contact/non-contact digital tachometer
OPTIONS
Model Description
NISTCAL-EL1 NIST traceable calibration certicate
SPECIFICATIONS
Range: Non-contact (RPM): 2.5 to 99,999 RPM; Contact (RPM): 0.5 to 19,999
RPM; Surface speed (m/min): 0.05 to 1999.9 m/min.
Accuracy: ±(0.05% + 1 digit).
Display: Backlit LCD; 5 digits, 7 segments, 0.7˝ (1.8 cm) H.
Resolution: Non-contact (RPM): 0.1 RPM (2.5 to 999.9 RPM), 1 RPM
(1000 to 99,999 RPM); Contact (RPM): 0.1 RPM (0.5 to 999.9 RPM), 1 RPM
(1000 to 19,999 RPM); Surface speed (m/min): 0.01 m/min (0.05 to 99.99 m/min),
0.1 m/min (100.0 to 1999.9 m/min).
Non-contact Measuring Distance Range: 2 to 20˝ (5 to 50 cm).
Sampling Time: 0.8 s.
Temperature Limits: 32 to 122°F (0 to 50°C).
Power Requirements: (4) 1.5 V AA alkaline batteries, not provided, user
replaceable.
Weight: 1.37 lb (.620 kg).
