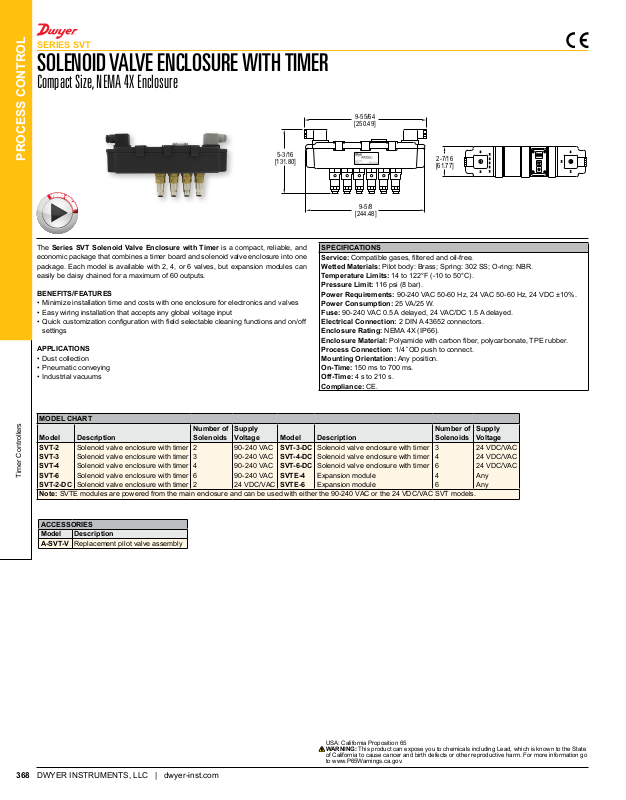

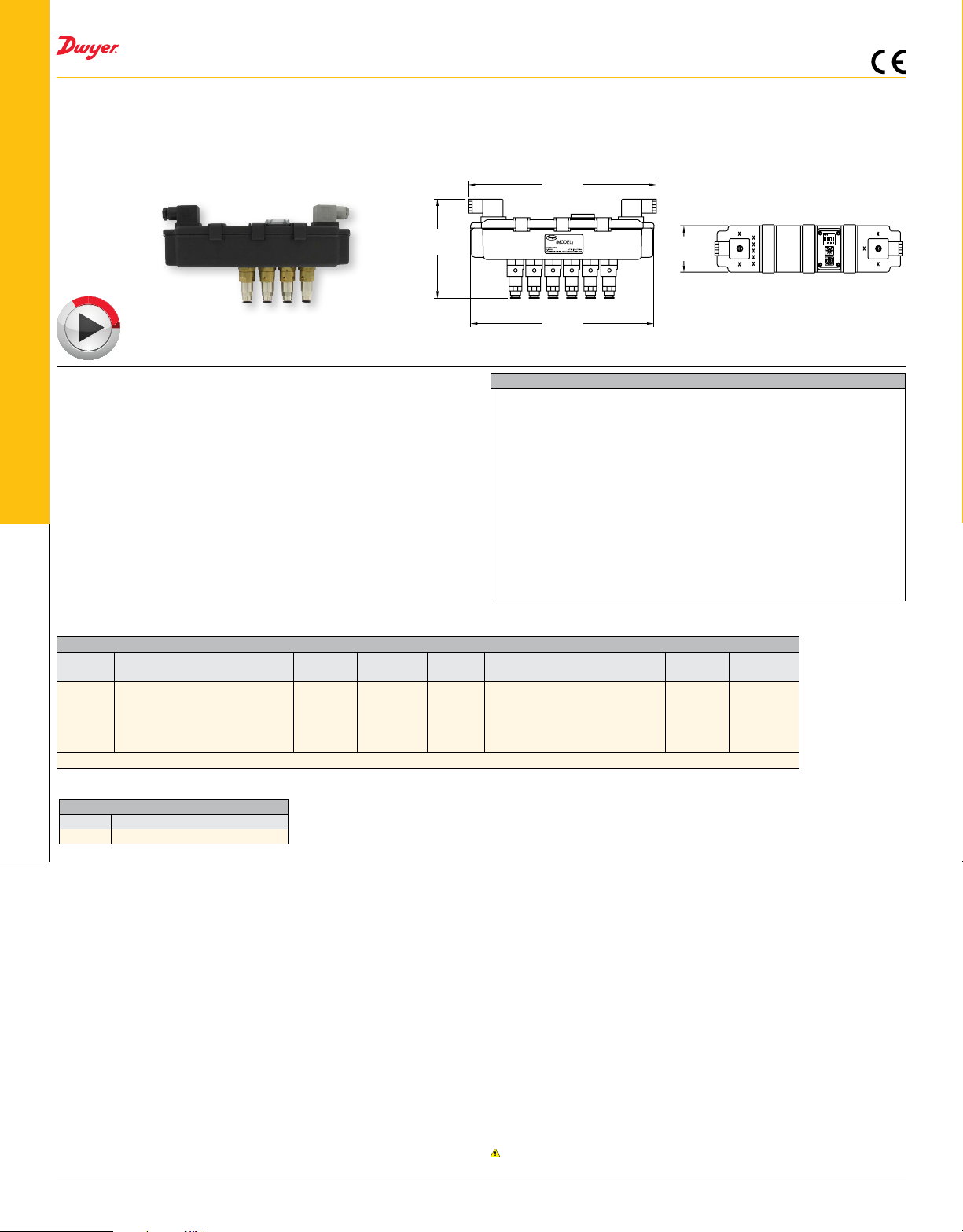

SERIES SVT

E

SOLENOID VALVE ENCLOSURE WITH TIMER

Compact Size, NEMA 4X Enclosure

[250.49]

PROCESS CONTROL

E

O

D

I

V

O

N

L

I

N

The Series SVT Solenoid Valve Enclosure with Timer is a compact, reliable, and
economic package that combines a timer board and solenoid valve enclosure into one
package. Each model is available with 2, 4, or 6 valves, but expansion modules can
easily be daisy chained for a maximum of 60 outputs.

5-3/16

9-5/8

SPECIFICATIONS
Service:Compatiblegases,lteredandoil-free.
Wetted Materials: Pilot body: Brass; Spring: 302 SS; O-ring: NBR.
Temperature Limits: 14 to 122°F (-10 to 50°C).
Pressure Limit: 116 psi (8 bar).

BENEFITS/FEATURES

• Minimize installation time and costs with one enclosure for electronics and valves

• Easy wiring installation that accepts any global voltage input

• Quickcustomizationcongurationwitheldselectablecleaningfunctionsandon/off

settings

Power Requirements: 90-240 VAC 50-60 Hz, 24 VAC 50-60 Hz, 24 VDC ±10%.
Power Consumption: 25VA/25W.
Fuse: 90-240VAC0.5Adelayed,24VAC/DC1.5Adelayed.
Electrical Connection: 2 DIN A 43652 connectors.
Enclosure Rating: NEMA 4X (IP66).
Enclosure Material:Polyamidewithcarbonber,polycarbonate,TPErubber.

APPLICATIONS

• Dust collection

• Pneumatic conveying

• Industrial vacuums

Process Connection: 1/4ODpushtoconnect.
Mounting Orientation: Any position.
On-Time: 150 ms to 700 ms.
Off-Time: 4 s to 210 s.
Compliance: CE.

MODEL CHART

Model Description
SVT-2
SVT-3
SVT-4

Timer Controllers

SVT-6
SVT-2-DC

Solenoid valve enclosure with timer
Solenoid valve enclosure with timer
Solenoid valve enclosure with timer
Solenoid valve enclosure with timer
Solenoid valve enclosure with timer

Number of
Solenoids

2
3
4
6
2

Supply
Voltage Model Description

90-240 VAC
90-240 VAC
90-240 VAC
90-240 VAC

24VDC/VAC

SVT-3-DC
SVT-4-DC
SVT-6-DC
SVTE-4
SVTE-6

Solenoid valve enclosure with timer
Solenoid valve enclosure with timer
Solenoid valve enclosure with timer
Expansion module
Expansion module

Note:SVTEmodulesarepoweredfromthemainenclosureandcanbeusedwitheitherthe90-240VACorthe24VDC/VACSVTmodels.

2-7/16
[61.77]

Number of
Solenoids

3
4
6
4
6

Supply
Voltage

24VDC/VAC
24VDC/VAC
24VDC/VAC

Any
Any

ACCESSORIES
Model Description
A-SVT-V Replacement pilot valve assembly
