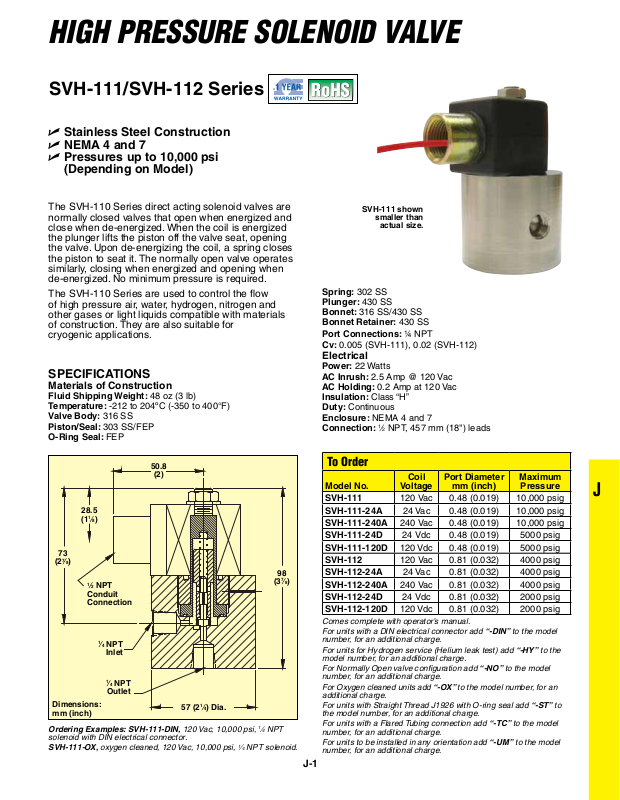

HIGH PRESSURE SOLENOID VALVE
SVH-111/SVH-112 Series
U Stainless Steel Construction
U NEMA 4 and 7
U Pressures up to 10,000 psi
(Depending on Model)
A
The SVH-110 Series direct acting solenoid valves are
normally closed valves that open when energized and
close when de-energized. When the coil is energized
the plunger lifts the piston off the valve seat, opening
the valve. Upon de-energizing the coil, a spring closes
the piston to seat it. The normally open valve operates
similarly, closing when energized and opening when
de-energized. No minimum pressure is required.
The SVH-110 Series are used to control the flow
of high pressure air, water, hydrogen, nitrogen and
other gases or light liquids compatible with materials
of construction. They are also suitable for
cryogenic applications.
SPECIFICATIONS
Materials of Construction
Fluid Shipping Weight: 48 oz (3 lb)
Temperature: -212 to 204ºC (-350 to 400°F)
Valve Body: 316 SS
Piston/Seal: 303 SS/FEP
O-Ring Seal: FEP
50.8
(2)
28.5
1
⁄8)
(1
73
(27⁄8)
98
1
⁄2 NPT
Conduit
Connection
1
⁄4 NPT
Inlet
1
⁄4 NPT
Outlet
Dimensions:
mm (inch)
Ordering Examples: SVH-111-DIN, 120 Vac, 10,000 psi,
solenoid with DIN electrical connector.
SVH-111-OX, oxygen cleaned, 120 Vac, 10,000 psi,
57 (2
1
⁄4) Dia.
1
⁄4 NPT solenoid.
(37⁄8)
1
⁄4 NPT

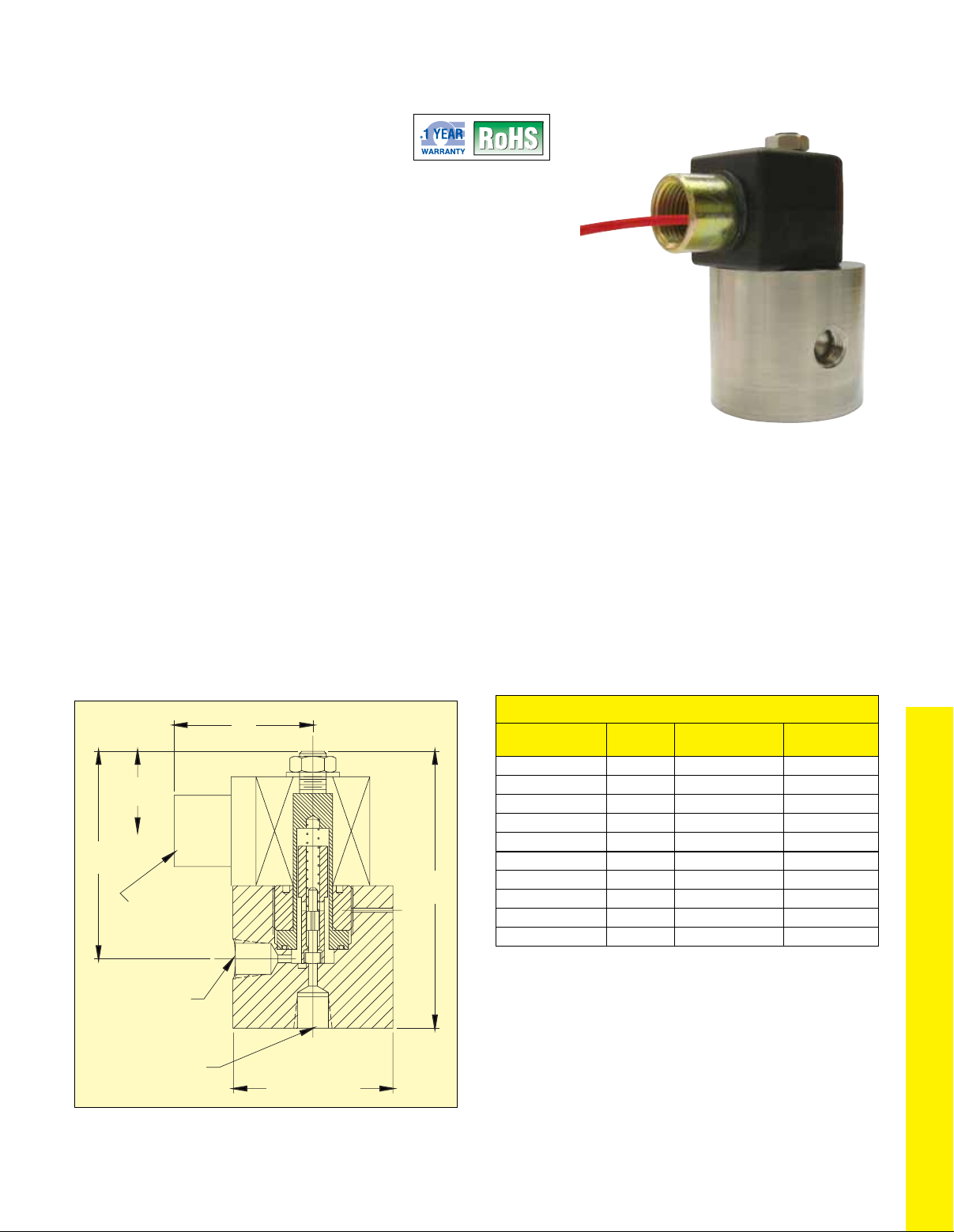

SVH-111 shown
smaller than
actual size.
Spring: 302 SS
Plunger: 430 SS
Bonnet: 316 SS/430 SS
Bonnet Retainer: 430 SS
Port Connections: ¼ NPT
Cv: 0.005 (SVH-111), 0.02 (SVH-112)
Electrical
Power: 22 Watts
AC Inrush: 2.5 Amp @ 120 Vac
AC Holding: 0.2 Amp at 120 Vac
Insulation: Class “H”
Duty: Continuous
Enclosure: NEMA 4 and 7
Connection:
1
⁄2 NPT, 457 mm (18") leads
To Order
Model No.
SVH-111
SVH-111-24A
SVH-111-240A
SVH-111-24D
SVH-111-120D
SVH-112
SVH-112-24A
SVH-112-240A
SVH-112-24D
SVH-112-120D
Comes complete with operator’s manual.
For units with a DIN electrical connector add “-DIN” to the model
number, for an additional charge.
For units for Hydrogen service (Helium leak test) add “-HY” to the
model number, for an additional charge.
For Normally Open valve configuration add “-NO” to the model
number, for an additional charge.
For Oxygen cleaned units add “-OX” to the model number, for an
additional charge.
For units with Straight Thread J1926 with O-ring seal add “-ST” to
the model number, for an additional charge.
For units with a Flared Tubing connection add “-TC” to the model
number, for an additional charge.
For units to be installed in any orientation add “-UM” to the model
number, for an additional charge.
J-1
Coil
Voltage
120 Vac 0.48 (0.019) 10,000 psig
24 Vac 0.48 (0.019) 10,000 psig
240 Vac 0.48 (0.019) 10,000 psig
24 Vdc 0.48 (0.019) 5000 psig
120 Vdc 0.48 (0.019) 5000 psig
120 Vac 0.81 (0.032) 4000 psig
24 Vac 0.81 (0.032) 4000 psig
240 Vac 0.81 (0.032) 4000 psig
24 Vdc 0.81 (0.032) 2000 psig
120 Vdc 0.81 (0.032) 2000 psig
Port Diameter
mm (inch)
Maximum
Pressure
J
