Page 1
13/16
1-21/32
[38.5]
2-9/32
10-5/8 [270]
4-1
4-1
18-29/32 [480]

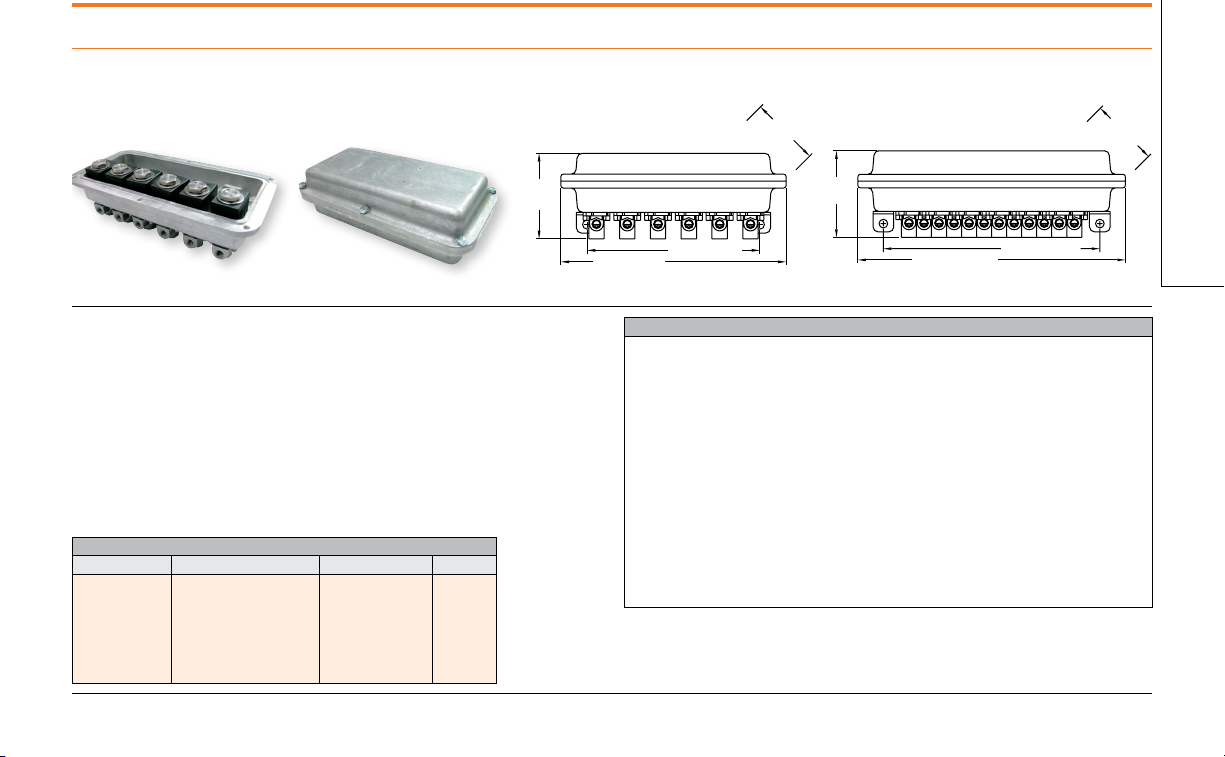

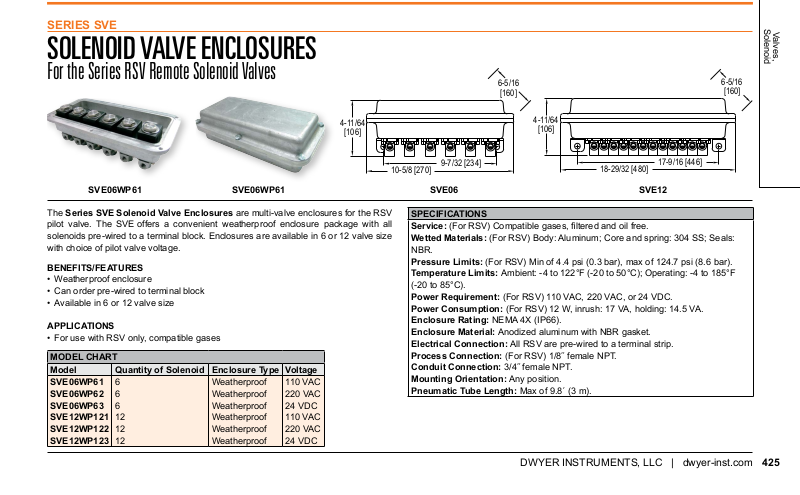

SERIES SVE
SOLENOID VALVE ENCLOSURES
For the Series RSV Remote Solenoid Valves
6-5/16
[160]
6-5/16
[160]
Solenoid
Valves,
1/64
[106]
SVE06WP61 SVE06WP61 SVE06 SVE12
The Series SVE Solenoid Valve Enclosures are multi-valve enclosures for the RSV
pilot valve. The SVE offers a convenient weatherproof enclosure package with all
solenoids pre-wired to a terminal block. Enclosures are available in 6 or 12 valve size
with choice of pilot valve voltage.
BENEFITS/FEATURES
• Weatherproof enclosure
• Can order pre-wired to terminal block
• Available in 6 or 12 valve size
APPLICATIONS
• For use with RSV only, compatible gases
MODEL CHART
Model Quantity of Solenoid Enclosure Type Voltage
SVE06WP61
SVE06WP62
SVE06WP63
SVE12WP121
SVE12WP122
SVE12WP123
6
6
6
12
12
12
Weatherproof
Weatherproof
Weatherproof
Weatherproof
Weatherproof
Weatherproof
110 VAC
220 VAC
24 VDC
110 VAC
220 VAC
24 VDC
1/64
[106]
9-7/32 [234]
SPECIFICATIONS
Service: (For RSV) Compatible gases, ltered and oil free.
Wetted Materials: (For RSV) Body: Aluminum; Core and spring: 304 SS; Seals:
NBR.
Pressure Limits: (For RSV) Min of 4.4 psi (0.3 bar), max of 124.7 psi (8.6 bar).
Temperature Limits: Ambient: -4 to 122°F (-20 to 50°C); Operating: -4 to 185°F
(-20 to 85°C).
Power Requirement: (For RSV) 110 VAC, 220 VAC, or 24 VDC.
Power Consumption: (For RSV) 12 W, inrush: 17 VA, holding: 14.5 VA.
Enclosure Rating: NEMA 4X (IP66).
Enclosure Material: Anodized aluminum with NBR gasket.
Electrical Connection: All RSV are pre-wired to a terminal strip.
Process Connection: (For RSV) 1/8˝ female NPT.
Conduit Connection: 3/4˝ female NPT.
Mounting Orientation: Any position.
Pneumatic Tube Length: Max of 9.8´ (3 m).
17-9/16 [446]
DWYER INSTRUMENTS, LLC | dwyer-inst.com
425
