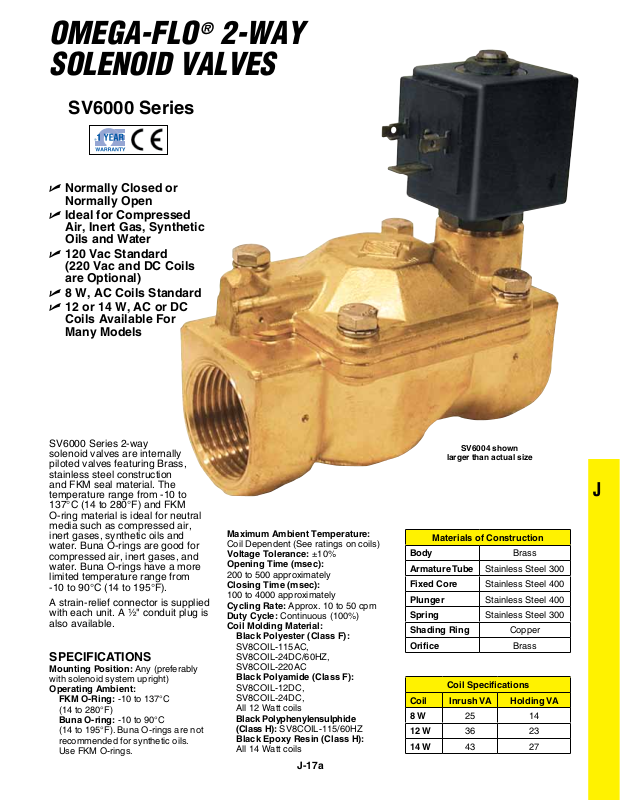

Page 1
OMEGA-FLO® 2-WAy
SOLEnOid VALVES
SV6000 Series
U Normally Closed or
Normally Open
U Ideal for Compressed
Air, Inert Gas, Synthetic
Oils and Water
U 120 Vac Standard
(220 Vac and DC Coils
are Optional)
U 8 W, AC Coils Standard
U 12 or 14 W, AC or DC
Coils Available For
Many Models
SV6000 Series 2-way
solenoid valves are internally
piloted valves featuring Brass,
stainless steel construction
and FKM seal material. The
temperature range from -10 to
137°C (14 to 280°F) and FKM
O-ring material is ideal for neutral
media such as compressed air,
inert gases, synthetic oils and
water. Buna O-rings are good for
compressed air, inert gases, and
water. Buna O-rings have a more
limited temperature range from
-10 to 90°C (14 to 195°F).
A strain-relief connector is supplied
with each unit. A ¹⁄₂" conduit plug is
also available.
SPECIFICATIONS
Mounting Position: Any (preferably
with solenoid system upright)
Operating Ambient:
FKM O-Ring: -10 to 137°C
(14 to 280°F)
Buna O-ring: -10 to 90°C
(14 to 195°F). Buna O-rings are not
recommended for synthetic oils.
Use FKM O-rings.
Maximum Ambient Temperature:
Coil Dependent (See ratings on coils)
Voltage Tolerance: ±10%
Opening Time (msec):
200 to 500 approximately
Closing Time (msec):
100 to 4000 approximately
Cycling Rate: Approx. 10 to 50 cpm
Duty Cycle: Continuous (100%)
Coil Molding Material:
Black Polyester (Class F):
SV8COIL-115AC,
SV8COIL-24DC/60HZ,
SV8COIL-220AC
Black Polyamide (Class F):
SV8COIL-12DC,
SV8COIL-24DC,
All 12 Watt coils
Black Polyphenylensulphide
(Class H): SV8COIL-115/60HZ
Black Epoxy Resin (Class H):
All 14 Watt coils
J-17a
SV6004 shown
larger than actual size
Materials of Construction
Body
Armature Tube
Fixed Core
Plunger
Spring
Shading Ring
Orifice
Coil Specifications
Coil Inrush VA Holding VA
8 W
12 W
14 W
25 14
36 23
43 27
Brass
Stainless Steel 300
Stainless Steel 400
Stainless Steel 400
Stainless Steel 300
Copper
Brass
J
Page 2
SV6004/SV6008
A
C
B
F
E
D
Valve Dimensions SV6004/SV6008
Model No. A B C
SV6004 2⁹⁄₁₆" 4¹⁄₈" 4³⁄₃₂"
SV6005 4¹³⁄₃₂"
SV6006 3⁷⁄₈" 4¹⁵⁄₁₆" 5²¹⁄₃₂"
SV6007
SV6008 4²¹⁄₃₂" 5⁹⁄₁₆" 6²⁵⁄₃₂"
Valve Dimensions
Model No. A B C
SV6001 2"
SV6002 19⁄16" 39⁄16" 2"
SV6003 227⁄32"
SV6000 Series Coil Dimensions
Watt D E F
8 13⁄16" 121⁄32" 21⁄8"
12 17⁄16" 129⁄32" 23⁄8"
14 21⁄16" 27⁄32" 221⁄32"
To Order
Normally Closed
Model No.
SV6001
SV6002
SV6003
SV6004
SV6005
SV6006
SV6007
SV6008
Pipe
Size
Orifice
Size
1
⁄4"
1
⁄4"
3
⁄8"
3
⁄8"
1
⁄2"
1
⁄2"
3
⁄4"
1" 1" 14 Buna
7
⁄16" 1.5 FKM 8 W 2 300 150
7
⁄16" 1.5 FKM 12 or 14 W 2 300 300
7
⁄16" 1.7 FKM 8 W 2 300 150
7
⁄16" 1.7 FKM 12 or 14 W 2 300 300
7
⁄16" 1.7 FKM 8 W 2 300 150
7
⁄16" 1.7 FKM 12 or 14 W 2 300 300
3
⁄4" 9.8 Buna
Cv Flow
Factor O-Ring
11⁄4" 13⁄8" 28 Buna
1
⁄2" 11⁄2" 36 Buna
1
2" 2" 53 Buna
Standard Optional AC psi DC psi
†
†
†
†
†
Normally Open
Model No.
SV6004-NO
SV6005-NO
SV6006-NO
SV6007-NO
SV6008-NO
Maximum Operational Pressure Differential.
*
† Add suffix “-V” to model number to change standard Buna O-rings to FKM, for additional cost.
Comes complete with operator’s manual, 8 W coil and cable grip connector.
Ordering Examples: SV6002,
SV6004-NO,
SV8COIL-12DC, 8 W coil for 12 Vdc 154°C (310°F) (Class F).
3
" normally open valve for
⁄
4
3
⁄4"
1" 1" 14 Buna
11⁄4" 13⁄8" 28 Buna
1
⁄2" 11⁄2" 36 Buna
1
2" 2" 53 Buna
3
⁄4" 9.8 Buna
3
NPT normally closed valve for
⁄
8
3
" orifice.
⁄
4
†
†
†
†
†
7
" orifice.
⁄
16
J-18a
Coils
8 W — 2 230 230
8 W — 2 230 230
8 W — 2 150 150
8 W — 2 150 150
8 W — 2 150 150
8 W — 2 230 230
8 W — 2 230 230
8 W — 2 150 150
8 W — 2 150 150
8 W — 2 150 150
Operating Pressure
Minimum
psi
M.O.P.D.*
Page 3
SV-CC,
1
connector, shown
larger than actual size.
⁄2" conduit
Accessories
Model No. Description
Connectors
SV-CGC
SV-CC
Cable grip connector
1
⁄2" conduit connector
Coils
SV8COIL-115AC
SV8COIL-12DC
SV8COIL-24DC
SV8COIL-24AC/60HZ
SV8COIL-220AC
SV8COIL-115/60HZ
SV12COIL-120/60HZ
SV12COIL-12DC
SV12COIL-24DC
SV14COIL-24DC
SV14COIL-24/50-60HZ
SV14COIL-12DC
Replacement 8W coil for 110 to 120 VAC/50 to 60 Hz 154°C (310°F) (Class F)
8W coil for 12 Vdc 154°C (310°F) (Class F)
8W coil for 24 Vdc 154°C (310°F) (Class F)
8W coil for 24 Vac/60Hz 182°C (360°F) (Class F)
8W coil for 220 to 240 Vac/50 to 60 Hz 154°C (310°F) (Class F)
8W coil for 115 Vac/60 Hz 182°C (360°F) (Class H)
12W coil for 120 Vac/60 Hz 154°C (310°F) (Class F)
12W coil for 12 Vdc 154°C (310°F) (Class F)
12W coil for 24 Vdc 154°C (310°F) (Class F)
14W coil for 24 Vdc 182°C (360°F) (Class H)
14W coil for 24 Vac/50 to 60Hz 182°C (360°F) (Class H)
14W coil for 12 Vdc 182°C (360°F) (Class H)
Repair Kits (Include Diaphragm, Spring, Plunger, and O-rings)
VRK-6000
VRK-6000-NO
VRK-6045
VRK-6045-V
VRK-6045-NO
VRK-6067
VRK-6067-V
VRK-6067-NO
VRK-6008
VRK-6008-V
VRK-6008-NO
cable grip connector.
SV8COIL-12DC, 8W coil for 12 Vdc 154°C (310°F) (Class F).
Repair kit for SV6001, SV6002, SV6003
Repair kit for SV6002-NO, SV6003-NO
Repair kit for SV6004, SV6005
Repair kit for SV6004, SV6005 with FKM O-rings
Repair kit for SV6004-NO, SV6005-NO
Repair kit for SV6006, SV6007
Repair kit for SV6006, SV6007 with FKM O-rings
Repair kit for SV6006-NO, SV6007-NO
Repair kit for SV6008
Repair kit for SV6008 with FKM O-rings
Repair kit for SV6008-NO
J-19a
SV-CGC, cable grip
connector, shown
larger than actual size.
J
