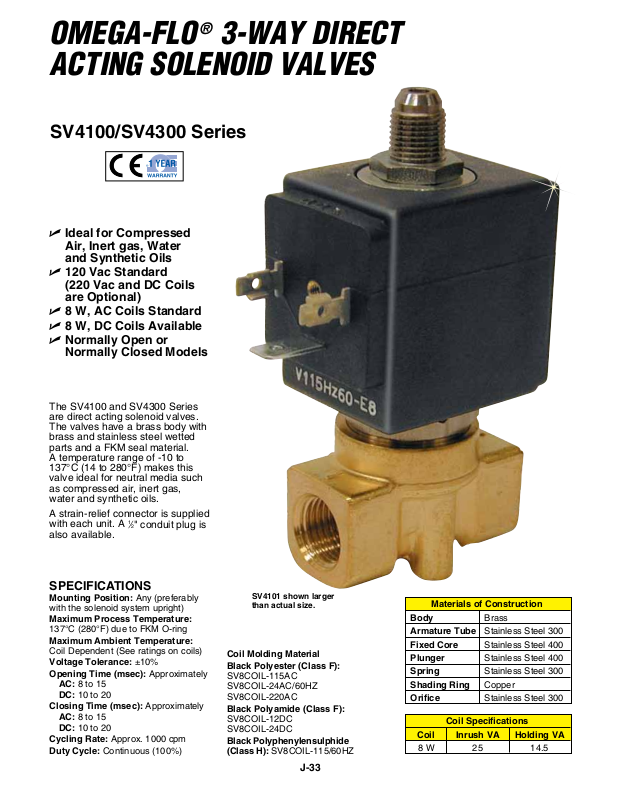

Page 1
OMEGA-FLO® 3-WAy DirEct
ActinG SOLEnOiD VALVES
SV4100/SV4300 Series
U Ideal for Compressed
Air, Inert gas, Water
and Synthetic Oils
U 120 Vac Standard
(220 Vac and DC Coils
are Optional)
U 8 W, AC Coils Standard
U 8 W, DC Coils Available
U Normally Open or
Normally Closed Models
The SV4100 and SV4300 Series
are direct acting solenoid valves.
The valves have a brass body with
brass and stainless steel wetted
parts and a FKM seal material.
A temperature range of -10 to
137°C (14 to 280°F) makes this
valve ideal for neutral media such
as compressed air, inert gas,
water and synthetic oils.
A strain-relief connector is supplied
with each unit. A
also available.
1
⁄2" conduit plug is
SPECIFICATIONS
Mounting Position: Any (preferably
with the solenoid system upright)
Maximum Process Temperature:
137°C (280°F) due to FKM O-ring
Maximum Ambient Temperature:
Coil Dependent (See ratings on coils)
Voltage Tolerance: ±10%
Opening Time (msec): Approximately
AC: 8 to 15
DC: 10 to 20
Closing Time (msec): Approximately
AC: 8 to 15
DC: 10 to 20
Cycling Rate: Approx. 1000 cpm
Duty Cycle: Continuous (100%)
SV4101 shown larger
than actual size.
Coil Molding Material
Black Polyester (Class F):
SV8COIL-115AC
SV8COIL-24AC/60HZ
SV8COIL-220AC
Black Polyamide (Class F):
SV8COIL-12DC
SV8COIL-24DC
Black Polyphenylensulphide
(Class H): SV8COIL-115/60HZ
J-33
Materials of Construction
Body Brass
Armature Tube Stainless Steel 300
Fixed Core Stainless Steel 400
Plunger Stainless Steel 400
Spring Stainless Steel 300
Shading Ring Copper
Orifice Stainless Steel 300
Coil Specifications
Coil Inrush VA Holding VA
8 W 25 14.5
Page 2
F
E
D
Valve Dimensions
Pipe Size A B C
¹⁄₈"
B
1¹⁄₁₆" 3⁷⁄₁₆" 1⁹⁄₁₆"
¹⁄₄"
Coil Dimensions
Coil D E F
M4
C
A
8 W 1³⁄₁₆" 1²¹⁄₃₂" 2¹⁄₈"
To Order
Operating Pressure
3 Way Universal 3rd Way
Normally Opened Pipe Orifice Exhaust Cv Flow Coil Minimum
M.O.P.D.
Model No. Size† Size Orifice Factor Power psi AC psi DC psi
SV4101
SV4102
SV4103
SV4104
SV4105
SV4106
SV4107
SV4108
1
"
⁄
8
1
"
⁄
8
1
"
⁄
8
1
"
⁄
8
1
"
⁄
4
1
"
⁄
4
1
"
⁄
4
1
"
⁄
4
3
"
⁄
64
1
"
⁄
16
3
"
⁄
32
1
"
⁄
8
3
"
⁄
64
1
"
⁄
16
3
"
⁄
32
1
"
⁄
8
3
" 0.06 8 W 0 260 260
⁄
32
1
" 0.1 8 W 0 145 145
⁄
16
3
" 0.22 8 W 0 60 60
⁄
32
1
" 0.28 8 W 0 50 50
⁄
8
3
" 0.06 8 W 0 260 260
⁄
64
1
" 0.1 8 W 0 145 145
⁄
16
3
" 0.22 8 W 0 60 60
⁄
32
1
" 0.28 8 W 0 50 50
⁄
8
Normally Closed
Model No.
SV4301
SV4302
SV4303
SV4304
SV4305
SV4306
SV4307
SV4308
SV4309
SV4310
Maximum Operating Pressure Differential.
*
BSP Connection. In most cases BSP and NPT are interchangeable in this size.
†
1
"
⁄
8
1
"
⁄
8
1
"
⁄
8
1
"
⁄
8
1
"
⁄
8
1
"
⁄
4
1
"
⁄
4
1
"
⁄
4
1
"
⁄
4
1
"
⁄
4
3
"
⁄
64
1
"
⁄
16
5
"
⁄
64
3
"
⁄
32
1
"
⁄
8
3
"
⁄
64
1
"
⁄
16
5
"
⁄
64
3
"
⁄
32
1
"
⁄
8
3
" 0.06 8 W 0 290 290
⁄
32
3
" 0.1 8 W 0 215 215
⁄
32
3
" 0.14 8 W 0 145 145
⁄
32
3
" 0.22 8 W 0 85 85
⁄
32
3
" 0.28 8 W 0 70 70
⁄
32
3
" 0.06 8 W 0 290 290
⁄
32
3
" 0.1 8 W 0 215 215
⁄
32
3
" 0.14 8 W 0 145 145
⁄
32
3
" 0.22 8 W 0 85 85
⁄
32
3
" 0.28 8 W 0 70 70
⁄
32
*
J
Accessories
Model No. Description
Connectors (NEMA 4)
SV-CGC Replacement cable grip connector
SV-CC ¹⁄₂" conduit connector
Coils
SV8COIL-115AC Replacement 8 W coil for 110 to 120 Vac/50 to 60 Hz 154°C (310°F) (Class F)
SV8COIL-12DC 8 W coil for 12 Vdc 154°C (310°F) (Class F)
SV8COIL-24DC 8 W coil for 24 Vdc 154°C (310°F) (Class F)
SV8COIL-24AC/60HZ 8 W coil for 24 Vac/60Hz 182°C (360°F) (Class H)
SV8COIL-220AC 8 W coil for 220 to 240/50 to 60 Hz 154°C (310°F) (Class F)
SV8COIL-115/60HZ 8 W coil for 115/60 Hz 182°C (360°F) (Class H)
Comes complete with operator’s manual and cable grip connector.
Ordering Examples: SV4102,
SV4306,
1
" 3-way normally closed valve.
⁄
4
1
" 3-way universal normally open valve.
⁄
8
J-34
