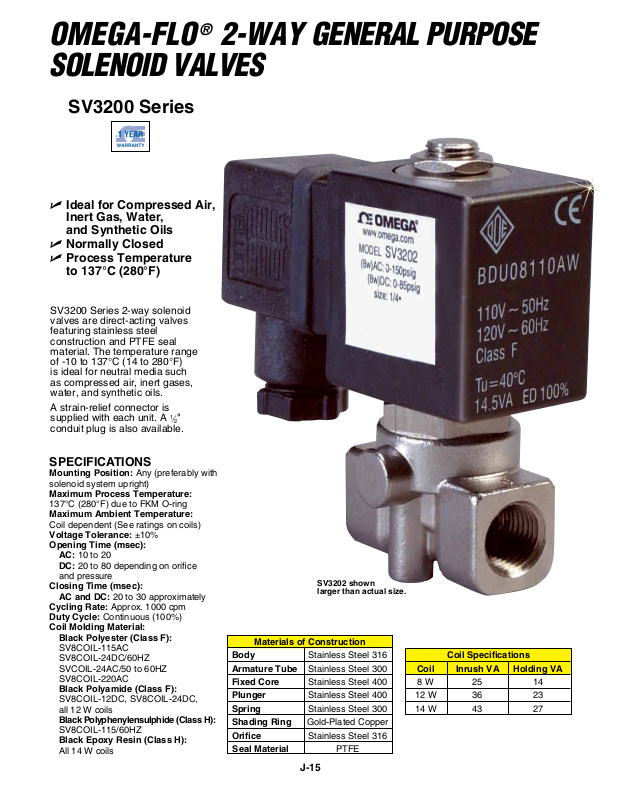

OMEGA-FLO® 2-WAY GEnErAL PurPOsE
sOLEnOid VALVEs
SV3200 Series
U Ideal for Compressed Air,
Inert Gas, Water,
and Synthetic Oils
U Normally Closed
U Process Temperature
to 137°C (280°F)
SV3200 Series 2-way solenoid
valves are direct-acting valves
featuring stainless steel
construction and PTFE seal
material. The temperature range
of -10 to 137°C (14 to 280°F)
is ideal for neutral media such
as compressed air, inert gases,
water, and synthetic oils.
A strain-relief connector is
supplied with each unit. A
conduit plug is also available.
1
"
⁄
2
SPECIFICATIONS
Mounting Position: Any (preferably with
solenoid system upright)
Maximum Process Temperature:
137°C (280°F) due to FKM O-ring
Maximum Ambient Temperature:
Coil dependent (See ratings on coils)
Voltage Tolerance: ±10%
Opening Time (msec):
AC: 10 to 20
DC: 20 to 80 depending on orifice
and pressure
Closing Time (msec):
AC and DC: 20 to 30 approximately
Cycling Rate: Approx. 1000 cpm
Duty Cycle: Continuous (100%)
Coil Molding Material:
Black Polyester (Class F):
SV8COIL-115AC
SV8COIL-24DC/60HZ
SVCOIL-24AC/50 to 60HZ
SV8COIL-220AC
Black Polyamide (Class F):
SV8COIL-12DC, SV8COIL-24DC,
all 12 W coils
Black Polyphenylensulphide (Class H):
SV8COIL-115/60HZ
Black Epoxy Resin (Class H):
All 14 W coils

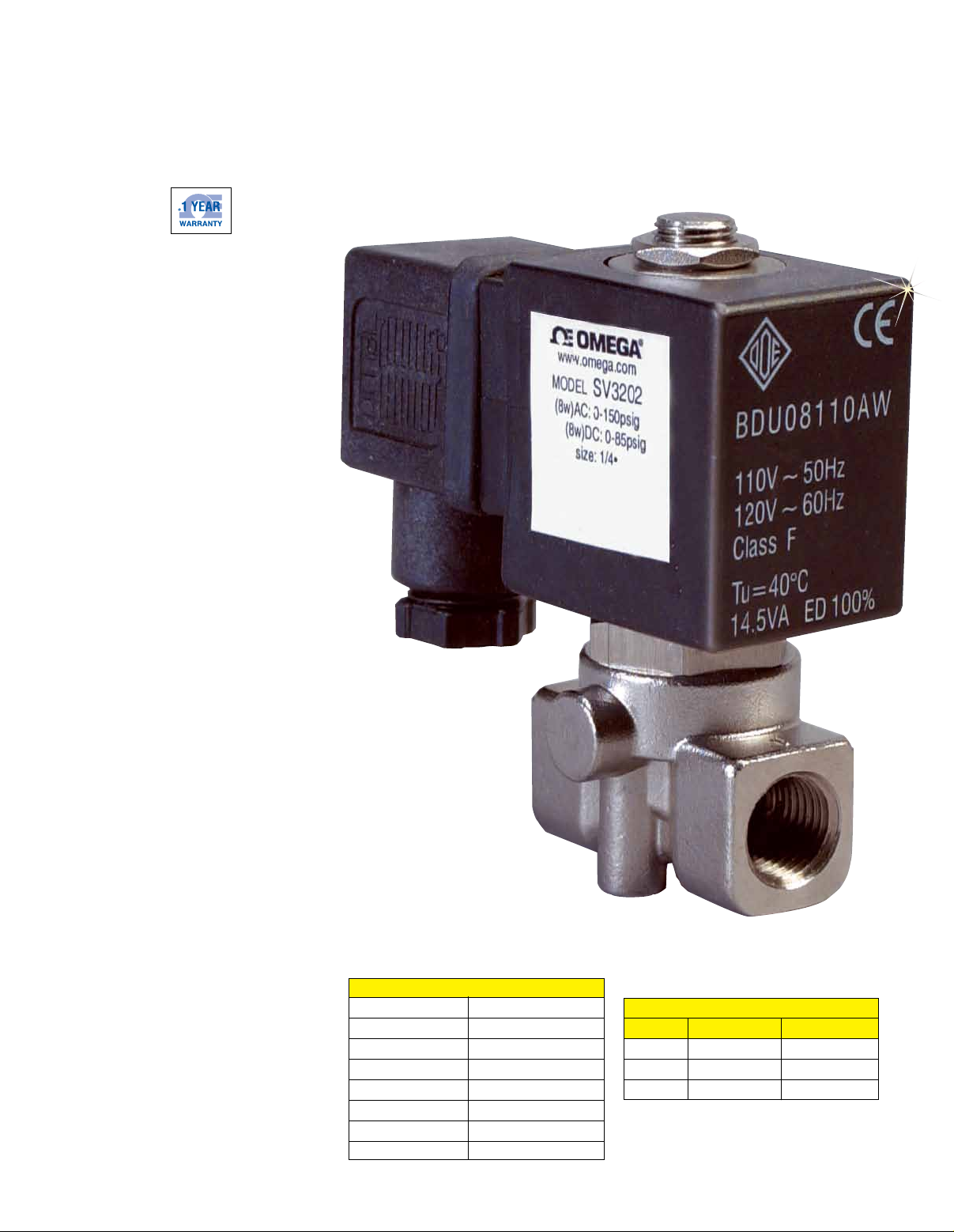

SV3202 shown
larger than actual size.
Materials of Construction
Body Stainless Steel 316
Armature Tube Stainless Steel 300
Fixed Core Stainless Steel 400
Plunger Stainless Steel 400
Spring Stainless Steel 300
Shading Ring Gold-Plated Copper
Orifice Stainless Steel 316
Seal Material PTFE
J-15
Coil Specifications
Coil Inrush VA Holding VA
8 W 25 14
12 W 36 23
14 W 43 27
Page 2
Normally Closed

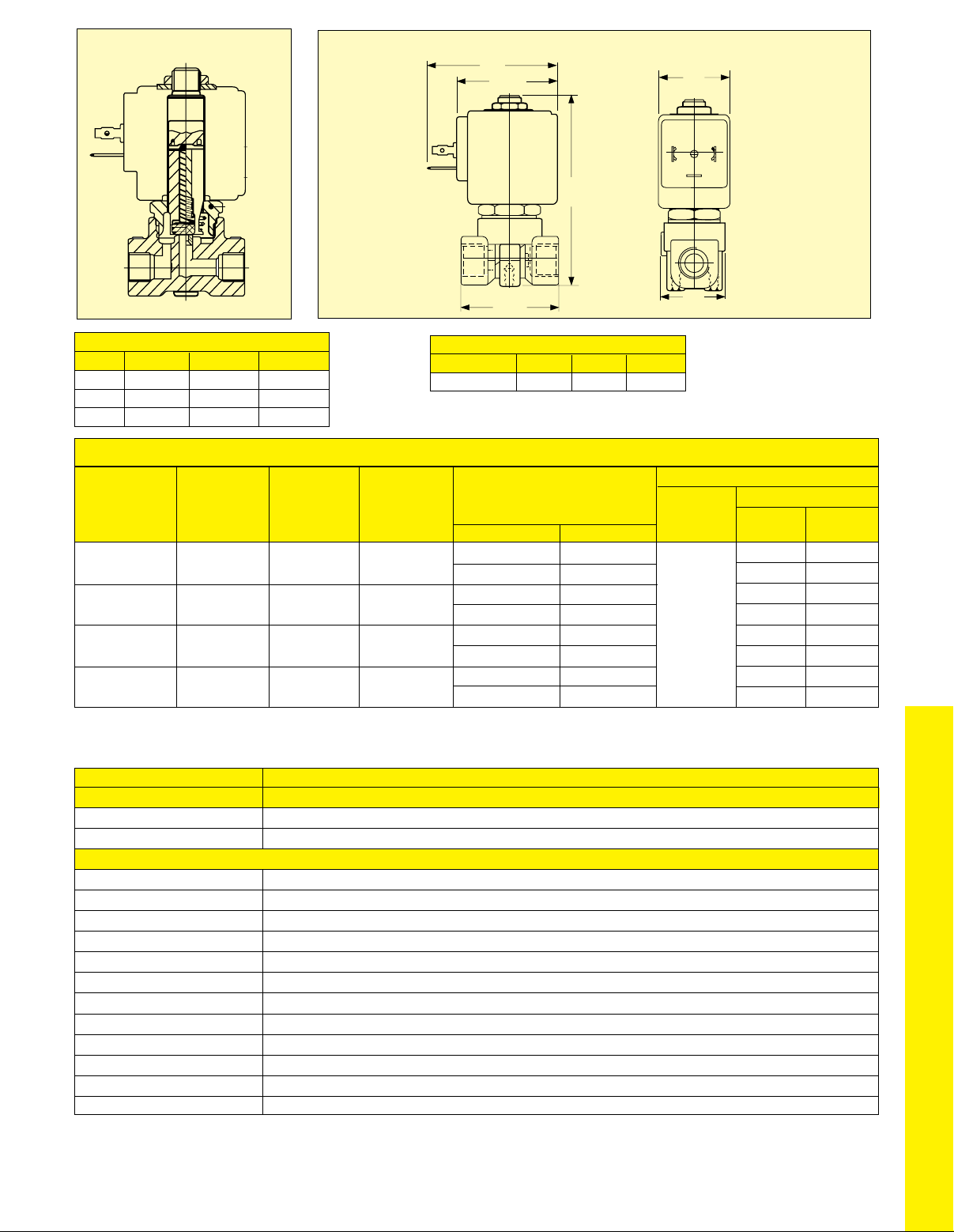

SV3200 Valve Dimensions
F
E
B
C
C
D
A
A
Coil Dimensions
Coil D E F
8 W 1³⁄₁₆" 12¹⁄₃₂" 2¹⁄₈"
Valve Dimensions
Pipe Size A B C
¹⁄₄" 1¹⁄₃₂ 3¹⁄₁₆ 1⁵⁄₈
12 W 1⁷⁄₁₆" 12⁹⁄₃₂" 2³⁄₈"
14 W 2¹⁄₁₆" 2⁵⁄₃₂" 2⁵⁄₈"
To Order
Operating Pressure
M.O.P.D.*
Pipe Orifice CV Flow
Coils
Min AC DC
Model No. Size† Size Factor Standard Optional psi psi psi
SV3201 ¹⁄₄" ³⁄₃₂" 0.22 8 W 0 200 130
12 or 14 W 435 360
SV3202 ¹⁄₄" ¹⁄₈" 0.28 8 W 0 145 85
12 or 14 W 360 245/290‡
SV3203 ¹⁄₄" ⁵⁄₃₂" 0.35 8 W 0 85 25
12 or 14 W 220 85/115‡
SV3204 ¹⁄₄" ⁷⁄₃₂" 0.63 8 W 0 50 15
12 or 14 W 100 30/70‡
Maximum operational pressure differential. ‡ Ratings for 12 W/14 W as shown.
*
† BSP threads. In most cases, BSP and NPT are interchangeable in this size.
Accessories
Model No. Description
Connectors
SV-CGC Cable grip connector
SV-CC ¹⁄₂" conduit connector
Coils
SV8COIL-115AC Replacement 8 W coil for 110 to 120 Vac/50 to 60 Hz 154°C (310°F) (Class F)
SV8COIL-12DC 8 W coil for 12 Vdc 154°C (310°F) (Class F)
SV8COIL-24DC 8 W coil for 24 Vdc 154°C (310°F) (Class F)
SV8COIL-24AC/60HZ 8 W coil for 24 Vac/50 to 60Hz 182°C (360°F) (Class F)
SV8COIL-220AC 8 W coil for 220 to 240 Vac/50 to 60 Hz 154°C (310°F) (Class F)
SV8COIL-115/60HZ 8 W coil for 115 Vac/60 Hz 182°C (360°F) (Class H)
SV12COIL-120/60HZ 12 W coil for 120 Vac/60 Hz 154°C (310°F) (Class F)
SV12COIL-12DC 12 W coil for 12 Vdc 154°C (310°F) (Class F)
SV12COIL-24DC 12 W coil for 24 Vdc 154°C (310°F) (Class F)
SV14COIL-24DC 14 W coil for 24 Vdc 182°C (360°F) (Class H)
SV14COIL-24/50-60HZ 14 W coil for 24 Vdc/50 to 60Hz 182°C (360°F) (Class H)
SV14COIL-12DC 14 W coil for 12 Vdc 182°C (360°F) (Class H)
Comes complete with operator’s manual, 8 W coil, and cable grip connector.
Ordering Examples: SV3201,
SV3202,
1
" normally closed valve for
⁄
4
1
" normally closed valve for
⁄
4
1
" orifice with SV8COIL-24DC, 8 W coil for 24 Vdc.
⁄
8
3
" orifice.
⁄
32
J-16
