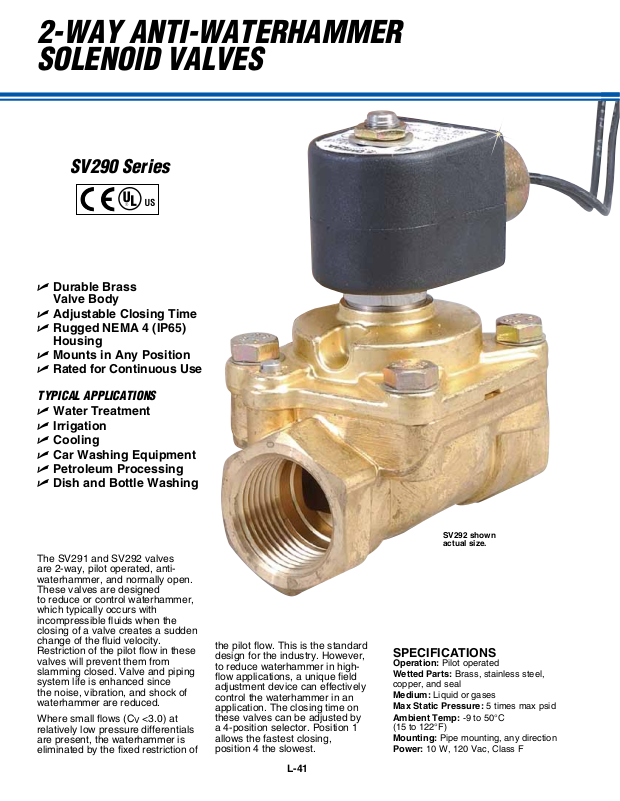

Page 1
2-WAY ANTI-WATERHAMMER
SOLENOID VALVES
SV290 Series
U Durable Brass
Valve Body
U Adjustable Closing Time
U Rugged NEMA 4 (IP65)
Housing
U Mounts in Any Position
U Rated for Continuous Use
TYPICAL APPLICATIONS
U Water Treatment
U Irrigation
U Cooling
U Car Washing Equipment
U Petroleum Processing
U Dish and Bottle Washing

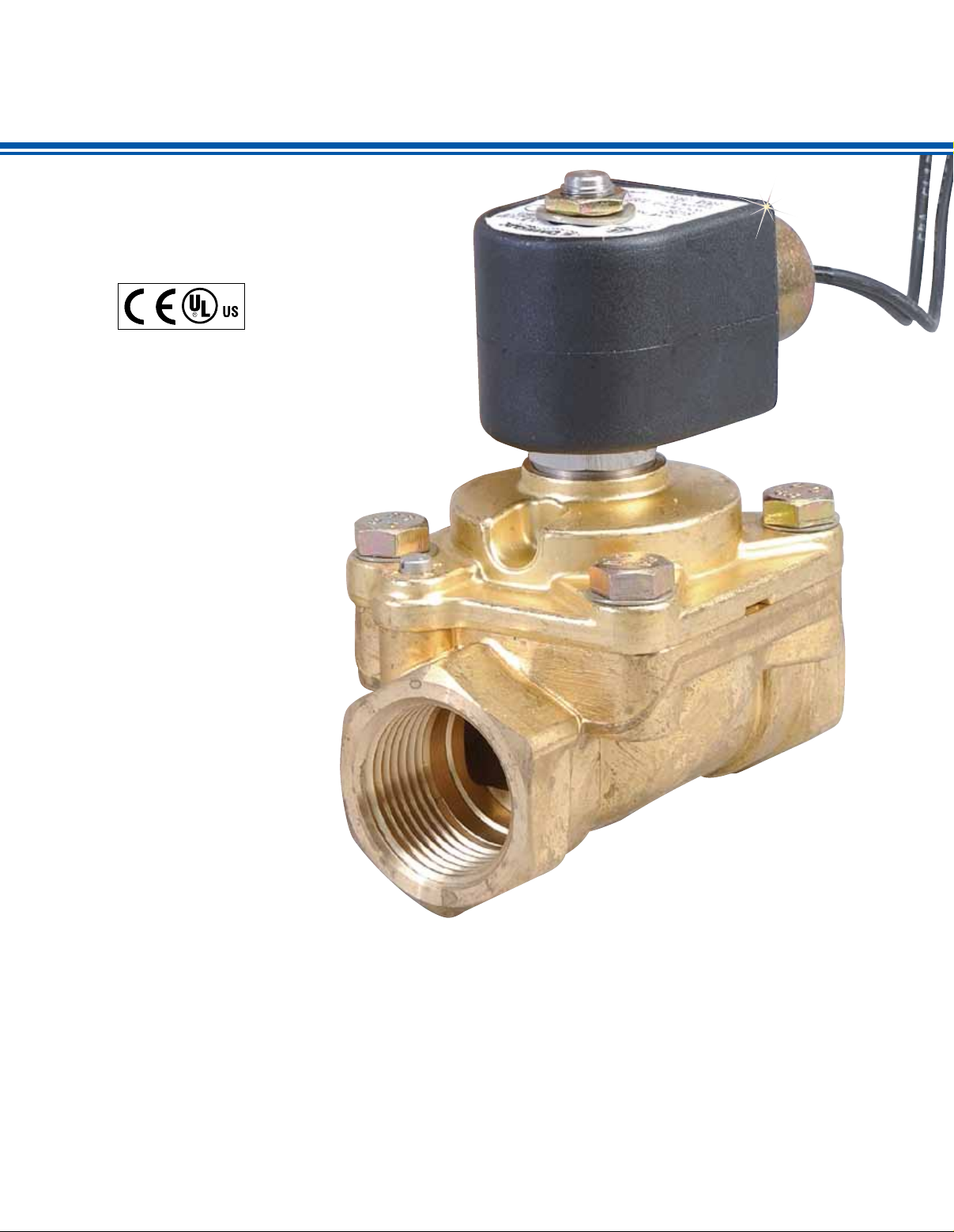

The SV291 and SV292 valves
are 2-way, pilot operated, antiwaterhammer, and normally open.
These valves are designed
to reduce or control waterhammer,
which typically occurs with
incompressible fluids when the
closing of a valve creates a sudden
change of the fluid velocity.
Restriction of the pilot flow in these
valves will prevent them from
slamming closed. Valve and piping
system life is enhanced since
the noise, vibration, and shock of
waterhammer are reduced.
Where small flows (CV <3.0) at
relatively low pressure differentials
are present, the waterhammer is
eliminated by the fixed restriction of
the pilot flow. This is the standard
design for the industry. However,
to reduce waterhammer in highflow applications, a unique field
adjustment device can effectively
control the waterhammer in an
application. The closing time on
these valves can be adjusted by
a 4-position selector. Position 1
allows the fastest closing,
position 4 the slowest.
SV292 shown
actual size.
SPECIFICATIONS
Operation: Pilot operated
Wetted Parts: Brass, stainless steel,
copper, and seal
Medium: Liquid or gases
Max Static Pressure: 5 times max psid
Ambient Temp: -9 to 50°C
(15 to 122°F)
Mounting: Pipe mounting, any direction
Power: 10 W, 120 Vac, Class F
L-41

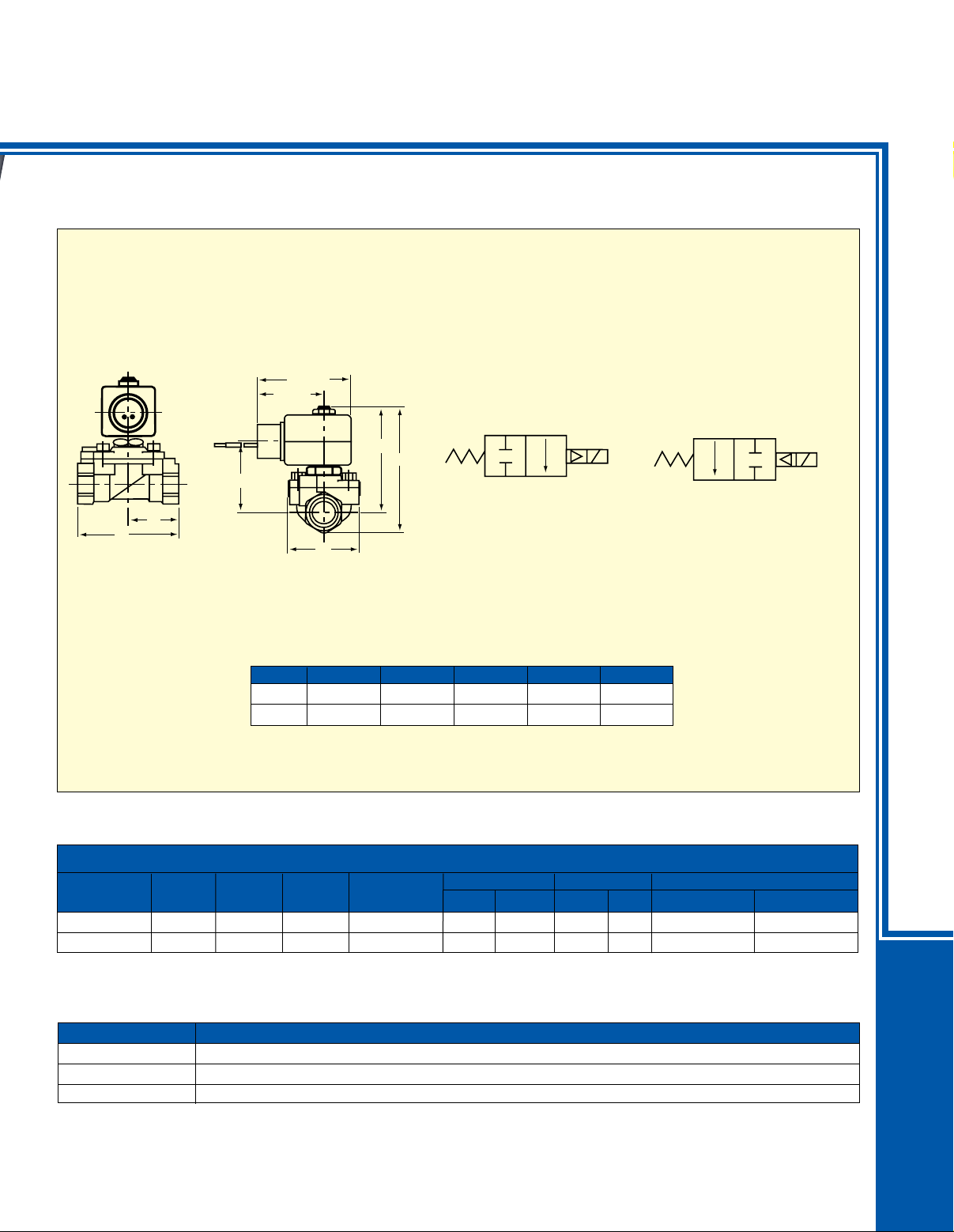

Page 2
PILOT-OPERATED, NORMALLY OPEN,
BRASS VALVE BODY, 2-WAY ANTI-WATERHAMMER
SOLENOID VALVES
SV291 and SV292
70.1
(2.76)
49.5
IN
(1.95)
P
H
OUT
E
L
C
NORMALLY CLOSED NORMALLY OPEN
W
IN
OUT
Port Identification: Flow arrow
on body indicates flow direction—
ports are not marked.
IN
OUT
Dimensions: mm (inch)
VALVE
H P C L W
SV291 120.7 (4.75) 98.0 (3.86) 72.1 (2.84) 100.1 (3.94) 69.9 (2.75)
SV292 120.7 (4.75) 98.0 (3.86) 72.1 (2.84) 100.1 (3.94) 69.9 (2.75)
To Order
NPT
MODEL NO. FITTING ORIFICE Cv SEAL MIN MAX °C °F OPEN CLOSE
SV291
SV292 1 1" 12.5 Buna-N 5 230 85 185 100 to 250 ms 0.5 to 4.5 s
Comes complete with operator’s manual.
ACCESSORIES
MODEL NO. DESCRIPTION
SVCOIL-110AC Replacement coil, 110 Vac
SVCOIL-220AC Replacement coil, 220 Vac
SVCOIL-24VDC Replacement coil, 24 Vdc
Note: Some solenoid valves are available with 24 Vdc coils. Five piece minimum order. UL approval is not available with 24 Vdc coils.
Specifications effected; pressure ratings may decrease; coil wattage ratings may increase. Consult Engineering.
Ordering Examples: SV291, 2-way, anti-waterhammer, pilot-operated, brass body NO valve with
SV292, 2-way, anti-waterhammer, pilot-operated, brass body NO valve with 1 NPT fitting and Buna-N seal.
3
⁄
4
3
" 9.6 Buna-N 5 230 85 185 100 to 250 ms 0.6 to 4.5 s
⁄
4
DIFF PRES
(psid)
TEMP RESPONSE TIME
3
NPT fittings and Buna-N seal.
⁄
4
L-42
VALVES AND REGULATORS
