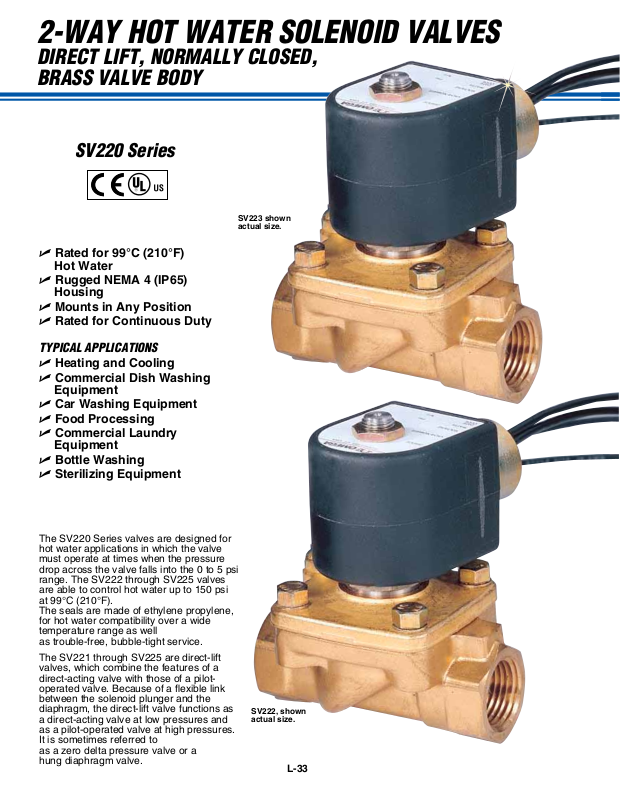

Page 1
2-WAY HOT WATER SOLENOID VALVES
DIRECT LIFT, NORMALLY CLOSED,
BRASS VALVE BODY
SV220 Series

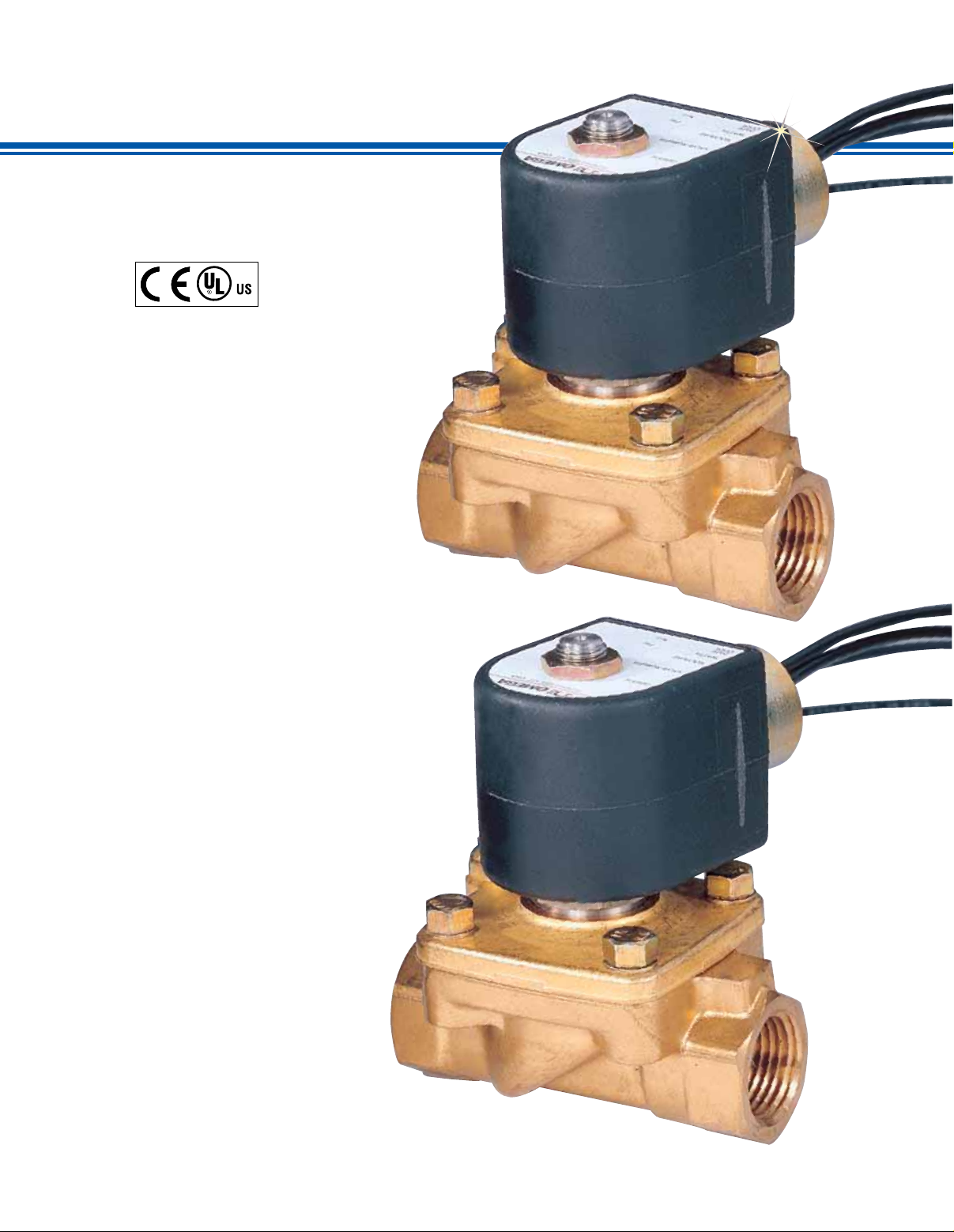

SV223 shown
actual size.
U Rated for 99°C (210°F)
Hot Water
U Rugged NEMA 4 (IP65)
Housing
U Mounts in Any Position
U Rated for Continuous Duty
TYPICAL APPLICATIONS
U Heating and Cooling
U Commercial Dish Washing
Equipment
U Car Washing Equipment
U Food Processing
U Commercial Laundry
Equipment
U Bottle Washing
U Sterilizing Equipment
The SV220 Series valves are designed for
hot water applications in which the valve
must operate at times when the pressure
drop across the valve falls into the 0 to 5 psi
range. The SV222 through SV225 valves
are able to control hot water up to 150 psi
at 99°C (210°F).
The seals are made of ethylene propylene,
for hot water compatibility over a wide
temperature range as well
as trouble-free, bubble-tight service.
The SV221 through SV225 are direct-lift
valves, which combine the features of a
direct-acting valve with those of a pilotoperated valve. Because of a flexible link
between the solenoid plunger and the
diaphragm, the direct-lift valve functions as
a direct-acting valve at low pressures and
as a pilot-operated valve at high pressures.
It is sometimes referred to
as a zero delta pressure valve or a
hung diaphragm valve.
SV222, shown
actual size.
L-33
Page 2

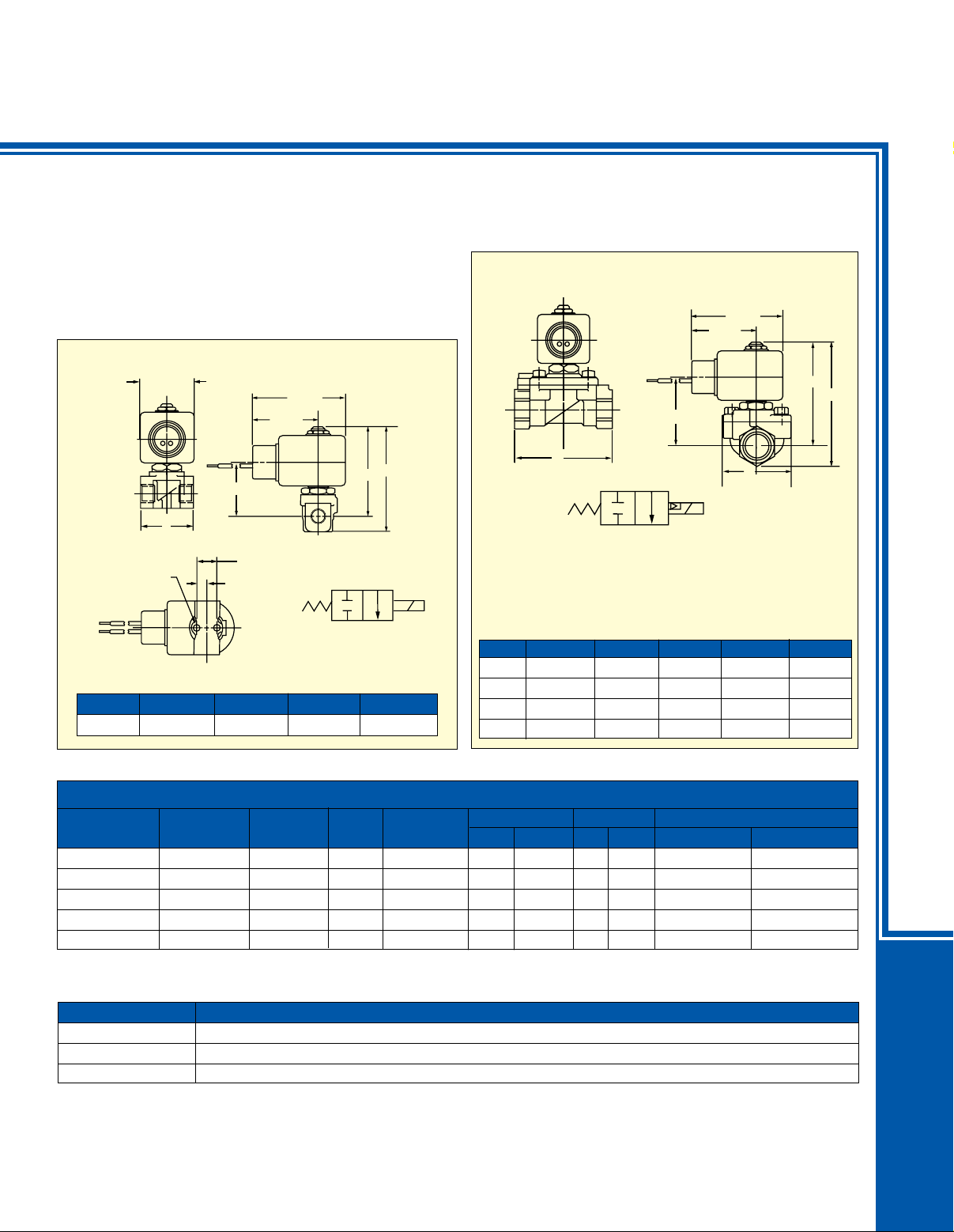

DIRECT LIFT, NORMALLY CLOSED, BRASS VALVE BODY,
HOT WATER SOLENOID VALVES
SPECIFICATIONS
Operation: Direct lift
Wetted Parts: Brass, stainless steel, copper and seal
Medium: Liquid or gases
Max Static Pressure: 5 times max psid
Ambient Temp: -9 to 50°C (15 to 122°F)
Mounting: Pipe mounting, any direction
Power: 10 W, 120 Vac, Class F
SV221
41.1
(1.62)
49.5
(1.95)
70.1
(2.76)
IN
SV222 to 225
OUT
70.1
(2.76)
49.5
(1.95)
C
P
H
L
IN
OUT
Port Identification: Flow arrow
on body indicates flow direction—
ports are not marked.
W
H P C L W
1
# 10-24 UNC TH’D
x 0.22 DP
2 PLCs
P
2
C
H
L
15 (0.59)
7.6 (0.30)
Port Identification: 1-IN/2-OUT
IN
OUT
Dimensions: mm (inch)
VALVE
SV222 93.0 (3.66) 78.0 (3.07) 52.3 (2.06) 74.9 (2.95) 53.1 (2.09)
Dimensions: mm (inch)
VALVE H P C L
SV221 66.8 (2.63) 78.0 (3.07) 40.9 (1.61) 39.9 (1.57)
To Order
NPT
SV223 93.0 (3.66) 78.0 (3.07) 52.3 (2.06) 74.9 (2.95) 53.1 (2.09)
SV224 95.3 (3.75) 78.0 (3.07) 52.3 (2.06) 80.0 (3.15) 53.1 (2.09)
SV225 108.0 (4.25) 85.1 (3.35) 59.4 (2.34) 100.1 (3.94) 69.9 (2.75)
DIFF PRES
(psid)
TEMP RESPONSE TIME
MODEL NO. FITTING ORIFICE Cv SEAL MIN MAX °C °F OPEN CLOSE
SV221
SV222
SV223
SV224
1
⁄
4
3
⁄
8
1
⁄
2
3
⁄
4
13
" 0.76 EDPM 0 100 99 210 4 to 8 ms 4 to 8 ms
⁄
64
5
" 4.4 EDPM 0 150 99 210 30 to 100 ms 30 to 100 ms
⁄
8
5
" 4.4 EDPM 0 150 99 210 30 to 100 ms 30 to 100 ms
⁄
8
5
" 5.5 EDPM 0 150 99 210 30 to 100 ms 30 to 100 ms
⁄
8
SV225 1 1" 11.7 EDPM 0 150 99 210 30 to 100 ms 30 to 100 ms
Comes complete with operator’s manual.
VALVES AND REGULATORS
L
ACCESSORIES
MODEL NO. DESCRIPTION
SVCOIL-110AC Replacement coil, 110 Vac
SVCOIL-220AC Replacement coil, 220 Vac
SVCOIL-24VDC Replacement coil, 24 Vdc
Note: Some solenoid valves are available with 24 Vdc coils. Five piece minimum order.
UL approval is not available with 24 Vdc coils. Specifications effected; pressure ratings may decrease; coil wattage ratings may increase.
Consult Engineering.
Ordering Examples: SV222, 2-way direct-lift hot water valve, NC with a brass body and
SV225 2-way direct-lift hot water valve, NC with a brass body and 1 NPT fitting with
EDPM seal.
3
NPT fitting with EDPM seal.
⁄
8
L-34
