2-WAY GENERAL PURPOSE
SOLENOID VALVES
SV120 Series
Starts at
$
95
Stainless Steel Valve
Body Resists Corrosion
Rugged NEMA 4 (IP65) Housing
Mounts in Any Position
Rated for Continuous Duty
High-Pressure Models
TYPICAL APPLICATIONS
Automation
Humidifiers
Water Treatment
Dispensing
Laundry, Dry Cleaning Equipment
Machine Tools
Vending Machines

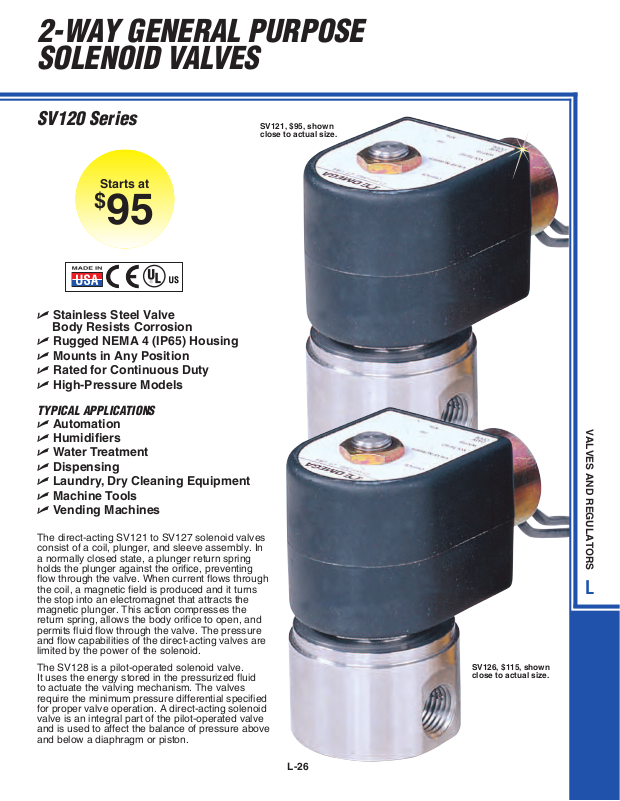

SV121, $95, shown
close to actual size.
VALVES AND REGULATORS
The direct-acting SV121 to SV127 solenoid valves
consist of a coil, plunger, and sleeve assembly. In
a normally closed state, a plunger return spring
holds the plunger against the orifice, preventing
flow through the valve. When current flows through
the coil, a magnetic field is produced and it turns
the stop into an electromagnet that attracts the
magnetic plunger. This action compresses the
return spring, allows the body orifice to open, and
permits fluid flow through the valve. The pressure
and flow capabilities of the direct-acting valves are
limited by the power of the solenoid.
The SV128 is a pilot-operated solenoid valve.
It uses the energy stored in the pressurized fluid
to actuate the valving mechanism. The valves
require the minimum pressure differential specified
for proper valve operation. A direct-acting solenoid
valve is an integral part of the pilot-operated valve
and is used to affect the balance of pressure above
and below a diaphragm or piston.
L
SV126, $115, shown
close to actual size.
L-26
Page 2

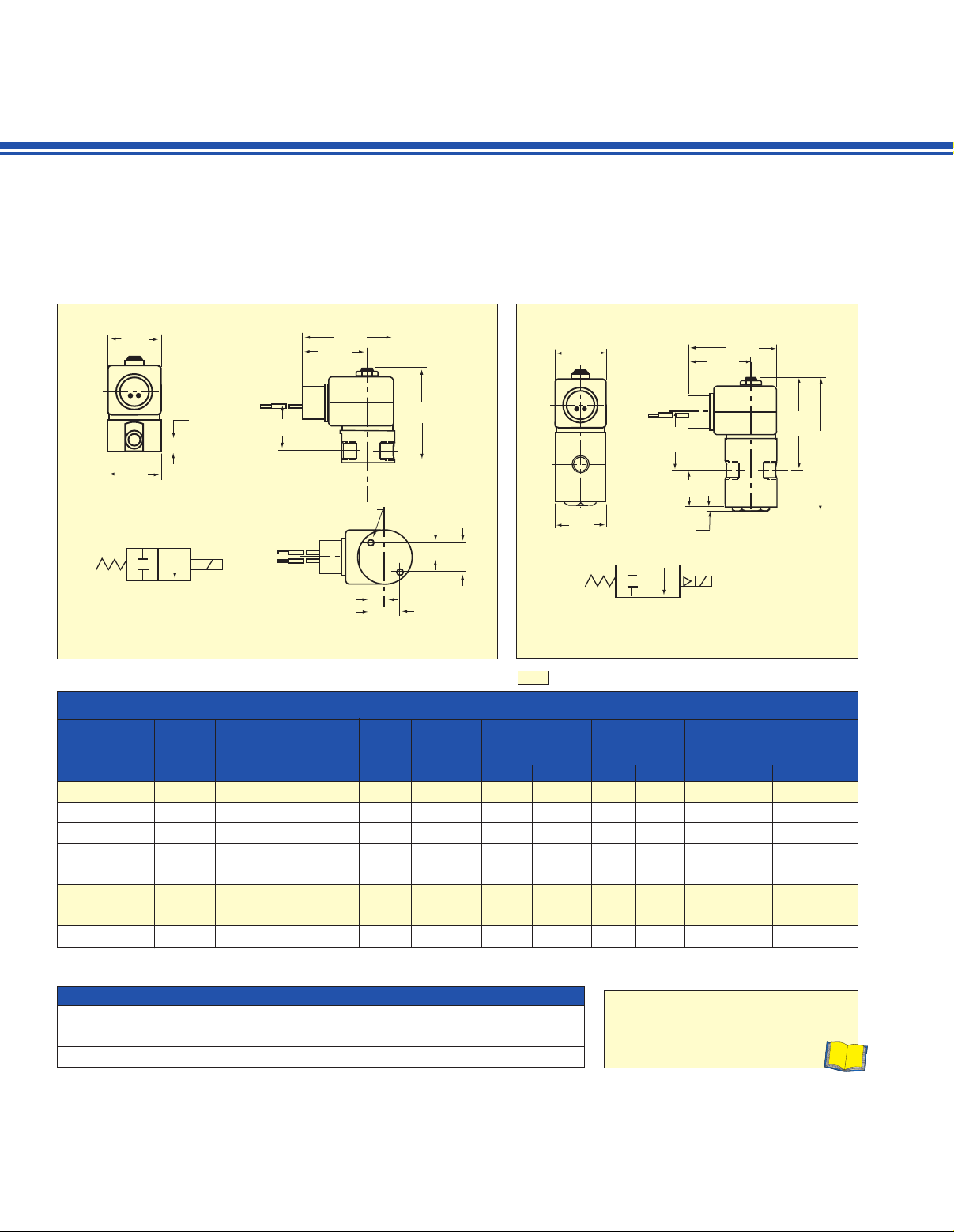

DIRECT-ACTING OR PILOT-OPERATED
41.1
(1.62)
8.6
(0.34)
41.1
(1.62)
DIA.
2
37.6 (1.48)
49.5
(1.95)
70.1
(2.76)
72.1
(2.84)
2
I
IN
OUT
# 10-32 NF TH’D
x 0.25 DP - 2 PLCs
11.2
(0.44)
11.2
(0.44)
22.4
(0.88)
22.4
(0.88)
Port Identification: 2-IN/1-OUT
41.1
(1.62)
41.1
(1.62)
DIA.
73.7
(2.90)
106.7
(4.20)
47.8
(1.88)
29.2 (1.15)
3.3
(0.13)
I
2
49.5
(1.95)
70.1
(2.76)
IN
OUT
Port Identification: 2-IN/1-OUT
SOLENOID VALVES, NORMALLY CLOSED,
STAINLESS STEEL VALVE BODY
Note: 5 to 11 psi is the operating pressure
range for bubble-tight sealing. Valves may
leak if the pressure differential falls below
5 psi.
SPECIFICATIONS
Operation:
SV121 to SV127: Direct acting
SV128: Pilot operated
Wetted Parts: Stainless steel,
copper and seal
Medium: Liquid or gases
Max Static Pressure: 1.5 times max
psid, vacuum (>5 microns ABS)
Ambient Temp: -9 to 50°C
(15 to 122°F)
Mounting: Pipe mounting,
any direction
Power: 10 W, 120 Vac coils,
50 to 60 Hz
Weight: 500 g (1.1 lb)
To Order (Specify Model Number)
MODEL NO. PRICE FITTING ORIFICE C
SV121 $95
SV122 115
SV123 115
SV124 115
SV125 115
SV126 115
SV127 115
SV128* 255
Comes complete with operator’s manual.
ACCESSORIES
MODEL NO. PRICE DESCRIPTION
SVCOIL-110AC $50 Replacement coil, 110 Vac
*
Note: Some solenoid valves are available with 24 Vdc coils. Five piece minimum order. UL
approval is not available with 24 Vdc coils. Specifications effected; pressure ratings may
decrease; coil wattage ratings may increase. Consult Engineering.
Ordering Examples: SV121, direct-acting stainless steel normally closed valve with
and KEL-F seal, $95.
SV128, pilot operated stainless steel normally closed valve with
SVCOIL-220AC 60 Replacement coil, 220 Vac
SVCOIL-24VDC 55 Replacement coil, 24 Vdc
Pilot operated.
SV121 to SV127
Dimensions: mm (in)
NPT
1
1
1
1
1
1
1
1
⁄
4
⁄
4
⁄
4
⁄
4
⁄
4
⁄
4
⁄
4
⁄
4
SV128
Dimensions: mm (in)
MOST POPULAR MODELS HIGHLIGHTED!
DIFF
PRESSURE
(psid)
SEAL
V
1
orifice and PTFE seal, $255.
⁄
4
3
" 0.06 KEL-F 0 1000 74 165 4 to 15 ms 4 to 15 ms
⁄
64
3
" 0.06 FKM 0 450 116 240 4 to 15 ms 4 to 15 ms
⁄
64
1
" 0.10 FKM 0 350 116 240 4 to 15 ms 4 to 15 ms
⁄
16
3
" 0.18 FKM 0 275 116 240 4 to 15 ms 4 to 15 ms
⁄
32
1
" 0.28 FKM 0 200 116 240 4 to 15 ms 4 to 15 ms
⁄
8
5
" 0.40 FKM 0 90 116 240 4 to 15 ms 4 to 15 ms
⁄
32
1
" 0.75 FKM 0 40 116 240 4 to 15 ms 4 to 15 ms
⁄
4
1
" 0.76 PTFE 5 1500 99 210 30 to 60 ms 30 to 60 ms
⁄
4
MIN MAX °C °F OPEN CLOSE
3
orifice
⁄
64
L-27
TEMP RESPONSE TIME
