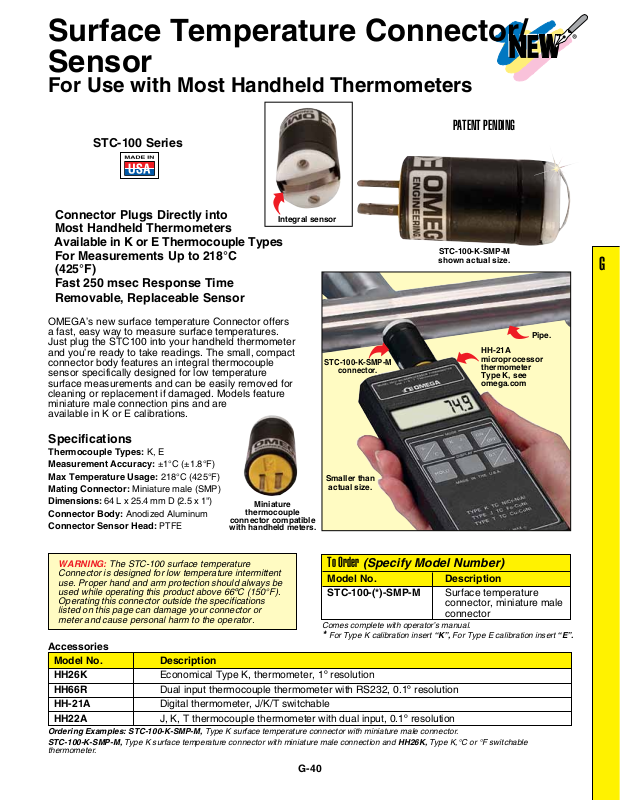

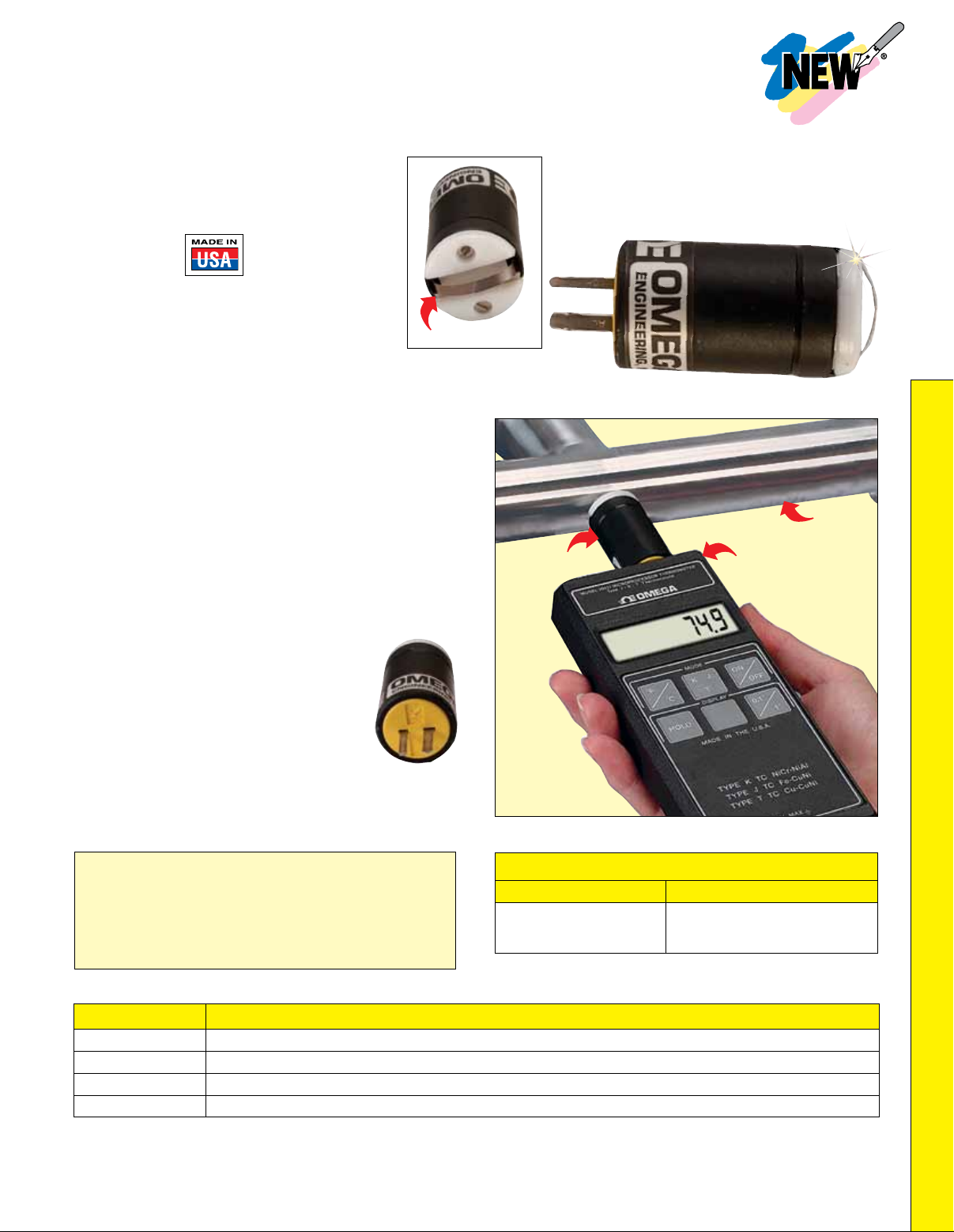

Surface Temperature Connector/
Sensor
For Use with Most Handheld Thermometers
PATENT PENDING
STC-100 Series
U Connector Plugs Directly into
Integral sensor
Most Handheld Thermometers
U Available in K or E Thermocouple Types
U For Measurements Up to 218°C
(425°F)
U Fast 250 msec Response Time
U Removable, Replaceable Sensor
OMEGA’s new surface temperature Connector offers
a fast, easy way to measure surface temperatures.
Just plug the STC100 into your handheld thermometer
and you’re ready to take readings. The small, compact
connector body features an integral thermocouple
sensor specifically designed for low temperature
surface measurements and can be easily removed for
cleaning or replacement if damaged. Models feature
miniature male connection pins and are
available in K or E calibrations.
Specifications
Thermocouple Types: K, E
Measurement Accuracy: ±1°C (±1.8°F)
Max Temperature Usage: 218°C (425°F)
Mating Connector: Miniature male (SMP)
Dimensions: 64 L x 25.4 mm D (2.5 x 1")
Connector Body: Anodized Aluminum
Connector Sensor Head:
PTFE
Miniature
thermocouple
connector compatible
with handheld meters.
STC-100-K-SMP-M
connector.
Smaller than
actual size.
STC-100-K-SMP-M
shown actual size.
HH-21A
microprocessor
thermometer
Type K, see
omega.com
G
Pipe.
WARNING: The STC-100 surface temperature
Connector is designed for low temperature intermittent
use. Proper hand and arm protection should always be
used while operating this product above 66ºC (150°F).
Operating this connector outside the specifications
listed on this page can damage your connector or
meter and cause personal harm to the operator.
Accessories
Model No. Description
HH26K Economical Type K, thermometer, 1º resolution
HH66R Dual input thermocouple thermometer with RS232, 0.1º resolution
HH-21A Digital thermometer, J/K/T switchable
HH22A J, K, T thermocouple thermometer with dual input, 0.1º resolution
Ordering Examples: STC-100-K-SMP-M, Type K surface temperature connector with miniature male connector.
STC-100-K-SMP-M, Type K surface temperature connector with miniature male connection and HH26K, Type K,°C or °F switchable
thermometer.
To Order (Specify Model Number)
Model No. Description
STC-100-(*)-SMP-M Surface temperature
connector, miniature male
connector
Comes complete with operator’s manual.
* For Type K calibration insert “K”, For Type E calibration insert “E”.
G-40
