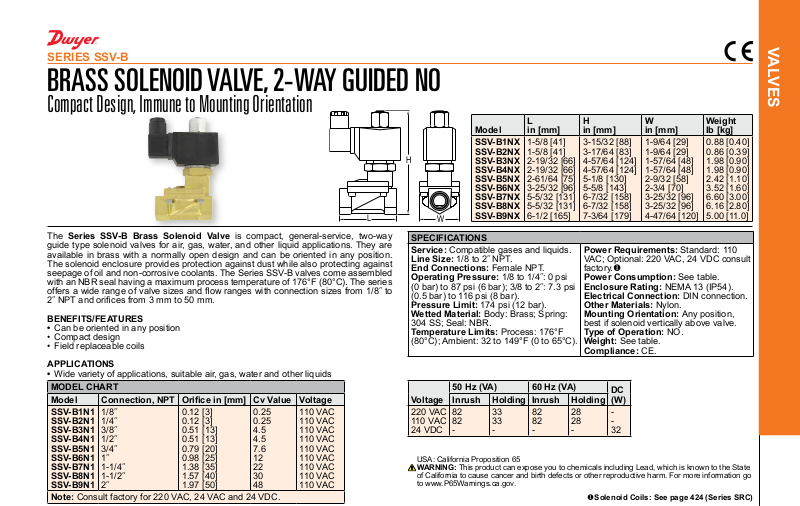

Omega SSV-B User guide

SERIES SSV-B

L

W

BRASS SOLENOID VALVE, 2-WAY GUIDED NO

Compact Design, Immune to Mounting Orientation

H

The Series SSV-B Brass Solenoid Valve is compact, general-service, two-way
guide type solenoid valves for air, gas, water, and other liquid applications. They are
available in brass with a normally open design and can be oriented in any position.
The solenoid enclosure provides protection against dust while also protecting against
seepage of oil and non-corrosive coolants. The Series SSV-B valves come assembled
with an NBR seal having a maximum process temperature of 176°F (80°C). The series
offers a wide range of valve sizes and ow ranges with connection sizes from 1/8˝ to
2˝ NPT and orices from 3 mm to 50 mm.

BENEFITS/FEATURES

• Can be oriented in any position

• Compact design

• Field replaceable coils

APPLICATIONS

• Wide variety of applications, suitable air, gas, water and other liquids

MODEL CHART
Model Connection, NPT Orice in [mm] Cv Value Voltage
SSV-B1N1

SSV-B2N1
SSV-B3N1
SSV-B4N1
SSV-B5N1
SSV-B6N1
SSV-B7N1
SSV-B8N1
SSV-B9N1

Note: Consult factory for 220 VAC, 24 VAC and 24 VDC.

1/8˝
1/4˝
3/8˝
1/2˝
3/4˝
1˝
1-1/4˝
1-1/2˝
2˝

0.12 [3]

0.12 [3]

0.51 [13]

0.51 [13]

0.79 [20]

0.98 [25]

1.38 [35]

1.57 [40]

1.97 [50]

0.25

0.25

4.5

4.5

7.6
12
22
30
48

110 VAC
110 VAC
110 VAC
110 VAC
110 VAC
110 VAC
110 VAC
110 VAC
110 VAC

SPECIFICATIONS
Service: Compatible gases and liquids.

Line Size: 1/8 to 2˝ NPT.
End Connections: Female NPT.
Operating Pressure: 1/8 to 1/4˝: 0 psi

(0 bar) to 87 psi (6 bar); 3/8 to 2˝: 7.3 psi
(0.5 bar) to 116 psi (8 bar).

Pressure Limit: 174 psi (12 bar).
Wetted Material: Body: Brass; Spring:

304 SS; Seal: NBR.
Temperature Limits: Process: 176°F
(80°C); Ambient: 32 to 149°F (0 to 65°C).

Voltage

220 VAC
110 VAC
24 VDC

DC
(W)Inrush Holding Inrush Holding

-

­32

W
in [mm]

1-9/64 [29]
1-9/64 [29]
1-57/64 [48]
1-57/64 [48]
2-9/32 [58]
2-3/4 [70]
3-25/32 [96]
3-25/32 [96]
4-47/64 [120]

ModelLin [mm]Hin [mm]
SSV-B1NX

SSV-B2NX
SSV-B3NX
SSV-B4NX
SSV-B5NX
SSV-B6NX
SSV-B7NX
SSV-B8NX
SSV-B9NX

50 Hz (VA) 60 Hz (VA)

82
82

-

USA: California Proposition 65
WARNING: This product can expose you to chemicals including Lead, which is known to the State
of California to cause cancer and birth defects or other reproductive harm. For more information go
to www.P65Warnings.ca.gov.

33
33

-

1-5/8 [41]
1-5/8 [41]
2-19/32 [66]
2-19/32 [66]
2-61/64 [75]
3-25/32 [96]
5-5/32 [131]
5-5/32 [131]
6-1/2 [165]

82
82

-

3-15/32 [88]
3-17/64 [83]
4-57/64 [124]
4-57/64 [124]
5-1/8 [130]
5-5/8 [143]
6-7/32 [158]
6-7/32 [158]
7-3/64 [179]

Power Requirements: Standard: 110
VAC; Optional: 220 VAC, 24 VDC consult

factory.u

Power Consumption: See table.
Enclosure Rating: NEMA 13 (IP54).
Electrical Connection: DIN connection.
Other Materials: Nylon.
Mounting Orientation: Any position,

best if solenoid vertically above valve.

Type of Operation: NO.
Weight: See table.
Compliance: CE.

28
28

-

uSolenoid Coils: See page 424 (Series SRC)

Weight
lb [kg]

0.88 [0.40]

0.86 [0.39]

1.98 [0.90]

1.98 [0.90]

2.42 [1.10]

3.52 [1.60]

6.60 [3.00]

6.16 [2.80]

5.00 [11.0]

VALVES
