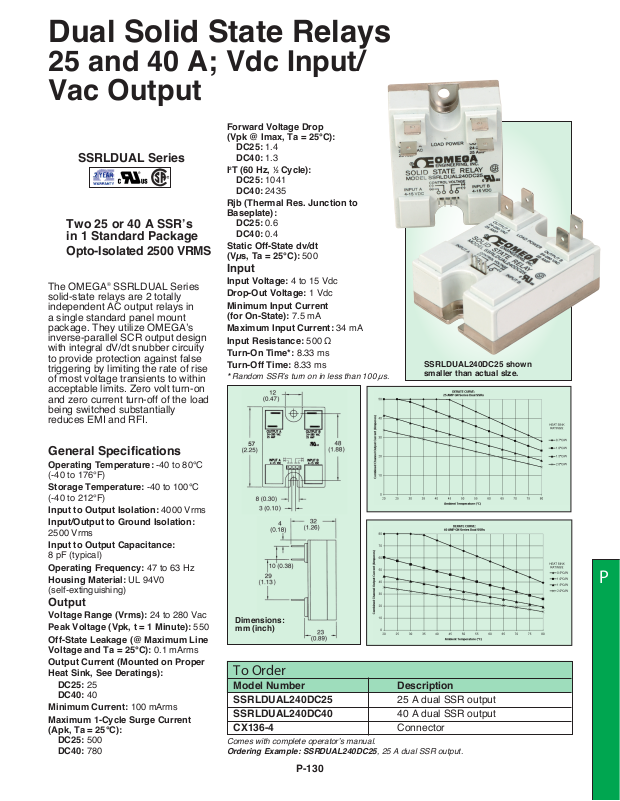

Dual Solid State Relays
25 and 40 A; Vdc Input/
Vac Output
Forward Voltage Drop
(Vpk @ Imax, Ta = 25°C):
DC25: 1.4
SSRLDUAL Series
U Two 25 or 40 A SSR’s
in 1 Standard Package
U Opto-Isolated 2500 VRMS
The OMEGA® SSRLDUAL Series
solid-state relays are 2 totally
independent AC output relays in
a single standard panel mount
package. They utilize OMEGA’s
inverse-parallel SCR output design
with integral dV/dt snubber circuity
to provide protection against false
triggering by limiting the rate of rise
of most voltage transients to within
acceptable limits. Zero volt turn-on
and zero current turn-off of the load
being switched substantially
reduces EMI and RFI.
DC40: 1.3
I2T (60 Hz, 1⁄2 Cycle):
DC25: 1041
DC40: 2435
Rjb (Thermal Res. Junction to
Baseplate):
DC25: 0.6
DC40: 0.4
Static Off-State dv/dt
(Vµs, Ta = 25°C): 500
Input
Input Voltage: 4 to 15 Vdc
Drop-Out Voltage: 1 Vdc
Minimum Input Current
(for On-State): 7.5 mA
Maximum Input Current: 34 mA
Input Resistance: 500 Ω
Turn-On Time*: 8.33 ms
Turn-Off Time: 8.33 ms
* Random SSR’s turn on in less than 100 µs.

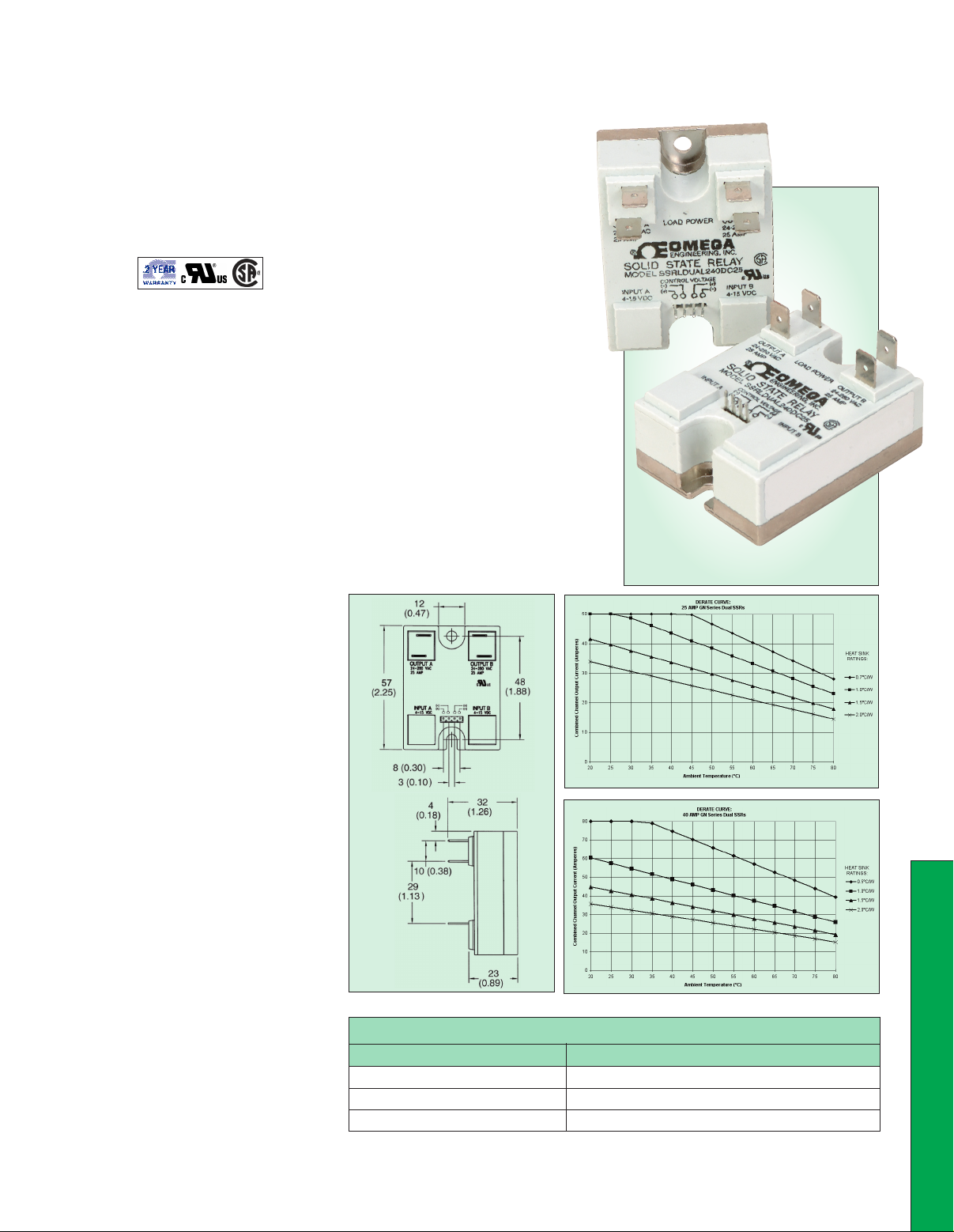

SSRLDUAL240DC25 shown
smaller than actual sIze.
General Specifications
Operating Temperature: -40 to 80°C
(-40 to 176°F)
Storage Temperature: -40 to 100°C
(-40 to 212°F)
Input to Output Isolation: 4000 Vrms
Input/Output to Ground Isolation:
2500 Vrms
Input to Output Capacitance:
8 pF (typical)
Operating Frequency: 47 to 63 Hz
Housing Material: UL 94V0
(self-extinguishing)
Output
Voltage Range (Vrms): 24 to 280 Vac
Peak Voltage (Vpk, t = 1 Minute): 550
Off-State Leakage (@ Maximum Line
Voltage and Ta = 25°C): 0.1 mArms
Output Current (Mounted on Proper
Heat Sink, See Deratings):
DC25: 25
DC40: 40
Minimum Current: 100 mArms
Maximum 1-Cycle Surge Current
(Apk, Ta = 25°C):
DC25: 500
DC40: 780
P
Dimensions:
mm (inch)
To Order
Model Number Description
SSRLDUAL240DC25 25 A dual SSR output
SSRLDUAL240DC40 40 A dual SSR output
CX136-4 Connector
Comes with complete operator’s manual.
Ordering Example: SSRDUAL240DC25, 25 A dual SSR output.
P-130
