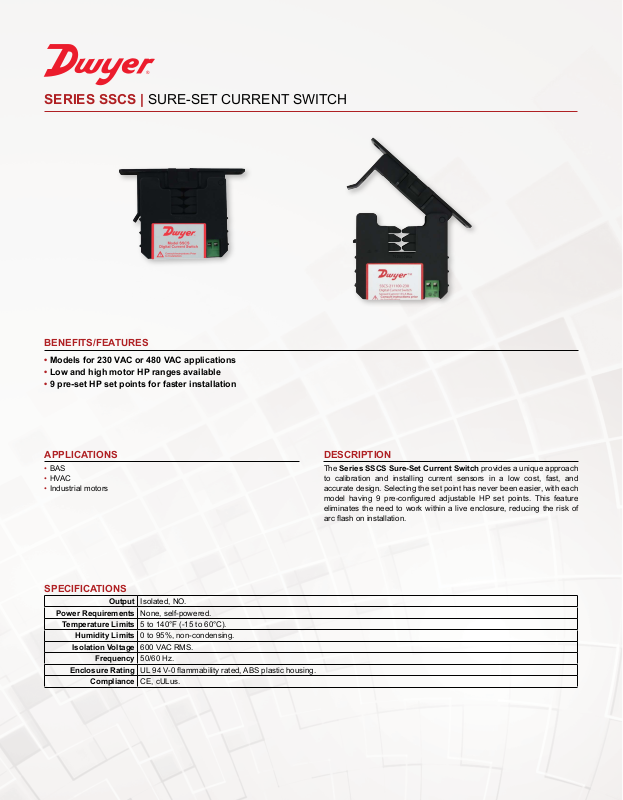

SERIES SSCS | SURE-SET CURRENT SWITCH

BENEFITS/FEATURES

• Models for 230 VAC or 480 VAC applications

• Low and high motor HP ranges available

• 9 pre-set HP set points for faster installation

APPLICATIONS

• BAS

• HVAC

• Industrial motors

SPECIFICATIONS

Output Isolated, NO.

Power Requirements None, self-powered.

Temperature Limits 5 to 140°F (-15 to 60°C).

Humidity Limits 0 to 95%, non-condensing.

Isolation Voltage 600 VAC RMS.

Frequency 50/60 Hz.

Enclosure Rating UL 94 V-0 ammability rated, ABS plastic housing.

Compliance CE, cULus.

DESCRIPTION

The Series SSCS Sure-Set Current Switch provides a unique approach to calibration and installing current sensors in a low cost, fast, and accurate design. Selecting the set point has never been easier, with each

model having 9 pre-congured adjustable HP set points. This feature

eliminates the need to work within a live enclosure, reducing the risk of

arc ash on installation.

Page 2

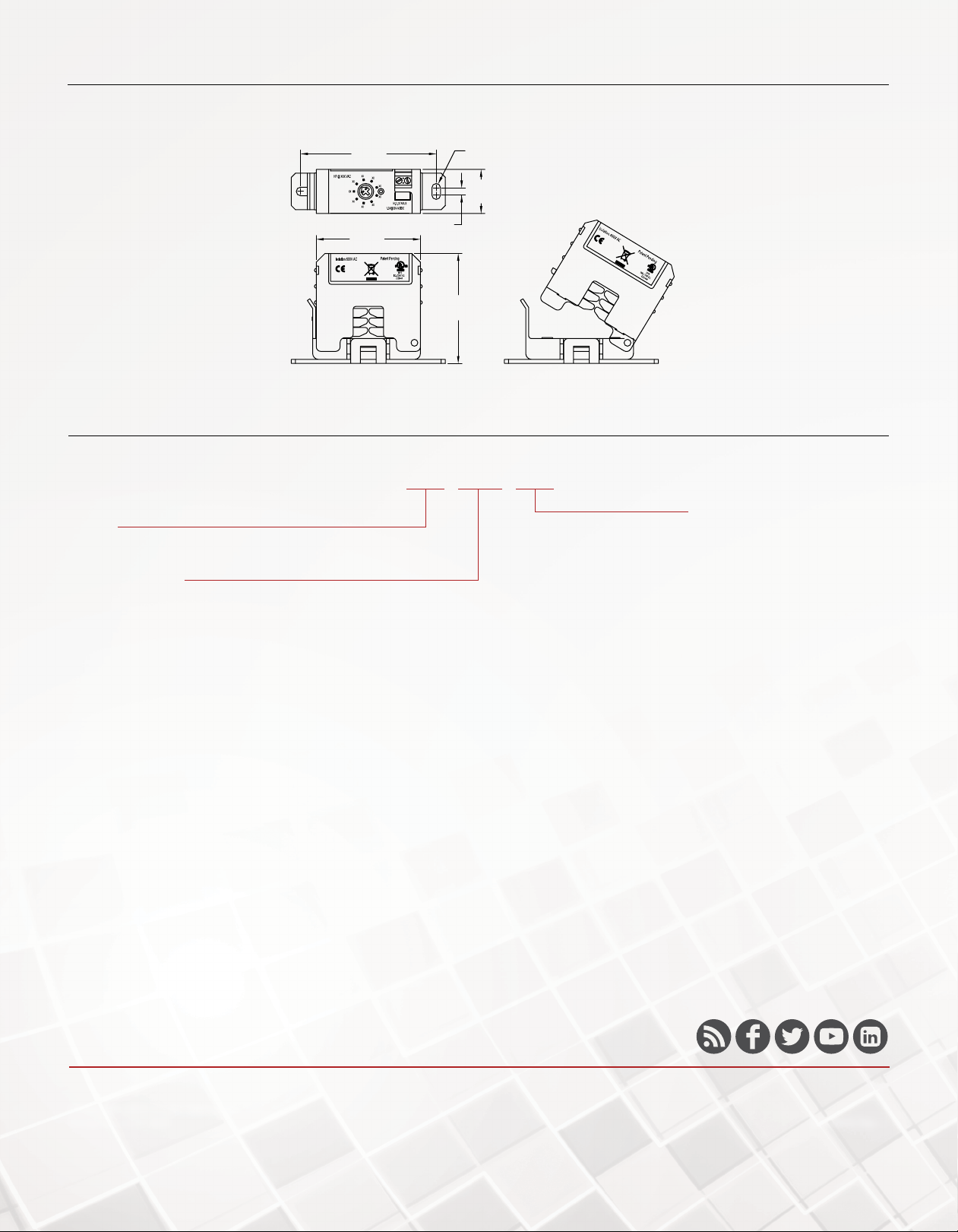

DIMENSIONS

4X 7/64

3-21/64

[84.66]

11/64

2-9/16 [65.02]

[4.56]

2-45/64

[68.58]

HOW TO ORDER

Use the bold characters from the chart below to construct a product code.

SSCS -211100 -230

SERIES

SSCS: Sure-set current switch

MOTOT HP RANGE

-211100: 1, 2, 3, 5, 7.5, 10, 15, 20, 25

-211200: 2, 3, 5, 7.5, 10, 15, 20, 25, 30

-211150: 15, 20, 25, 30, 40, 50, 60, 75, 100

[R2.69]

1-5/64 [27.43]

MOTOR APPLICATION

-230: 230 VAC

-480: 480 VAC

DWYER INSTRUMENTS, LLC

Important Notice: Dwyer Instruments, LLC reserves the right to make changes to or discontinue any product or service identied in this publication without notice. Dwyer advises its customers to obtain the latest version of the relevant information to verify, before placing any orders, that the information being relied upon is current.
