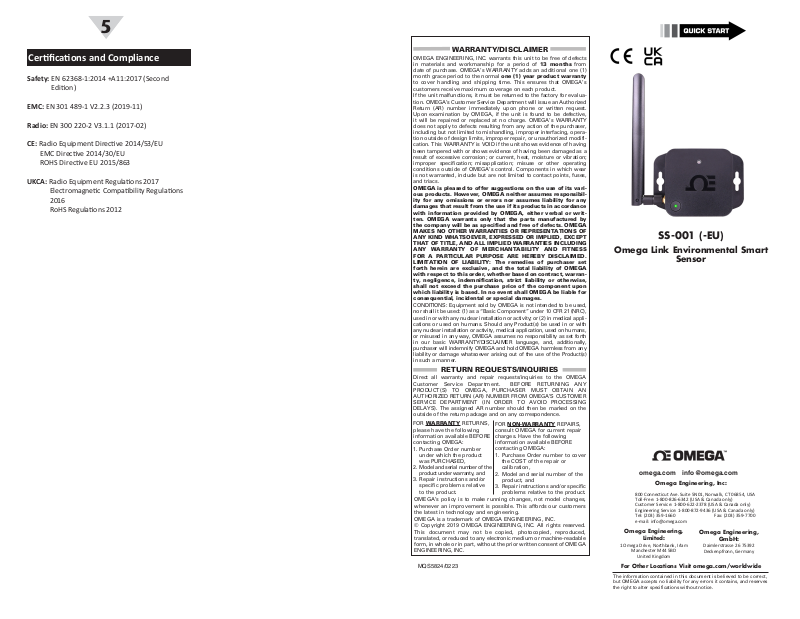

Page 1
5
Cercaons and Compliance
Safety: EN 62368-1:2014 +A11:2017 (Second
Edion)
EMC: EN 301 489-1 V2.2.3 (2019-11)
Radio: EN 300 220-2 V3.1.1 (2017-02)
CE: Radio Equipment Direcve 2014/53/EU
EMC Direcve 2014/30/EU
ROHS Direcve EU 2015/863
UKCA: Radio Equipment Regulaons 2017
Electromagnec Compability Regulaons
2016
RoHS Regulaons 2012
OMEGA ENGINEERING, INC. warrants this unit to be free of defects
WARRANTY/DISCLAIMER
in materials and workmanship for a period of 13 months from
date of purchase. OMEGA’s WARRANTY adds an additional one (1)
month grace period to the normal one (1) year product warranty
to cover handling and shipping time. This ensures that OMEGA’s
customers receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized
Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective,
it will be repaired or replaced at no charge. OMEGA’s WARRANTY
does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having
been tampered with or shows evidence of having been damaged as a
result of excessive corrosion; or current, heat, moisture or vibration;
improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components in which wear
is not warranted, include but are not limited to contact points, fuses,
and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any
damages that result from the use if its products in accordance
with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by
the company will be as specified and free of defects. OMEGA
MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF
ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT
THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING
ANY WARRANTY OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED.
LIMITATION OF LIABILITY: The remedies of purchaser set
forth herein are exclusive, and the total liability of OMEGA
with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise,
shall not exceed the purchase price of the component upon
which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used,
nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC),
used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with
any nuclear installation or activity, medical application, used on humans,
or misused in any way, OMEGA assumes no responsibility as set forth
in our basic WARRANTY/DISCLAIMER language, and, additionally,
purchaser will indemnify OMEGA and hold OMEGA harmless from any
liability or damage whatsoever arising out of the use of the Product(s)
in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA
Customer Service Department. BEFORE RETURNING ANY
PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN
AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER
SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING
DELAYS). The assigned AR number should then be marked on the
outside of the return package and on any correspondence.
FOR WARRANTY RETURNS,
please have the following
information available BEFORE
contacting OMEGA:
1. Purchase Order number
under which the product
was PURCHASED,
2. Model and serial number of the
product under warranty, and
3. Repair instructions and/or
specific problems relative
to the product.
OMEGA’s policy is to make running changes, not model changes,
whenever an improvement is possible. This affords our customers
the latest in technology and engineering.
OMEGA is a trademark of OMEGA ENGINEERING, INC.
© Copyright 2019 OMEGA ENGINEERING, INC. All rights reserved.
This document may not be copied, photocopied, reproduced,
translated, or reduced to any electronic medium or machine-readable
form, in whole or in part, without the prior written consent of OMEGA
ENGINEERING, INC.
MQS5824/0223
FOR NON-WARRANTY REPAIRS,
consult OMEGA for current repair
charges. Have the following
information available BEFORE
contacting OMEGA:
1. Purchase Order number to cover
the COST of the repair or
calibration,
2. Model and serial number of the
product, and
3. Repair instructions and/or specific
problems relative to the product.
SS-001 (-EU)
Omega Link Environmental Smart
omega.com [email protected]
800 Connecticut Ave. Suite 5N01, Norwalk, CT 06854, USA
Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660 Fax: (203) 359-7700
e-mail: [email protected]
Omega Engineering,
Limited:
1 Omega Drive, Northbank, Irlam
Manchester M44 5BD
United Kingdom
For Other Locations Visit omega.com/worldwide
The information contained in this document is believed to be correct,
but OMEGA accepts no liability for any errors it contains, and reserves
the right to alter specifications without notice.
Sensor
Omega Engineering, Inc:
Omega Engineering,
Daimlerstrasse 26 75392
Deckenpfronn, Germany
GmbH:
Page 2
START HERE
2
3
4
Introducon
Important: Do not power on the Omega
Link Gateway or Smart Sensor before
Gateway registraon is complete.
Use this Quick Start Guide to set up your Omega
Link SS-001 Environmental Smart Sensor.
Materials
Included with your SS-001
• Omega Link SS-001 unit
• Quick start guide
• 2x AA alkaline baeries
• Sub GHz Antenna
Addional Materials Needed
• A Windows 7,8, 9, 10, or 11 OS PC or laptop with
Omega’s free SYNC conguraon soware
• A compable Omega Link Gateway
• An Omega Link Cloud account or a qualifying
Omega Enterprise Gateway license er (Pro,
Business, or Business Pro)
Oponal Materials
• Micro USB 2.0 (for SYNC conguraon)
• SYNC Conguraon soware
-Downloadable on the OMEGA website
Before you Begin
Before you begin seng up your SS-001, ensure
you have created an Omega Link Cloud or Omega
Enterprise Gateway account and registered the
Omega Link Gateway that will be paired with the
SS-001 device.
During the gateway setup process, the gateway will
automacally download the latest rmware and
re-boot. Once the gateway is registered and the
pairing buon LED is green you may connue with
the SS-001 installaon.

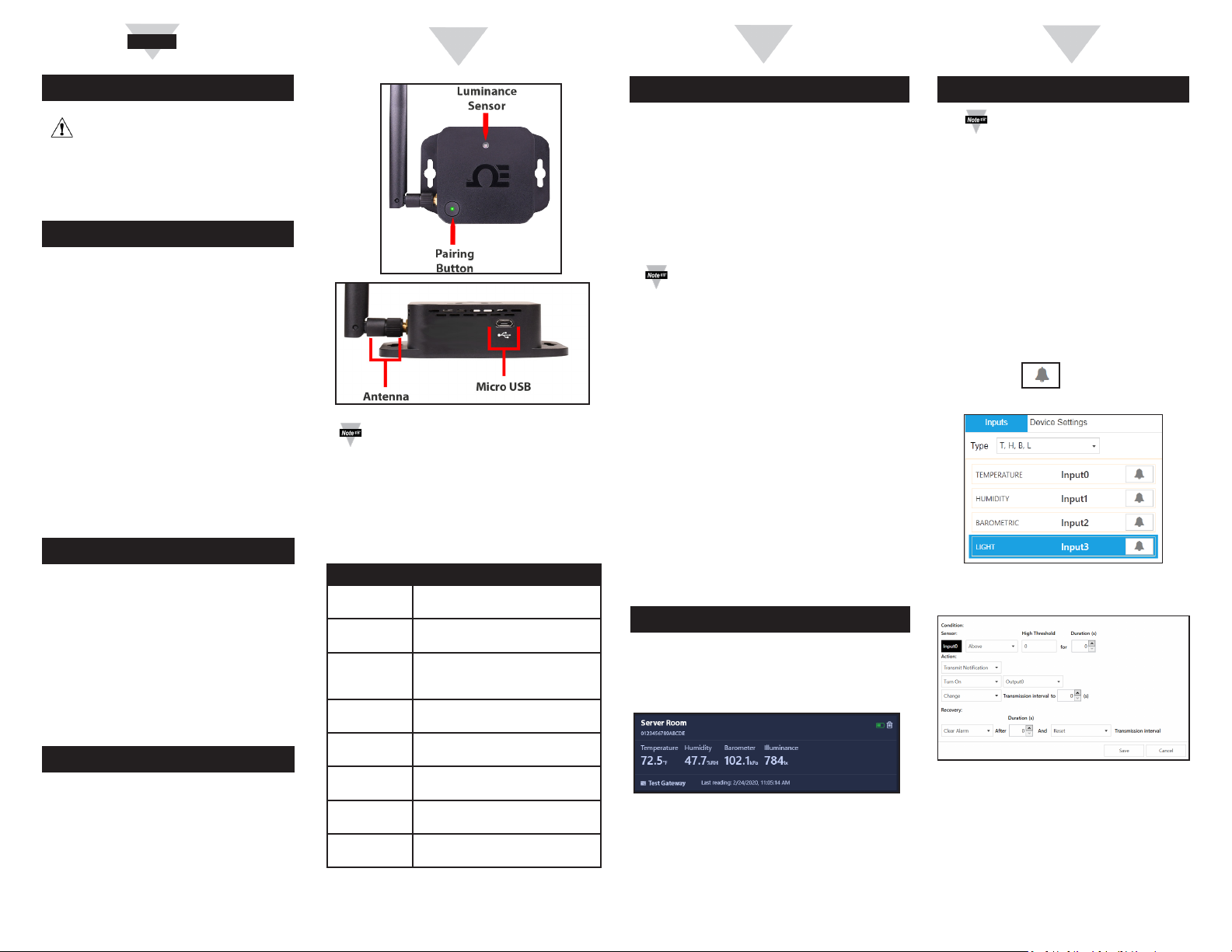

SS-001 Hardware Setup
Step 1: Install the antenna to the side of the
connector on the SS-001 unit.
Step 2: Insert the 2x AA baeries into the baery
compartment located on the underside of
the SS-001 unit.
Important: The baery polarity is marked
inside the compartment. Promptly remove
dead baeries to prevent loss of data or
potenal damage due to leaking baeries.
The Pairing Buon of the Smart Sensor will power up
to a solid orange LED light in the center of the pairing
buon indicang that the device has been successfully
powered on. Refer to the LED Status indicator table
below:
LED Color Status
Amber/Orange
(solid)
Green (blinking
repeatedly)
Amber/Orange
(blinking
repeatedly)
Green (ash
periodically)
Green (solid)
Red (solid)
Red and Green
(blinking)
No Light
SS-001 is powered on; not connected
to a Gateway
SS-001 is in Pairing Mode
SS-001 is reconnecng to a paired
Gateway
SS-001 is communicang to a Gateway
SS-001 is performing a radio rmware
update
The reset buon has been held for a
radio factory reset
A password error has occurred
The SS-001 is asleep or the baery is
drained
Pairing to your Omega Link Gateway
Once the Pairing Buon displays a solid orange LED light
in the center of the pairing buon, your Smart Sensor
is ready to be connected to an Omega Link Gateway.
Pairing your SS-001 with an Omega Link Gateway is made
easy with a one-buon pairing system between the two
devices.
Step 1: Push the pairing buon once on your
SS-001 unit. The LED status indicator will blink
green indicang the device is in Pairing Mode.
Note: The pairing instrucons for the SS-001-
RUG dier from the standard wireless pairing
procedure. The Pairing Buon for the SS-001-
RUG is located in a pinhole on the underside
of the unit. Press the pinhole buon once to
enable Pairing Mode.
Step 2: Quickly push the pairing buon on the Omega
Link Gateway. The LED on the gateway will blink
green indicang the gateway is in Pairing Mode.
When the Smart Sensor has been successfully paired
to your Omega Link Gateway, the green LEDs on both
devices will stop ashing within 2 minutes.
The Smart Sensor LED will periodically ash green each
me data is transmied to the gateway.
As measurements are transmied, you will begin to
see data appearing on the Omega Link Cloud or OEG
interface. The transmission interval can be adjusted
from the Omega Link Cloud Interface or from the OEG
interface, depending on which plaorm the Gateway is
connected to.
View Readings on Omega Link Cloud or OEG
Once your SS-001 has successfully paired to your
registered Omega Link Gateway, the SS-001 will appear
on the Omega Link Cloud interface or the OEG interface
and begin transming data.
For addional informaon on the customizable features
made available through the micro USB connector,
connue to the secons tled Advanced Conguraon
with SYNC and Smart Sensor USB Connector.
Advanced Conguraon with SYNC
Note: SYNC conguraon soware is
downloadable on the OMEGA website.
The SS-001 can be congured using SYNC
conguraon soware by connecng through the
micro USB 2.0 port. SYNC can be used to congure
alarms in the sensor, set device passwords, and
update rmware.
SS-001 Sensor Conguraon
The SS-001 internal sensors oer xed readings for
temperature, humidity, and barometric pressure.
Gain and Oset sengs can be congured by
clicking Advanced Scaling in the SYNC interface.
Seng Alarms
To congure the alarms in your SS-001 using SYNC,
follow these steps:
Step 1: Click the icon next to the input
you wish to set an alarm for.
Step 2: Set the parameters for your alarm and click
Save.
SYNC - Device Sengs
Users can perform funcons such as rmware
updates and factory resets of the SS-001 by
navigang to the Device Sengs tab of SYNC
conguraon soware.
