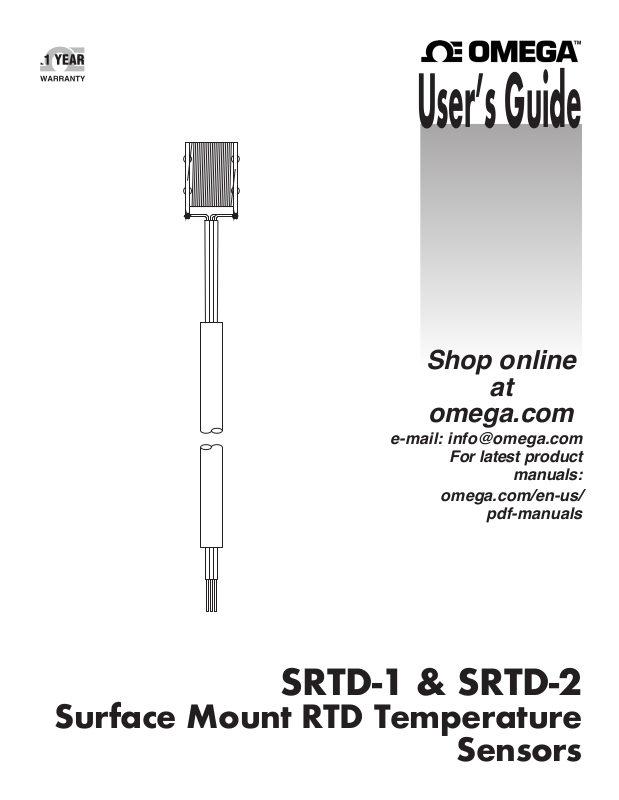

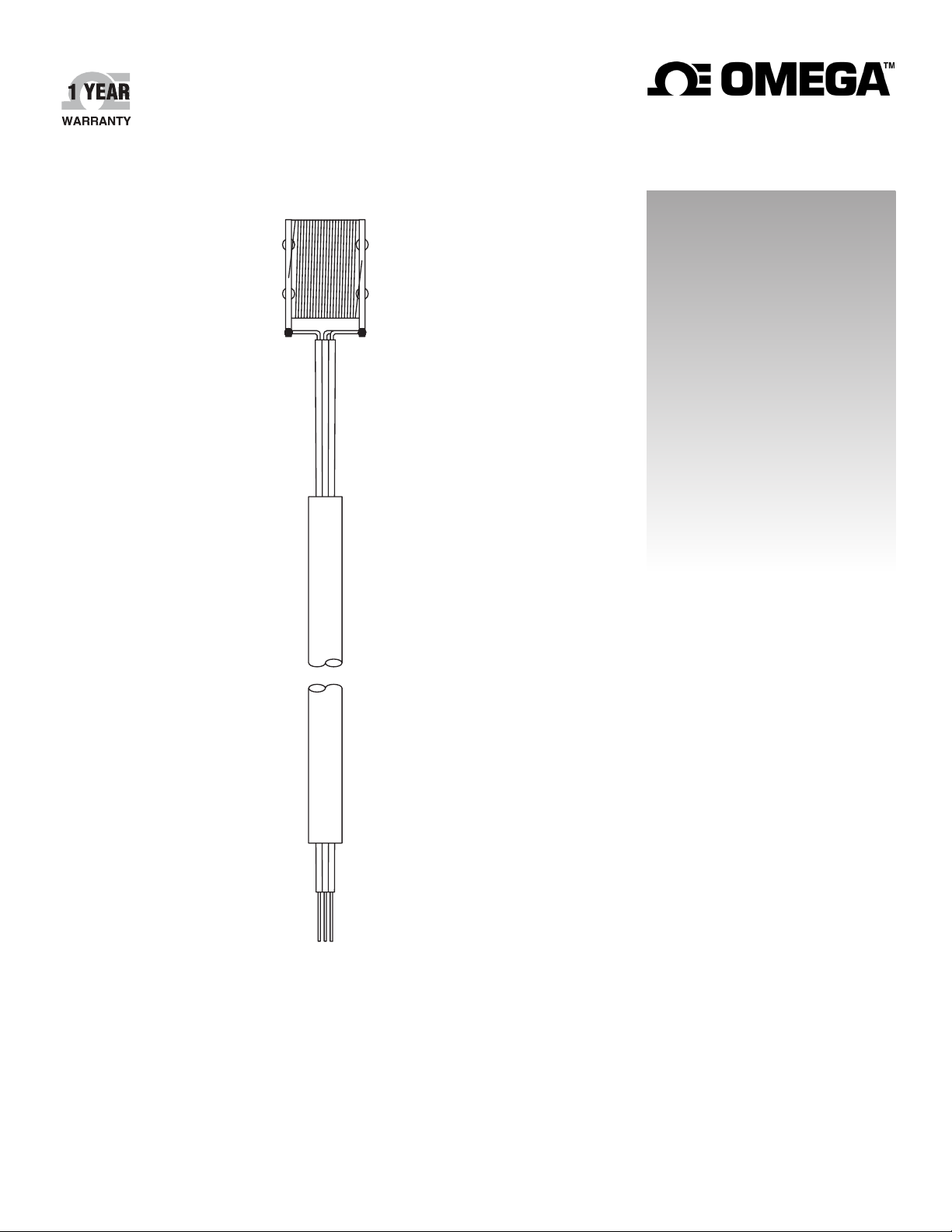

SRTD-1 & SRTD-2
Surface Mount RTD Temperature
Sensors
Page 2
omega.com [email protected]
Omega Engineering, Inc.
800 Connecticut Ave. Suite 5N01, Norwalk, CT 06854, USA
Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660 Fax: (203) 359-7700
email: [email protected]
Omega Engineering,
Limited
1 Omega Drive, Northbank,
Irlam Manchester M44 5BD
United Kingdom
Omega Engineering,
GmbH
Daimlerstrasse 26 75392
Deckenpfronn Germany
For Other Locations Visit omega.com/worldwide
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves
the right to alter specifications without notice.
Page 3
Table of Contents
1. Dimension Drawing (Inches) ................................................................................................ 3
2. General Description ................................................................................................................. 3
3. Unpacking ................................................................................................................................... 3
4. Mounting Considerations ....................................................................................................... 3
5. Specifications ............................................................................................................................. 4
2
omega.com
Page 4
1. Dimension Drawing (Inches)
0.62
0.025 MAX
1.00
0.5 MAX
0.06
(OVER LEAD WIRE)
36 +2.00/-0.00
(other sizes available)
0.25 APPROX.
0.25 APPROX.

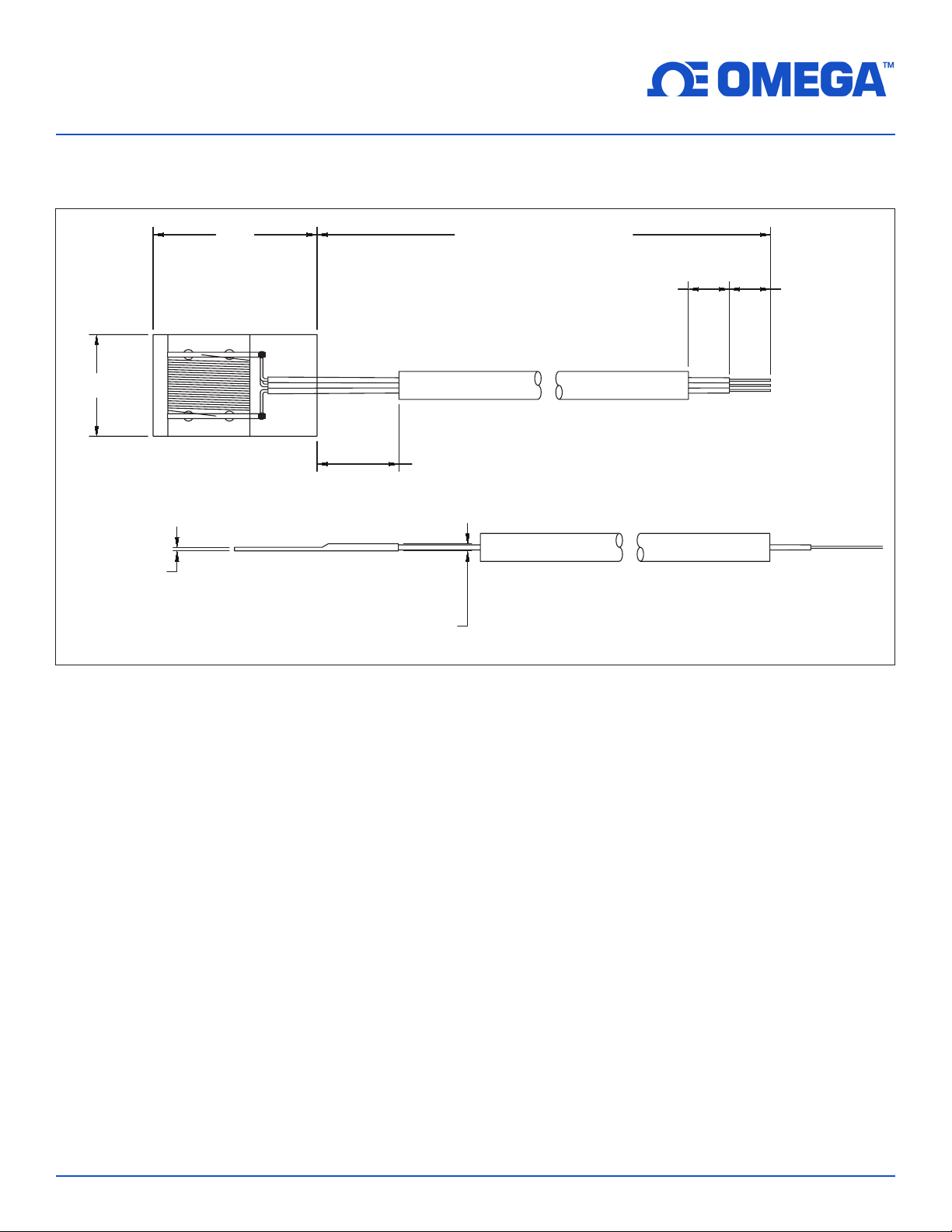

Figure 1: NEW SRTD Dimension Drawing.eps
2. General Description
OMEGA’s SRTD-1 and SRTD-2 are polyimide insulated surface mount RTD temperature sensors
designed to provide a practical method for measuring surface temperature. These sensors are
small, flexible, and their low mass has minimal thermal effect on the material being measured.
They are ideally suited for applications where the sensor can be mounted to the surface being
measured using adhesives or other mechanical mounting methods.
3. Unpacking
Remove the packing list and verify that all equipment has been received. If there are any
questions about the shipment, please call OMEGA Customer Service Department at:
1-800-622-2378 or 203-359-1660
We can also be reached on the Internet at omega.com e-mail: [email protected]
Upon receipt of the shipment, inspect the container and equipment for any signs of damage.
Take particular note of any evidence of rough handling in transit. Immediately report any damage
to the shipping agent.
4. Mounting Considerations
The SRTD-1 and SRTD-2 “surface mount” RTD’s can be bonded to most surfaces with
OMEGABOND® Epoxy Adhesives #100, #101 and #200. Each epoxy has different temperature
ratings, cure characteristics, and thermal conductivity factors. Information on OMEGABOND
Epoxies can be found in the OMEGA Temperature Measurement Handbook and Encyclopedia®.
3
omega.com
Page 5
5. Specifications
BLAC
K
K
RED
WHITE
RED
Operating Temperature
Range
Minimum Temperature: -320°F (-200°C)
Maximum Temperature: 500°F (260°C) continuous
Sensing Element: 100 ohm wire wound platinum,
Accuracy: SRTD-1: ±0.50 ohms
Tolerance: Reading SRTD-2: ±0.22 ohms
Stability: <0.2°C drift per year at rated service temperature with proper
Response Time: 70 ms to reach 63.2% of a step change in temperature in water
Self-Heating Effect: The bare sensor will rise less than 1°C while dissipating an I2R
Insulation Resistance: The insulation resistance between outer sensor insulation clamped
Minimum Bend RADII for
Mounting:
Lead Wire: 36” leads, 26 AWG stranded nickel-plated copper, PVA insulated,
Note:
When using epoxies, it is important that the
surfaces to be bonded are clean. Use an
appropriate solvent or detergent for cleaning.
550°F (288°C) short term
(less than 1500 hours)
alpha = 0.00385 ohm/ohm/°C (DIN 43760)
±0.50% of temperature
±0.25% of temperature reading
mounting
flowing at 3 ft/sec transverse to the sensor (ASTM-E-644)
power of 3 milliwatts in still air (ASTM-E-644)
between two metal plates and the common lead wire is 50
megohms minimum with 50 volts dc applied to a dry sensor at
room temperature (ASTM-E-644)
3/8” transverse to element winding,
1-1/2” longitudinal to winding
3-wire configuration (refer to schematic diagram)
BLAC

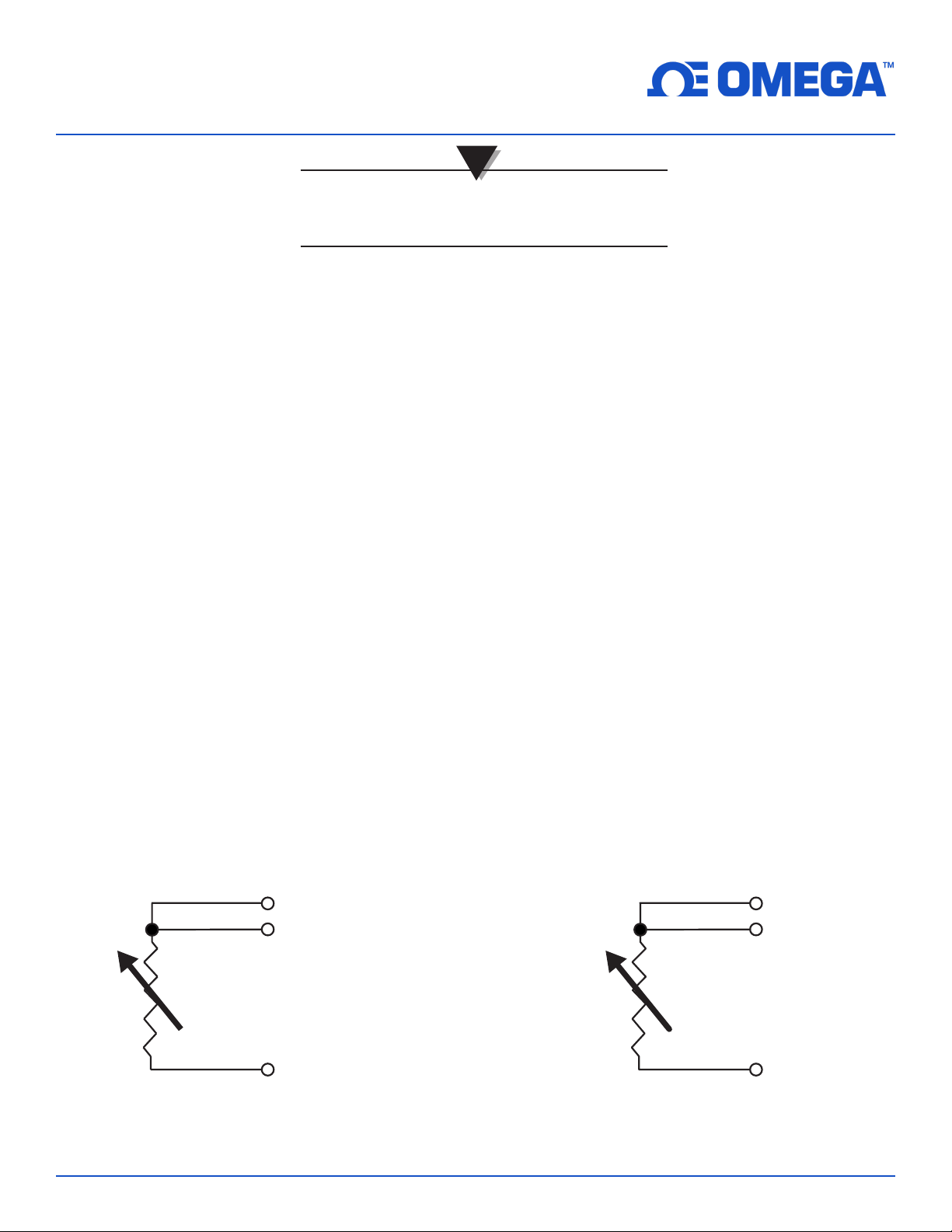

Figure 2: 3-wire SRTD-2 Wiring
for 72-inch length
WHITE
Figure 3: 3-wire SRTD Wiring
for all other lengths
