• Maximum Exposure
Temperature (Power Off)
420°F (215°C)
• Industrial Process
Maintenance Applications
• Industrial Freeze
Protection Applications
• Freeze Protection of Fire
Protection System Piping
• Steam Cleanable On Process
Equipment Up to 300 PSIG
• 3, 5, 8, 10, 15 and 20 Watts
per Foot
• 120 and 208-277 Volts
Available From Stock
Description

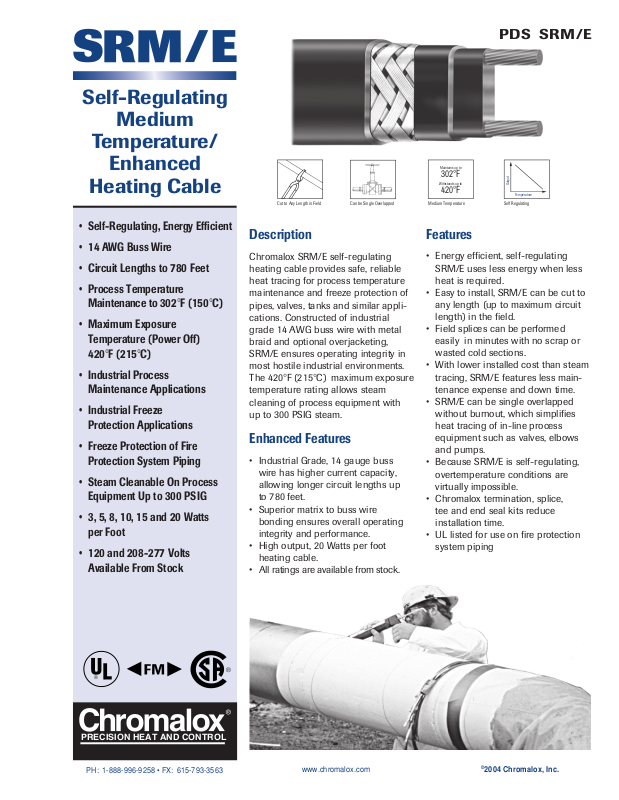

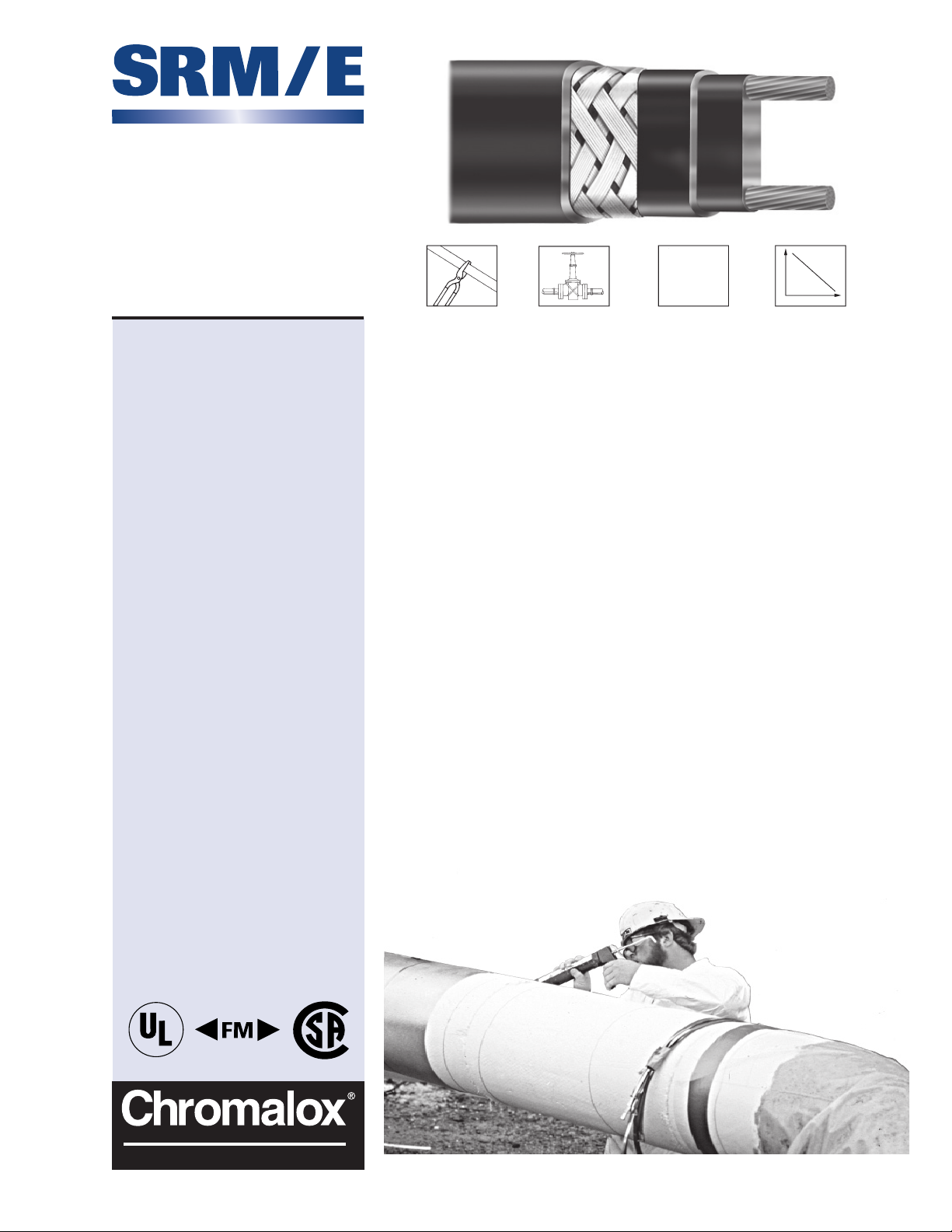

Chromalox SRM/E self-regulating
heating cable provides safe, reliable
heat tracing for process temperature
maintenance and freeze protection of
pipes, valves, tanks and similar applications. Constructed of industrial
grade 14 AWG buss wire with metal
braid and optional overjacketing,
SRM/E ensures operating integrity in
most hostile industrial environments.
The 420°F (215°C) maximum exposure
temperature rating allows steam
cleaning of process equipment with
up to 300 PSIG steam.
Enhanced Features
• Industrial Grade, 14 gauge buss
wire has higher current capacity,
allowing longer circuit lengths up
to 780 feet.
• Superior matrix to buss wire
bonding ensures overall operating
integrity and performance.
• High output, 20 Watts per foot
heating cable.
• All ratings are available from stock.
Maintains up to
302°F
Withstands up to
420°F
Cut to Any Length in FieldCan be Single OverlappedMedium TemperatureSelf Regulating
Output
Temperature
Features
• Energy efficient, self-regulating
SRM/E uses less energy when less
heat is required.
• Easy to install, SRM/E can be cut to
any length (up to maximum circuit
length) in the field.
• Field splices can be performed
easily in minutes with no scrap or
wasted cold sections.
• With lower installed cost than steam
tracing, SRM/E features less maintenance expense and down time.
• SRM/E can be single overlapped
without burnout, which simplifies
heat tracing of in-line process
equipment such as valves, elbows
and pumps.
• Because SRM/E is self-regulating,
overtemperature conditions are
virtually impossible.
• Chromalox termination, splice,
tee and end seal kits reduce
installation time.
• UL listed for use on fire protection
system piping
SRM/E — Self-Regulating Medium Temperature/Enhanced Heating Cable

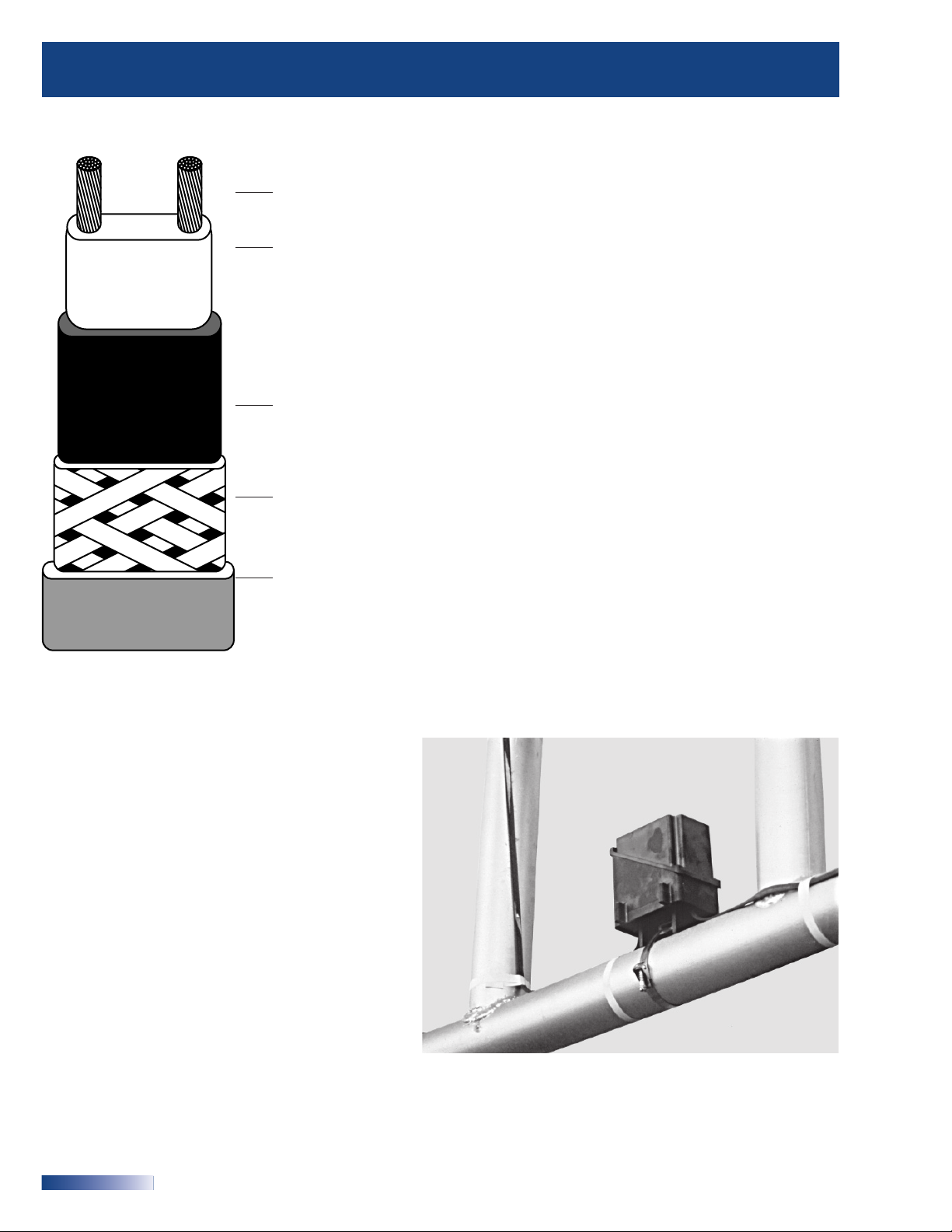

Construction
Twin 14 AWG Copper Buss Wires .................. Provide reliable electrical current
capability.
Semiconductive Polymer
Core Matrix ............................................................. “Self-Regulating” component of the
cable, its electrical resistance varies with
temperature. As process temperature
drops, the core’s heat output increases;
as process temperature rises, the heat
output decreases.
UL Listed, CSA Certified for ordinary areas.
UL Listed for fire protection system piping
FM approved for hazardous (classified) areas when
used with Chromalox accessories:
• Class I, Div. 2, Groups B, C, D (gases, vapors)
• Class II, Div. 2, Groups F, G (combustible dust)
• Class III, Div. 2 (easily ignitable fibers and filings)
• 3, 5 and 8 Watt rated T3 Temperature Class
• 10,15 and 20 Watt rated T2D Temperature Class
CSA Certified for hazardous (classified) areas when
used with Chromalox accessories:
• Class I, Div. 2, Groups A, B, C, D
• Class II, Div. 2, Groups F, G
• Temperature Class T3*
*Exception: Cable surface temperature shall not exceed
190°C in Class II, Div. 2, Group F; 165°C in Class II,
Div. 2, Group G.
hostile, chemically active environments.
It also protects against abrasion and
impact damage.
Applications
• Process Temperature Maintenance
• Hydrocarbon and Chemical Product Piping
• Freeze Protection of Periodically Steam-Cleaned Pipes
• Freeze Protection of Fire Protection System Piping
Self-Regulating Medium Temperature/Enhanced Heating Cable — SRM/E
Heating Cable System Design
1. Calculate Heat Loss
Using the Chromalox Design Guide (PJ304) for Heat Tracing, calculate the heat loss of the system. To calculate the
heat loss (Watts) you will need to know pipe diameter, insulation type and thickness, minimum ambient temperature
and the pipe maintenance temperature.
2. Select Cable Rating
After calculating the heat loss in the pipe and adjusting for any application deviations, you may determine which cable

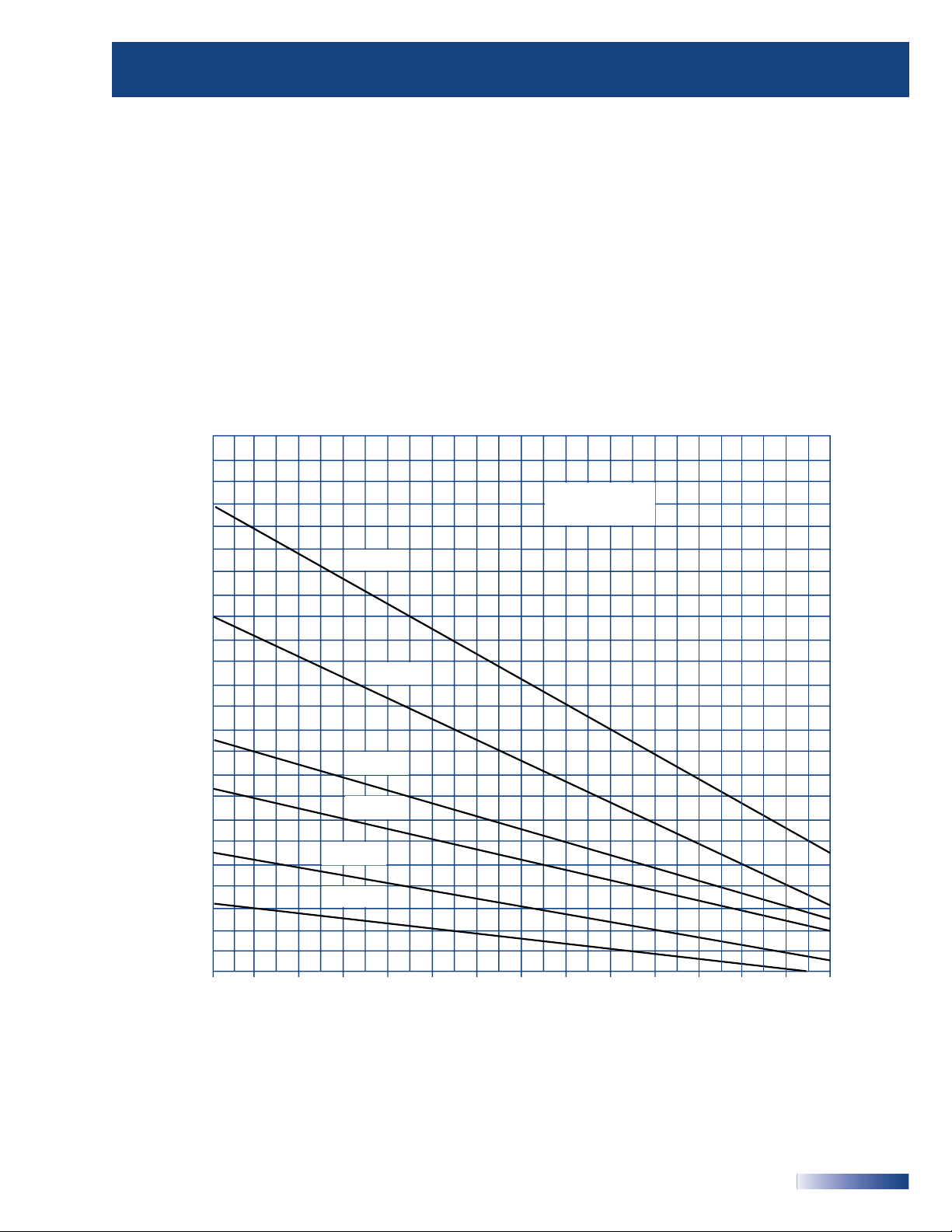

rating to choose. Using the SRM/E Thermal Output Ratings graph, select the lowest cable rating that will provide the
output required to offset the heat-loss at the desired maintenance temperature. Adjust the cable output for line voltage
if necessary. Consult output wattage at alternative voltage table on page 5.
C = Standard tinned-copper metallic braid for ground path
• FX: 615-793-3563 • www.chromalox.com
5
Page 6
SRM/E — Self-Regulating Medium Temperature/Enhanced Heating Cable
Ordering Information
OutputModel
(W/Ft.)VoltageNumberPCN
3120SRM/E 3-1 C388025
SRM/E 3-1 CT388033
208-277SRM/E 3-2 C388050
SRM/E 3-2 CT388068
5120SRM/E 5-1 C388084
SRM/E 5-1 CT388092
208-277SRM/E 5-2 C388113
SRM/E 5-2 CT388121
8120SRM/E 8-1 C388148
SRM/E 8-1 CT388156
208-277SRM/E 8-2 C388172
SRM/E 8-2 CT388180
To Order: Specify length, Model Number, PCN and Installation Accessories.
OutputModel
(W/Ft.)Voltage NumberPCN
10120SRM/E 10-1 C388201
SRM/E 10-1 CT388210
208-277SRM/E 10-2 C388236
SRM/E 10-2 CT388244
15120SRM/E 15-1 C388260
SRM/E 15-1 CT388279
208-277SRM/E 15-2 C388308
SRM/E 15-2 CT388316
20120SRM/E 20-1 C388332
SRM/E 20-1 CT388340
208-277SRM/E 20-2 C388367
SRM/E 20-2 CT388375
Accessories
Chromalox has a complete line of accessories specifically designed for use with SRM/E cable. Use only Chromalox
accessories to ensure the performance of the heat trace system.
ModelDescription
ThermostatRTASDL Series air-sensing thermostat with Microswitch
®
for local control of circuit.
RTBCDL Series pipewall-sensing thermostat with Microswitch
®
for local control of circuit.
Power ConnectionRTPCDL Series power connection set kit.
RTSTDL Series splice and tee set kit.
RTESDL Series end seal kit.
Pipe StrapsPS-1, PS-3, PS-10Pipe straps to affix thermostat and power connection splice kits to
pipes.
Fiberglass TapeFT-2Tape to affix cable to pipe, 66' roll x 1/2", install on 12" centers.
Aluminum TapeAT-1Tape to aid heat transfer, 180 foot roll.
Apply over cable along entire length of circuit.
Caution LabelsCL-1“Electrical Heat Tracing” caution labels, 5 per package.
Install every 10 feet.
Control PanelsContact your Chromalox representative for Control Panel information.
Note: For PCN's, refer to the DL Series connection system accessories product data sheet.
