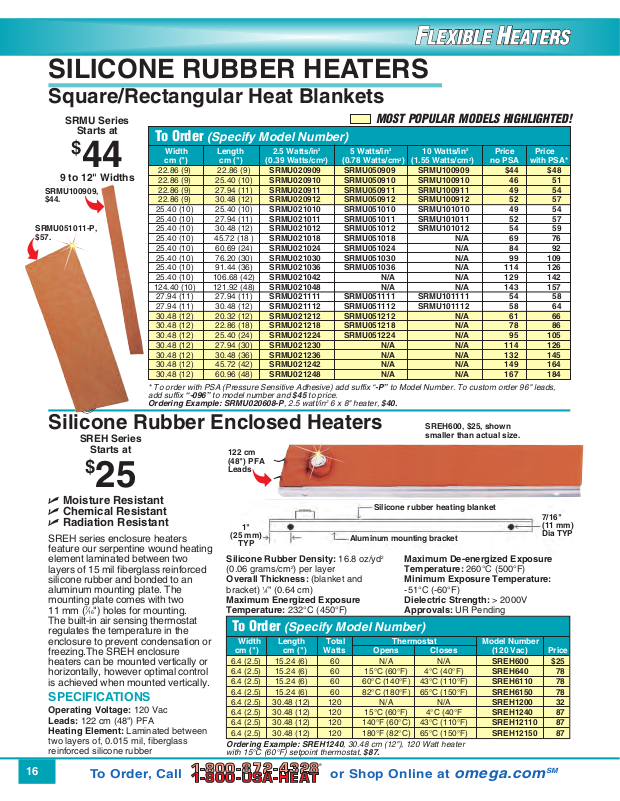

SILICONE RUBBER HEATERS
Square/Rectangular Heat Blankets
SRMU Series
Starts at
$
44
9 to 12" Widths
SRMU100909,
$44.
SRMU051011-P,
$57.
MOST POPULAR MODELS HIGHLIGHTED!
To Order (Specify Model Number)
Width Length 2.5 Watts/in
cm (") cm (") (0.39 Watts/cm2) (0.78 Watts/cm2) (1.55 Watts/cm2) no PSA with PSA*
22.86 (9) 22.86 (9) SRMU020909 SRMU050909 SRMU100909 $44 $48
22.86 (9) 25.40 (10) SRMU020910 SRMU050910 SRMU100910 46 51
22.86 (9) 27.94 (11) SRMU020911 SRMU050911 SRMU100911 49 54
22.86 (9) 30.48 (12) SRMU020912 SRMU050912 SRMU100912 52 57
25.40 (10) 25.40 (10) SRMU021010 SRMU051010 SRMU101010 49 54
25.40 (10) 27.94 (11) SRMU021011 SRMU051011 SRMU101011 52 57
25.40 (10) 30.48 (12) SRMU021012 SRMU051012 SRMU101012 54 59
25.40 (10) 45.72 (18 ) SRMU021018 SRMU051018 N/A 69 76
25.40 (10) 60.69 (24) SRMU021024 SRMU051024 N/A 84 92
25.40 (10) 76.20 (30) SRMU021030 SRMU051030 N/A 99 109
25.40 (10) 91.44 (36) SRMU021036 SRMU051036 N/A 114 126
25.40 (10) 106.68 (42) SRMU021042 N/A N/A 129 142
124.40 (10) 121.92 (48) SRMU021048 N/A N/A 143 157
27.94 (11) 27.94 (11) SRMU021111 SRMU051111 SRMU101111 54 58
27.94 (11) 30.48 (12) SRMU021112 SRMU051112 SRMU101112 58 64
30.48 (12) 20.32 (12) SRMU021212 SRMU051212 N/A 61 66
30.48 (12) 22.86 (18) SRMU021218 SRMU051218 N/A 78 86
30.48 (12) 25.40 (24) SRMU021224 SRMU051224 N/A 95 105
30.48 (12) 27.94 (30) SRMU021230 N/A N/A 114 126
30.48 (12) 30.48 (36) SRMU021236 N/A N/A 132 145
30.48 (12) 45.72 (42) SRMU021242 N/A N/A 149 164
30.48 (12) 60.96 (48) SRMU021248 N/A N/A 167 184
* To order with PSA (Pressure Sensitive Adhesive) add suffix “-P” to Model Number. To custom order 96" leads,
add suffix “-096” to model number and $45 to price.
Ordering Example: SRMU020608-P, 2.5 watt/in
2
5 Watts/in
2
6 x 8" heater, $40.
2
10 Watts/in
2
Price Price
Silicone Rubber Enclosed Heaters
SREH Series
Starts at
$
122 cm
(48") PFA
Leads
25
Moisture Resistant
Chemical Resistant
Radiation Resistant
SREH series enclosure heaters
feature our serpentine wound heating
element laminated between two
layers of 15 mil fiberglass reinforced
silicone rubber and bonded to an
aluminum mounting plate. The
mounting plate comes with two
11 mm (7⁄16") holes for mounting.
The built-in air sensing thermostat
regulates the temperature in the
enclosure to prevent condensation or
freezing.The SREH enclosure
heaters can be mounted vertically or
horizontally, however optimal control
is achieved when mounted vertically.
SPECIFICATIONS
Operating Voltage: 120 Vac
Leads: 122 cm (48") PFA
Heating Element: Laminated between
two layers of, 0.015 mil, fiberglass
reinforced silicone rubber
1"
(25 mm)
TYP
Silicone Rubber Density: 16.8 oz/yd
(0.06 grams/cm2) per layer
Overall Thickness: (blanket and
bracket)
Maximum Energized Exposure
Temperature: 232°C (450°F)
1
⁄4" (0.64 cm)
To Order (Specify Model Number)
Width Length Total Thermostat Model Number
cm (") cm (") Watts Opens Closes (120 Vac) Price
6.4 (2.5) 15.24 (6) 60 N/A N/A SREH600 $25
6.4 (2.5) 15.24 (6) 60 15°C (60°F) 4°C (40°F) SREH640 78
6.4 (2.5) 15.24 (6) 60 60°C (140°F) 43°C (110°F) SREH6110 78
6.4 (2.5) 15.24 (6) 60 82°C (180°F) 65°C (150°F) SREH6150 78
6.4 (2.5) 30.48 (12) 120 N/A N/A SREH1200 32
6.4 (2.5) 30.48 (12) 120 15°C (60°F) 4°C (40°F SREH1240 87
6.4 (2.5) 30.48 (12) 120 140°F (60°C) 43°C (110°F) SREH12110 87
6.4 (2.5) 30.48 (12) 120 180°F (82°C) 65°C (150°F) SREH12150 87
Ordering Example: SREH1240, 30.48 cm (12"), 120 Watt heater
with 15°C (60°F) setpoint thermostat, $87.
Silicone rubber heating blanket
Aluminum mounting bracket
SREH600, $25, shown
smaller than actual size.
2
Maximum De-energized Exposure
Temperature: 260°C (500°F)
Minimum Exposure Temperature:
-51°C (-60°F)
Dielectric Strength: > 2000V
Approvals: UR Pending
7/16"
(11 mm)
Dia TYP
16
To Order, Call or Shop Online at omega.com
