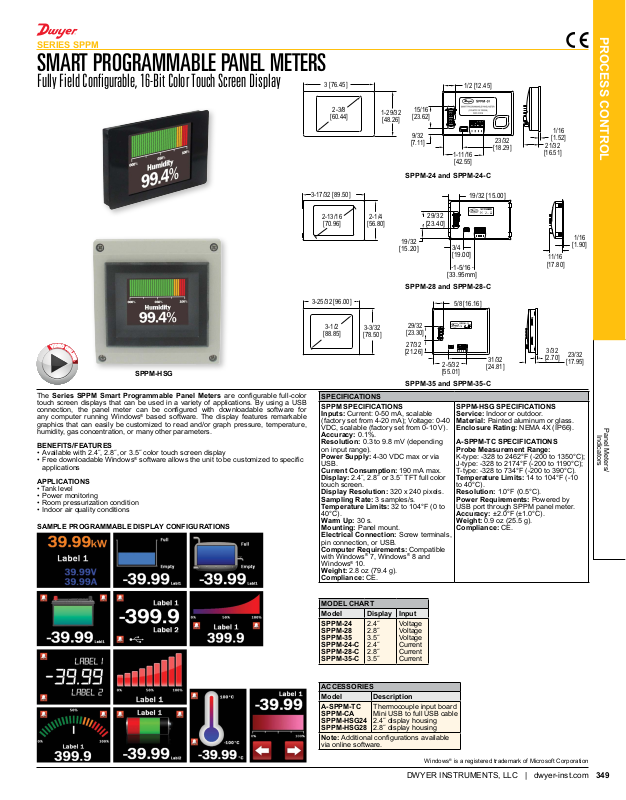

SERIES SPPM
E
SMART PROGRAMMABLE PANEL METERS
Fully Field Congurable, 16-Bit Color Touch Screen Display
PROCESS CONTROL
E
O
D
I
V
O
N
L
I
N
SPPM-HSG
The Series SPPM Smart Programmable Panel Meters are congurable full-color
touch screen displays that can be used in a variety of applications. By using a USB
connection, the panel meter can be congured with downloadable software for
any computer running Windows® based software. The display features remarkable
graphics that can easily be customized to read and/or graph pressure, temperature,
humidity, gas concentration, or many other parameters.
BENEFITS/FEATURES
• Available with 2.4˝, 2.8˝, or 3.5˝ color touch screen display
• Free downloadable Windows® software allows the unit to be customized to specic
applications
APPLICATIONS
• Tank level
• Power monitoring
• Room pressurization condition
• Indoor air quality conditions

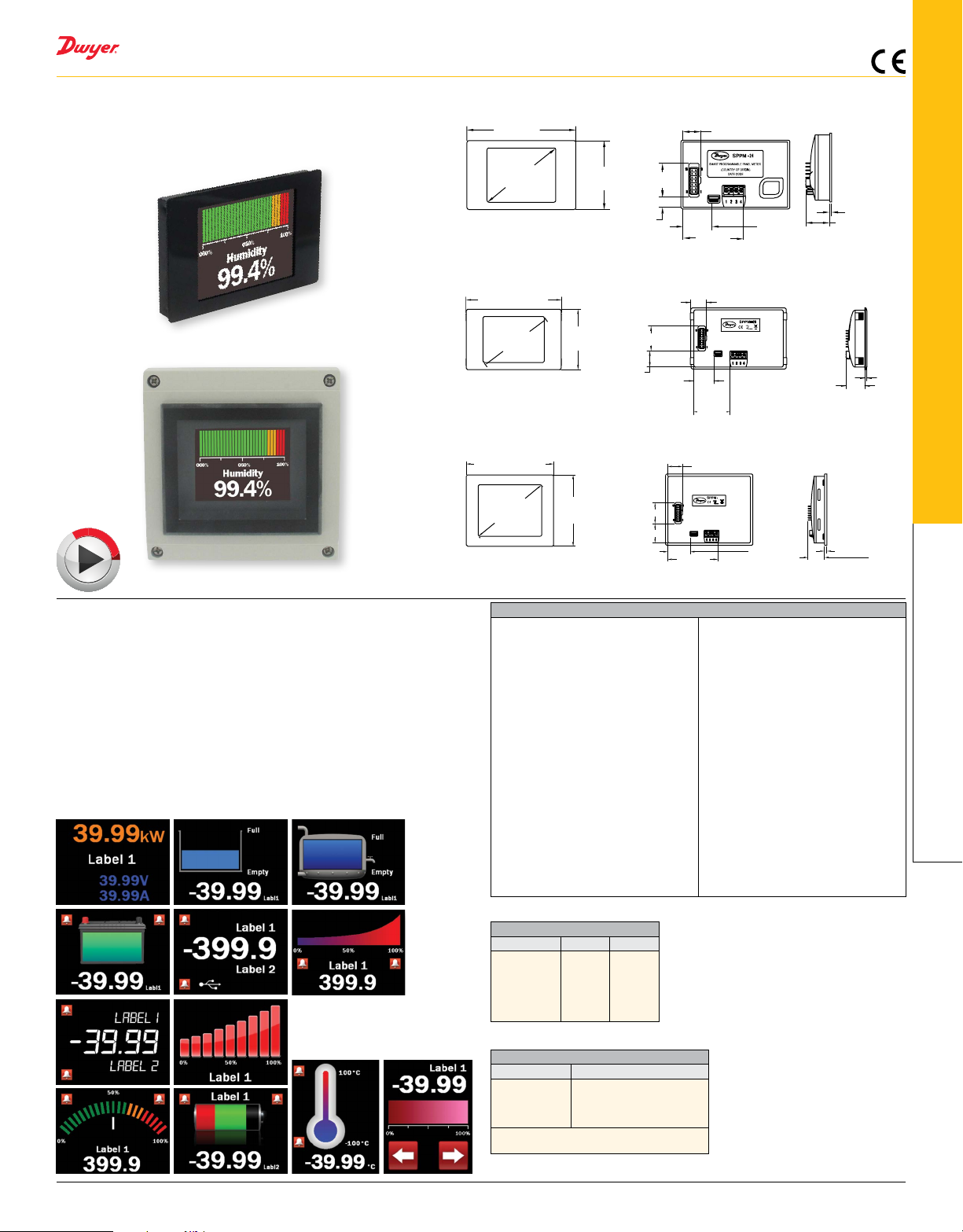

SAMPLE PROGRAMMABLE DISPLAY CONFIGURATIONS
2-3/8
[60.44]
1-29/32
[48.26]
15/16
[23.62]
9/32
[7.11]
SPPM-24 and SPPM-24-C
3-17/32 [89.50]
2-13/16
[70.96]
2-1/4
[56.80]
19/32
[15.20]
SPPM-28 and SPPM-28-C
3-25/32 [96.00]
3-1/2
[88.85]
3-3/32
[78.50]
29/32
[23.30]
27/32
[21.26]
SPPM-35 and SPPM-35-C
SPECIFICATIONS
SPPM SPECIFICATIONS
Inputs: Current: 0-50 mA, scalable
(factory set from 4-20 mA); Voltage: 0-40
VDC, scalable (factory set from 0-10 V).
Accuracy: 0.1%.
Resolution: 0.3 to 9.8 mV (depending
on input range).
Power Supply: 4-30 VDC max or via
USB.
Current Consumption: 190 mA max.
Display: 2.4˝, 2.8˝ or 3.5˝ TFT full color
touch screen.
Display Resolution: 320 x 240 pixels.
Sampling Rate: 3 samples/s.
Temperature Limits: 32 to 104°F (0 to
40°C).
Warm Up: 30 s.
Mounting: Panel mount.
Electrical Connection: Screw terminals,
pin connection, or USB.
Computer Requirements: Compatible
with Windows
Windows® 10.
Weight: 2.8 oz (79.4 g).
Compliance: CE.
®
7, Windows® 8 and
23/32
1-11/16
[42.55]
[18.29]
19/32 [15.00]
29/32
[23.40]
3/4
[19.00]
1-5/16
[33.95mm]
5/8 [16.16]
35
2-5/32
[55.01]
SPPM-HSG SPECIFICATIONS
Service: Indoor or outdoor.
Material: Painted aluminum or glass.
Enclosure Rating: NEMA 4X (IP66).
A-SPPM-TC SPECIFICATIONS
Probe Measurement Range:
K-type: -328 to 2462°F (-200 to 1350°C);
J-type: -328 to 2174°F (-200 to 1190°C);
T-type: -328 to 734°F (-200 to 390°C).
Temperature Limits: 14 to 104°F (-10
to 40°C).
Resolution: 1.0°F (0.5°C).
Power Requirements: Powered by
USB port through SPPM panel meter.
Accuracy: ±2.0°F (±1.0°C).
Weight: 0.9 oz (25.5 g).
Compliance: CE.
31/32
[24.81]
1/16
[1.52]
21/32
[16.51]
11/16
[17.80]
3/32
[2.70]
1/16
[1.90]
23/32
[17.95]
Panel Meters/
Indicators
MODEL CHART
Model Display Input
SPPM-24
SPPM-28
SPPM-35
SPPM-24-C
SPPM-28-C
SPPM-35-C
2.4˝
2.8˝
3.5˝
2.4˝
2.8˝
3.5˝
Voltage
Voltage
Voltage
Current
Current
Current
ACCESSORIES
Model Description
A-SPPM-TC
SPPM-CA
SPPM-HSG24
SPPM-HSG28
Note: Additional congurations available
via online software.
Thermocouple input board
Mini USB to full USB cable
2.4˝ display housing
2.8˝ display housing
Windows® is a registered trademark of Microsoft Corporation
DWYER INSTRUMENTS, LLC | dwyer-inst.com
