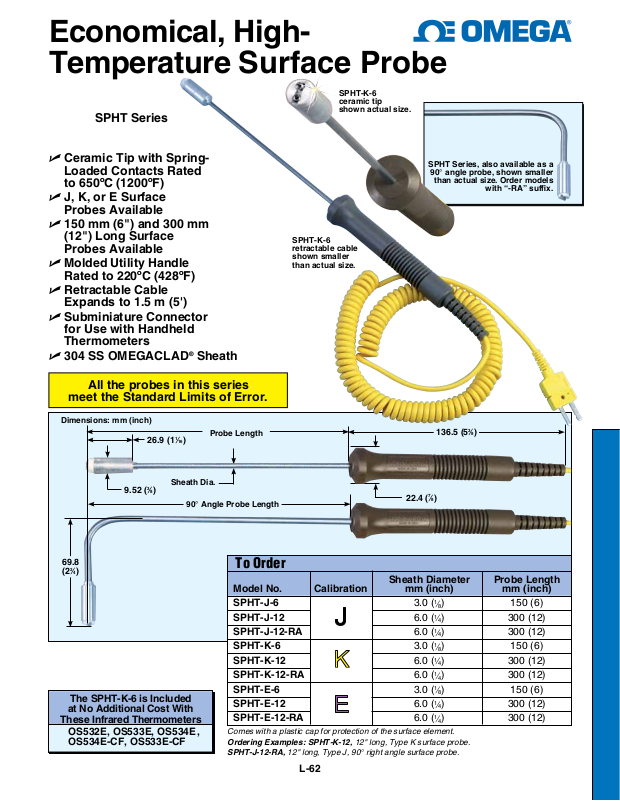

Economical, HighTemperature Surface Probe
SPHT-K-6
ceramic tip
SPHT Series
shown actual size.
U Ceramic Tip with Spring-
Loaded Contacts Rated
to 650ºC (1200ºF)
J, K, or E Surface
U
Probes Available
150 mm (6") and 300 mm
U
(12") Long Surface
Probes Available
Molded Utility Handle
U
Rated to 220ºC (428ºF)
Retractable Cable
U
Expands to 1.5 m (5')
Subminiature Connector
U
for Use with Handheld
Thermometers
304 SS OMEGACLAD
U
®
Sheath
All the probes in this series
meet the Standard Limits of Error.
Dimensions: mm (inch)
26.9 (11⁄16)
Probe Length
SPHT Series, also available as a
90° angle probe, shown smaller
than actual size. Order models
with “-RA” suffix.
SPHT-K-6
retractable cable
shown smaller
than actual size.
136.5 (53⁄8)
9.52 (3⁄8)
Sheath Dia.
90° Angle Probe Length
69.8
(23⁄4)
The SPHT-K-6 is Included
at No Additional Cost With
These Infrared Thermometers
OS532E, OS533E, OS534E ,
OS534E-CF, OS533E-CF
22.4 (7⁄8)
To Order
Sheath Diameter Probe Length
Model No. Calibration mm (inch) mm (inch)
SPHT-J-6 3.0 (
SPHT-J-12 6.0 (
SPHT-J-12-RA 6.0 (
SPHT-K-6 3.0 (
SPHT-K-12 6.0 (
SPHT-K-12-RA 6.0 (
SPHT-E-6 3.0 (
SPHT-E-12 6.0 (
SPHT-E-12-RA 6.0 (
Comes with a plastic cap for protection of the surface element.
Ordering Examples: SPHT-K-12, 12" long, Type K surface probe.
SPHT-J-12-RA, 12" long, Type J, 90° right angle surface probe.
1
) 150 (6)
⁄
8
1
) 300 (12)
⁄
4
1
) 300 (12)
⁄
4
1
) 150 (6)
⁄
8
1
) 300 (12)
⁄
4
1
) 300 (12)
⁄
4
1
) 150 (6)
⁄
8
1
) 300 (12)
⁄
4
1
) 300 (12)
⁄
4
L-62
