Omega SP-001-2 Specification

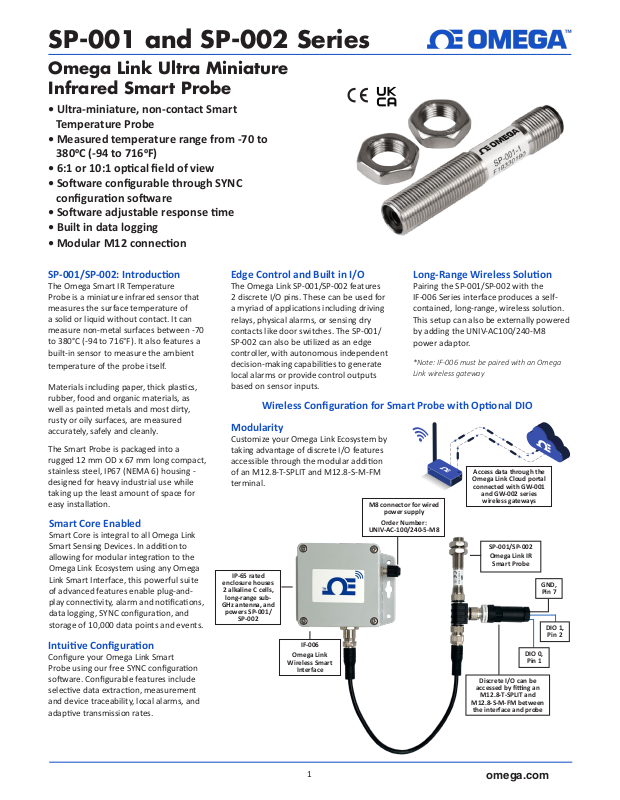

Page 1

SP-001 and SP-002 Series

Omega Link Ultra Miniature Infrared Smart Probe

• Ultra-miniature, non-contact Smart Temperature Probe

• Measured temperature range from -70 to 380C (-94 to 716F)

   

• Built in data logging





The Omega Smart IR Temperature Probe is a miniature infrared sensor that measures the surface temperature of a solid or liquid without contact. It can measure non-metal surfaces between -70 to 380°C (-94 to 716°F). It also features a built-in sensor to measure the ambient

temperature of the probe itself.

Materials including paper, thick plascs,

rubber, food and organic materials, as well as painted metals and most dirty, rusty or oily surfaces, are measured accurately, safely and cleanly.

The Smart Probe is packaged into a rugged 12 mm OD x 67 mm long compact, stainless steel, IP67 (NEMA 6) housing designed for heavy industrial use while taking up the least amount of space for

easy installaon.

Smart Core Enabled

Smart Core is integral to all Omega Link

Smart Sensing Devices. In addion to allowing for modular integraon to the

Omega Link Ecosystem using any Omega Link Smart Interface, this powerful suite of advanced features enable plug-and-

play connecvity, alarm and nocaons, data logging, SYNC conguraon, and

storage of 10,000 data points and events.



Congure your Omega Link Smart Probe using our free SYNC conguraon soware. Congurable features include selecve data extracon, measurement

and device traceability, local alarms, and

adapve transmission rates.

Edge Control and Built in I/O

The Omega Link SP-001/SP-002 features 2 discrete I/O pins. These can be used for

a myriad of applicaons including driving

relays, physical alarms, or sensing dry contacts like door switches. The SP-001/

SP-002 can also be ulized as an edge

controller, with autonomous independent

decision-making capabilies to generate

local alarms or provide control outputs based on sensor inputs.



Modularity

Customize your Omega Link Ecosystem by

taking advantage of discrete I/O features

accessible through the modular addion

of an M12.8-T-SPLIT and M12.8-S-M-FM terminal.

IP-65 rated



2 alkaline C cells,

long-range sub-





SP-002

IF-006

Omega Link

Wireless Smart

Interface



Pairing the SP-001/SP-002 with the IF-006 Series interface produces a self-

contained, long-range, wireless soluon.

This setup can also be externally powered by adding the UNIV-AC100/240-M8

power adaptor.

*Note: IF-006 must be paired with an Omega Link wireless gateway











Omega Link Cloud portal







SP-001/SP-002 Omega Link IR

Smart Probe

DIO 0,

Pin 1

Discrete I/O can be



M12.8-T-SPLIT and







Pin 7

DIO 1,

Pin 2

omega.com

Page 2

SP-001 and SP-002 Series



Temperature Range: -70 to 380°C (-94 to 716°F)

Accuracy @ Ambient of 0 to 50°C (32 to 122°F): 1°C (1.8°F) or 1% of

reading, whichever is greater

 4°C (7.2°F) or 3% of

reading, whichever is greater Repeatability: 1°C (1.8°F) or 1% of reading

0.01 to 1.00, soware

adjustable

Response Time: 1 second Spectral Response: 5.5 to 14 microns

 3.3 VDC, 0.05 W max  SP-001 is 6:1, SP-002

is 10:1



NEMA 6 IP67 -40 to 85°C

(-40 to 185°F) less than 95% RH, noncondensing

 10 Gs from 10 Hz to 500 Hz



CStainless Steel



12 mm OD x 67 mm L (0.47” x 4.49”)



12 mm OD x 33.5 mm L (0.47” x 1.31”)

35 g (1.2 oz)

M12 8-Pin Male Connector



CE, UKCA Congurable via SYNC

conguraon soware Compable with OEG andSYNC conguraon soware

Pin  

Pin 1 DIO 0 Discrete I/O Signal 0

Pin 2 INTR Interrupt Signal

Pin 3 SCL I2C Clock Signal

Pin 4 SDA I2C Data Signal

Pin 5 Shield Shield Ground

Pin 6 DIO 1 Discrete I/O Signal 1

Pin 7 GND Power Ground

Pin 8 3.3VDD Power Supply



The Smart IR Temperature Probe is available with two choices of opcal eld of view, either 6:1 or 10:1. Versions with 2 congurable digital I/O pins are also available. These can be congured as either Inputs or Outputs and can be used for a myriad of applicaons including driving relays, physical alarms, or sensing dry contacts like door switches. The probe can be congured to act as an edge controller,

generang local alarm and control signals based on sensor inputs.

  Discrete I/O Pins 

SP-001-0 6:1 None Smart Probe IR, 6:1 eld of view

SP-001-1 6:1 2 Smart Probe IR, 6:1 eld of view, with discrete I/O

SP-002-0 10:1 None Smart Probe IR, 10:1 eld of view

SP-002-1 10:1 2 Smart Probe IR, 10:1 eld of view, with discrete I/O

Omega Link Smart Interface

Omega Link Smart Sensing devices require an Omega Link Smart Interface to operate and connect to your Omega Link Ecosystem. There are

both wired and wireless opons.

 

IF-001 Wired USB Smart Interface

IF-002 Wired RS485/Modbus Smart Interface

IF-006-1-NA Wireless Sub GHz Wireless Interface -915 MHz

IF-006-1-EU Wireless Sub GHz Wireless Interface -868 MHz

omega.com

Page 3

SP-001 and SP-002 Series



An Omega Link Wireless Gateway is required to connect your SP-001 or SP-002 to the Omega Link Cloud or Omega Enterprise Gateway.

 

GW-001-0

GW-001-2-NA

GW-001-2-EU

GW-001-3-NA

GW-001-3-EU

GW-002-1-LTE

Accessories

 

M12.8-T-SPLIT Smart Probe M12-8 pin shielded T-Splier - enables access to I/O pins

M12.8-S-M-FM M12-8 pin Straight Plug Field install connector with screw terminals

DM12CAB-8-1-RA 1m (3.3’) cable dual M12-8 connector, right angle terminator

DM12CAB-8-3-RA 3m (9.8’) cable dual M12-8 connector, right angle terminator

DM12CAB-8-5-RA 5m (16.4’) cable dual M12-8 connector, right angle terminator

DM12CAB-8-1 1m (3.3’) cable dual M12-8 straight connector

DM12CAB-8-3 3m (9.8’) cable dual M12-8 straight connector

DM12CAB-8-5 5m (16.4’) cable dual M12-8 straight connector

SP-001-MB Mounng bracket for SP-001 and SP-002

Wired IIoT Gateway Standard, Ethernet connecvity, Modbus RTU RS232/RS485 and Modbus TCP

Wireless IIoT Gateway Standard, Ethernet connecvity, connects up to 100 Omega Link Smart Sensors- 915 MHz

Wireless IIoT Gateway Standard, Ethernet connecvity, connects up to 100 Omega Link Smart Sensors- 868 MHz

Wireless IIoT Gateway Pro, Ethernet connecvity, power over Ethernet, connects up to 100

Omega Link Smart Sensors, Modbus RTU RS232/RS485 and Modbus TCP, 2x USB ports- 915

MHz

Wireless IIoT Gateway Pro, Ethernet connecvity, power over Ethernet, connects up to 100

Omega Link Smart Sensors, Modbus RTU RS232/RS485 and Modbus TCP, 2x USB ports- 868

MHz

Wireless LTE IIoT Gateway Pro connects up to 40 Omega Link Smart Sensors, Modbus RTU

RS232/RS485 and Modbus TCP, 1x RJ45 port, 1x USB port - 915 MHz



Omega Link Cloud

The Omega Link Cloud consolidates and brings your data to you when you need

it, wherever you are. The intuive cloud

interface allows you to monitor and store your data, set alarms and alerts, and

provides insights on device acvity. Visit

the OMEGA website for more details.
