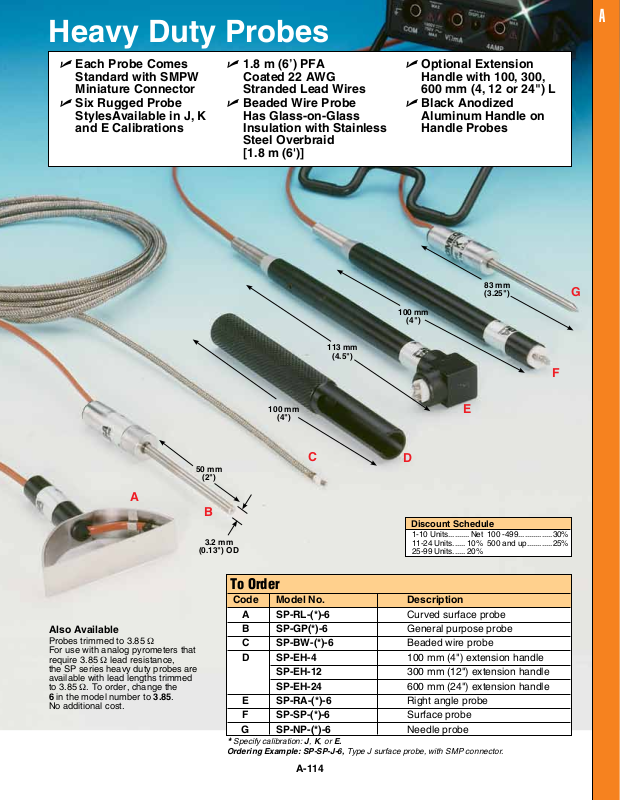

Heavy Duty Probes
A
U Each Probe Comes
Standard with SMPW
Miniature Connector
U Six Rugged Probe
StylesAvailable in J, K
and E Calibrations
U 1.8 m (6’) PFA
Coated 22 AWG
Stranded Lead Wires
U Beaded Wire Probe
Has Glass-on-Glass
Insulation with Stainless
Steel Overbraid
[1.8 m (6')]
113 mm
(4.5")
U Optional Extension
Handle with 100, 300,
600 mm (4, 12 or 24") L
U Black Anodized
Aluminum Handle on
Handle Probes
83 mm
(3.25")
100 mm
(4")
G
A
Also Available
Probes trimmed to 3.85 Ω
For use with analog pyrometers that
require 3.85 Ω lead resistance,
the SP series heavy duty probes are
available with lead lengths trimmed
to 3.85 Ω. To order, change the
6 in the model number to 3.85.
No additional cost.
50 mm
(2")
B
3.2 mm
(0.13") OD
100 mm
(4")
C
D
Discount Schedule
1-10 Units .......... Net 100 -499 ................30%
11-24 Units ...... 10% 500 and up ............25%
25-99 Units ...... 20%
E
To Order
Code Model No. Description
A SP-RL-(*)-6 Curved surface probe
B SP-GP(*)-6 General purpose probe
C SP-BW-(*)-6 Beaded wire probe
D SP-EH-4 100 mm (4") extension handle
SP-EH-12 300 mm (12") extension handle
SP-EH-24 600 mm (24") extension handle
E SP-RA-(*)-6 Right angle probe
F SP-SP-(*)-6 Surface probe
G SP-NP-(*)-6 Needle probe
Specify calibration: J, K, or E.
*
Ordering Example: SP-SP-J-6, Type J surface probe, with SMP connector.
F
A-114
