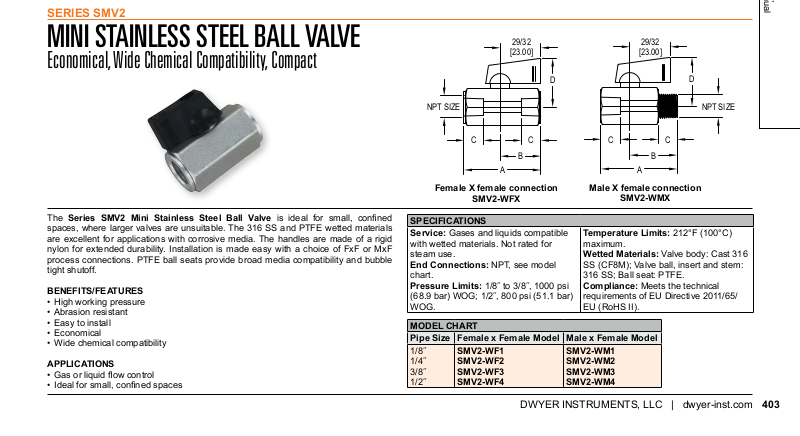

SERIES SMV2
MINI STAINLESS STEEL BALL VALVE
Economical, Wide Chemical Compatibility, Compact
The Series SMV2 Mini Stainless Steel Ball Valve is ideal for small, conned
spaces, where larger valves are unsuitable. The 316 SS and PTFE wetted materials
are excellent for applications with corrosive media. The handles are made of a rigid
nylon for extended durability. Installation is made easy with a choice of FxF or MxF
process connections. PTFE ball seats provide broad media compatibility and bubble
tight shutoff.
BENEFITS/FEATURES
• High working pressure
• Abrasion resistant
• Easy to install
• Economical
• Wide chemical compatibility
APPLICATIONS
• Gas or liquid ow control
• Ideal for small, conned spaces
[23.00]
D
SIZE
CC
B
Female X female connection
SMV2-WFX
SPECIFICATIONS
Service: Gases and liquids compatible
with wetted materials. Not rated for
steam use.
End Connections: NPT, see model
chart.
Pressure Limits: 1/8˝ to 3/8˝, 1000 psi
(68.9 bar) WOG; 1/2˝, 800 psi (51.1 bar)
WOG.
MODEL CHART
Pipe Size Female x Female Model Male x Female Model
1/8˝
1/4˝
3/8˝
1/2˝
SMV2-WF1
SMV2-WF2
SMV2-WF3
SMV2-WF4
Male X female connection
Temperature Limits: 212°F (100°C)
maximum.
Wetted Materials: Valve body: Cast 316
SS (CF8M); Valve ball, insert and stem:
316 SS; Ball seat: PTFE.
Compliance: Meets the technical
requirements of EU Directive 2011/65/
EU (RoHS II).
SMV2-WM1
SMV2-WM2
SMV2-WM3
SMV2-WM4
[23.00]
SMV2-WMX
