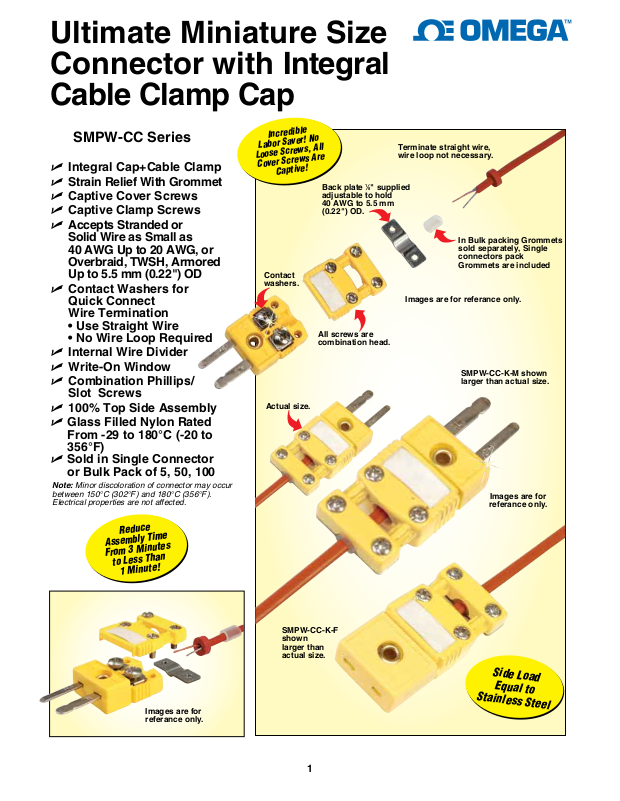

Ultimate Miniature Size
Connector with Integral
Cable Clamp Cap
SMPW-CC Series
U Integral Cap+Cable Clamp
U Strain Relief With Grommet
U Captive Cover Screws
U Captive Clamp Screws
U Accepts Stranded or
Solid Wire as Small as
40 AWG Up to 20 AWG, or
Overbraid, TWSH, Armored
Up to 5.5 mm (0.22") OD
U Contact Washers for
Quick Connect
Wire Termination
• Use Straight Wire
• No Wire Loop Required
U Internal Wire Divider
U Write-On Window
U Combination Phillips/
Slot Screws
U 100% Top Side Assembly
U Glass Filled Nylon Rated
From -29 to 180°C (-20 to
356°F)
U Sold in Single Connector
or Bulk Pack of 5, 50, 100
Note: Minor discoloration of connector may occur
between 150°C (302°F) and 180°C (356°F).
Electrical properties are not affected.
Incredible
Labor Saver! No
Loose Screws, All
Cover Screws Are
Captive!
Contact
washers.
All screws are
combination head.
Actual size.

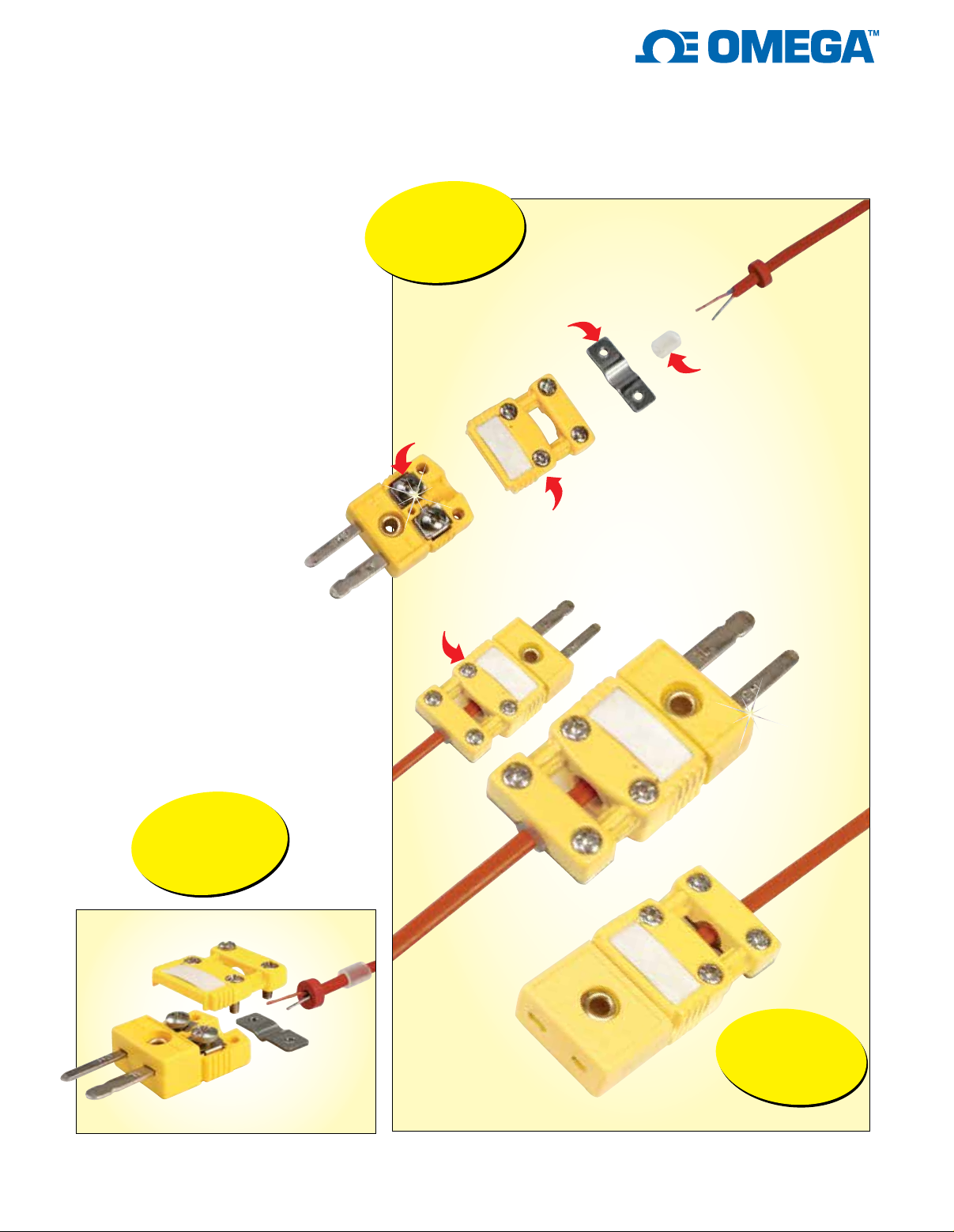

Terminate straight wire,
wire loop not necessary.
Back plate 1⁄8" supplied
adjustable to hold
40 AWG to 5.5 mm
(0.22") OD.
In Bulk packing Grommets
sold separately, Single
connectors pack
Grommets are included
Images are for referance only.
SMPW-CC-K-M shown
larger than actual size.
Images are for
referance only.
Reduce
Assembly Time
From 3 Minutes
to Less Than
1 Minute!
Images are for
referance only.
SMPW-CC-K-F
shown
larger than
actual size.
Side Load
Equal to
Stainless Steel
1
Page 2
SMPW-CC-K-M
ø2.5 (0.10)
shown actual size.
SMPW-CC-K-F
shown actual size.
ø = diameter
Dimensions: mm (inch)
8
(0.31)
2.4
(0.09)
Connector
3.17
(0.13)
Female
7.1
(0.28)
Connector
29.57
(1.2)
20.6
(0.81)
34.11
(1.3)
25.4
(1.0)
Male
4.8
(0.19)
WILL CLAMP FROM
40 AWG WIRE UP TO
5.5 (0.22) SOFT OR
ARMORED CABLE
ø4.9 (0.19) WIRE ACCESS
IN CONNECTOR BODY
8
(0.31)
Pull Test
Highest Rating
3.17
(0.13)
17
(0.66)
0.8
(0.03)

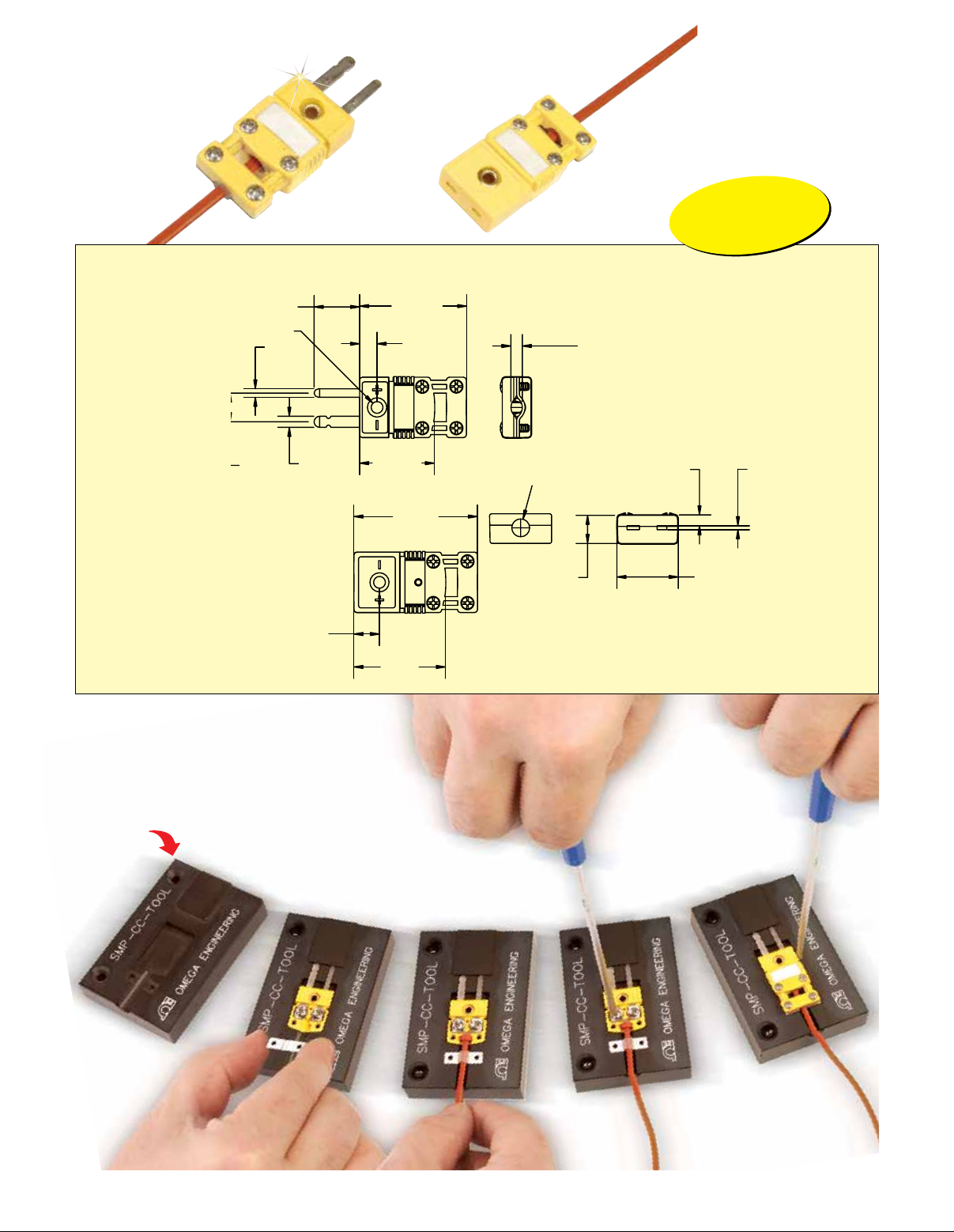

Quick Assembly Tool!
SMP-CC-TOOL shown
smaller than actual size.
1. Place back plate
and SMPW body
3. Tighten
captive screws
2. Terminate
straight wire
2
Page 3
U
W
U
Bulk Packaging, the Wire/Connector and Clamp Grommets Sold Separately.
Model Number
SR-SMP-*
SSRT-CC-018-(*)
SSRT-CC-332-(*)
SSRT-CC-116-(*)
SSRT-CC-132-(*)
* Insert package QTY: Select from 5, 10, 50, 100
Inside Dia
mm (inch)
1.59 (0.063) 4.77 (0.188) 6.35 (0.25) Strain relief Silicone Wire Grommet
3.18 (0.125)
2.38 (0.094)
1.59 (0.063)
0.79 (0.032)
Outside Dia
mm (inch)
4.77 (0.188) 6.35 (0.250) Silicon Clamp Grommet
Length
mm (inch)
To Order
Alloy
Code
Compensating Alloy
Used in Connector
(+) (-) Male Female
CHROMEGA
TM
ALOMEGA
TM
ANSI
Color
Code
Yellow
SMPW-CC-K-M SMPW-CC-K-F
Description
Glass-Filled Nylon
Model No.
* To order solid pin male connectors, add suffix “-S” to the model number for additional cost.
Ordering Example: OSTW-CC-K-M, clamp cap, Type K, hollow pin male.
Note: Bulk packaging options available OSTW-CC-*-**-***, where * Calibration type, ** M or F, *** 5, 50 or 100 pkg qty.
Copper Constantan Blue
Iron Constantan Black
CHROMEGA Constantan Purple
Copper RNX/SNX Green
CPX CNX Red
Copper Copper White
OMEGA-P
TM
OMEGA-N
TM
Orange
3
SMPW-CC-T-M SMPW-CC-T-F
SMPW-CC-J-M SMPW-CC-J-F
SMPW-CC-E-M SMPW-CC-E-F
SMPW-CC-R/S-M SMPW-CC-R/S-F
SMPW-CC-C-M SMPW-CC-C-F
SMPW-CC-U-M SMPW-CC-U-F
SMPW-CC-N-M SMPW-CC-N-F
