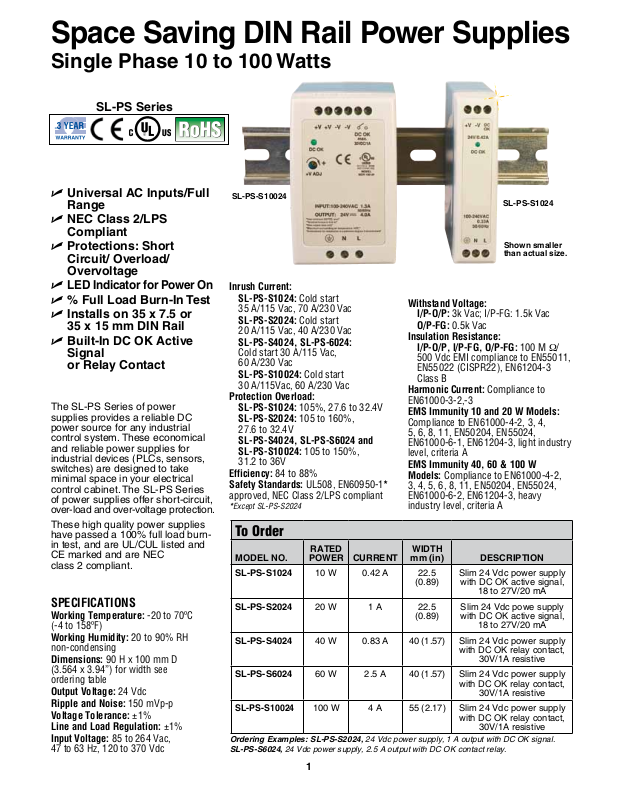

Space Saving DIN Rail Power Supplies
Single Phase 10 to 100 Watts
SL-PS Series
U Universal AC Inputs/Full
Range
U NEC Class 2/LPS
Compliant
U Protections: Short
Circuit/ Overload/
Overvoltage
U
LED Indicator for Power On
U % Full Load Burn-In Test
U Installs on 35 x 7.5 or
35 x 15 mm DIN Rail
U Built-In DC OK Active
Signal
or Relay Contact
The SL-PS Series of power
supplies provides a reliable DC
power source for any industrial
control system. These economical
and reliable power supplies for
industrial devices (PLCs, sensors,
switches) are designed to take
minimal space in your electrical
control cabinet. The SL-PS Series
of power supplies offer short-circuit,
over-load and over-voltage protection.
These high quality power supplies
have passed a 100% full load burnin test, and are UL/CUL listed and
CE marked and are NEC
class 2 compliant.
SPECIFICATIONS
Working Temperature: -20 to 70ºC
(-4 to 158ºF)
Working Humidity: 20 to 90% RH
non-condensing
Dimensions: 90 H x 100 mm D
(3.564 x 3.94”) for width see
ordering table
Output Voltage: 24 Vdc
Ripple and Noise: 150 mVp-p
Voltage Tolerance: ±1%
Line and Load Regulation: ±1%
Input Voltage: 85 to 264 Vac,
47 to 63 Hz, 120 to 370 Vdc
SL-PS-S10024
Inrush Current:
SL-PS-S1024: Cold start
35 A/115 Vac, 70 A/230 Vac
SL-PS-S2024: Cold start
20 A/115 Vac, 40 A/230 Vac
SL-PS-S4024, SL-PS-6024:
Cold start 30 A/115 Vac,
60 A/230 Vac
SL-PS-S10024: Cold start
30 A/115Vac, 60 A/230 Vac
Protection Overload:
SL-PS-S1024: 105%, 27.6 to 32.4V
SL-PS-S2024: 105 to 160%,
27.6 to 32.4V
SL-PS-S4024, SL-PS-S6024 and
SL-PS-S10024: 105 to 150%,
31.2 to 36V
Efficiency: 84 to 88%
Safety Standards: UL508, EN60950-1*
approved, NEC Class 2/LPS compliant
*Except SL-PS-S2024
Withstand Voltage:
I/P-O/P: 3k Vac; I/P-FG: 1.5k Vac
O/P-FG: 0.5k Vac
Insulation Resistance:
I/P-O/P, I/P-FG, O/P-FG: 100 M Ω/
500 Vdc EMI compliance to EN55011,
EN55022 (CISPR22), EN61204-3
Class B
Harmonic Current: Compliance to
EN61000-3-2,-3
EMS Immunity 10 and 20 W Models:
Compliance to EN61000-4-2, 3, 4,
5, 6, 8, 11, EN50204, EN55024,
EN61000-6-1, EN61204-3, light industry
level, criteria A
EMS Immunity 40, 60 & 100 W
Models: Compliance to EN61000-4-2,
3, 4, 5, 6, 8, 11, EN50204, EN55024,
EN61000-6-2, EN61204-3, heavy
industry level, criteria A

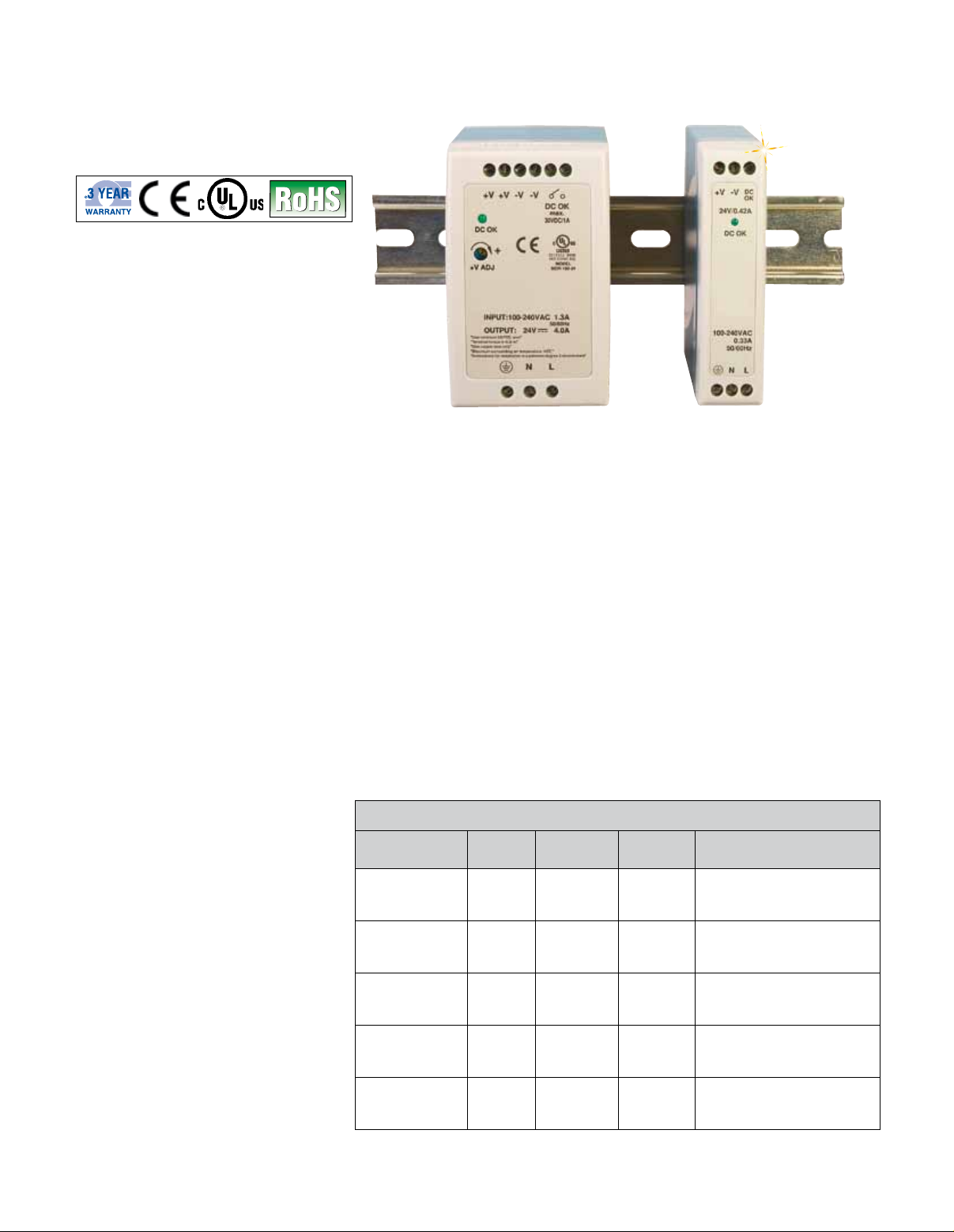

SL-PS-S1024
Shown smaller
than actual size.
To Order
MODEL NO.
SL-PS-S1024
SL-PS-S2024
SL-PS-S4024
SL-PS-S6024
SL-PS-S10024
Ordering Examples: SL-PS-S2024, 24 Vdc power supply, 1 A output with DC OK signal.
SL-PS-S6024, 24 Vdc power supply, 2.5 A output with DC OK contact relay.
RATED
POWER CURRENT
10 W 0.42 A 22.5
20 W 1 A 22.5
40 W 0.83 A 40 (1.57) Slim 24 Vdc power supply
60 W 2.5 A 40 (1.57) Slim 24 Vdc power supply
100 W 4 A 55 (2.17) Slim 24 Vdc power supply
WIDTH
mm (in) DESCRIPTION
(0.89)
(0.89)
Slim 24 Vdc power supply
with DC OK active signal,
18 to 27V/20 mA
Slim 24 Vdc powe supply
with DC OK active signal,
18 to 27V/20 mA
with DC OK relay contact,
30V/1A resistive
with DC OK relay contact,
30V/1A resistive
with DC OK relay contact,
30V/1A resistive
1
