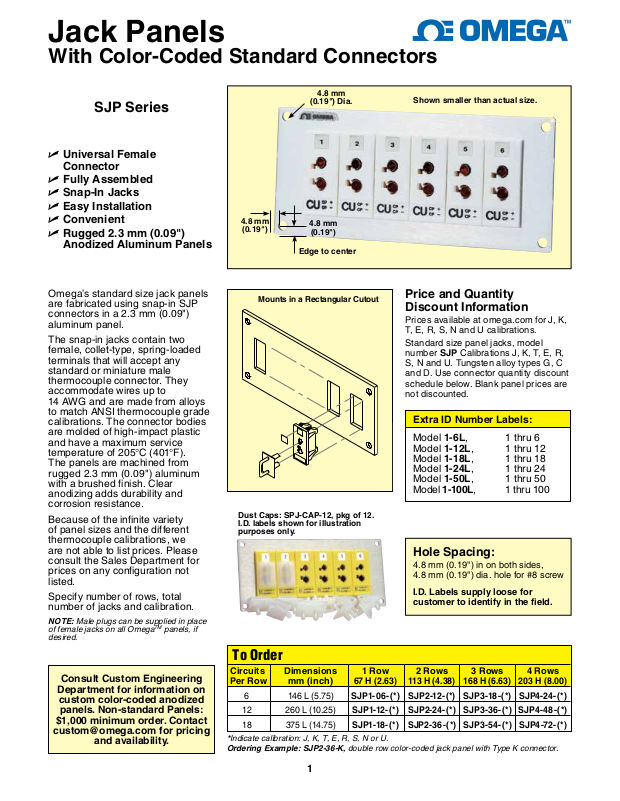

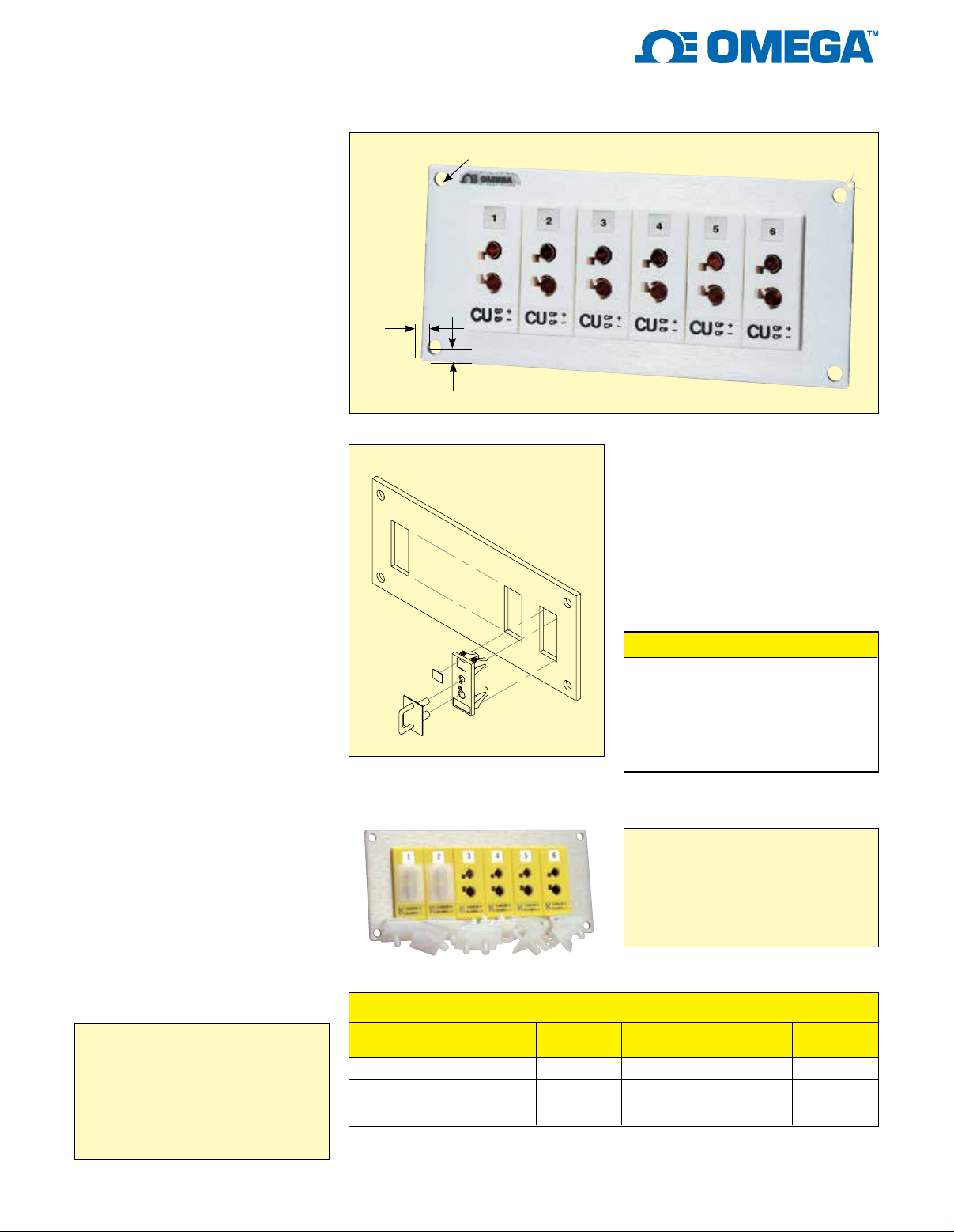

Jack Panels
With Color-Coded Standard Connectors
SJP Series
U Universal Female
Connector
U Fully Assembled
U Snap-In Jacks
U Easy Installation
U Convenient
U
Rugged 2.3 mm (0.09")
Anodized Aluminum Panels
Omega’s standard size jack panels
are fabricated using snap-in SJP
connectors in a 2.3 mm (0.09")
aluminum panel.
The snap-in jacks contain two
female, collet-type, spring-loaded
terminals that will accept any
standard or miniature male
thermocouple connector. They
accommodate wires up to
14 AWG and are made from alloys
to match ANSI thermocouple grade
calibrations. The connector bodies
are molded of high-impact plastic
and have a maximum service
temperature of 205°C (401°F).
The panels are machined from
rugged 2.3 mm (0.09") aluminum
with a brushed finish. Clear
anodizing adds durability and
corrosion resistance.
Because of the infinite variety
of panel sizes and the different
thermocouple calibrations, we
are not able to list prices. Please
consult the Sales Department for
prices on any configuration not
listed.
Specify number of rows, total
number of jacks and calibration.
NOTE: Male plugs can be supplied in place
of female jacks on all OmegaTM panels, if
desired.
4.8 mm
(0.19") Dia.
4.8 mm
(0.19")
Mounts in a Rectangular Cutout
Dust Caps: SPJ-CAP-12, pkg of 12.
I.D. labels shown for illustration
purposes only.
4.8 mm
(0.19")
Edge to center
Shown smaller than actual size.
Price and Quantity
Discount Information
Prices available at omega.com for J, K,
T, E, R, S, N and U calibrations.
Standard size panel jacks, model
number SJP Calibrations J, K, T, E, R,
S, N and U. Tungsten alloy types G, C
and D. Use connector quantity discount
schedule below. Blank panel prices are
not discounted.
Extra ID Number Labels:
Model 1-6L, 1 thru 6
Model 1-12L, 1 thru 12
Model 1-18L, 1 thru 18
Model 1-24L, 1 thru 24
Model 1-50L, 1 thru 50
Model 1-100L, 1 thru 100
Hole Spacing:
4.8 mm (0.19") in on both sides,
4.8 mm (0.19") dia. hole for #8 screw
I.D. Labels supply loose for
customer to identify in the field.
Consult Custom Engineering
Department for information on
custom color-coded anodized
panels. Non-standard Panels:
$1,000 minimum order. Contact
[email protected] for pricing
and availability.
To Order
Circuits Dimensions 1 Row 2 Rows 3 Rows 4 Rows
Per Row mm (inch)
6 146 L (5.75) SJP1-06-(*) SJP2-12-(*) SJP3-18-(*) SJP4-24-(*)
12 260 L (10.25) SJP1-12-(*) SJP2-24-(*) SJP3-36-(*) SJP4-48-(*)
18 375 L (14.75) SJP1-18-(*) SJP2-36-(*) SJP3-54-(*) SJP4-72-(*)
*Indicate calibration: J, K, T, E, R, S, N or U.
Ordering Example: SJP2-36-K, double row color-coded jack panel with Type K connector.
1
67 H (2.63) 113 H (4.38) 168 H (6.63) 203 H (8.00)
