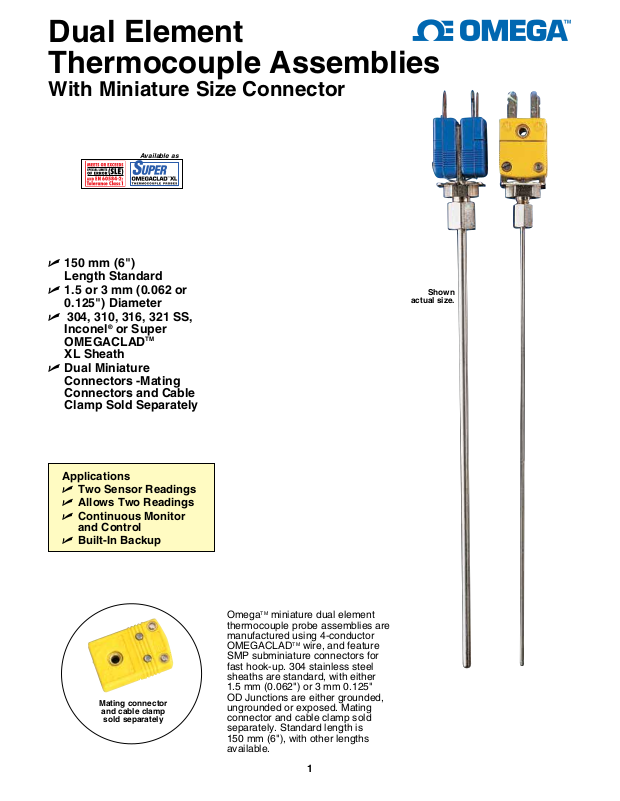

Dual Element
Thermocouple Assemblies
With Miniature Size Connector
Available as
U 150 mm (6")
Length Standard
U 1.5 or 3 mm (0.062 or
0.125") Diameter
U 304, 310, 316, 321 SS,
Inconel
®
or Super
OMEGACLADTM
XL Sheath
U Dual Miniature
Connectors -Mating
Connectors and Cable
Clamp Sold Separately
Shown
actual size.
Applications
U Two Sensor Readings
U Allows Two Readings
U Continuous Monitor
and Control
U Built-In Backup
Mating connector
and cable clamp
sold separately

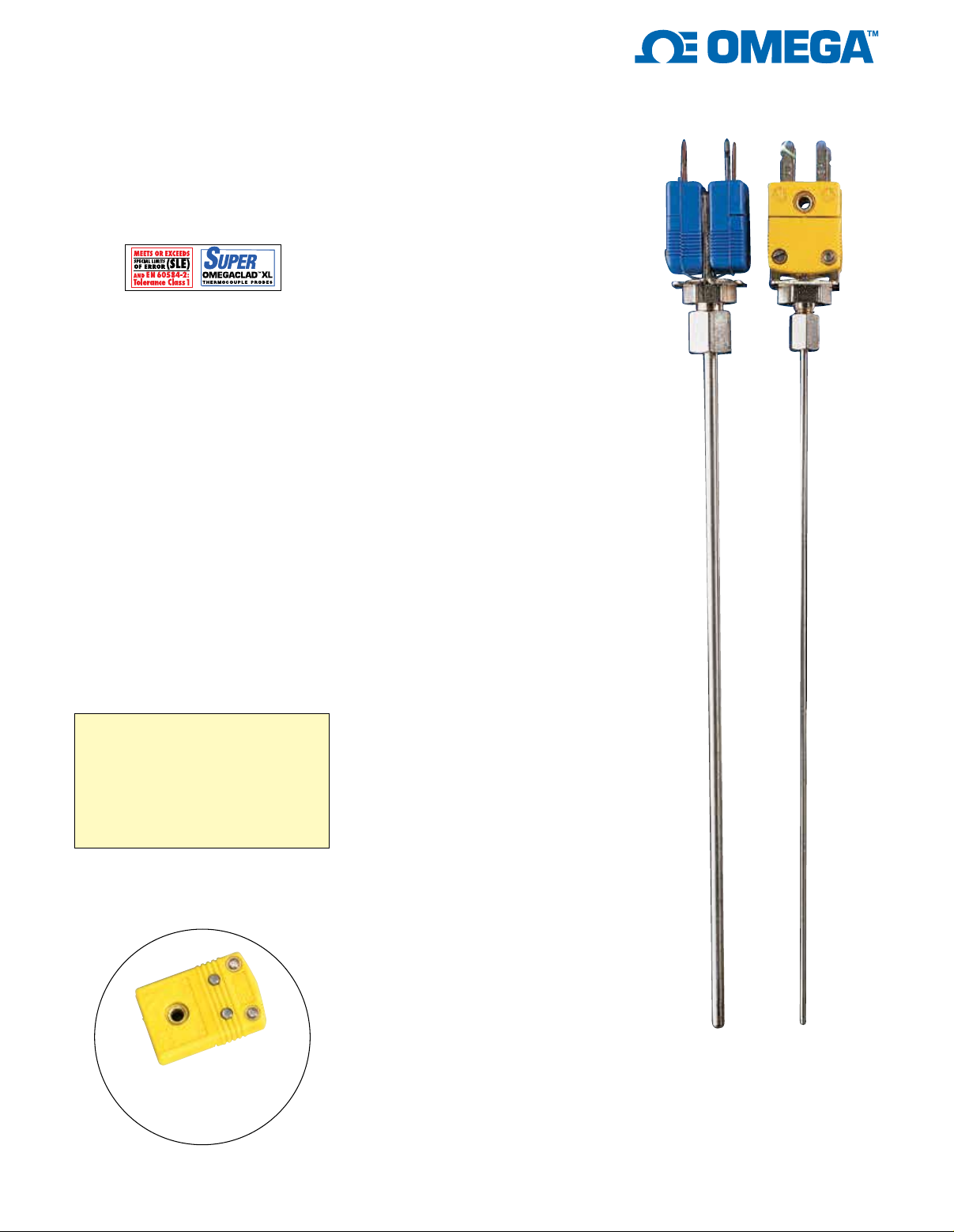

OmegaTM miniature dual element
thermocouple probe assemblies are
manufactured using 4-conductor
OMEGACLADTM wire, and feature
SMP subminiature connectors for
fast hook-up. 304 stainless steel
sheaths are standard, with either
1.5 mm (0.062") or 3 mm 0.125"
OD Junctions are either grounded,
ungrounded or exposed. Mating
connector and cable clamp sold
separately. Standard length is
150 mm (6"), with other lengths
available.
1
Page 2
Thermocouple
Alloy
IRONCONSTANTAN
SICSS-062G-6-DUAL
SICSS-125G-6-DUAL
304 SS Sheath
TM
CHROMEGA
ALOMEGA
TM
SCASS-062G-6-DUAL
-
*
SCASS-125G-6-DUAL
304 SS Sheath
TM
SCXSS-062G-6-DUAL
CHROMEGA
CONSTANTAN
-
SCXSS-125G-6-DUAL
304 SS Sheath
COPPERCONSTANTAN
SCPSS-062G-6-DUAL
SCPSS-125G-6-DUAL
304 SS Sheath
All Accessories Sold Seperately.
To order Super OMEGACLAD
*
Grounded
Junction
SICSS-062U-6-DUAL
SICSS-125U-6-DUAL
SCASS-062U-6-DUAL
SCASS-125U-6-DUAL
SCXSS-062U-6-DUAL
SCXSS-125U-6-DUAL
SCPSS-062U-6-DUAL
SCPSS-125U-6-DUAL
TM
XL sheath, change “SS” in model number to “XL” for additional cost.
Ungrounded
Junction
Exposed
Junction
SICSS-062E-6 DUAL
SICSS-125E-6-DUAL
SCASS-062E-6-DUAL
SCASS-125E-6-DUAL
SCXSS-062E-6-DUAL
SCXSS-125E-6-DUAL
SCPSS-062E-6-DUAL
SCPSS-125E-6-DUAL
Mating
Connector
Model No.
Cable
Clamp
Model No.
Safety
Clamp
Model No.
SMPW-*-F PCLM SMCL
To Order
Thermocouple Sheath Dia. Grounded Ungrounded Exposed
Alloy mm (inch) Junction Junction Junction
IRON CONSTANTAN 1.5 (0.062") SICSS-062G-6-DUAL SICSS-062U-6-DUAL SICSS-062E-6 DUAL
304 SS Sheath 3.0 (0.125") SICSS-125G-6-DUAL SICSS-125U-6-DUAL SICSS-125E-6-DUAL
CHROMEGA
ALOMEGATM 1.5 (0.062") SCASS-062G-6-DUAL SCASS-062U-6-DUAL SCASS-062E-6-DUAL
304 SS Sheath 3.0 (0.125") SCASS-125G-6-DUAL SCASS-125U-6-DUAL SCASS-125E-6-DUAL
CHROMEGA
CONSTANTAN 1.5 (0.062") SCXSS-062G-6-DUAL SCXSS-062U-6-DUAL SCXSS-062E-6-DUAL
304 SS Sheath 3.0 (0.125") SCXSS-125G-6-DUAL SCXSS-125U-6-DUAL SCXSS-125E-6-DUAL
COPPER-
CONSTANTAN 1.5 (0.062") SCPSS-062G-6-DUAL SCPSS-062U-6-DUAL SCPSS-062E-6-DUAL
304 SS Sheath 3.0 (0.125") SCPSS-125G-6-DUAL SCPSS-125U-6-DUAL SCPSS-125E-6-DUAL
Note: Miniature glass filled nylon connectors rated to 220°C (425°F) are standard. Higher temperature liquid crystal polymers connectors rated
260°C (500°F) are also available. Add “-LCP” to model number for additional cost.
To order with 310, 316 or 321 stainless steel sheath, change “SS” in model number to “310SS”, “316SS” or “321SS” respectively, no extra cost.
For Inconel, change “SS” in model number to “IN”, no extra cost.
To order Super OMEGACLAD
*
Ordering Example: SCASS-125U-6-DUAL, subminiature dual element probe, Type K, stainless steel sheath, ungrounded, 3 mm (0.125") Dia.,
150 mm (6") long.
TM
-
*
TM
-
TM
XL sheath, change “SS” in model number to “XL” for additional cost.
