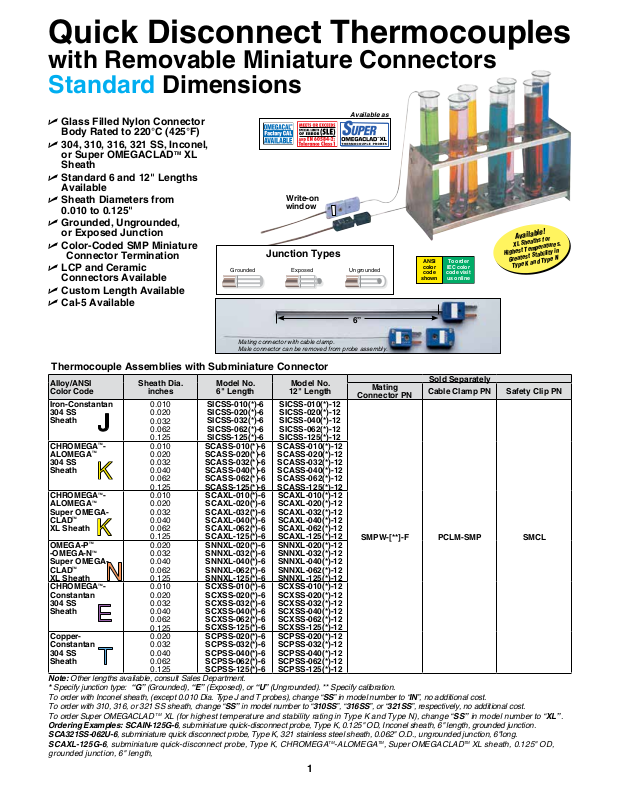

Quick Disconnect Thermocouples
with Removable Miniature Connectors
Standard Dimensions
U Glass Filled Nylon Connector
Available as
Body Rated to 220°C (425°F)
U 304, 310, 316, 321 SS, Inconel,
or Super OMEGACLADTM XL
Sheath
U Standard 6 and 12" Lengths
Available
U Sheath Diameters from
0.010 to 0.125"
Write-on
window
U Grounded, Ungrounded,
or Exposed Junction
U Color-Coded SMP Miniature
Connector Termination
U LCP and Ceramic
Connectors Available
Junction Types
Grounded Exposed Ungrounded
ANSI
color
code
shown
To order
IEC color
code visit
us online
Available!
XL Sheaths for
Highest Temperatures.
Greatest Stability in
Type K and Type N
U Custom Length Available
U Cal-5 Available
6”
Mating connector with cable clamp.
Male connector can be removed from probe assembly.
Thermocouple Assemblies with Subminiature Connector
Alloy/ANSI
Color Code
Iron-Constantan
304 SS
Sheath
CHROMEGATMALOMEGA
304 SS
Sheath
CHROMEGATMALOMEGA
Super OMEGACLADTM
XL Sheath
OMEGA-P
-OMEGA-N
Super OMEGACLAD
XL Sheath
CHROMEGATMConstantan
304 SS
Sheath
CopperConstantan
304 SS
Sheath
Note: Other lengths available, c
* Specify junction type: “G” (Grounded), “E” (Exposed), or “U” (Ungrounded). ** Specify calibration.
To order with Inconel sheath, (except 0.010 Dia. Type J and T probes), change “SS” in model number to “IN”, no additional cost.
To order with 310, 316, or 321 SS sheath, change “SS” in model number to “310SS”, “316SS”, or “321SS”, respectively, no additional cost.
To order Super OMEGACLADTM XL (for highest temperature and stability rating in Type K and Type N), change “SS” in model number to “XL”.
Ordering Examples: SCAIN-125G-6, subminiature quick-disconnect probe, Type K, 0.125" OD, Inconel sheath, 6" length, grounded junction.
SCA321SS-062U-6, subminiature quick disconnect probe, Type K, 321 stainless steel sheath, 0.062" O.D., ungrounded junction, 6"long.
SCAXL-125G-6, subminiature quick-disconnect probe, Type K, CHROMEGATM-ALOMEGATM, Super OMEGACLADTM XL sheath, 0.125" OD,
grounded junction, 6" length,
TM
TM
TM
TM
TM
Sheath Dia.
inches
0.010
0.020
0.032
0.062
0.125
0.010
0.020
0.032
0.040
0.062
0.125
0.010
0.020
0.032
0.040
0.062
0.125
0.020
0.032
0.040
0.062
0.125
0.010
0.020
0.032
0.040
0.062
0.125
0.020
0.032
0.040
0.062
0.125
onsult Sales Department.
Model No.
6" Length
SICSS-010(*)-6
SICSS-020(*)-6
SICSS-032(*)-6
SICSS-062(*)-6
SICSS-125(*)-6
SCASS-010(*)-6
SCASS-020(*)-6
SCASS-032(*)-6
SCASS-040(*)-6
SCASS-062(*)-6
SCASS-125(*)-6
SCAXL-010(*)-6
SCAXL-020(*)-6
SCAXL-032(*)-6
SCAXL-040(*)-6
SCAXL-062(*)-6
SCAXL-125(*)-6
SNNXL-020(*)-6
SNNXL-032(*)-6
SNNXL-040(*)-6
SNNXL-062(*)-6
SNNXL-125(*)-6
SCXSS-010(*)-6
SCXSS-020(*)-6
SCXSS-032(*)-6
SCXSS-040(*)-6
SCXSS-062(*)-6
SCXSS-125(*)-6
SCPSS-020(*)-6
SCPSS-032(*)-6
SCPSS-040(*)-6
SCPSS-062(*)-6
SCPSS-125(*)-6
Model No.
12" Length
SICSS-010(*)-12
SICSS-020(*)-12
SICSS-040(*)-12
SICSS-062(*)-12
SICSS-125(*)-12
SCASS-010(*)-12
SCASS-020(*)-12
SCASS-032(*)-12
SCASS-040(*)-12
SCASS-062(*)-12
SCASS-125(*)-12
SCAXL-010(*)-12
SCAXL-020(*)-12
SCAXL-032(*)-12
SCAXL-040(*)-12
SCAXL-062(*)-12
SCAXL-125(*)-12
SNNXL-020(*)-12
SNNXL-032(*)-12
SNNXL-040(*)-12
SNNXL-062(*)-12
SNNXL-125(*)-12
SCXSS-010(*)-12
SCXSS-020(*)-12
SCXSS-032(*)-12
SCXSS-040(*)-12
SCXSS-062(*)-12
SCXSS-125(*)-12
SCPSS-020(*)-12
SCPSS-032(*)-12
SCPSS-040(*)-12
SCPSS-062(*)-12
SCPSS-125(*)-12
Mating
Connector PN
SMPW-[**]-F PCLM-SMP SMCL
Sold Separately
Cable Clamp PN Safety Clip PN
