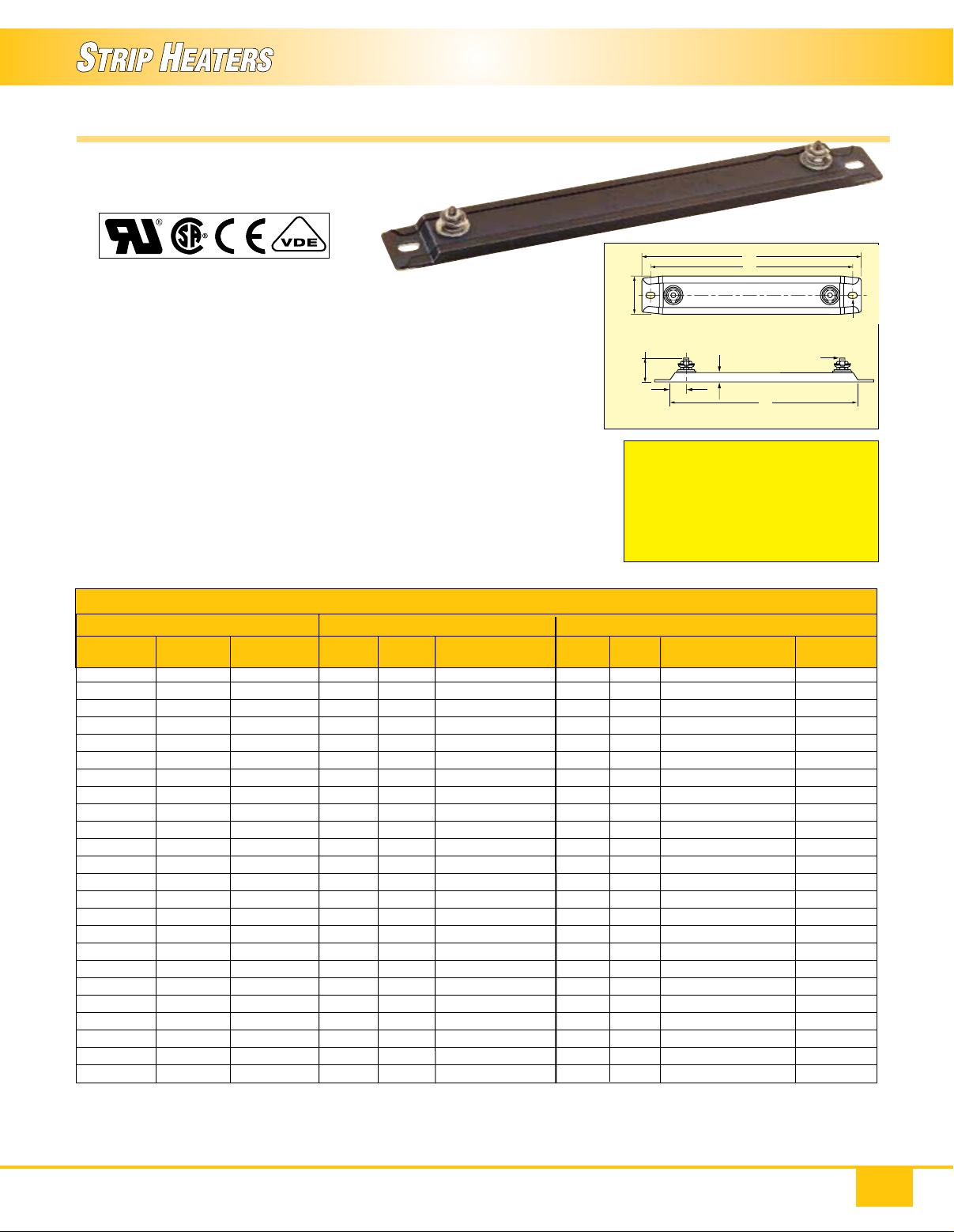

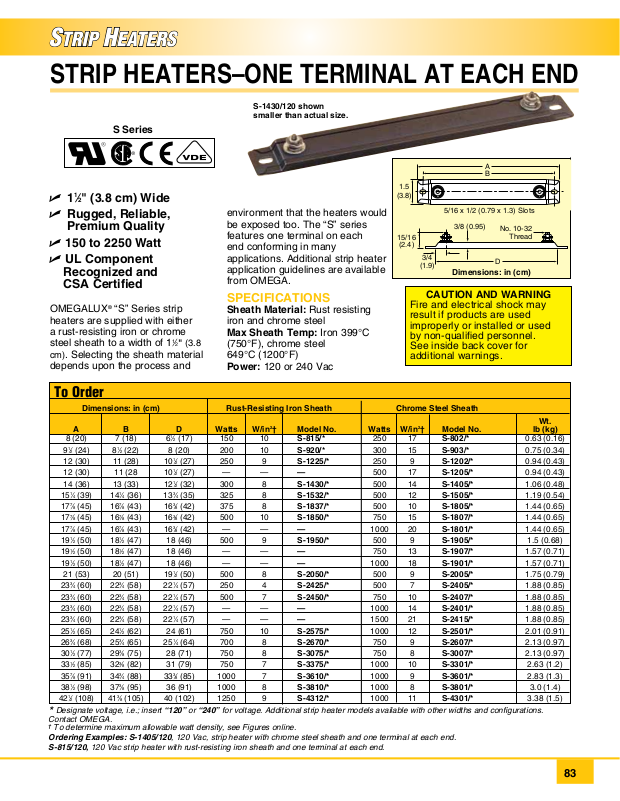

STRIP HEATERS–ONE TERMINAL AT EACH END
1.5
(3.8)
5/16 x 1/2 (0.79 x 1.3) Slots
A
B
S-1430/120 shown
smaller than actual size.
S Series
A
B
1.5
U 11⁄2" (3.8 cm) Wide
U Rugged, Reliable,
Premium Quality
U 150 to 2250 Watt
U UL Component
Recognized and
CSA Certified
OMEGALUX® “S” Series strip
heaters are supplied with either
a rust-resisting iron or chrome
steel sheath to a width of 11⁄2" (3.8
cm)
. Selecting the sheath material
depends upon the process and
environment that the heaters would
be exposed too. The “S” series
features one terminal on each
end conforming in many
applications. Additional strip heater
application guidelines are available
from OMEGA.
SPECIFICATIONS
Sheath Material: Rust resisting
iron and chrome steel
Max Sheath Temp: Iron 399°C
(750°F), chrome steel
649°C (1200°F)
Power: 120 or 240 Vac
(3.8)
5/16 x 1/2 (0.79 x 1.3) Slots
15/16
(2.4)
3/4
(1.9)
3/8 (0.95)
Dimensions: in (cm)
No. 10-32
Thread
D
CAUTION AND WARNING
Fire and electrical shock may
result if products are used
improperly or installed or used
by non-qualified personnel.
See inside back cover for
additional warnings.
To Order
Wt.
A B D Watts W/in2† Model No. Watts W/in2† Model No. lb (kg)
8 (20) 7 (18) 61⁄2 (17) 150 10 S-815/* 250 17 S-802/* 0.63 (0.16)
91⁄2 (24) 81⁄2 (22) 8 (20) 200 10 S-920/* 300 15 S-903/* 0.75 (0.34)
12 (30) 11 (28) 101⁄2 (27) 250 9 S-1225/* 250 9 S-1202/* 0.94 (0.43)
12 (30) 11 (28 101⁄2 (27) — — — 500 17 S-1205/* 0.94 (0.43)
14 (36) 13 (33) 121⁄2 (32) 300 8 S-1430/* 500 14 S-1405/* 1.06 (0.48)
151⁄4 (39) 141⁄4 (36) 133⁄4 (35) 325 8 S-1532/* 500 12 S-1505/* 1.19 (0.54)
177⁄8 (45) 167⁄8 (43) 163⁄8 (42) 375 8 S-1837/* 500 10 S-1805/* 1.44 (0.65)
177⁄8 (45) 167⁄8 (43) 163⁄8 (42) 500 10 S-1850/* 750 15 S-1807/* 1.44 (0.65)
177⁄8 (45) 167⁄8 (43) 163⁄8 (42) — — — 1000 20 S-1801/* 1.44 (0.65)
191⁄2 (50) 181⁄2 (47) 18 (46) 500 9 S-1950/* 500 9 S-1905/* 1.5 (0.68)
191⁄2 (50) 181⁄2 (47) 18 (46) — — — 750 13 S-1907/* 1.57 (0.71)
191⁄2 (50) 181⁄2 (47) 18 (46) — — — 1000 18 S-1901/* 1.57 (0.71)
21 (53) 20 (51) 191⁄2 (50) 500 8 S-2050/* 500 9 S-2005/* 1.75 (0.79)
233⁄4 (60) 223⁄4 (58) 221⁄4 (57) 250 4 S-2425/* 500 7 S-2405/* 1.88 (0.85)
233⁄4 (60) 223⁄4 (58) 221⁄4 (57) 500 7 S-2450/* 750 10 S-2407/* 1.88 (0.85)
233⁄4 (60) 223⁄4 (58) 221⁄4 (57) — — — 1000 14 S-2401/* 1.88 (0.85)
233⁄4 (60) 223⁄4 (58) 221⁄4 (57) — — — 1500 21 S-2415/* 1.88 (0.85)
251⁄2 (65) 241⁄2 (62) 24 (61) 750 10 S-2575/* 1000 12 S-2501/* 2.01 (0.91)
263⁄4 (68) 253⁄4 (65) 251⁄4 (64) 700 8 S-2670/* 750 9 S-2607/* 2.13 (0.97)
301⁄2 (77) 293⁄8 (75) 28 (71) 750 8 S-3075/* 750 8 S-3007/* 2.13 (0.97)
331⁄2 (85) 323⁄8 (82) 31 (79) 750 7 S-3375/* 1000 10 S-3301/* 2.63 (1.2)
357⁄8 (91) 343⁄4 (88) 333⁄8 (85) 1000 7 S-3610/* 1000 9 S-3601/* 2.83 (1.3)
381⁄2 (98) 373⁄8 (95) 36 (91) 1000 8 S-3810/* 1000 8 S-3801/* 3.0 (1.4)
421⁄2 (108) 413⁄8 (105) 40 (102) 1250 9 S-4312/* 1000 11 S-4301/* 3.38 (1.5)
*
Contact OMEGA.
†
Ordering Examples: S-1405/120, 120 Vac, strip heater with chrome steel sheath and one terminal at each end.
S-815/120, 120 Vac strip heater with rust-resisting iron sheath and one terminal at each end.
Dimensions: in (cm) Rust-Resisting Iron Sheath Chrome Steel Sheath
Designate voltage, i.e.; insert “120” or “240” for voltage. Additional strip heater models available with other widths and configurations.
To determine maximum allowable watt density, see Figures online.
