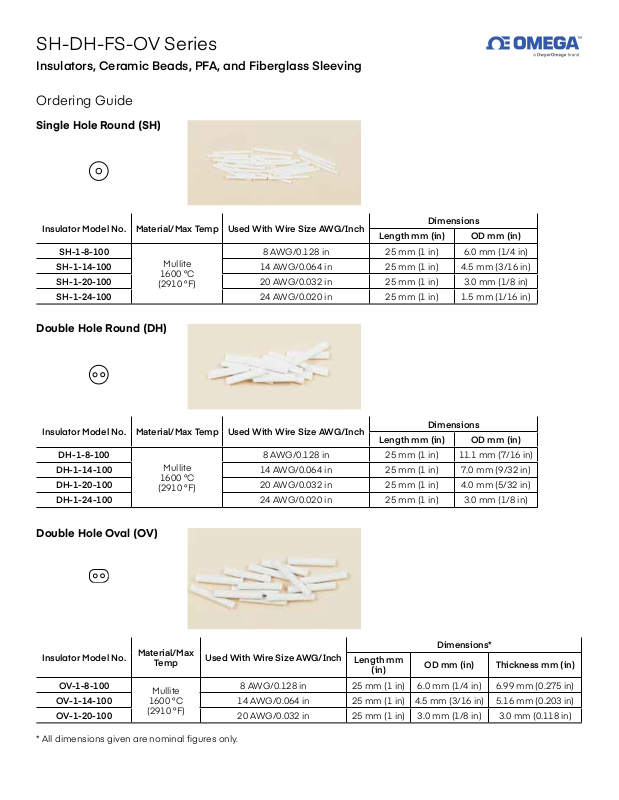

SH-DH-FS-OV Series
Insulators, Ceramic Beads, PFA, and Fiberglass Sleeving
Ordering Guide
Single Hole Round (SH)
Insulator Model No. Material/Max Temp Used With Wire Size AWG/Inch
SH-1-8-100
SH-1-14-100
SH-1-20-100
SH-1-24-100
Mullite
1600 °C
(2910 °F)
8 AWG/0.128 in 25 mm (1 in) 6.0 mm (1/4 in)
14 AWG/0.064 in 25 mm (1 in) 4.5 mm (3/16 in)
20 AWG/0.032 in 25 mm (1 in) 3.0 mm (1/8 in)
24 AWG/0.020 in 25 mm (1 in) 1.5 mm (1/16 in)
Double Hole Round (DH)
Insulator Model No. Material/Max Temp Used With Wire Size AWG/Inch
DH-1-8-100
DH-1-14-100
DH-1-20-100
DH-1-24-100
Mullite
1600 °C
(2910 °F)
8 AWG/0.128 in 25 mm (1 in) 11.1 mm (7/16 in)
14 AWG/0.064 in 25 mm (1 in) 7.0 mm (9/32 in)
20 AWG/0.032 in 25 mm (1 in) 4.0 mm (5/32 in)
24 AWG/0.020 in 25 mm (1 in) 3.0 mm (1/8 in)
Dimensions
Length mm (in) OD mm (in)
Dimensions
Length mm (in) OD mm (in)
Double Hole Oval (OV)
Insulator Model No.
OV-1-8-100
OV-1-14-100
OV-1-20-100
* All dimensions given are nominal gures only.
Material/Max
Temp
Mullite
1600 °C
(2910 °F)
Used With Wire Size AWG/Inch
Dimensions*
Length mm
(in)
8 AWG/0.128 in 25 mm (1 in) 6.0 mm (1/4 in) 6.99 mm (0.275 in)
14 AWG/0.064 in 25 mm (1 in) 4.5 mm (3/16 in) 5.16 mm (0.203 in)
20 AWG/0.032 in 25 mm (1 in) 3.0 mm (1/8 in) 3.0 mm (0.118 in)
OD mm (in) Thickness mm (in)
Page 2
Single Hole Fish Spine (FS)
®
Insulator Model No. Material/Max Temp Used With Wire Size AWG/Inch
FS-400-8-(†)
FS-330-10-(†)
FS-260-8-(†)
FS-260-12-(†)
FS-200-14-(†)
FS-170-18-(†)
FS-125-20-(†)
FS-110-20-(†)
Steatite
1200 °C
(2190 °F)
8 AWG/0.128 in 10.2 mm (0.40 in)
10 AWG/0.102 in 8.38 mm (0.33 in)
8 AWG/0.128 in 6.60 mm (0.26 in)
12 AWG/0.081 in 6.60 mm (0.26 in)
14 AWG/0.064 in 5.08 mm (0.20 in)
18 AWG/0.040 in 4.32 mm (0.17 in)
20 AWG/0.032 in 3.18 mm (0.13 in)
20 AWG/0.032 in 2.79 mm (0.11 in)
† Specify quantity: 500 or 1000 pieces.
Dimensions
Length mm (in) OD mm (in)
DS-SH-DH-FS-OV
Improving the world, one measurement at a time.
